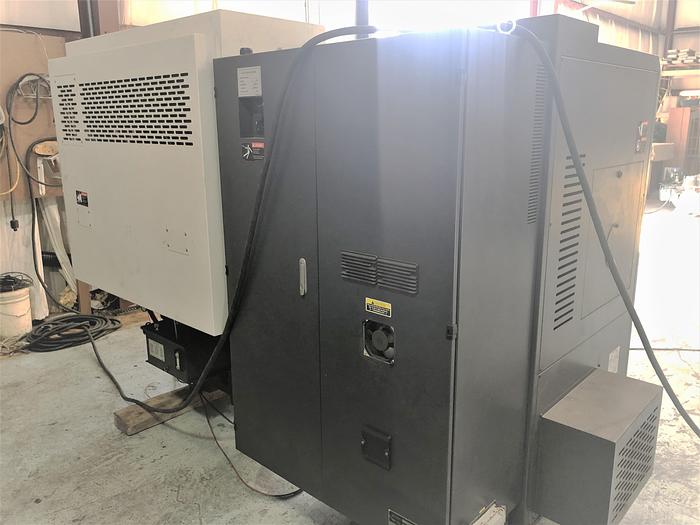

2017 Samsung SL-1500

2017 Samsung SL-1500

$39,500 (USD)

Dundee, FL

orCall (863) 439-6066

Description

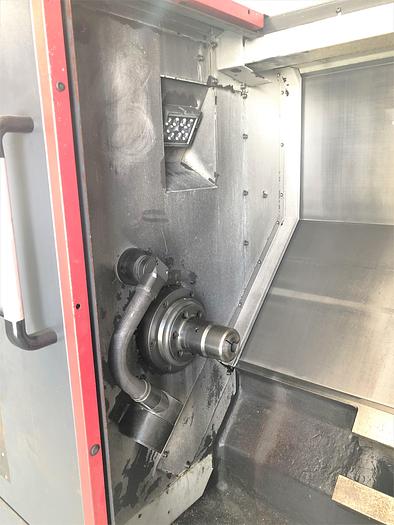

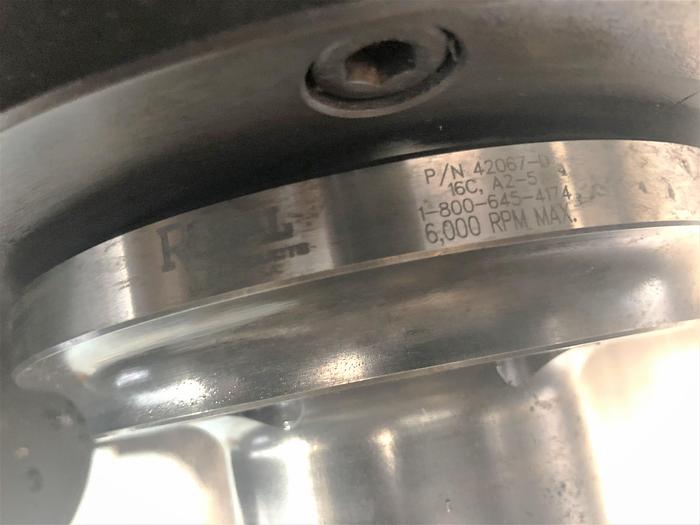

Royal Products 16C Collet Chuck

Samsung USA Package

Chip Conveyor

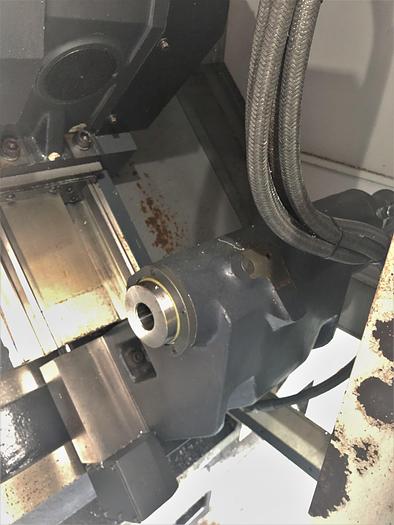

Programmable Tailstock

Tool Presetter

Air Blow

Slant Bed Design

Boxed Ways

Ethernet Interface

USB Port Interface

Card Interface

RS 232 Port Interface

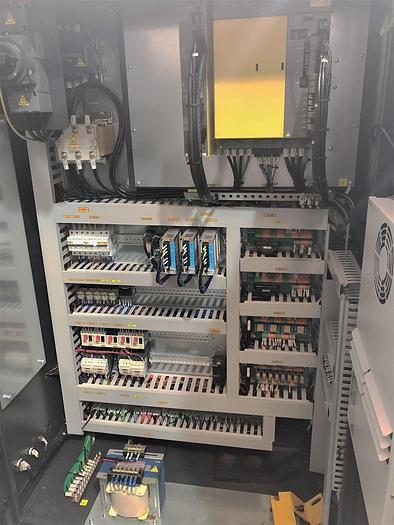

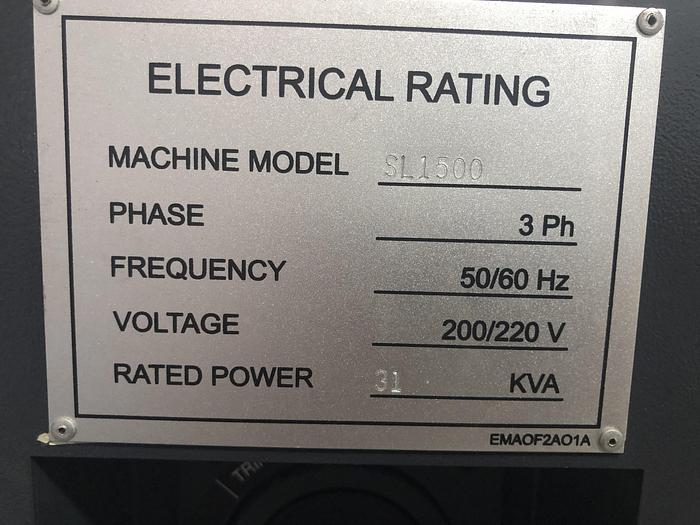

Wired 200/220V Electrics

All Available Tooling

All Available Manuals

Price New as Equipped Just Over $71,000

Specifications

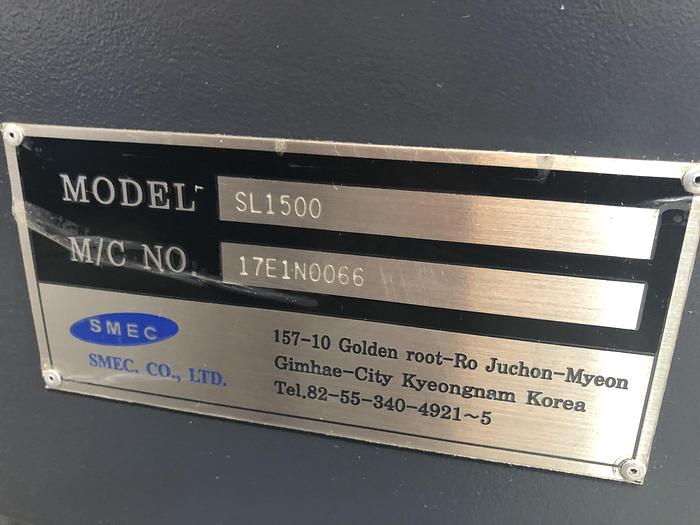

ManufacturerSamsung
ModelSL-1500
Year2017
ConditionUsed
Stock Number116723
Quantity1

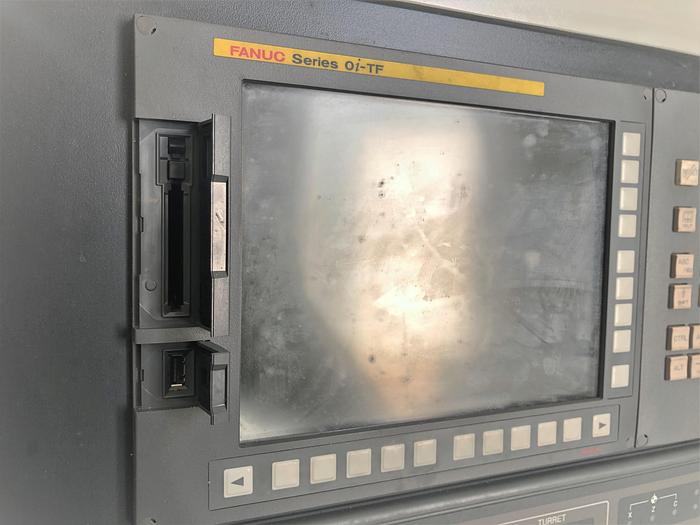

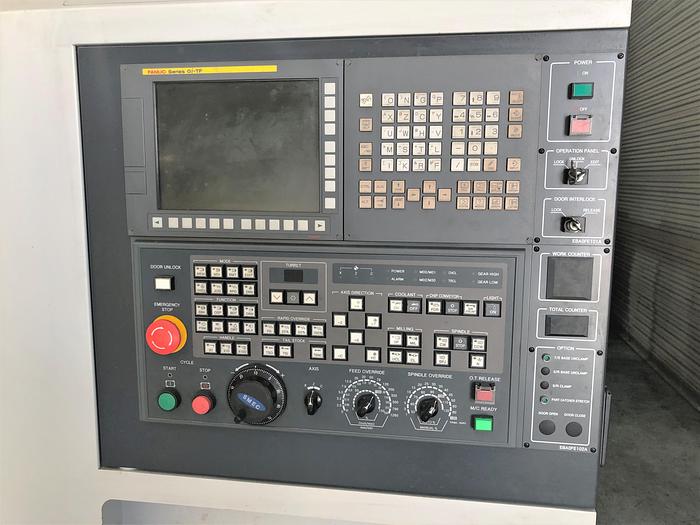

ControlFanuc 0i-TF
Chuck SizeRoyal 16C Collet Chuck
Maximum Swing over Bed20"
Maximum Swing Over Cross Slide14.17"
Maximum Machining Diameter14.17"
Maximum Machining Length22.05"
Maximum Bar Capacity2.05"
Spindle Nose / Spindle BoreA2-5" / 2.4"
Spindle Speeds6,000 RPM
Spindle Motor24.8 HP

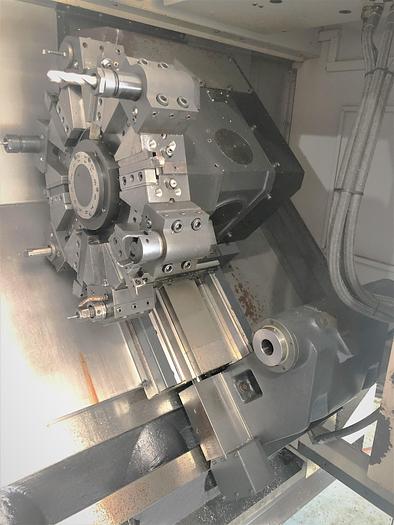

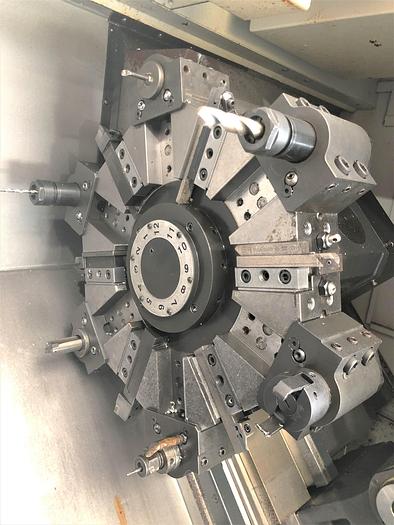

Number of Turret Positions12 Position Turret
Tailstock Body Travel / Quill Travel17.7" / 2.95"
Tailstock Bore TaperMT #4
Machine Dimensions104" x 61" x 77"
Machine Weight8,157 lbs.
