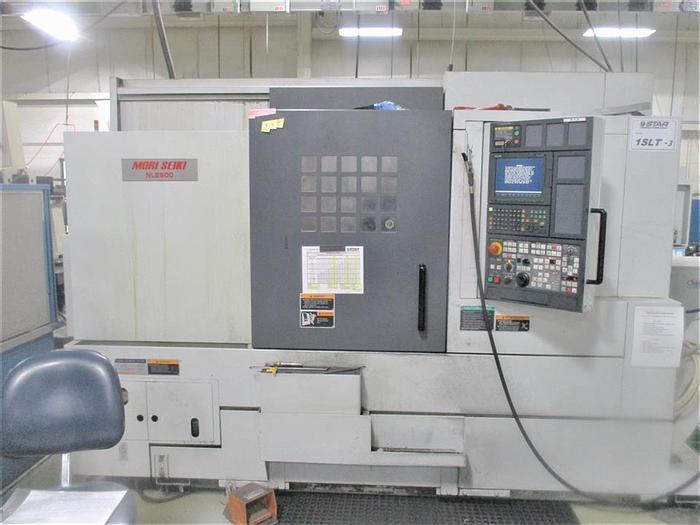

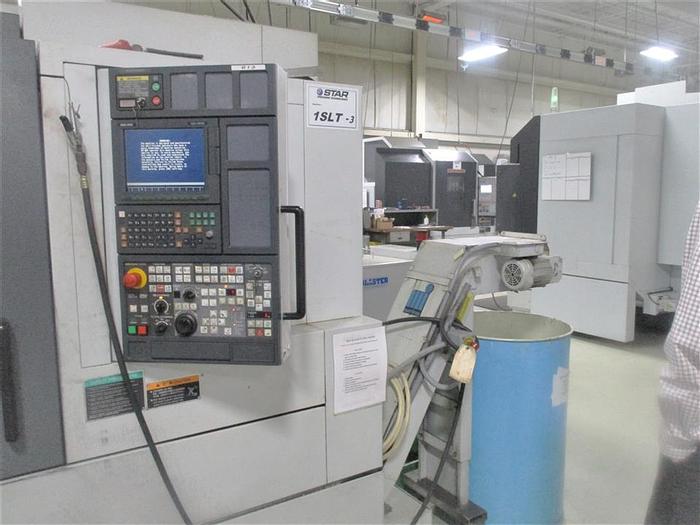

2007 Mori Seiki NL2500Y/700

2007 Mori Seiki NL2500Y/700

$69,500 (USD)


orCall (863) 439-6066

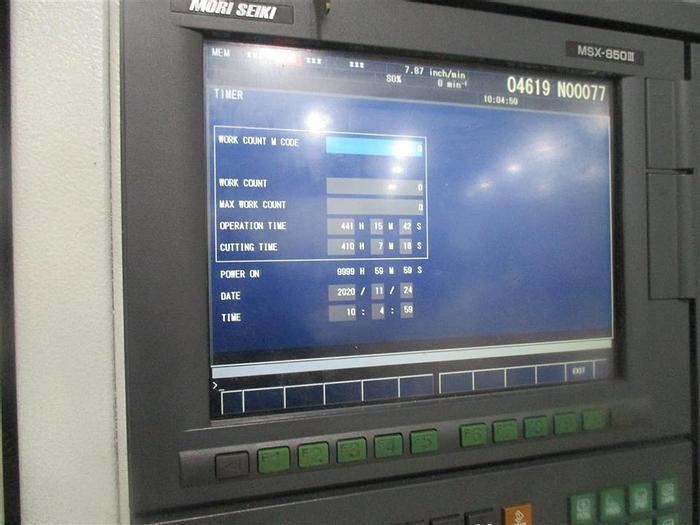

Full C Axis Spindle Rotation Live Milling/Drilling Capability Y Axis Capability 10" 3 Jaw Hydraulic Chuck Tool Presetter Chip Conveyor Programmable Tailstock Complete Coolant System with Tank & Pump RS 232 Port Interface Wired 220V Electrics (2) Live Toolholders All Available Static Tooling All Available Manuals Operation Time 5443 Hours Cutting Time 4128 Hours


ManufacturerMori Seiki
Stock Number116762

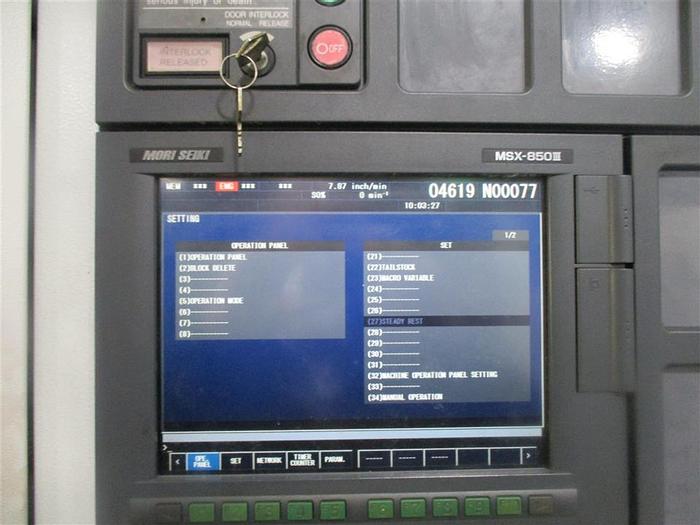

ControlMori/Fanuc MSX-850 III

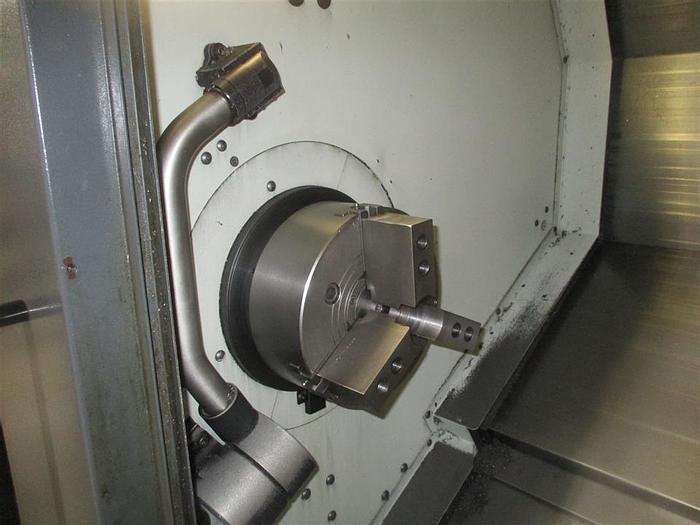

Chuck Size10" 3 Jaw Hydraulic Chuck
Maximum Swing over Bed36.4"
Maximum Swing Over Cross Slide29.7"
Maximum Turning Diameter14"
Maximum Turning Length27.7"
X-Axis Travel10.2"
Y-Axis Travel3.9"
Z-Axis Travel31.3"
Spindle Nose / Spindle BoreA2-8" / 3.1"
Spindle Speeds4,000 RPM
Spindle Motor25 HP
Rotary Tool Speed / Rotary Motor6,000 RPM / 7.5 HP
Number of Tool Positions12 Station Turret
Rapid Traverse Rates X, Z / Y1181 IPM / 394 IPM
Machine Dimensions122" x 80" x 84"
Machine Weight13,640 lbs.
