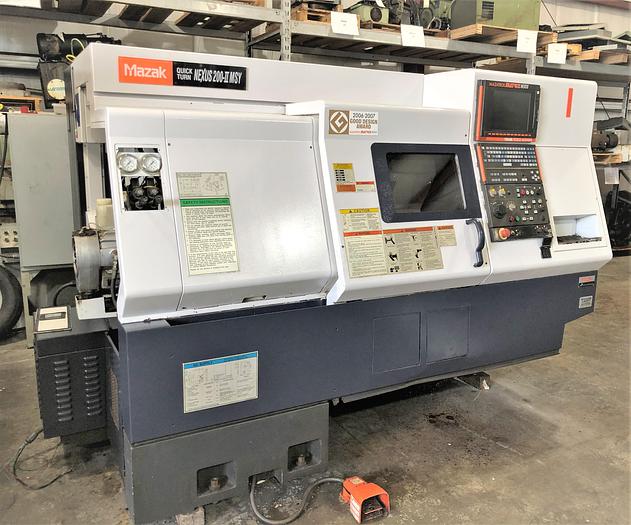

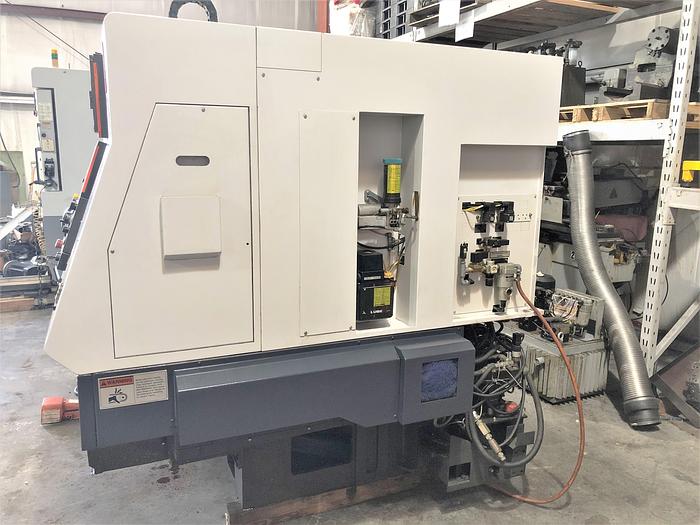

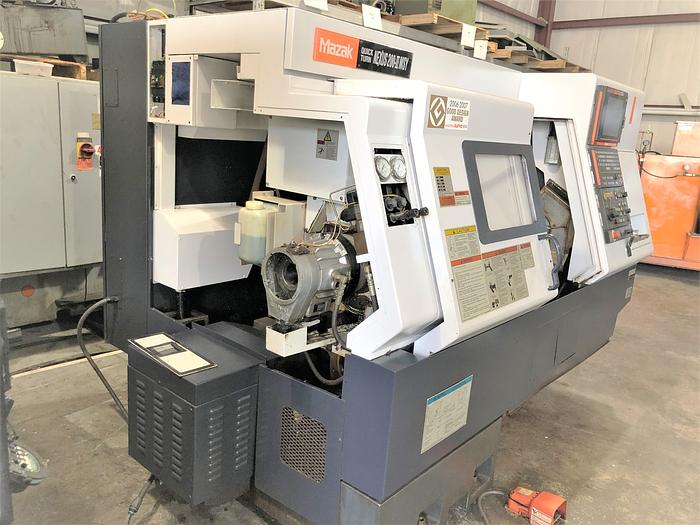

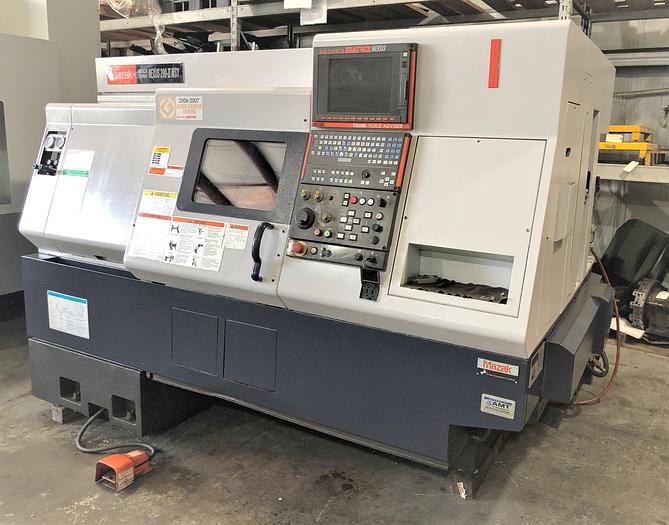

2008 Mazak Nexus QTN 200-II MSY


2008 Mazak Nexus QTN 200-II MSY

Dundee, FL


Y Axis Capability (Off Center)

Barfeed Interface

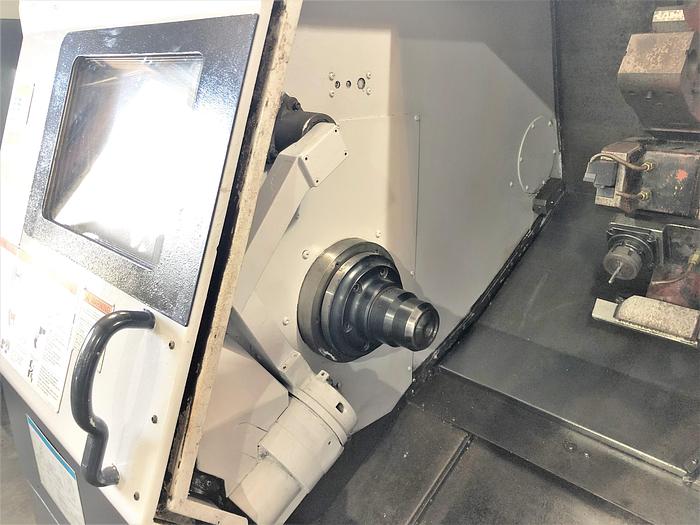

Subspindle with .001 Degree Index

Full C Axis Spindle Rotation

Live Milling / Drilling Capability

Royal Products 16C Collet Chuck on Main Spindle

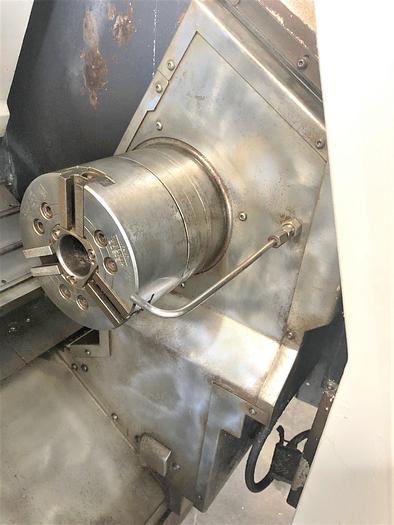

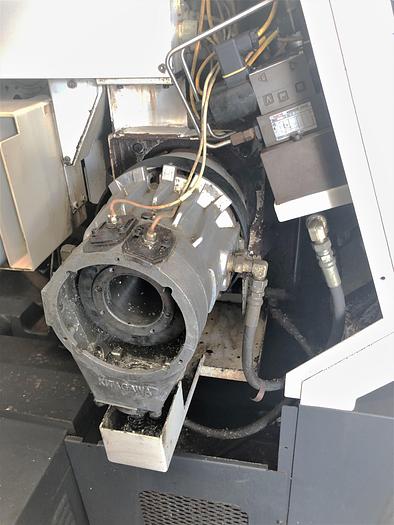

6" 3 Jaw Hydraulic Chuck on Subspindle

Automatic Tool Eye

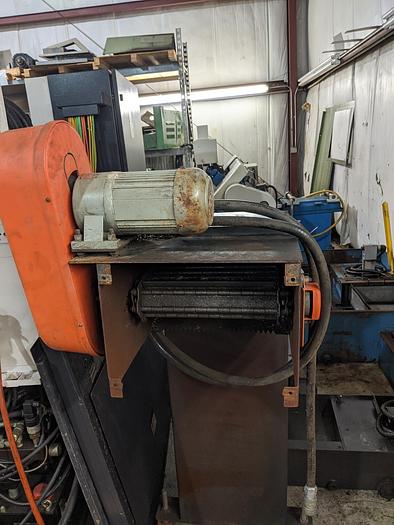

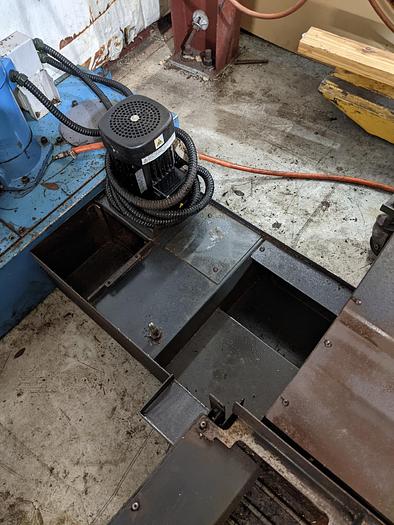

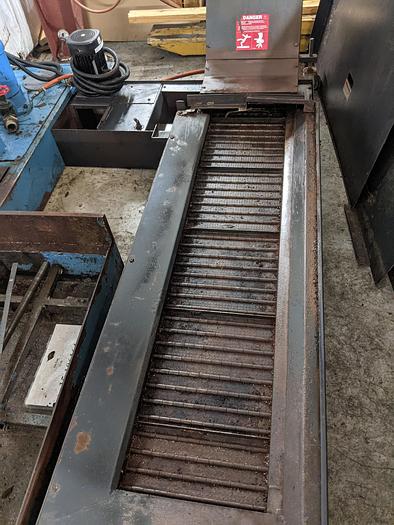

Chip Conveyor

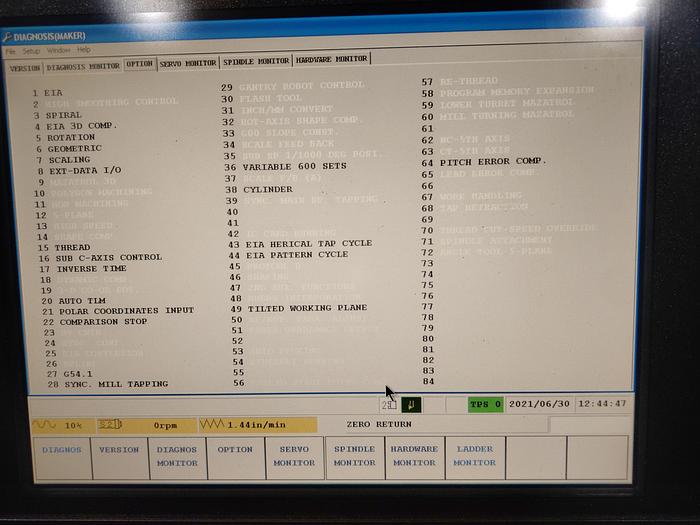

Background Tool Path Check


Mill Spindle Synchronous Tapping

Variable 600 Sets

EIA Helical Tapping Cycle

EIA Pattern Cycle

Tilted Working Plane

Pitch Error Compensation

RS 232 Port Interface

3.5" Floppy Disk Drive Interface

Chuck Air Blast - Second Spindle

EIA/ISO Input Function for G Code Programming

Multi Tap Transformer

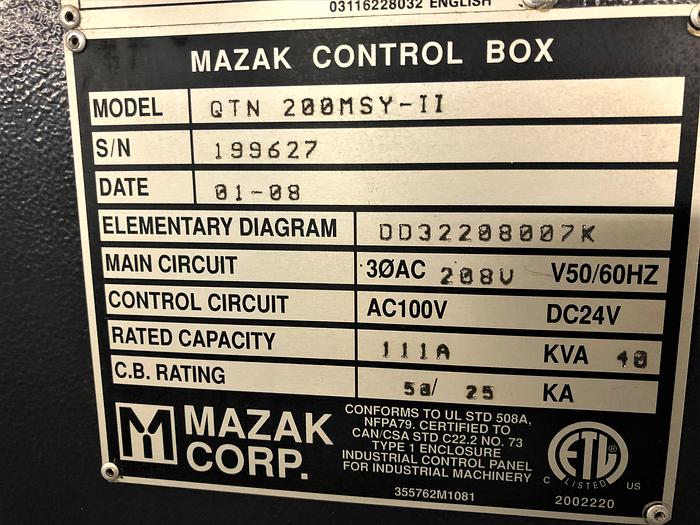

Currently Wired 208V Electrics

Some Tooling includes (2) Live ID and (1) Live OD Holder along with Non Live Holders

Manufactured new in January of 2008

*Machine Runs But Has A Few Issues

*X Axis Brake needs work

*Machine Needs Main Spindle Rebuilt - Approximately $12,000

*Machine Needs Subspindle Servo Motor Rebuilt for moving subspindle in B axis direction - Approximately $2000

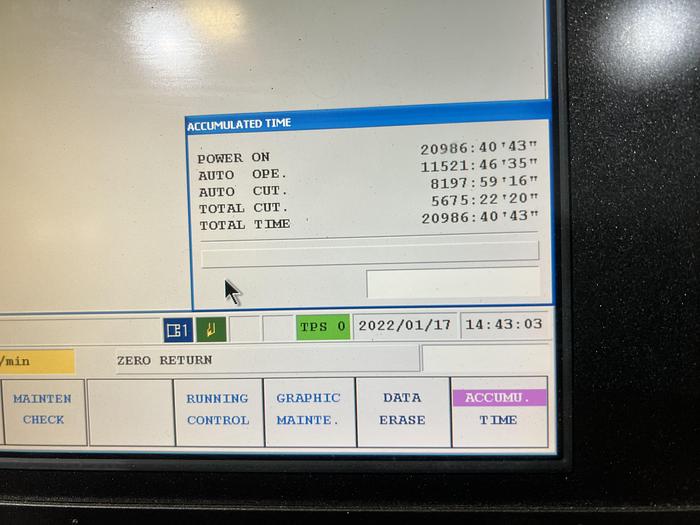

Power On Hours - 20,986

Auto Operation Hours - 11,521

Auto Cut Hours - 8,197

Total Cut Hours - 5,675


ModelNexus QTN 200-II MSY
Stock Number116550

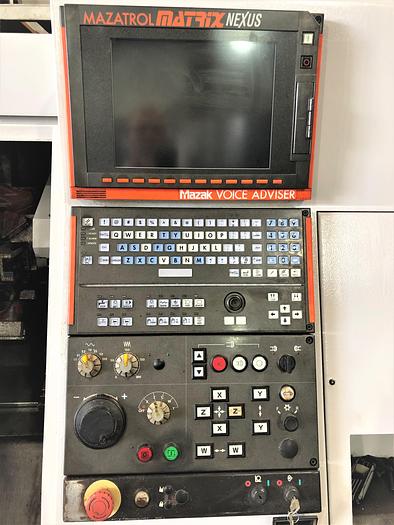

ControlMazatrol Matrix Nexus
Chuck SizesCollet on Main Spindle/6" Hyd on Subspindle
Maximum Swing/Over Carriage26.5" / 14"
Maximum Cutting Diameter14.75"
Maximum Cutting Length21.27"
X-Axis Travel9.055"
Y-Axis Travel4" (+/- 2.0")
Z-Axis Travel22.63"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation.001 / .001 Degree
B-Axis Travel (Subspindle)23.0"
Spindle Nose / Spindle Bore / Bar CapacityA2-6" / 3.0" / 2.0"
Spindle Speed / Sub Spindle Speed5,000 RPM / 6,000 RPM
Spindle Motor / Sub Spindle Motor35 HP / 15 HP
Rotary Tool Speed / Rotary Motor4,500 RPM / 7.5 HP

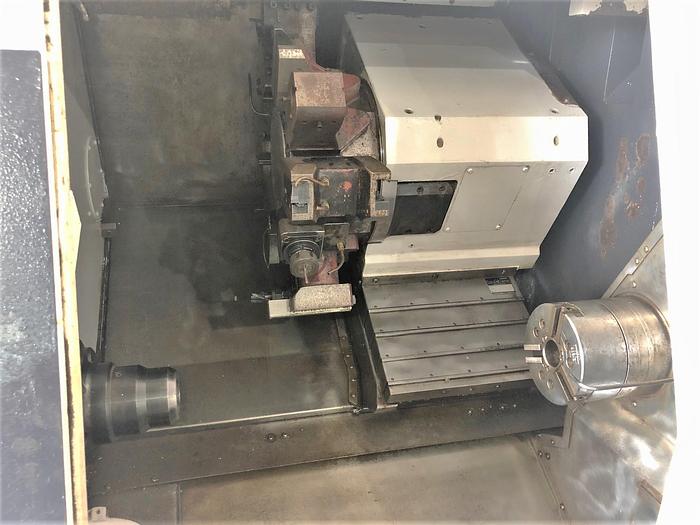

Number of Turret Positions12 Station Turret
Rapid Traverse Rates X, B / Z1181 IPM / 1299 IPM
Machine Dimensions110"x72"x76"
Machine Weight10,802 lbs.
Chip Conveyor110"x48"x60" 300 lbs
