2014 YCM TC-46/3200 with 24" Hyd. Chk, 6.5" Bar Cap., 29.55" Max Turn Diam., 134.45 cc, Tailstock, Chip Conveyor, Tool Eye

24" 3 Jaw Hydraulic Chuck

6.5" Bar Capacity

Tailstock

Chip Conveyor

Tool Presetter

12 Station Bolt On Style Servo Driven Turret

Coolant System with Tank & Pump

RS 232 Port Interface

Card Interface

USB Port Interface

Wired 220V Electrics

45 Degree Slant Bed Design

Heavy Duty Boxed Ways

All Available Manuals

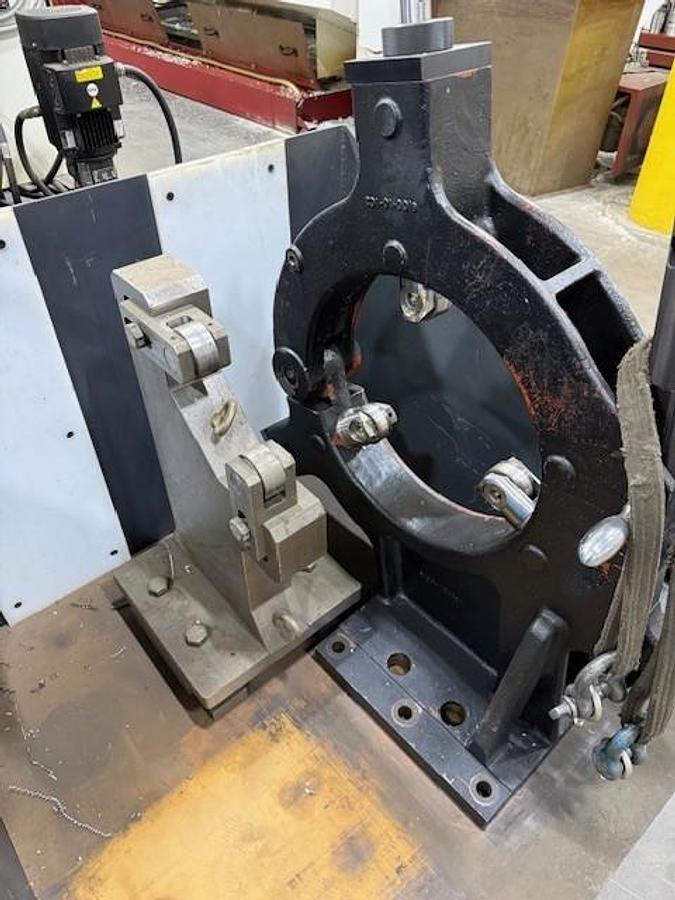

Steady Rest 19" Roller Type (will need bottom clamp plate)

Follow Rest (will need clamp plate)

Machine Wired 200/220V 3 Phase / 80 Kva Required

**ONLY 4030 Spindle Hours**

**Manufactured in December of 2014, installed new in April 2018**

The 2014 YCM TC-46/3200 is a robust used CNC lathe, ideal for demanding machining applications. It features a 24" hydraulic chuck and offers a maximum turning diameter of 29.55", with an impressive turning length capacity of 126.08". Equipped with a YCM Fanuc Series TXP-100FA Control, this machine ensures precise operation, suitable for a wide range of tasks. This lathe boasts a bar capacity of 6.5", with a substantial spindle nose measuring A1-15" and a spindle bore of 7.12". The spindle speeds range from 20 to 1200 RPM, driven by a 50 HP motor, making it adaptable for various workload requirements. Its 12-position bolt-on style turret enhances flexibility in tool management, further supported by rapid traverse rates of 394 IPM in both the X and Z axes. With overall dimensions of 269" x 107.7" x 102" and a weight of 34,100 lbs., the TC-46/3200 includes necessary components like a tailstock and chip conveyor to facilitate efficient operations. This lathe is designed for reliability and precision in heavier machining jobs, making it an excellent choice for manufacturers seeking a high-performance CNC solution.
