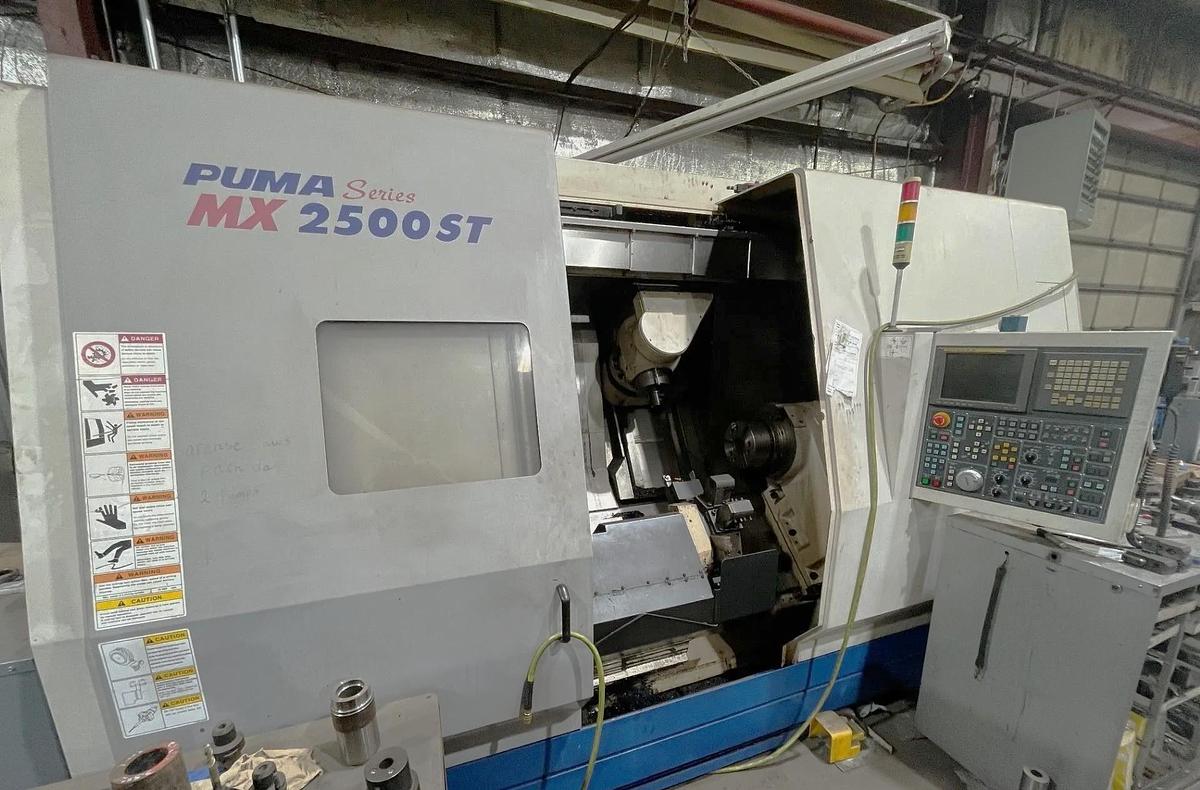

2006 Doosan Puma MX2500ST 9 Axis Mill/Turn Center w/ Pendulum B Axis Head, Milling, Y Axis, Subspindle, Lower Turret
2006 Doosan Puma MX2500ST 9 Axis Mill/Turn Center w/ Pendulum B Axis Head, Milling, Y Axis, Subspindle, Lower Turret
$39,900 (USD)
Location:Colorado
or
Call (863) 439-6066
Description
9-Axis Capability

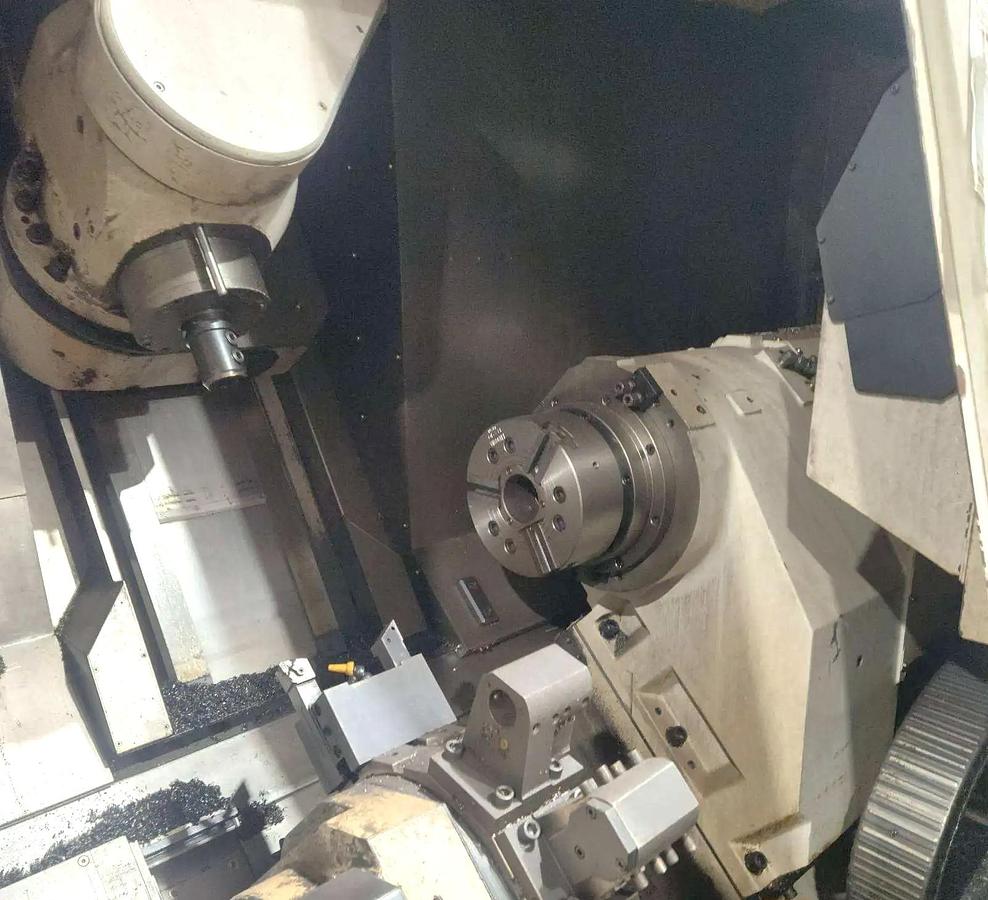

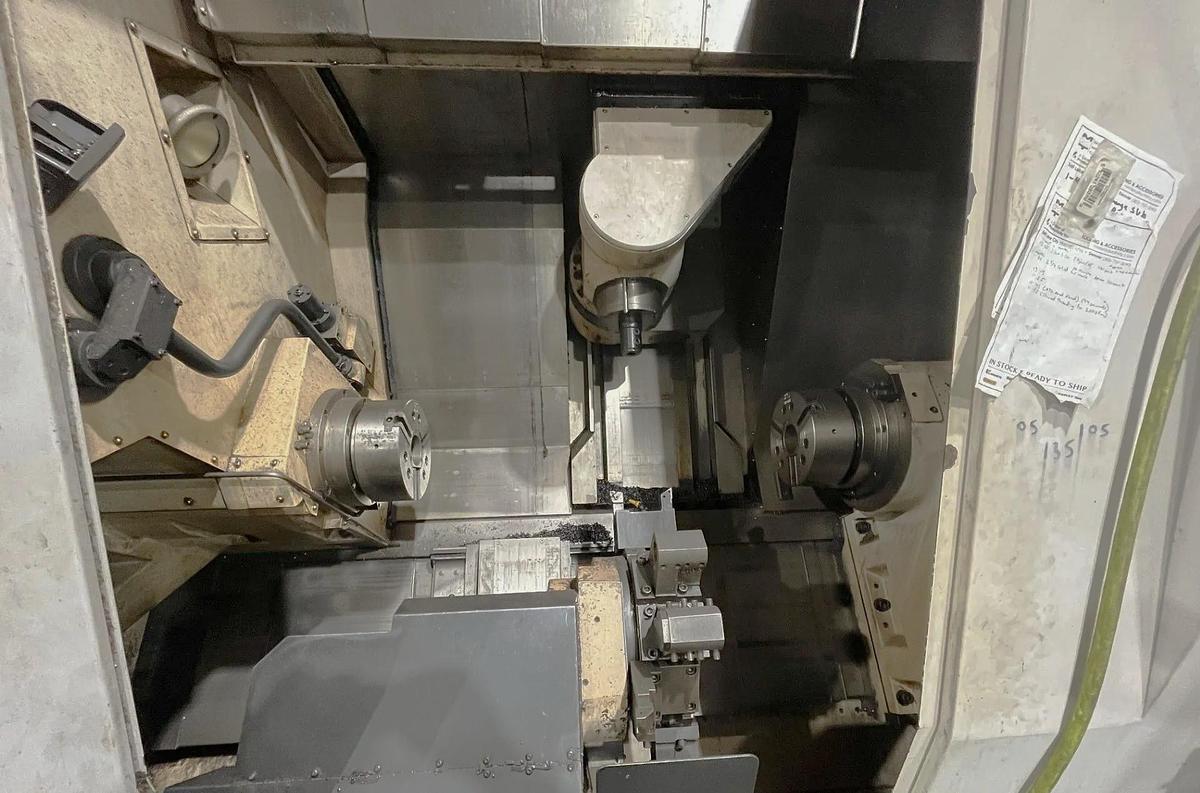

Pendulum Style B-Axis Head

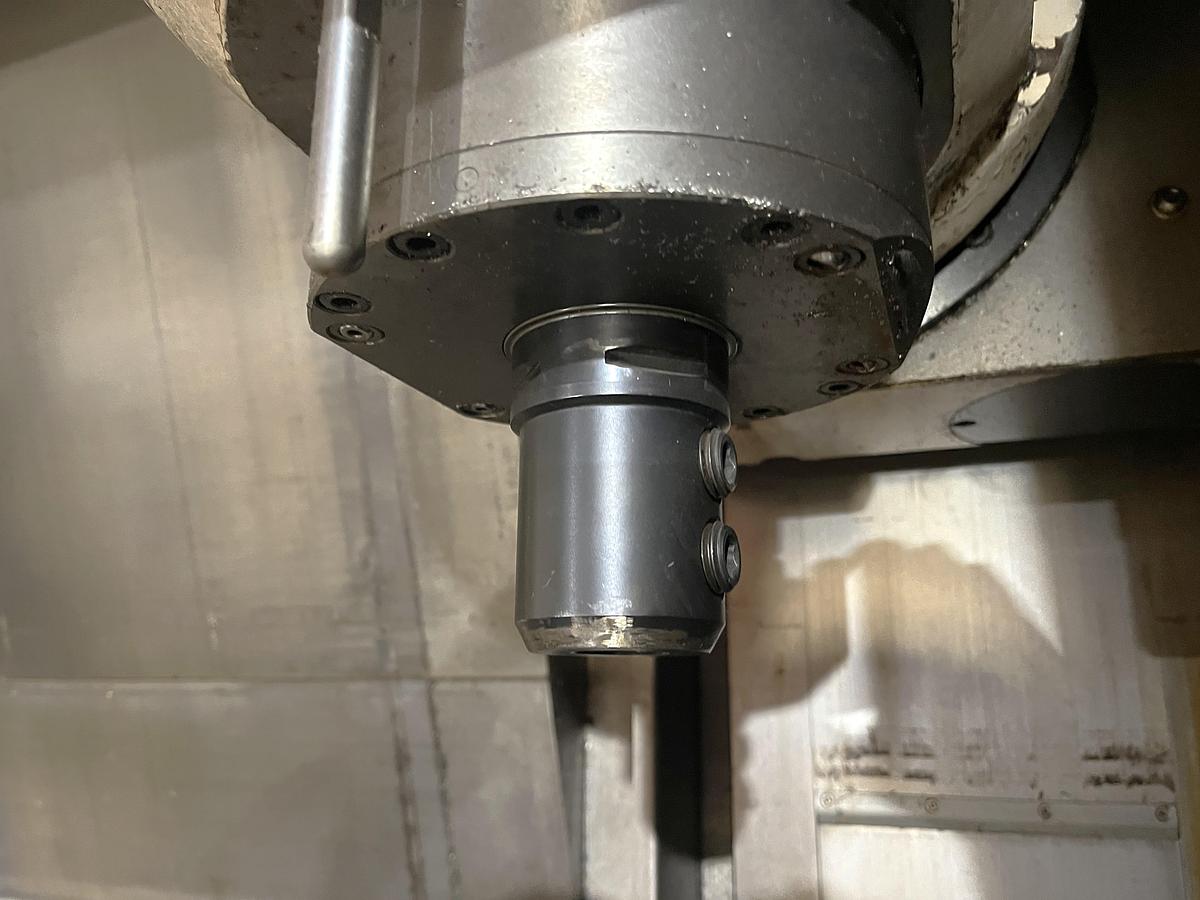

Live Milling Capability on Upper Head
Y-Axis Capability on Upper Head
Sub Spindle

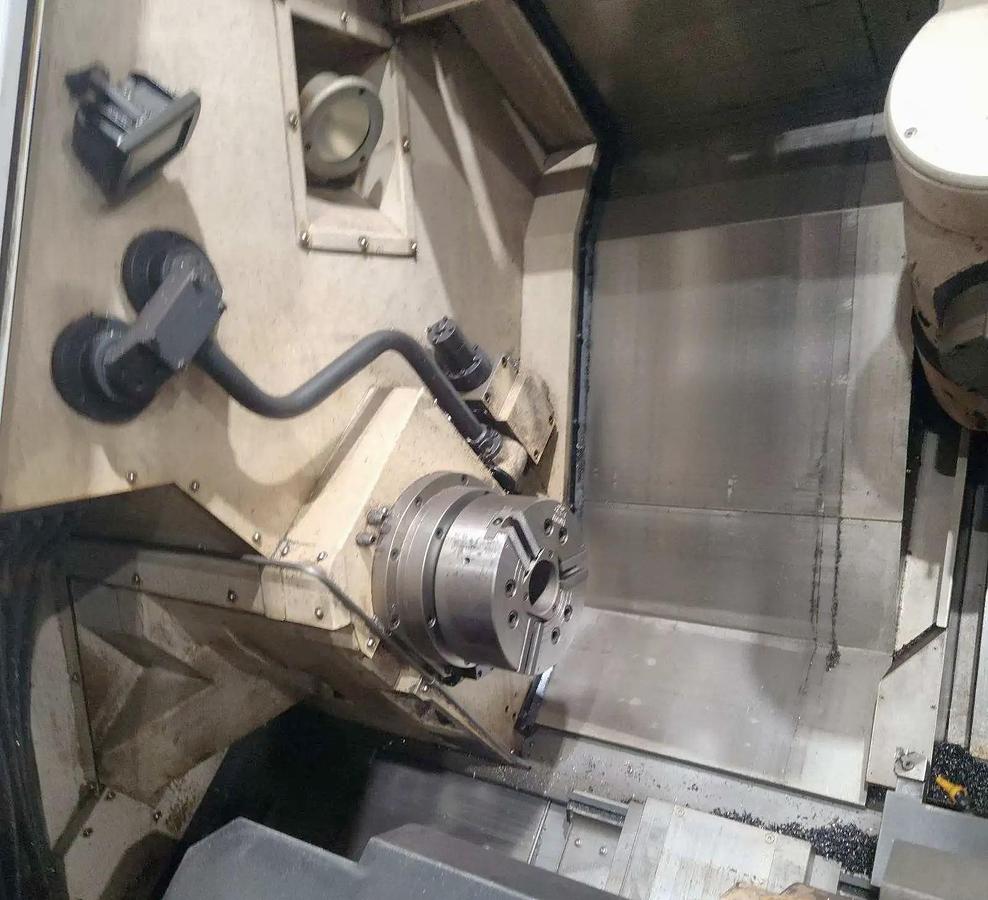

10" 3 Jaw Hydraulic Chuck on Main Spindle
8" 3 Jaw Hydraulic Chuck on Subspindle

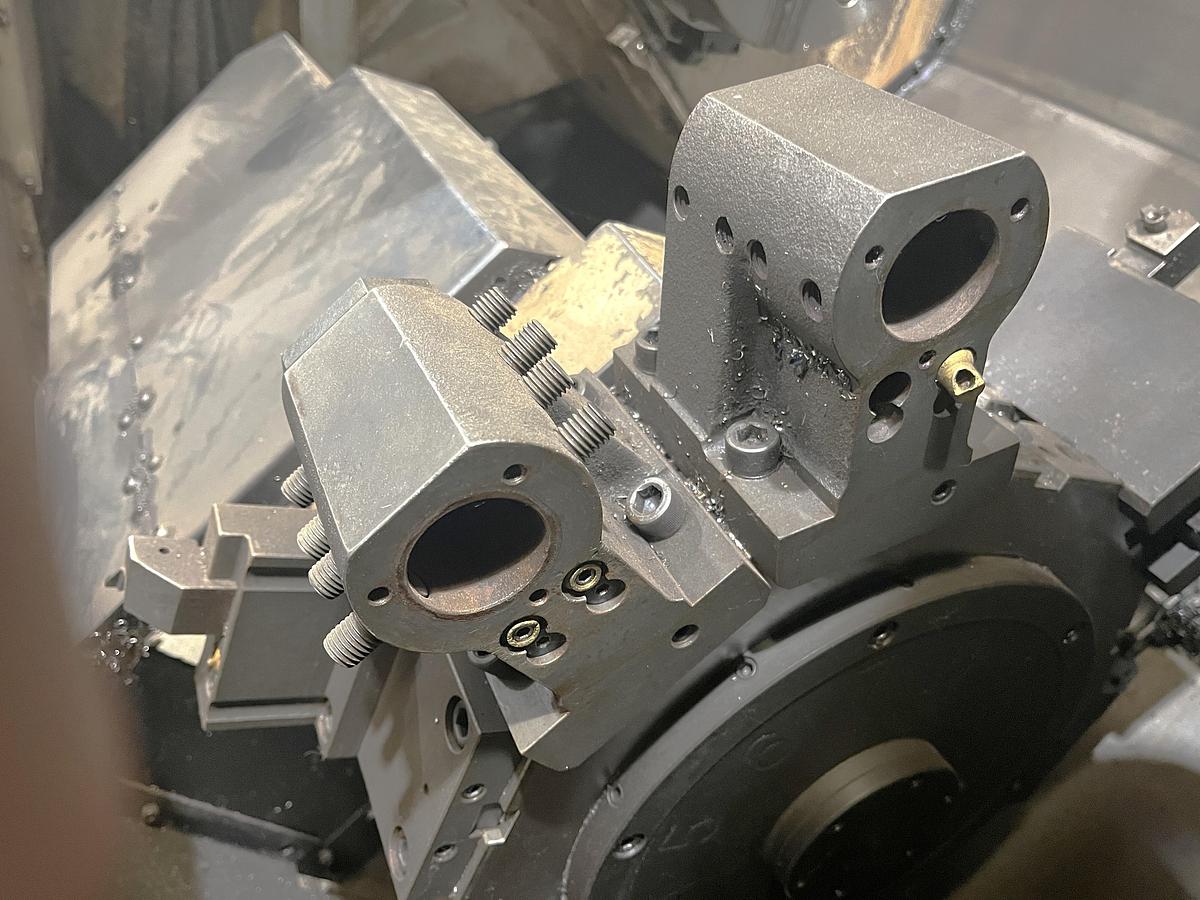

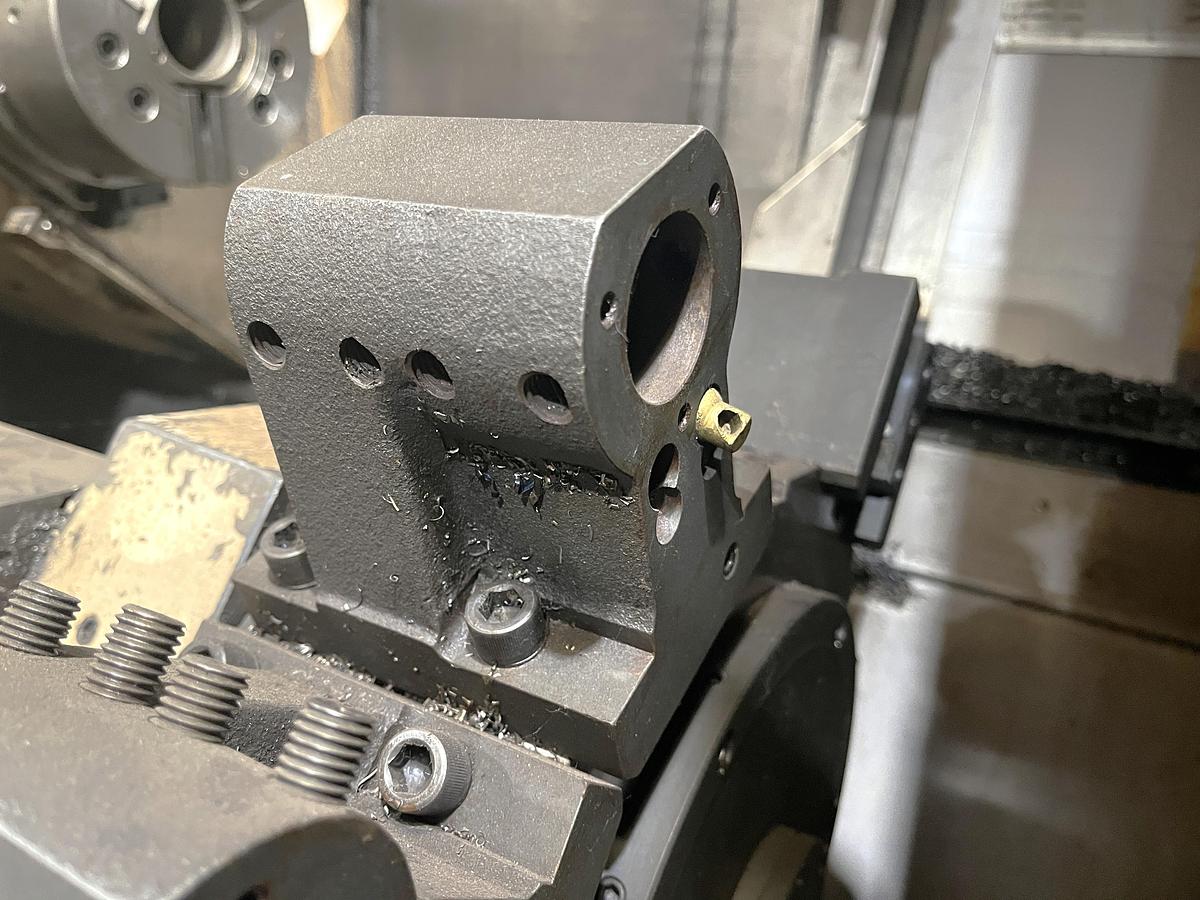

12 Station Lower Turret with All Locations Capable of Live
Automatic Tool Eye
Chip Conveyor
Complete Coolant System with Tank & Pump
3 Color Machine Status Condition Lights
Card Interface
RS 232 Port Interface
All Available Manuals

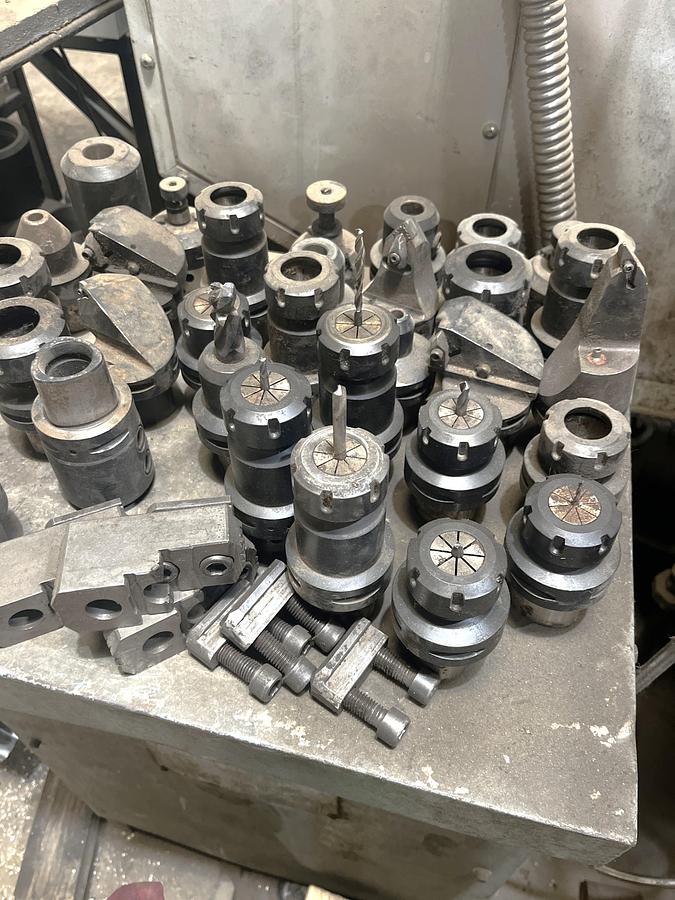

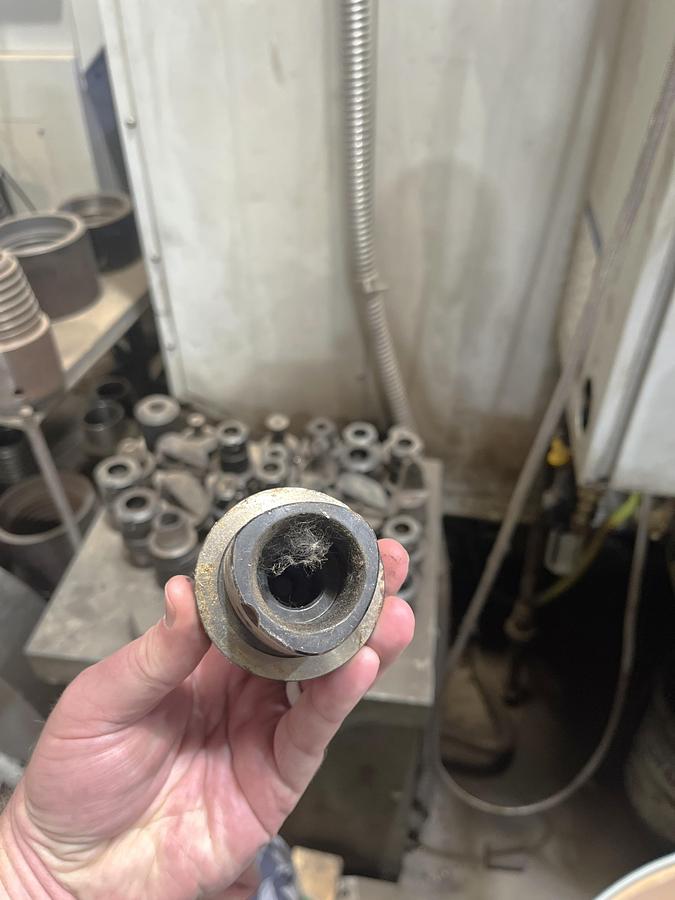

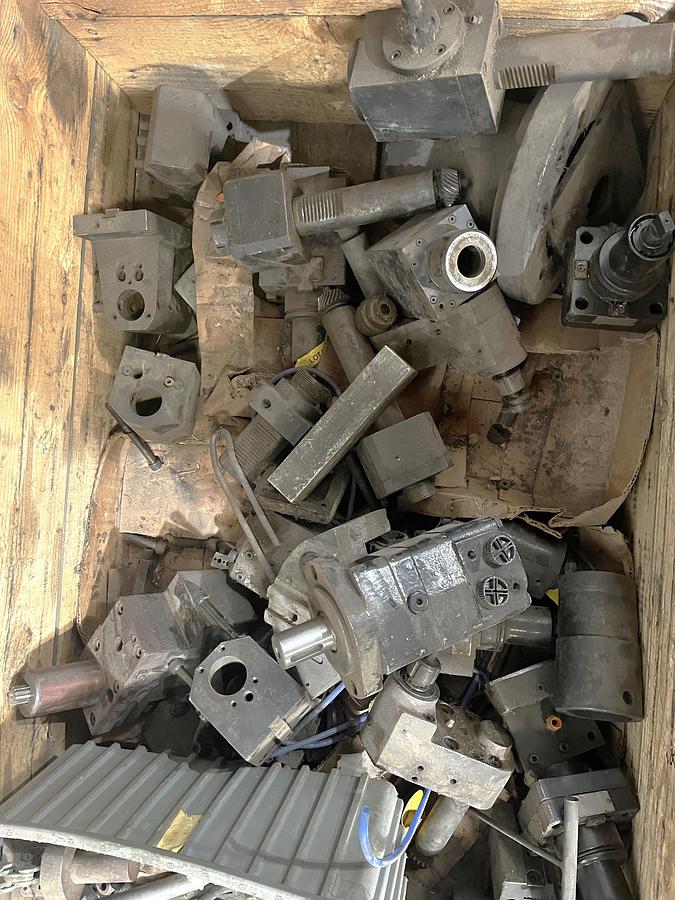

All Available Tooling
Specifications
| Manufacturer | Doosan |
| Model | Puma MX2500ST |
| Year | 2006 |
| Condition | Used |
| Stock Number | #120845 |

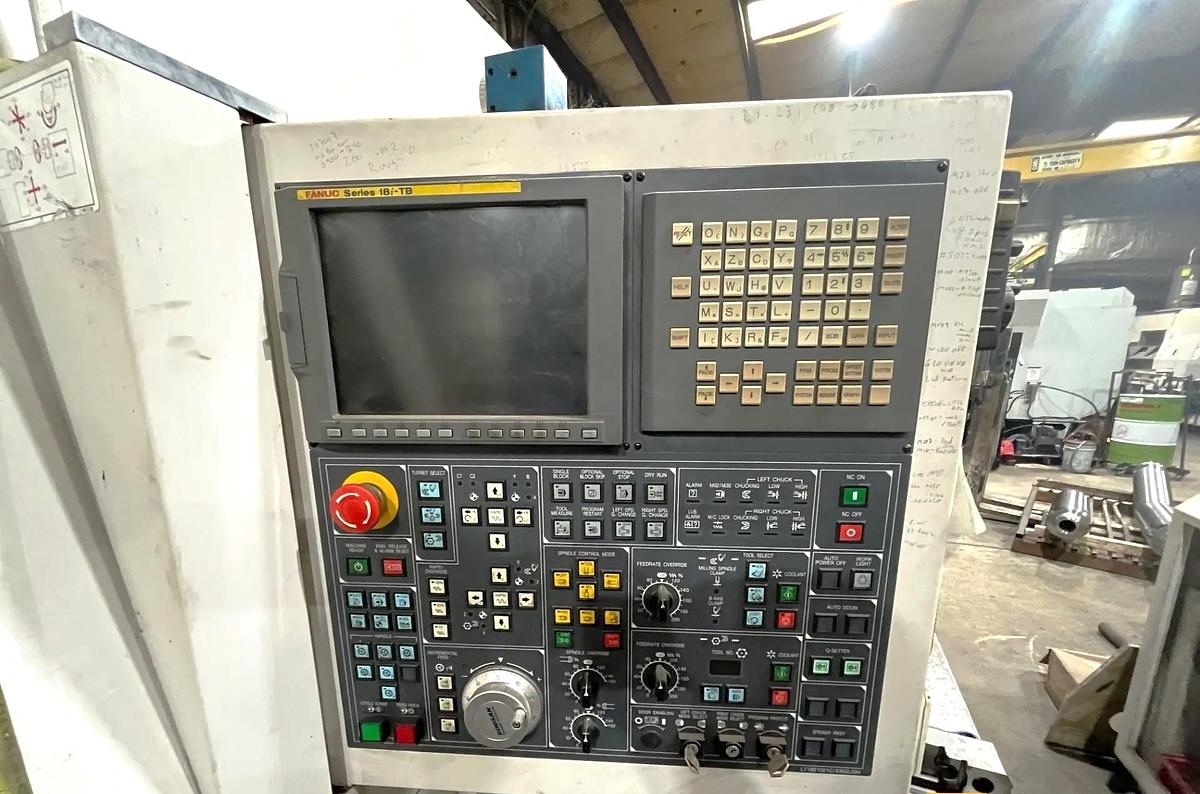

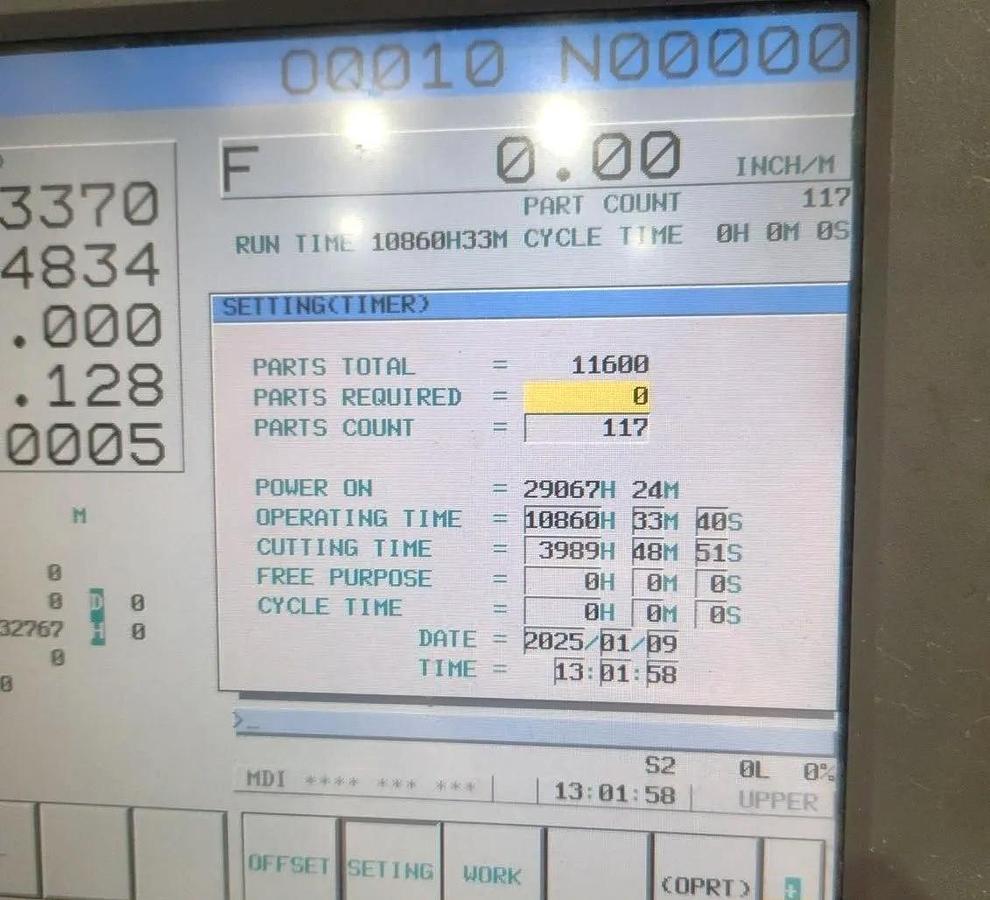

| Machine Control | Fanuc 18i-TB Control |
| Chuck Sizes Main / Subspindle | 10" 3 Jaw / 8" 3 Jaw |
| Maximum Swing | 29.5" |
| Maximum Swing over Bed | 29.5" |
| Maximum Turning Diameter | 9.84" |
| Maximum Turning Length | 40.2" |
| X-axis travel | 21.9" |
| Z-Axis Travel | 43.1" |
| Y-Axis Travel | 6.3" Head Travel |
| B-Axis Tilt Movement | 0.001 Degree |
| C-Axis Rotation | .001 Degrees Main & Subspindle |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 2.99" / 2.6" |
| Main Spindle Speed / Sub Spindle Speed | 3,500 RPM / 5,000 RPM |
| Main Spindle Motor / Sub Spindle Motor | 35 HP / NA |
| Milling Spindle Speed | 10,000 RPM |
| Mill Spindle Motor | 20 HP |

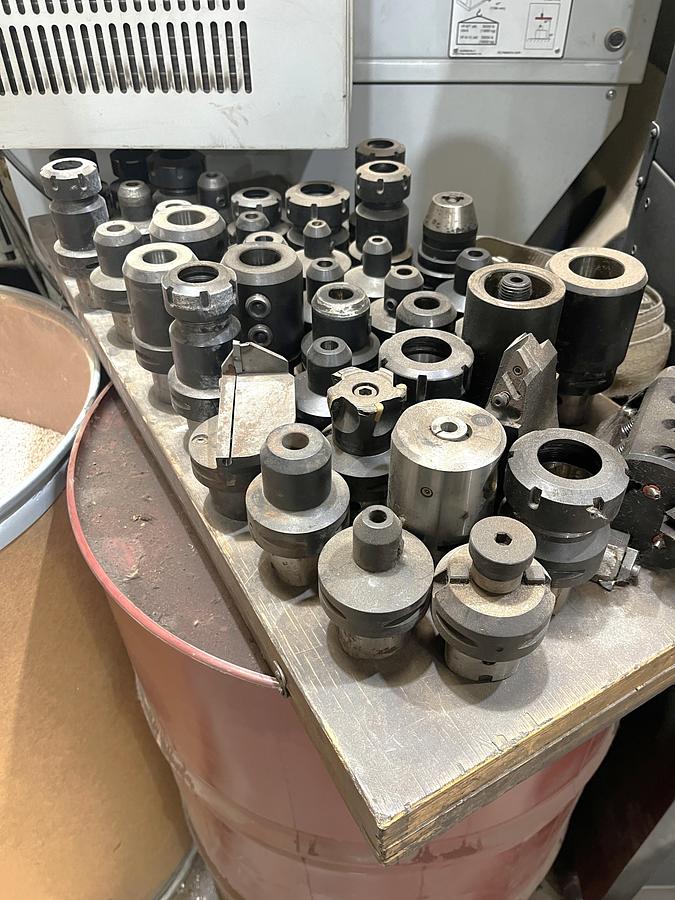

| Tool Magazine Capacity | 40 Position ATC - CAPTO C6 |
| Lower Turret Tools Position | 12 Position Turret |
| Rapid Traverse Rates X, Y / Z | 1417 ipm, 1024 ipm / 1417 ipm |
| Machine Dimensions LxWxH | 178"x91"x103" |
| Machine Weight | 28,500 lbs |
