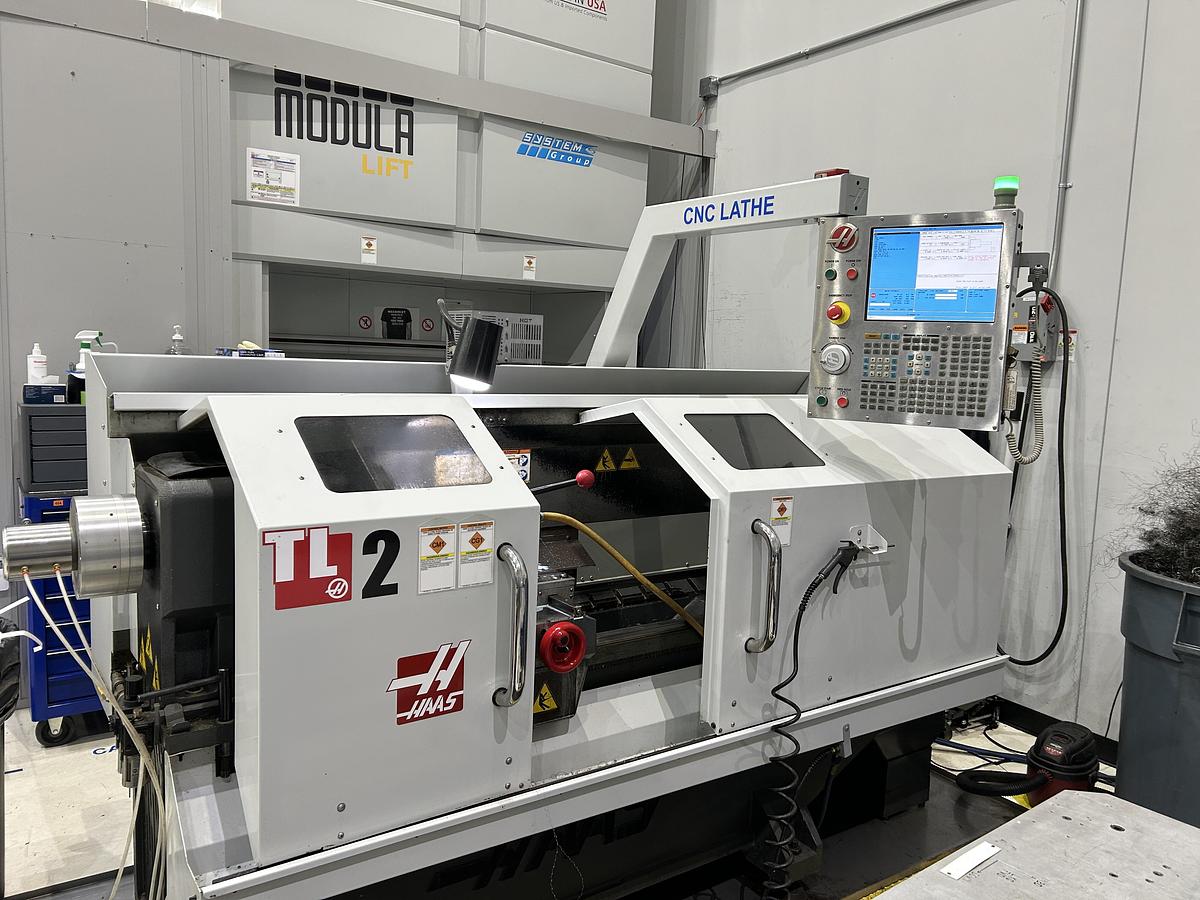

2010 Haas TL-2 Full Enclosure, Only 177 Feed Cut Hours
2010 Haas TL-2 Full Enclosure, Only 177 Feed Cut Hours
Contact us for price
Location:North Carolina
or
Call (863) 439-6066
Description
Full Enclosure
Tailstock
Manual Hand Wheels Coolant System with Tank & Pump Integral Chip-Flow Channel RS 232 Port Interface Vector Drive Spindle Machine Can Run Either 240V Single Phase or 208V Three Phase Power

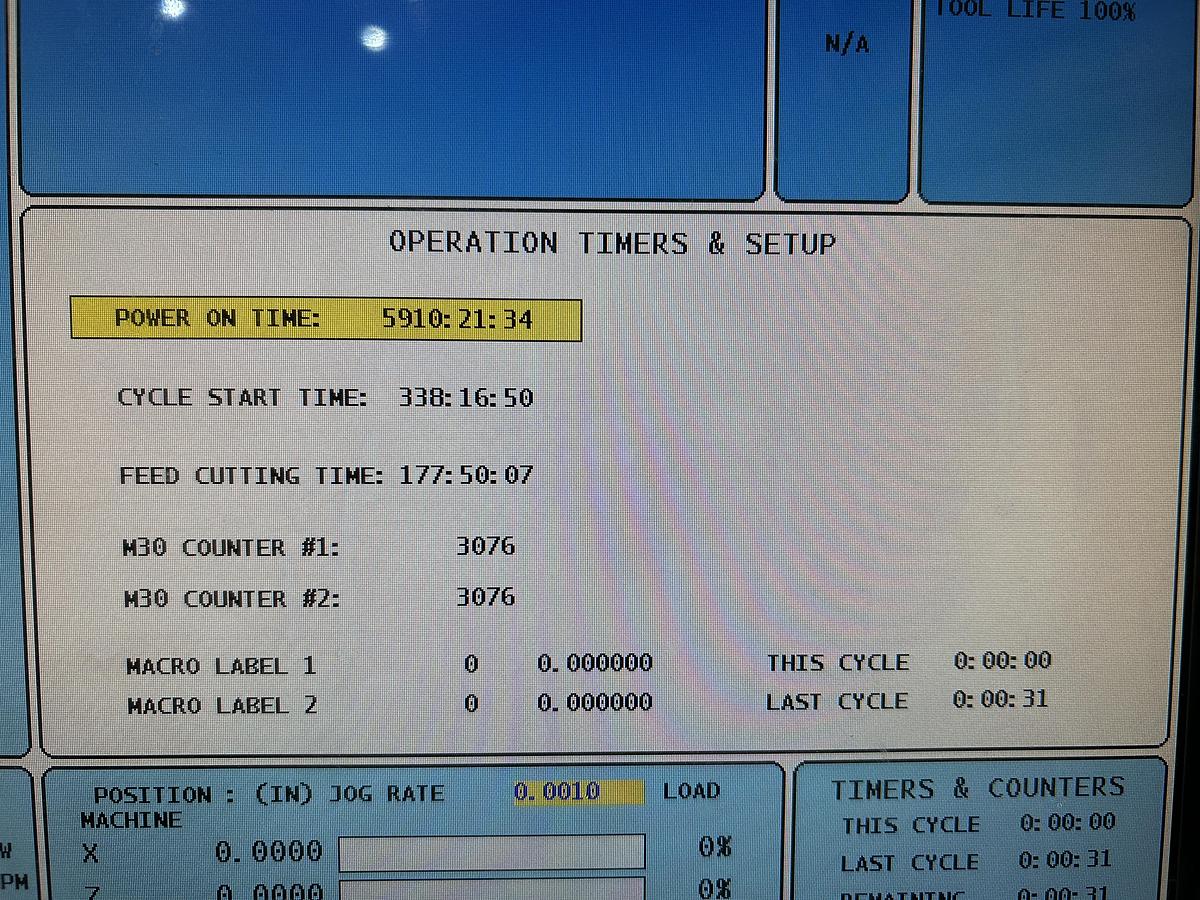

**Only 177 Feed Cut Hours**
Specifications
| Manufacturer | Haas |
| Model | TL-2 Full Enclosure, Only 177 Feed Cut Hours |
| Year | 2010 |
| Condition | Used |
| Stock Number | 120770 |
| Control | Haas 32 BIT |
| Chuck Size | 10" 3-Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
