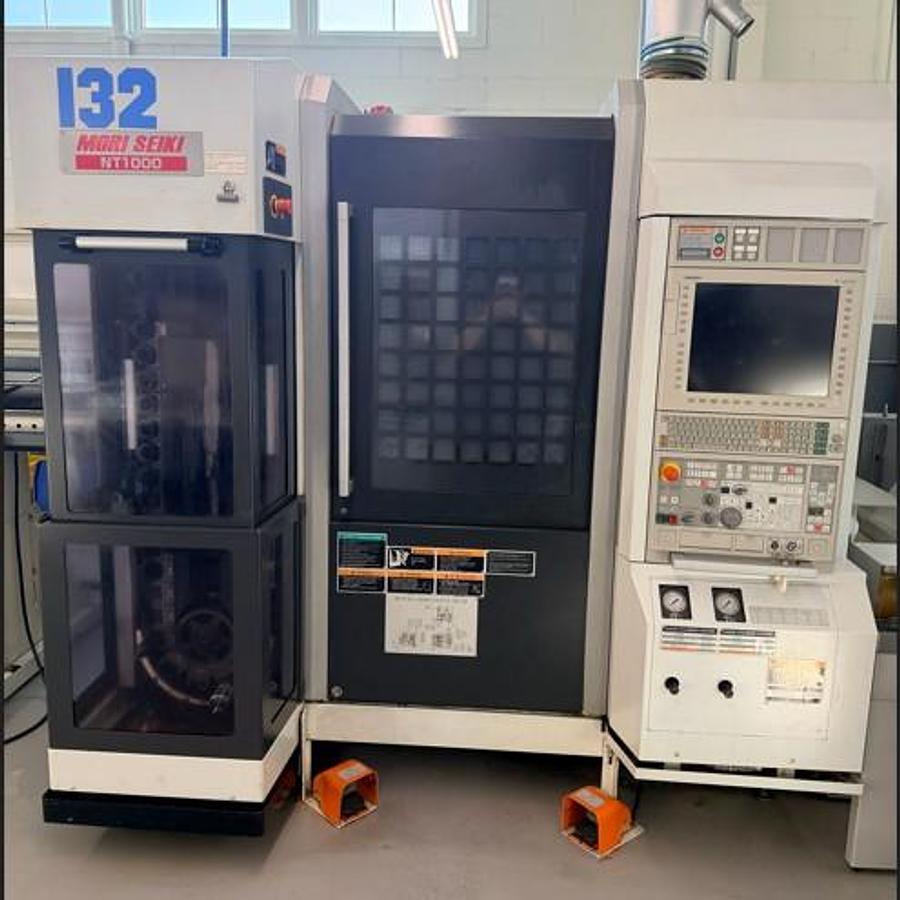

Name: 2010 Mori Seiki NT1000 SZ
Brand: Mori Seiki
SKU: 120764
Availability: InStock

Full C Axis Spindle Rotation

Milling/Drilling Capability

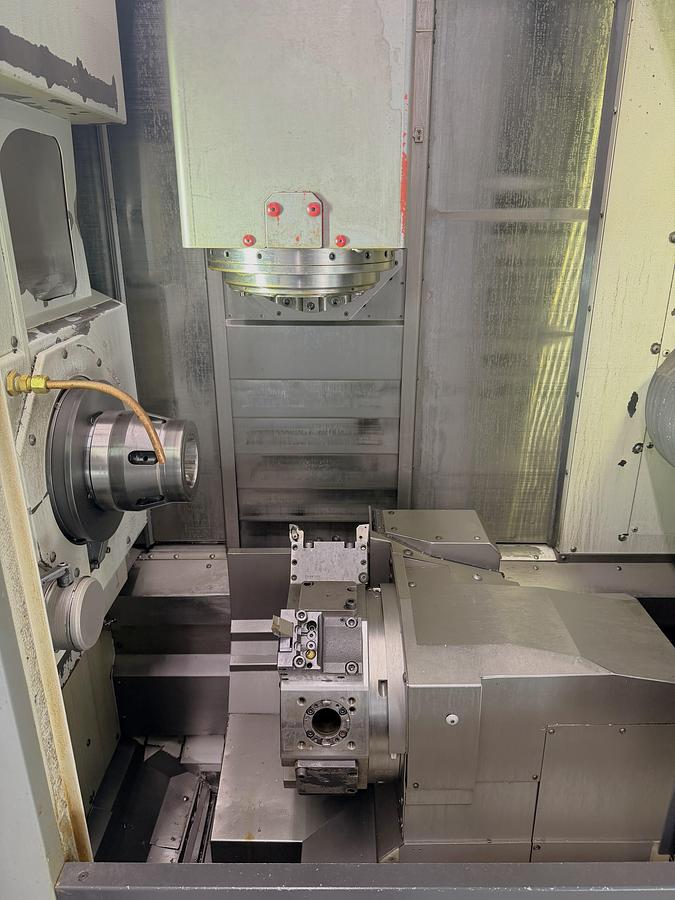

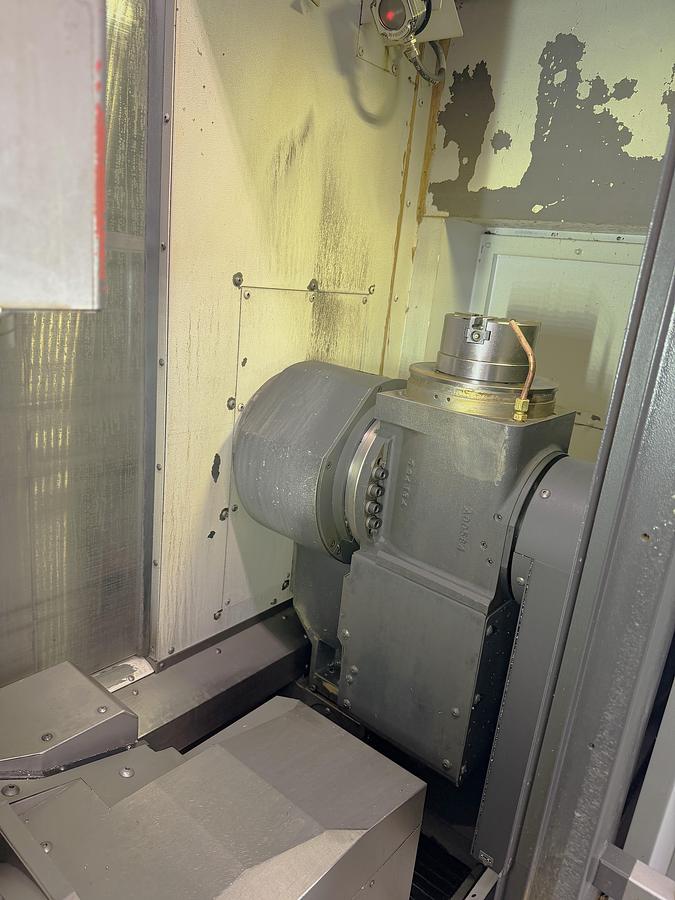

Y-Axis Milling on B-Axis Head

Subspindle

38 Station Tool Changer

10 Station Lower Turret

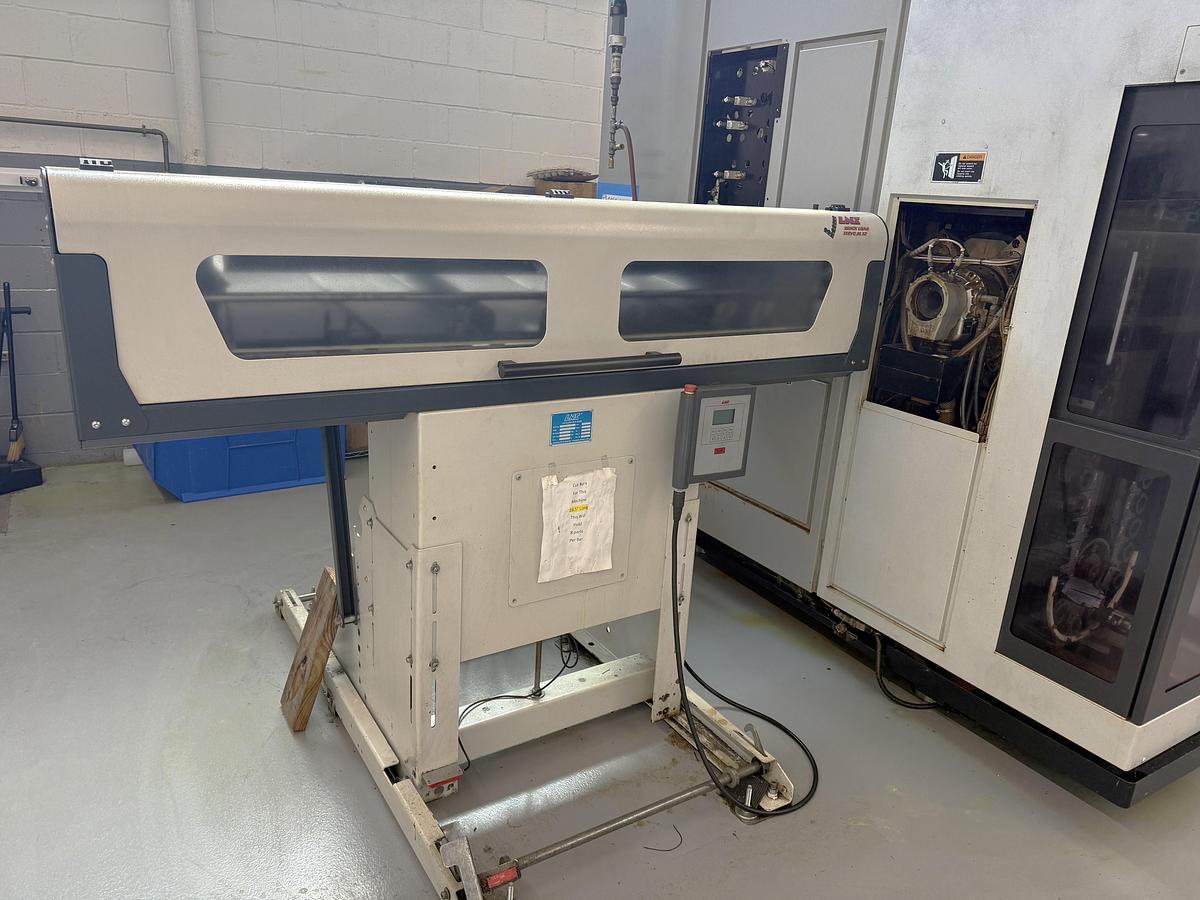

LNS Quick Load Servo 80 S2 Barfeed

Barfeeder Interface

Parts Catcher

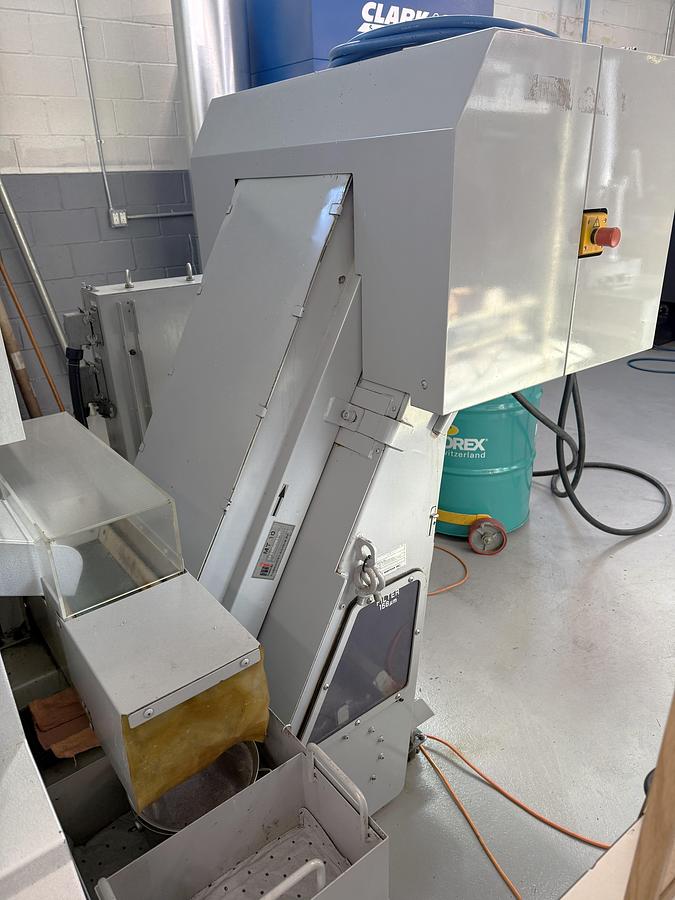

Chip Conveyor

Collet Chuck on Main Spindle

5" 3 Jaw Solid Hydraulic Chuck on Subspindle

Renishaw OMP60 In Machine Work Measuring Probe

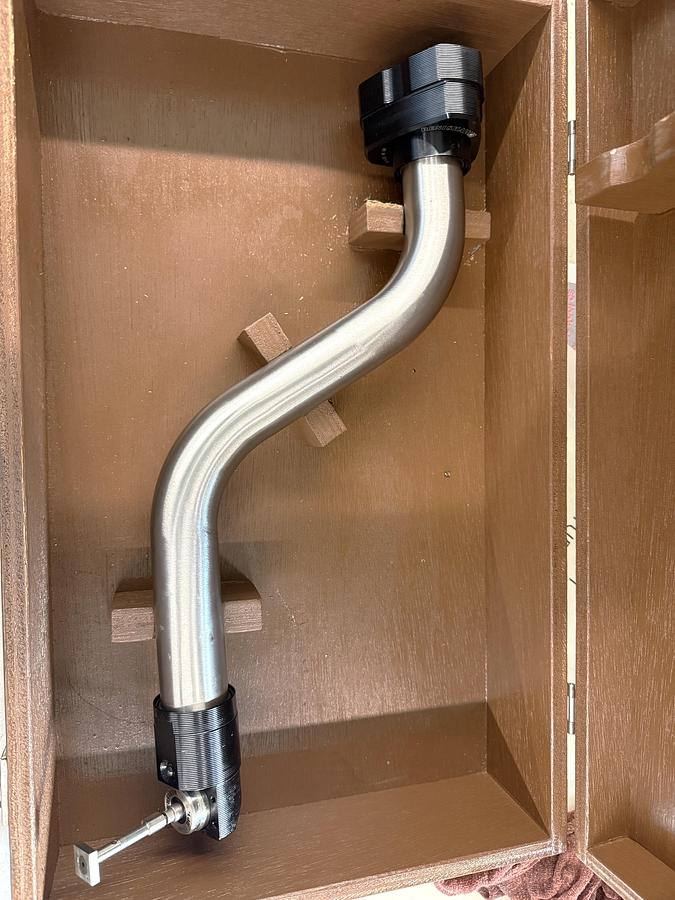

Tool Presetter

High Pressure Coolant

Air Blow Through Main & Subspindle

No Live Tooling on the Lower Turret

Simultaneous 5 Axis Machining

640 M Part Program Storage

Tilted Workplane

Nano Smoothing

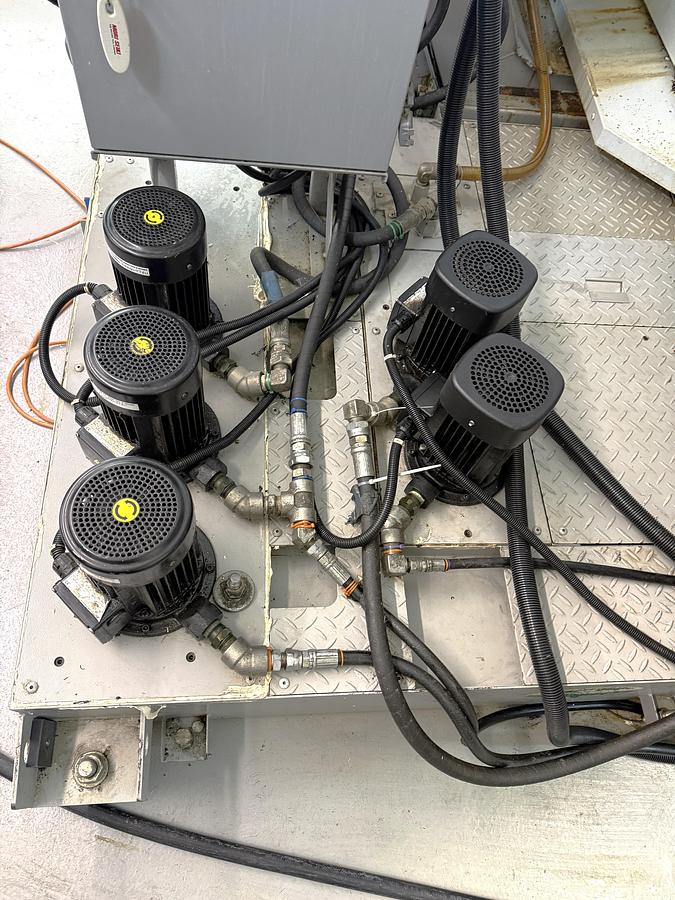

Coolant System with Tank & Pump

Flash Memory Card Interface

RS 232 Port Interface

Wired 220V Electrics

**Approximately 50,000 Power On Hours**

**Roughly 15,000 Cutting Hours**

**Coming out of first class medical/aerospace environment**

Manufacturer	Mori Seiki
Model	NT1000 SZ
Year	2010
Condition	Used
Stock Number	120764

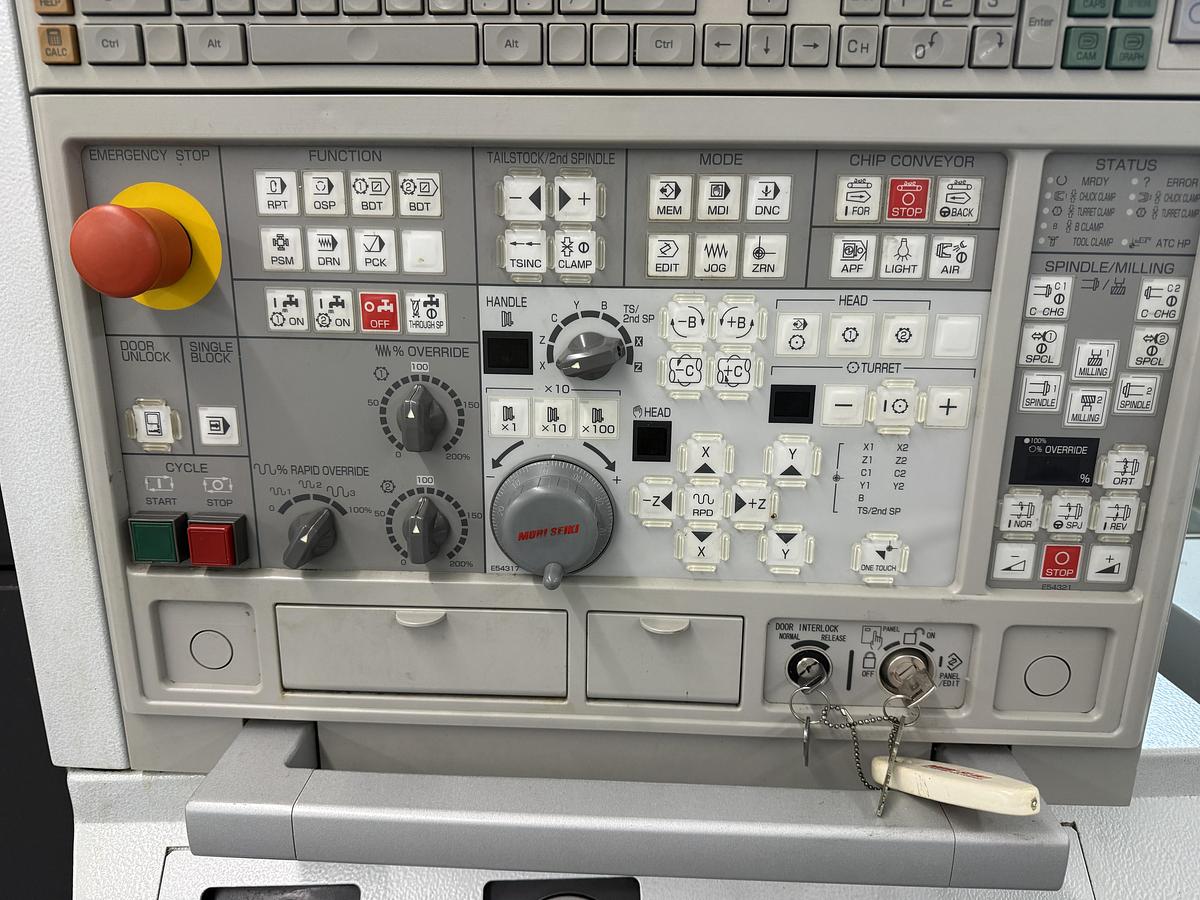

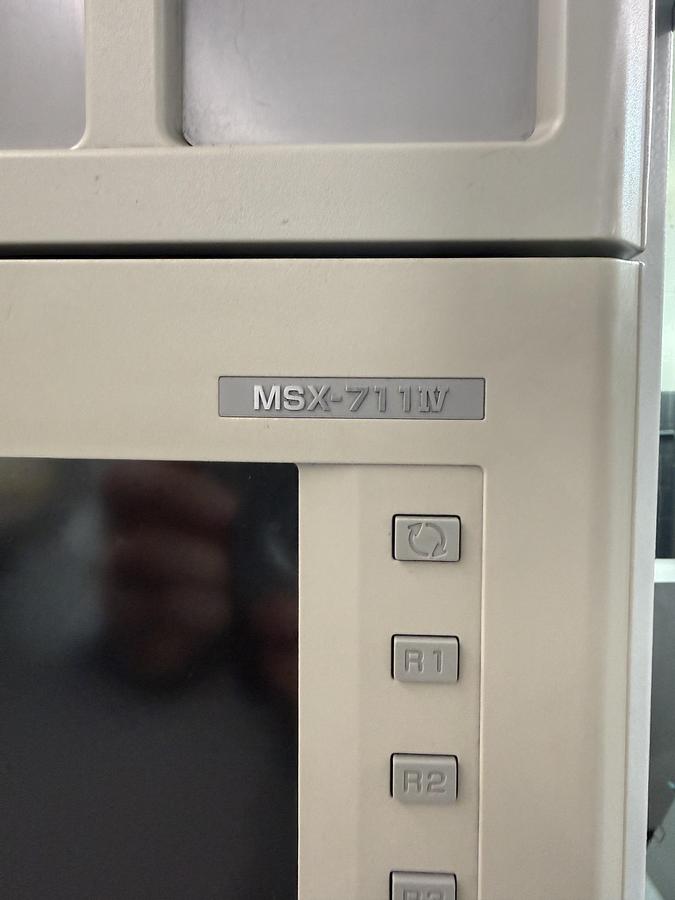

Machine Control	Mori-Mitsubishi MSX-711 IV with MAPPS IV
Maximum swing	14.5"
Maximum Turning Diameter Upper B Axis / Lower Turret	14.5" / 11.8"
Maximum Turning Length	16.7"
Maximum Bar Capacity	2.05"
X axis travel	15"
Y axis travel	+/- 4.1"
Z axis travel	18.1" + 6.1"
B axis	+/- 120 Degrees
X2 axis lower travel	6.1"
Z2 axis travel	24"
Spindle Nose /Spindle Bore - Main	A2-5" / 2.4"
Maximum spindle speeds (main & sub)	6,000 RPM
Main Spindle Motor / Subspindle Motor	15 HP / 10 HP
B Axis Mill Spindle Taper	CAPTO C5
Milling Spindle Speed	12,000 RPM
B Axis Spindle Motor	12 HP
Tool magazine	38 Tool Stations
Maximum Tool Diameter / Length / Weight	5.1" / 9.8" / 11 lbs.
Number of Lower Turret Positions	10 Station Turret
Rapid Traverse Rates X, Y / Z	1575 IPM / 1970 IPM
Machine Dimensions LxWxH	98" x 107" x 100"
Machine weight	19,700 lbs.
C Axis Spindle Rotation - Both	.001 Degree Full C Axis

2010 Mori Seiki NT1000 SZ
