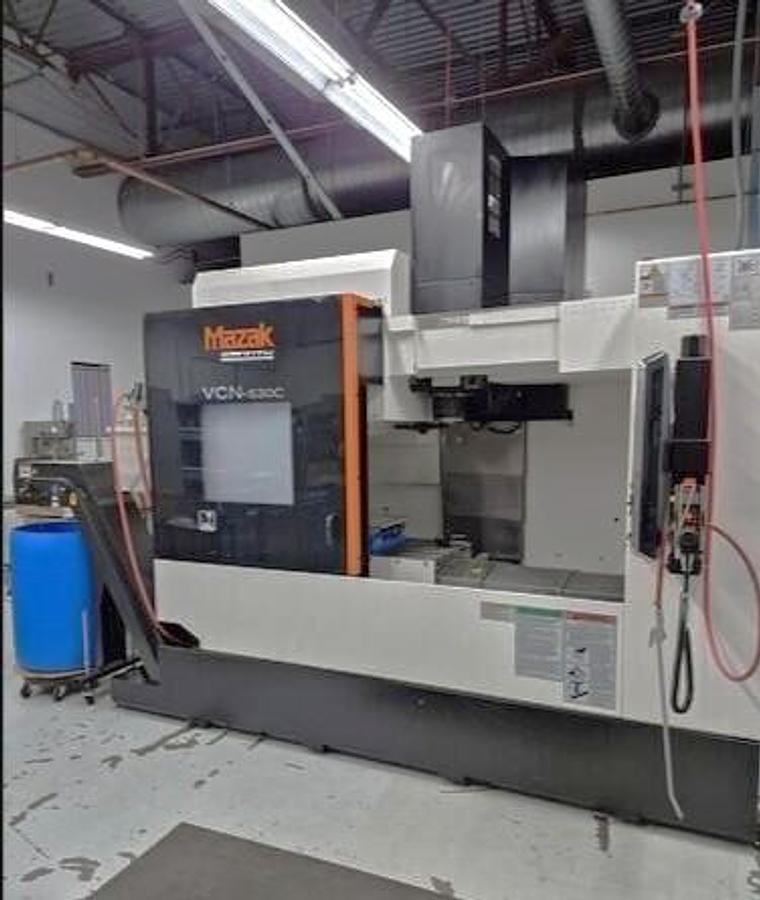

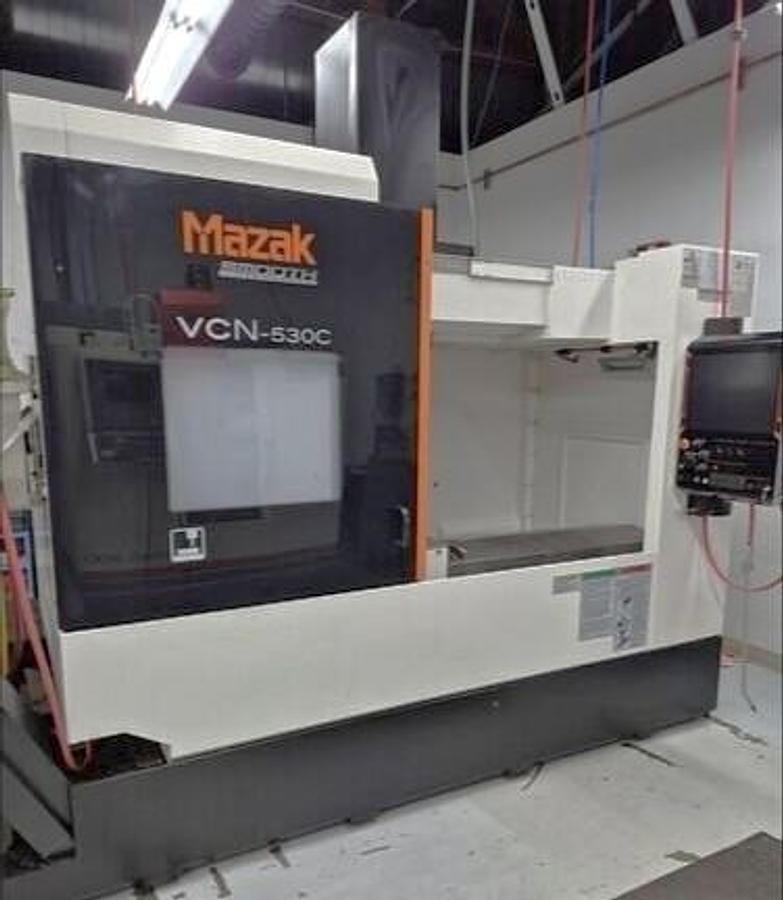

2018 Mazak Nexus VCN 530C with 4th Axis Rotary Table, Renishaw Tool Probe, Chip Conveyor, 15,000 RPM, BT40, Tooling, 30 ATC
2018 Mazak Nexus VCN 530C with 4th Axis Rotary Table, Renishaw Tool Probe, Chip Conveyor, 15,000 RPM, BT40, Tooling, 30 ATC
Contact us for price
Location:Idaho
Description
4th Axis Drive & Wiring

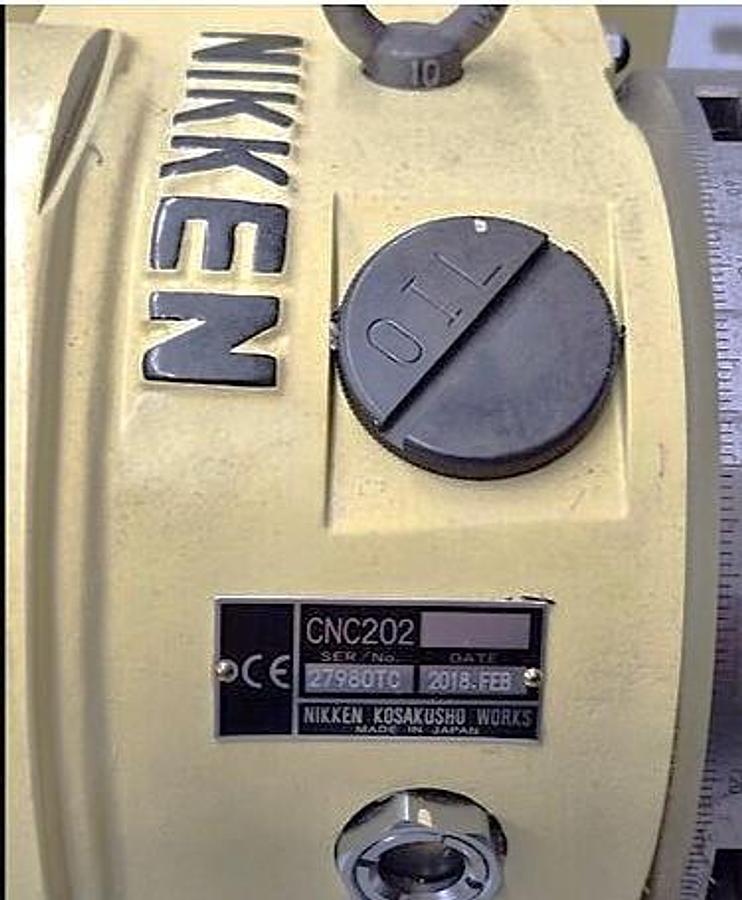

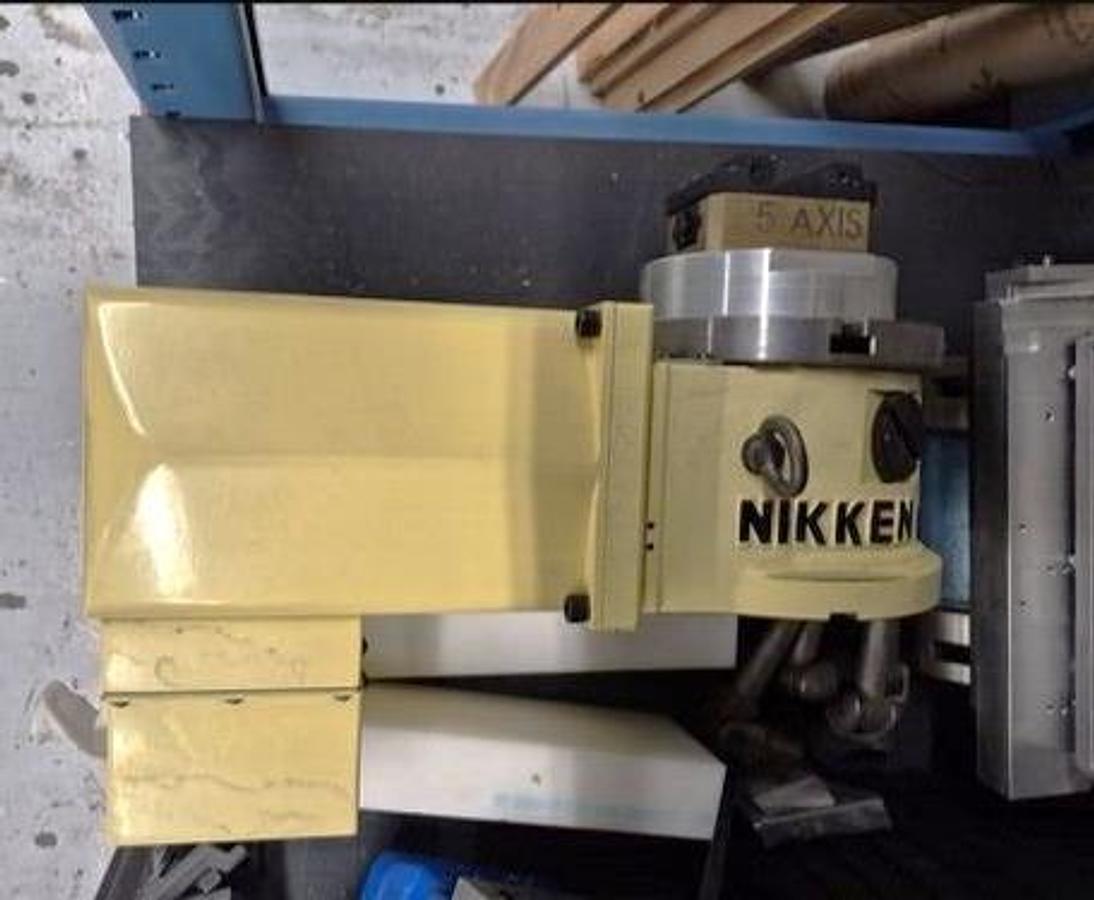

Nikken Model CNC202 8" Diameter 4th Axis Rotary Table
Tailstock for Rotary Table

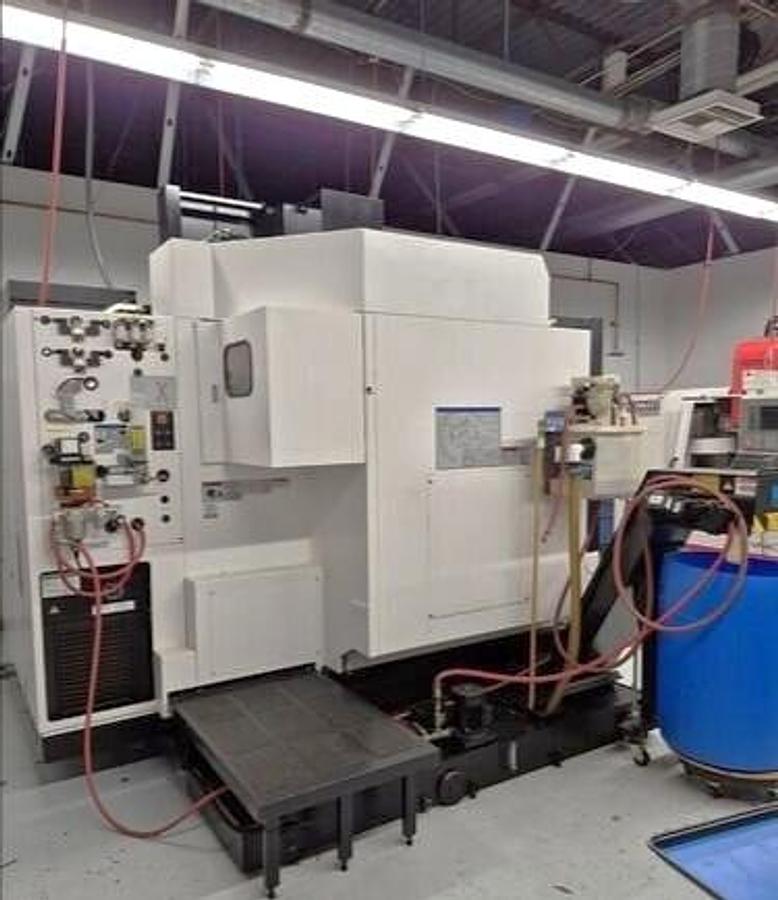

Chip Conveyor
Automatic Tool Length Measurement Probe - Renishaw
Renishaw Part Probing 30 Station Side Mounted Tool Changer Remote Hand Held MPG

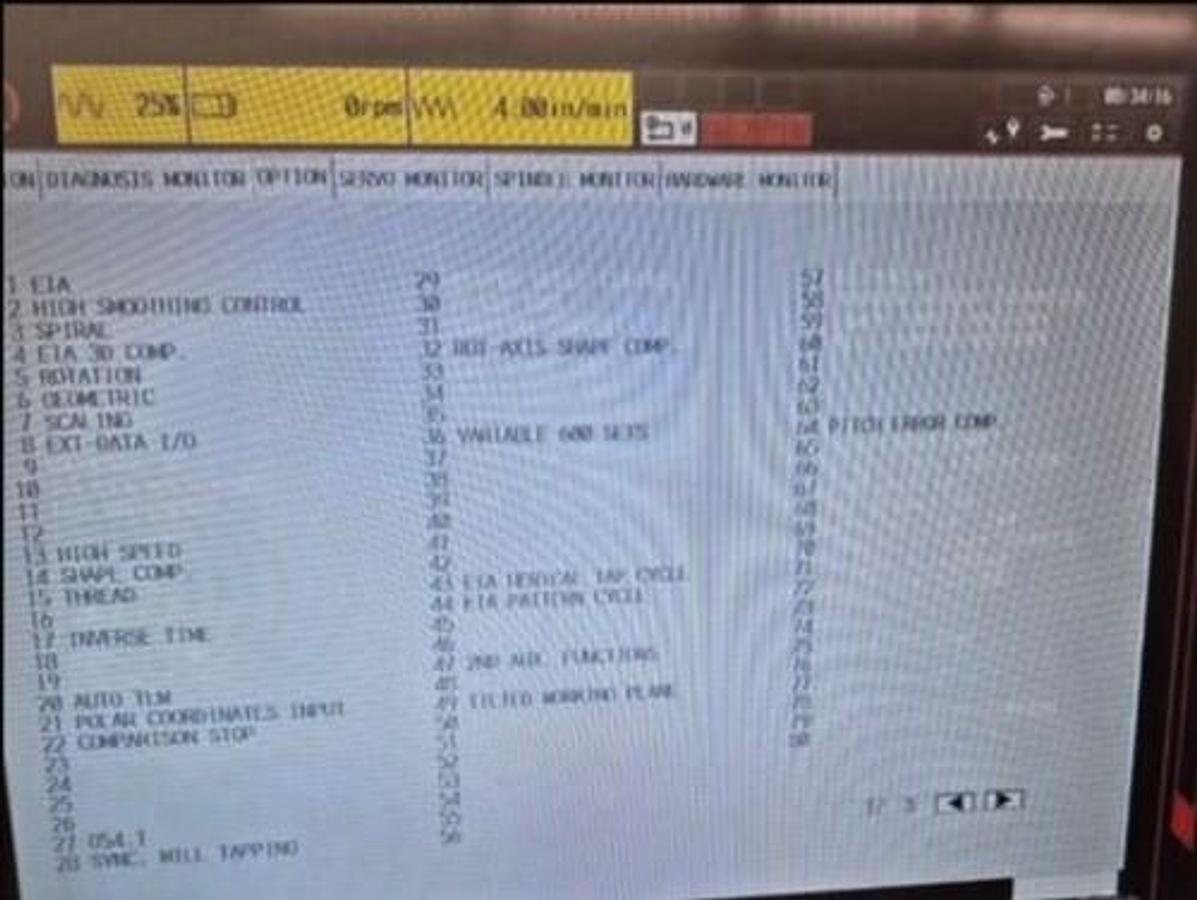

Coordinate Rotation & Scaling Rigid Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Coordinate Rotation & Scaling
G54.1
2nd Auxiliary Function
Rotary Axis Shape Compensation
Variable 600 Sets
Tilted Working Plane
Pitch Error Compensation
High Smoothing Control
Spiral Interpolation
Geometric
High Speed Machining
Shape Compensation
Polar Coordinates Input
Comparison Stop
Mazzac2D Software G-61.1 PCMCIA Interface 2 Slots USB Port Interface 3.5" Floppy Disk Drive Interface RS-232 Port Interface Multi Tap Transformer
Coolant Tank with Pump
Some Tooling Included
BT40 Taper Spindle

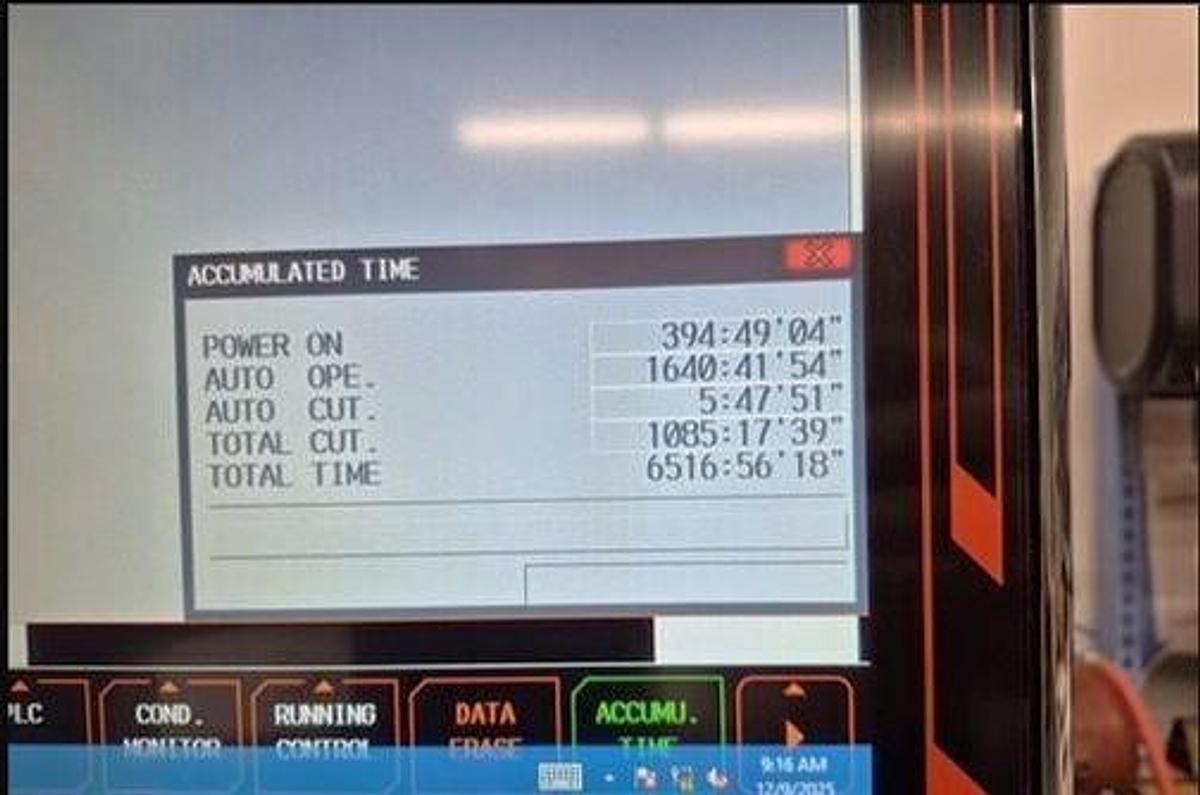

**Total Cutting Hours 1,085**
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 530C |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120678 |
| Control | Mazatrol Smooth G Control |

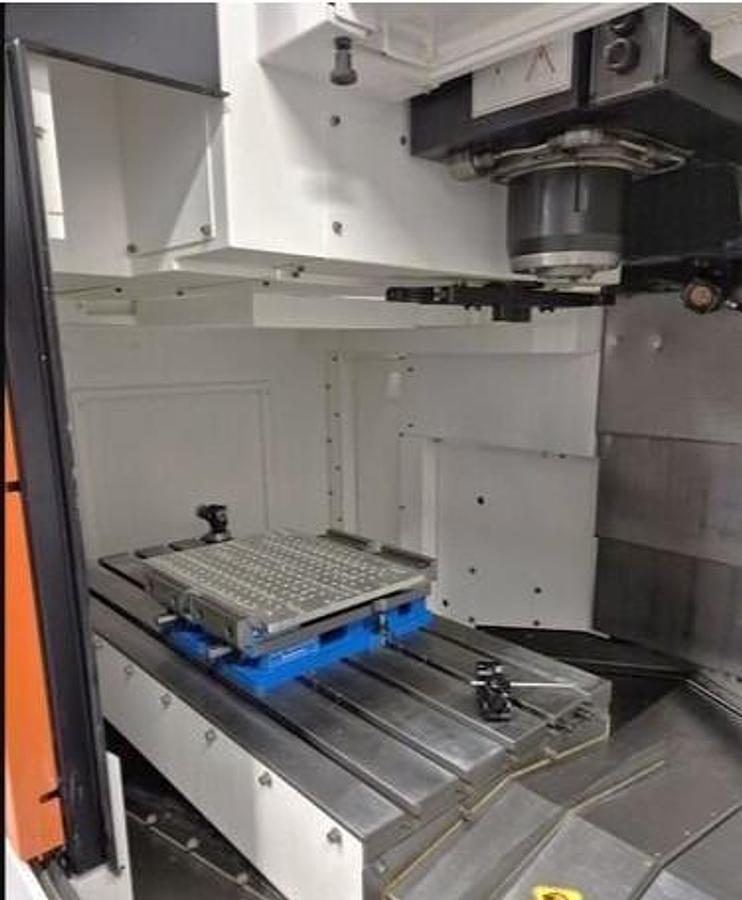

| Table Size | 51.18" x 21.65" |
| Maximum Table Load | 2,646 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 20.87" |
| Z-Axis Travel | 20.87" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 25 HP |
| Distance Spindle Nose to Table Top | 5.9" - 25.98" |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.8" / 17 lbs. |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Rapid Traverse Rates | 1654 IPM |
| Cutting Feedrates | 987 IPM |
| Machine Dimensions | 113" x 111" x 113" |
| Machine Weight | 15,600 lbs. |
