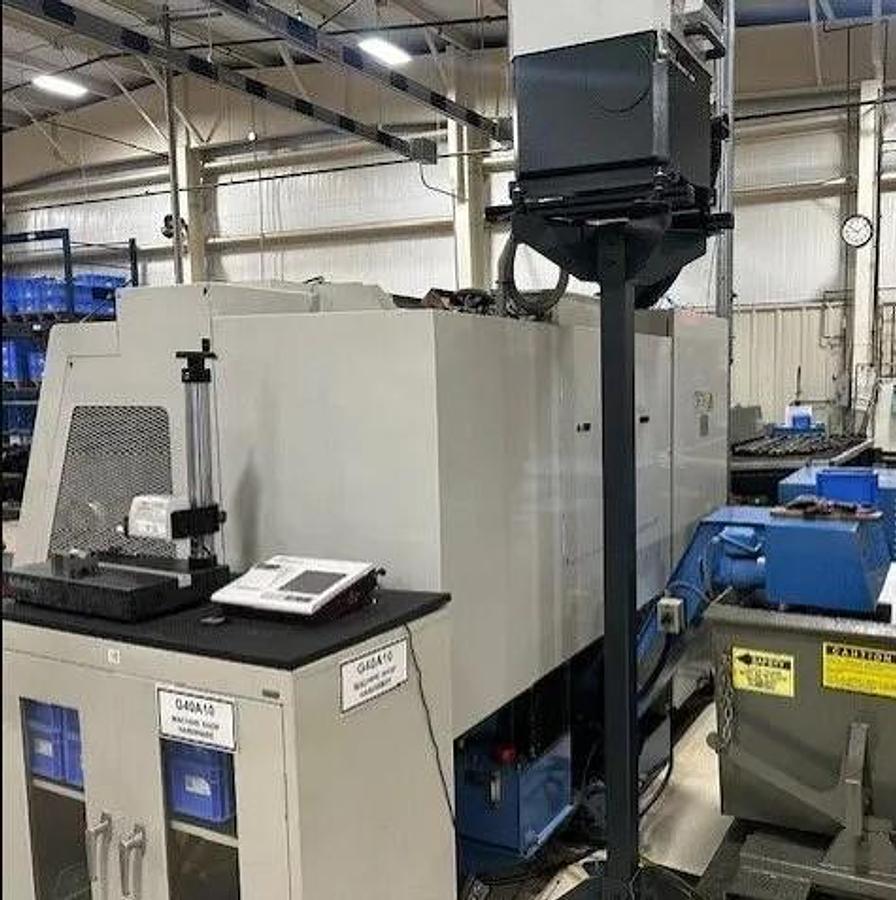

2000 Mazak SQT100MSY with Milling, Y Axis, Subspindle, LNS Servo S2 Barfeed, Chip Conveyor, Parts Catcher, Tooling
2000 Mazak SQT100MSY with Milling, Y Axis, Subspindle, LNS Servo S2 Barfeed, Chip Conveyor, Parts Catcher, Tooling
$34,950 (USD)
Location:New Jersey
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
Subspindle

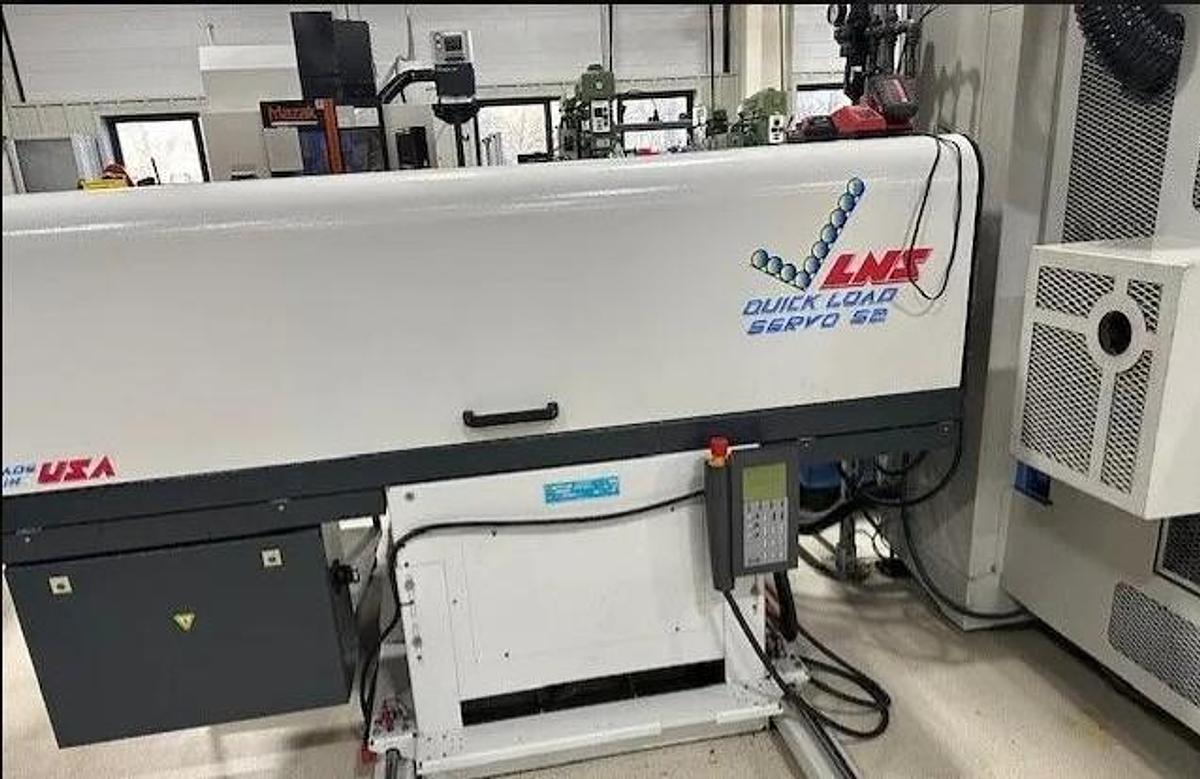

LNS Servo S2 Short Barfeeder
Collet Chuck on Main Spindle

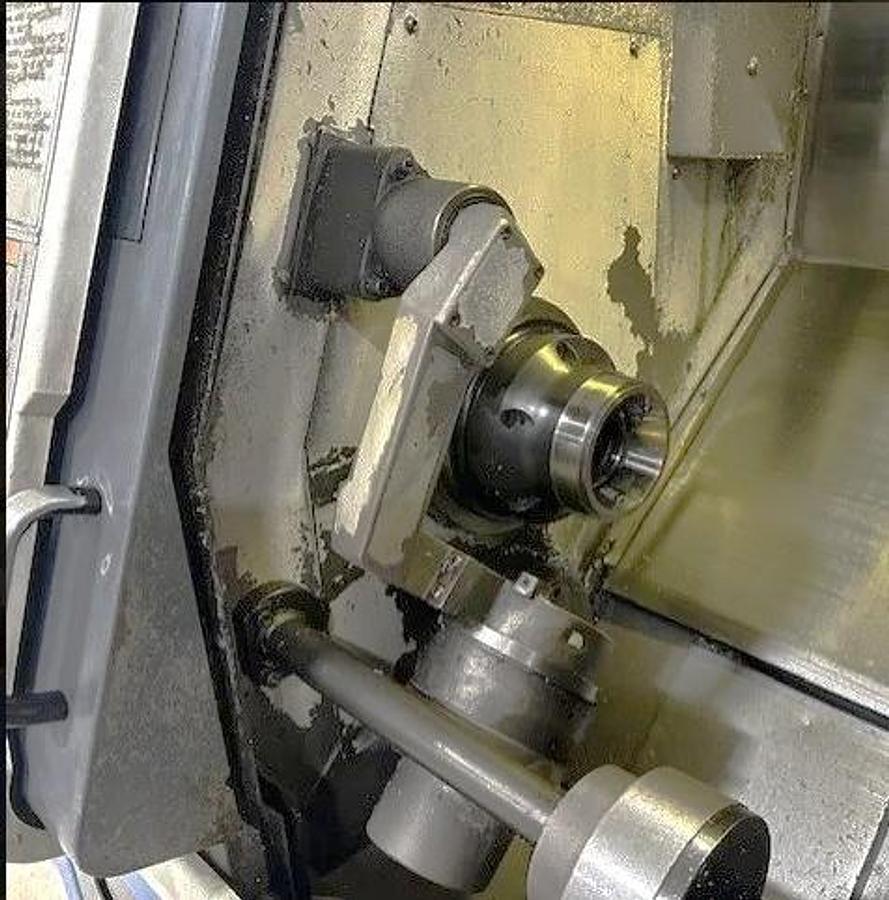

5" 3 Jaw Hydraulic Chuck on Subspindle
Rear Exit Chip Conveyor
Parts Catcher
Mist Collector
Transformer
EIA/ISO Input Function
EIA Helical Interpolation
EIA Coordinate Rotation
EIA Helical Tapping
Backround Tool Path Check
Mill Tool Synchronous Tapping
Direct DWG Size Input
User Definable Macro
600 Macro Variables
User Macro Interupt
Work Coordinates Select
Polar Coordinates Input
Enhanced Y Axis Control
Subspindle 1/1000 Degree Positioning
Pitch Error Compensation

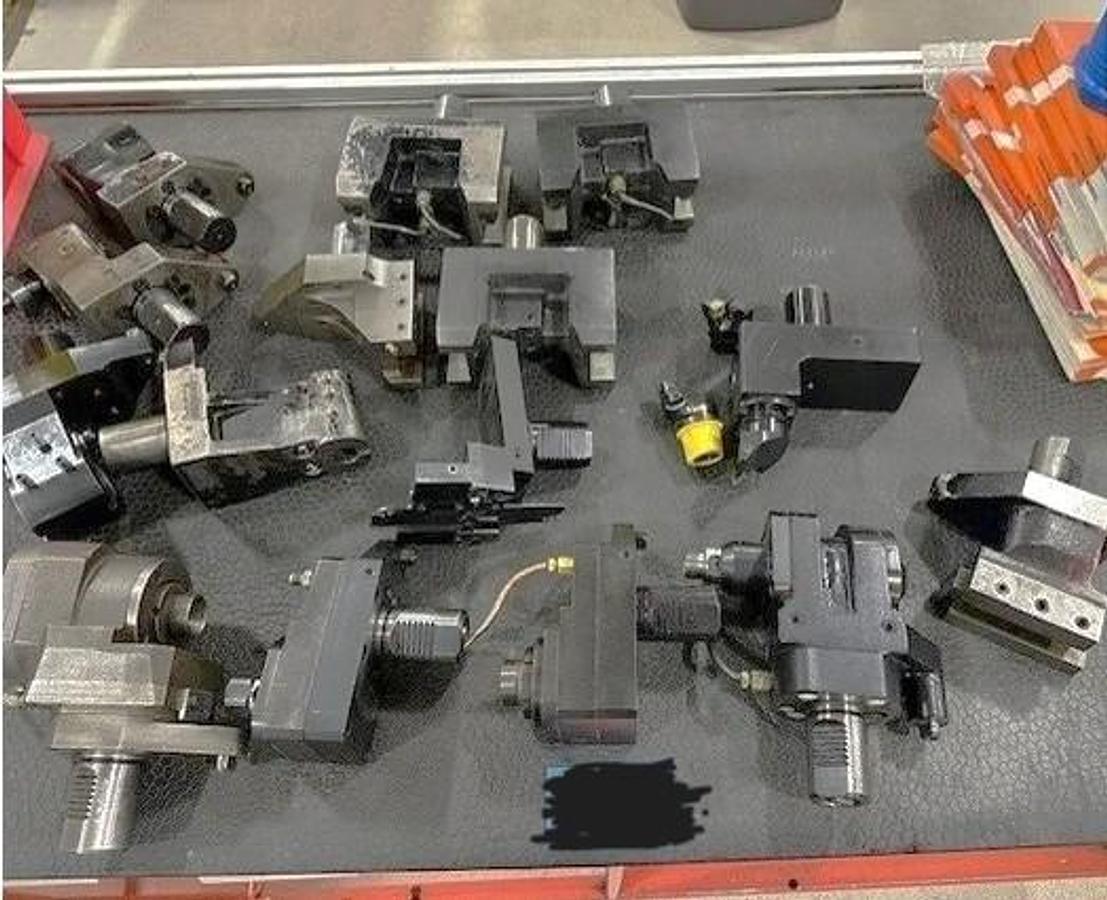

(14) Live Tool Holders
(11) Static Tool Holders
(13) Spindle Liners

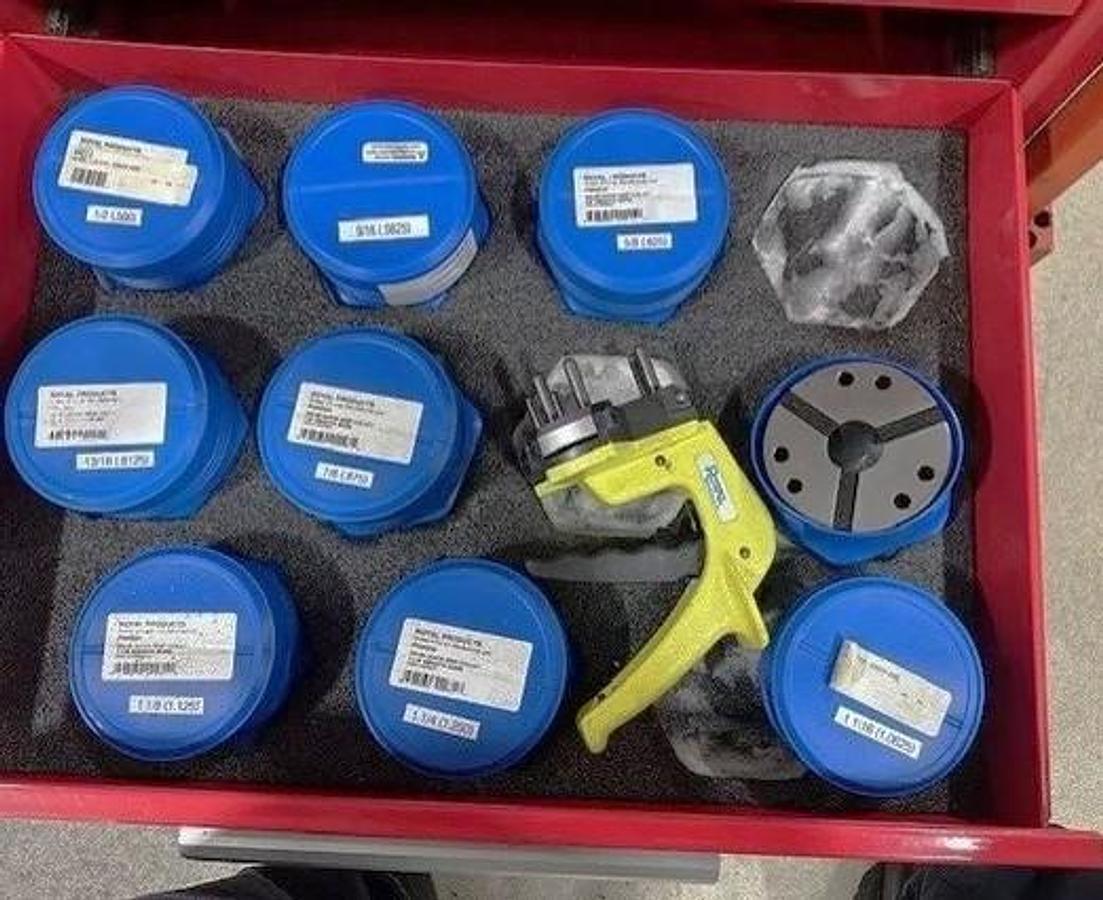

(8) Pieces Royal Collets for Collet Chuck

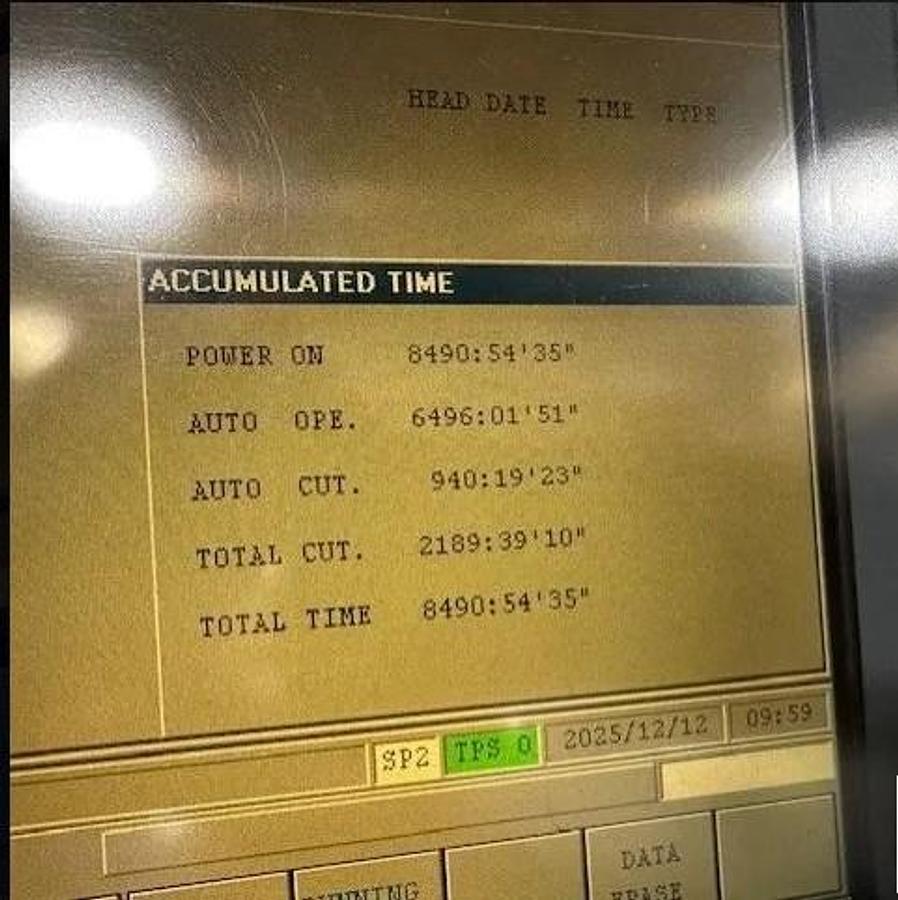

**Low Usage only shows 8,490 Power On Hours**
**Showing 2,189 Total Cutting Hours**
Specifications
| Manufacturer | Mazak |
| Model | SQT100MSY |
| Year | 2000 |
| Condition | Used |
| Stock Number | 120628 |
| Chuck sizes | Collet Chuck / 5" Subspindle |
| Maximum swing | 21.65" |
| Max. cutting diam./ max. mach. length | 11" / 14.1" |
| X axis travel | 7.25" |
| Y axis travel / b axis travel (subspd) | 3.15" / 18.025" |
| Z axis travel | 17.875" |
| Spindle indexing c axis | .001 Degree Index |
| Spindle nose/spindle bore/bar cap. | A2-5" / 2.4" / 2.0" |
| Spindle speed / motor hp | 6,000 RPM / 10 HP |
| Second spindle nose/spindle bore | A2-5" / 2" |
| Second spindle speed / motor hp | 6,000 RPM / 10 HP |
| Mill spindle speed / motor hp | 4,500 RPM / 5 HP |

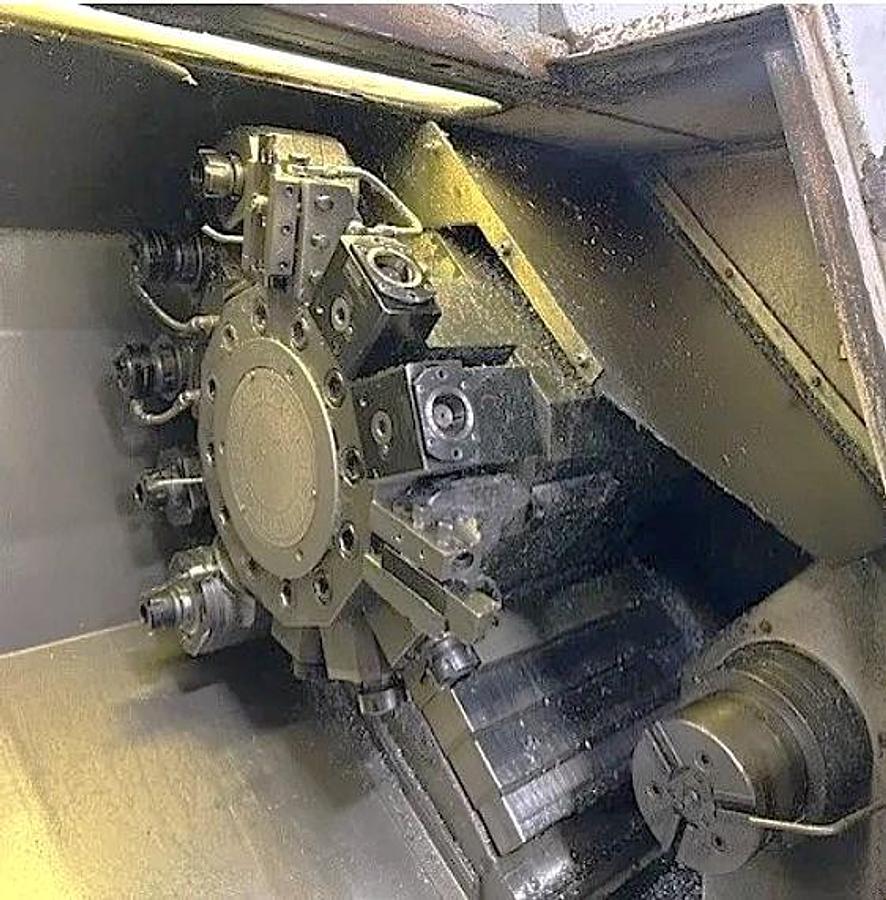

| Number of Turret Positions | 12 Station Turret |
| Rapid traverse x/z/y/c | 1181/1299/826/400 RPM |
| Floor space lxwxh | 103"x62"x73" |
| Machine weight | 10,340 lbs. |
