2022 Haas UMC-500 with 15,000 RPM Spindle, Coolant Thru Spindle, Haas Probing, 30 Station ATC, High Speed Machining

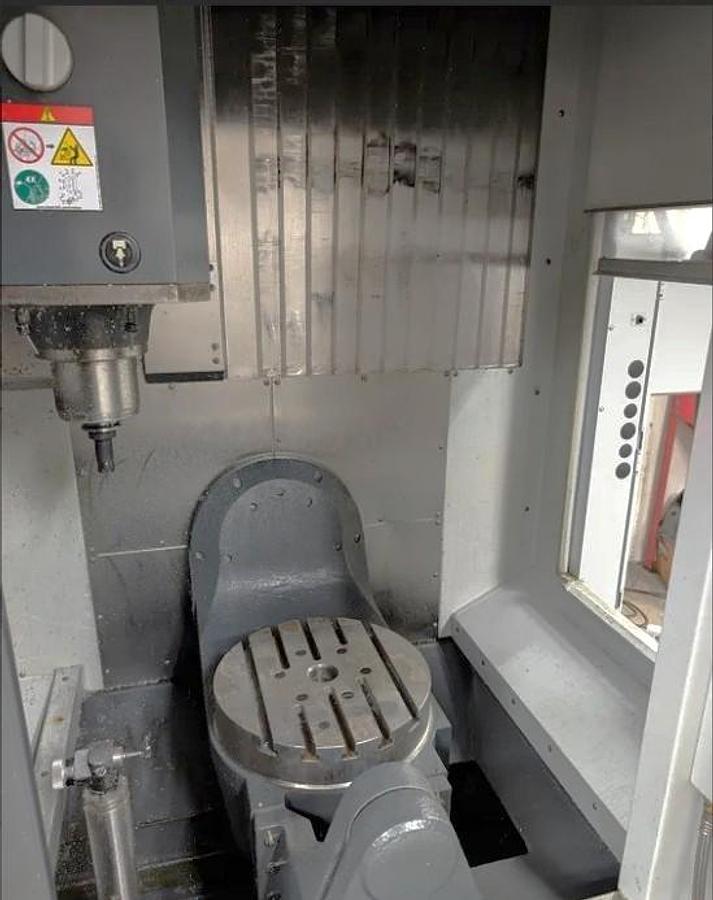

Trunnion Style 5th Axis Table

Coolant Through the Spindle - 300 PSI

Renishaw Probing with Tool & Part Probing

Chip Conveyor

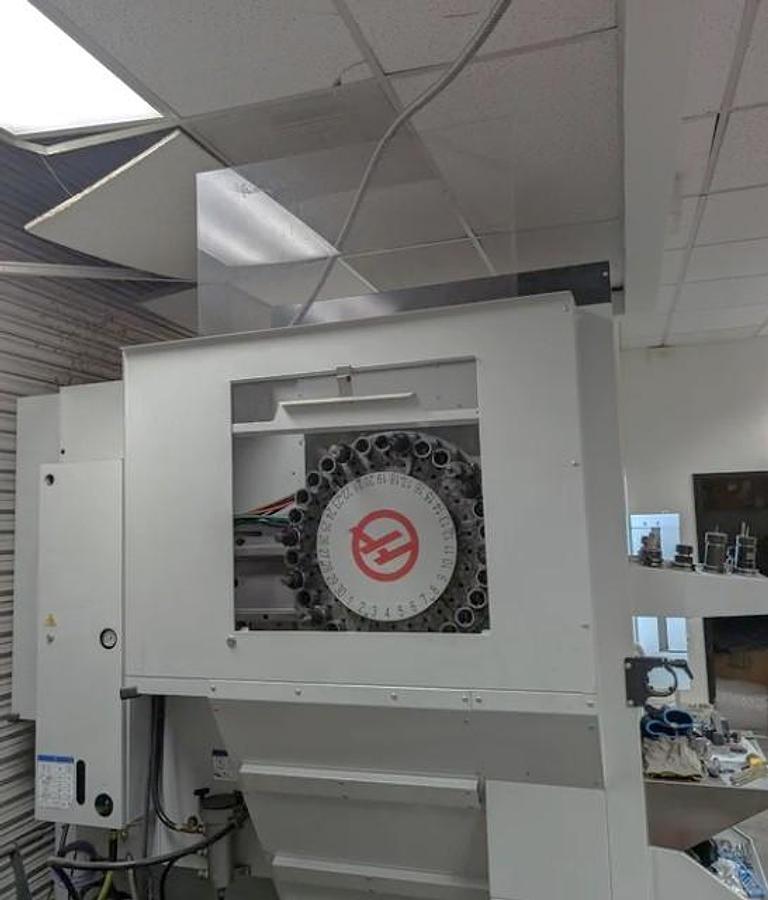

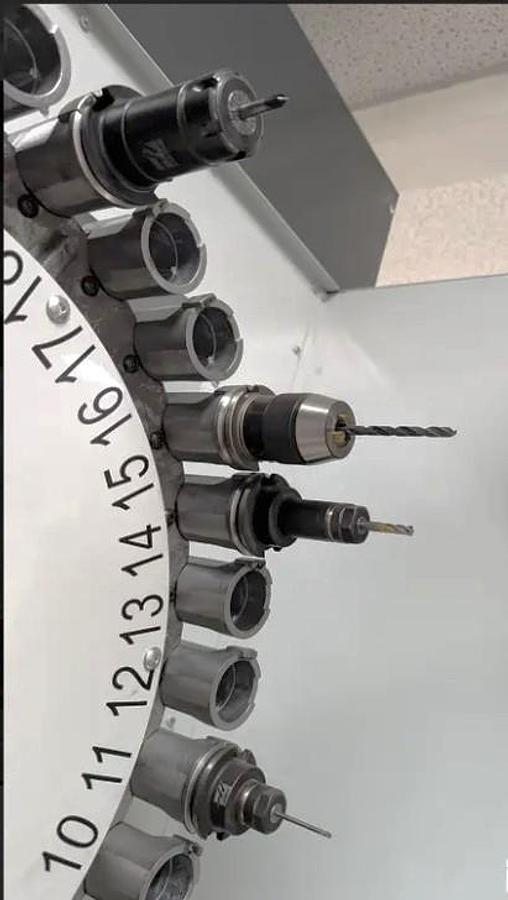

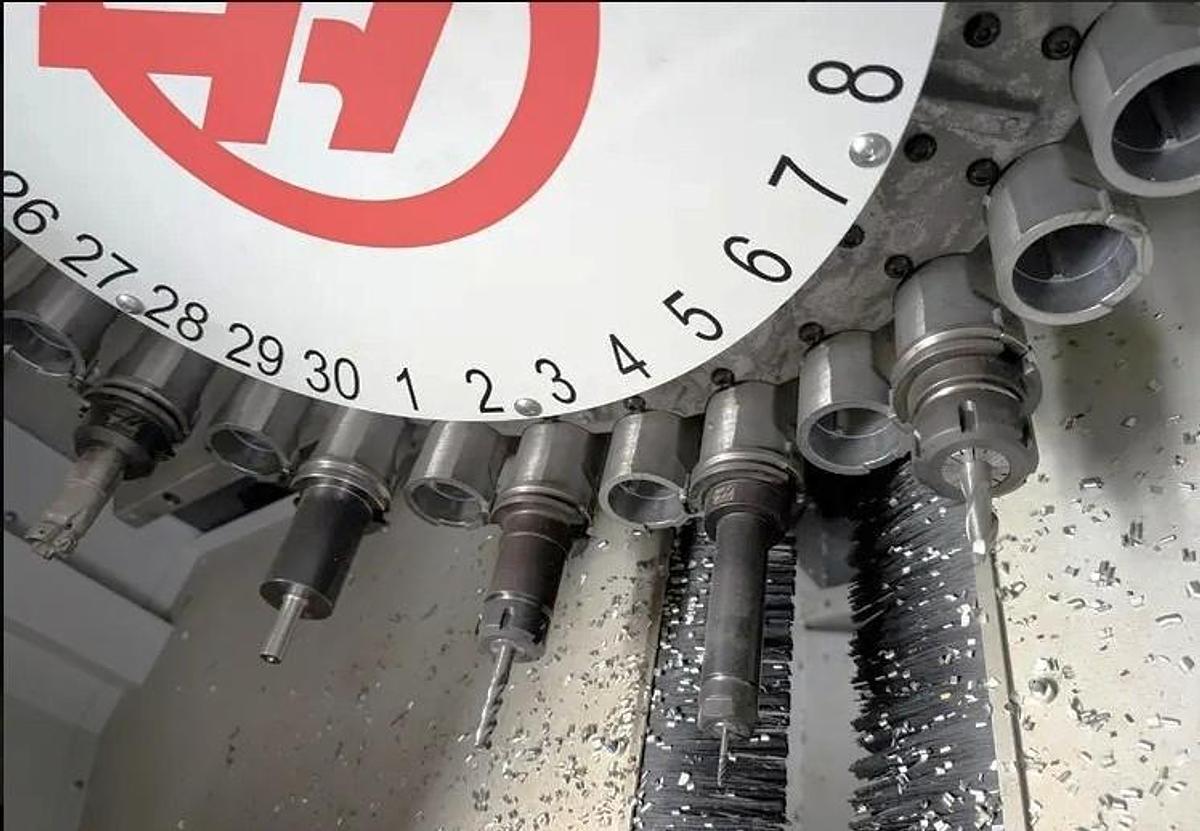

30 Station Side Mounted Tool Changer

Remote Jog Handle w/ Large Touch Screen

User Definable Macros

Coordinate Rotation & Scaling

Spindle Orientation

Haas Visual Programming System

Rigid Tapping

High Speed Machining

Through Tool Air Blast

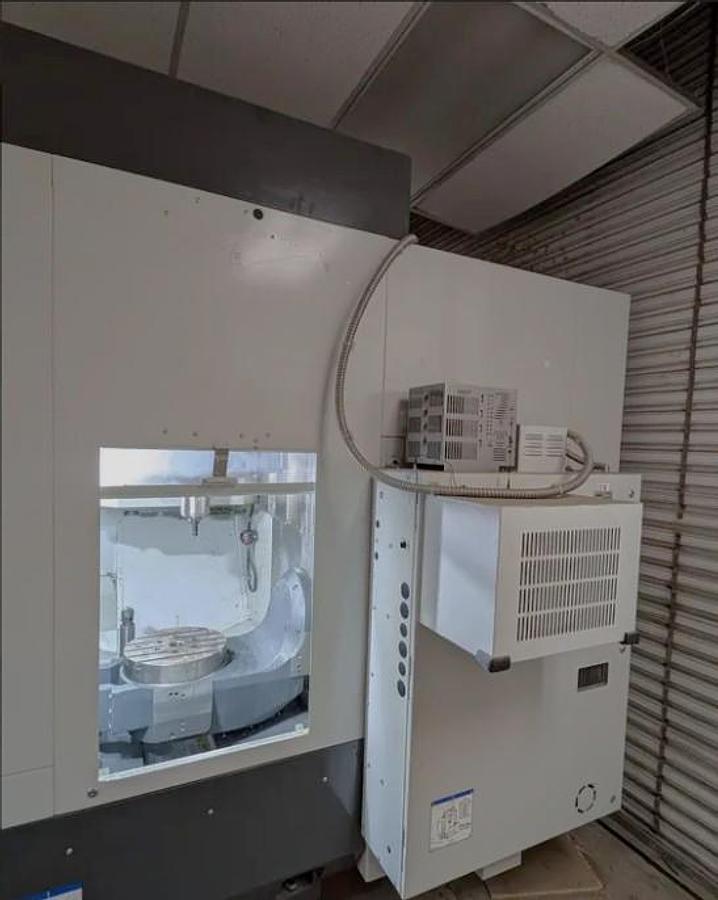

CNC Control Cabinet Cooler

Precision Scale Feedback on both B and C Axis'

Dynamic Work Offsets and Tool Center Point Control

Internal High Voltage Isolated Transformer for 380V - 480V Operation

Accessory Tooling Block

Media Display M-Code M130

1 GB Program Memory

Wireless Networking

Touch Screen Interface for Haas Control

Top Cover

Haas Connect

Haas Drop

Safe Run

Second Home Position

Early Power Failure Detection Module

WiFi for Haas Control

Ethernet Interface

USB Port Interface

RS 232 Port Interface

55 Gallon Coolant System with Tank & Pump

Inline Direct Drive

**Used Minimally for Aluminum Prototyping**

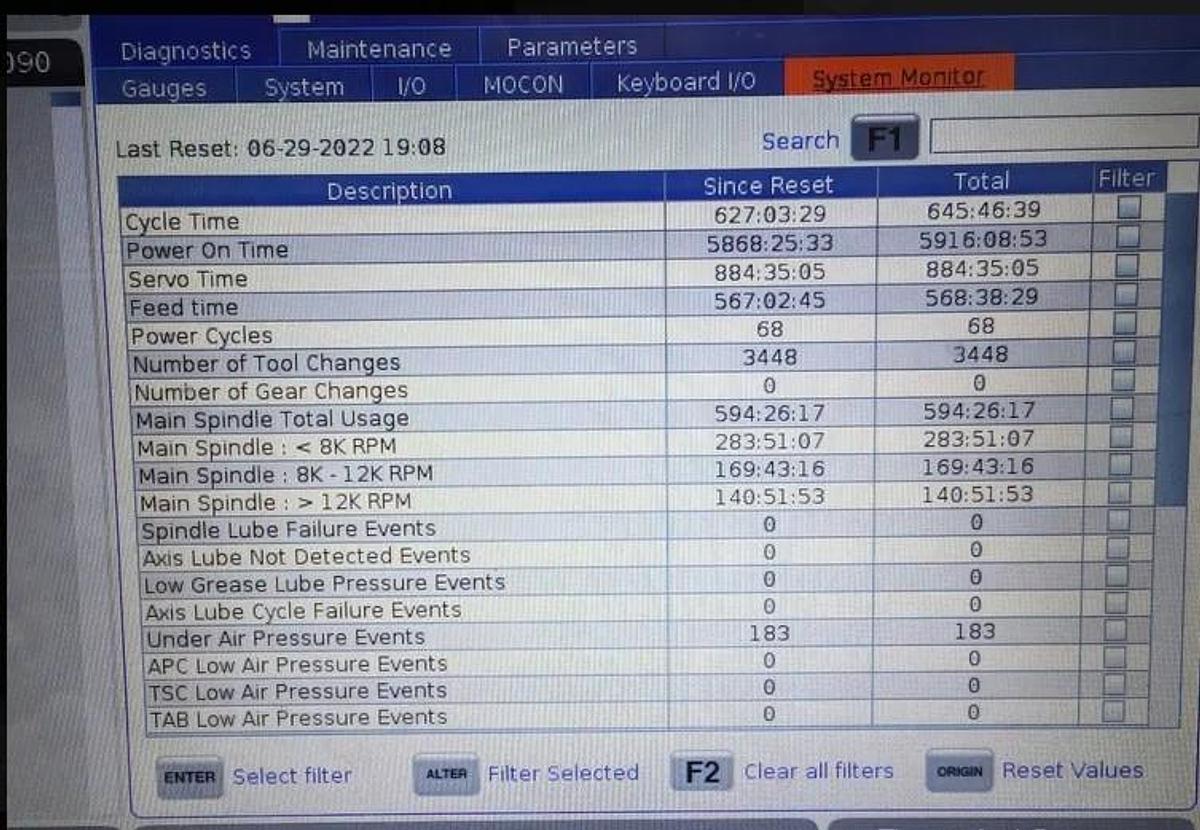

**Power On Time - 5,868 Hours**

**Servo On Time - 884 Hours**

**Spindle Run Time - 594 Hours**

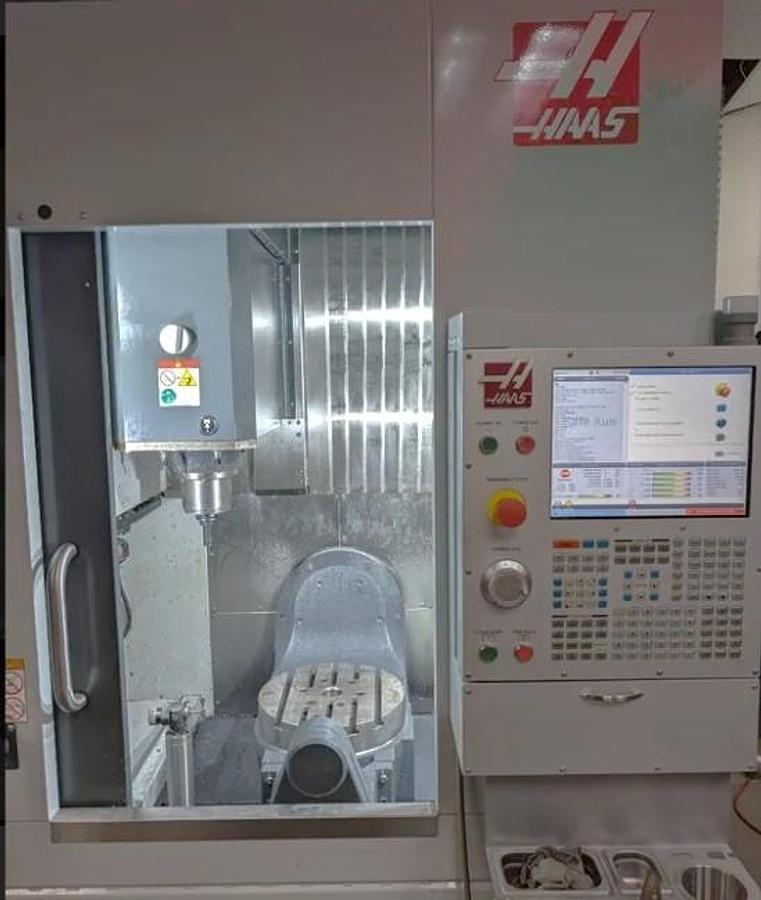

The 2022 Haas UMC-500SS is a versatile used CNC vertical machining center, designed for efficient and precise multi-axis machining tasks. It is equipped with a powerful 15,000 RPM spindle and a robust 30 HP motor with a CAT #40 taper, ideal for demanding applications. The machine offers a range of movements with X, Y, and Z axis travels of 24", 16", and 16" respectively. The B axis rotates from -35 to 110 degrees, and the C axis provides precise positioning with .001-degree increments. This machine features a 30 + 1 position tool changer, supporting tools up to 5" in diameter, 12" in length, and 12 lbs in weight. Rapid traverse rates reach 1200 IPM, with maximum feed rates at 650 IPM, ensuring high productivity. Furthermore, it comes with advanced features such as coolant thru spindle and Haas probing, which enhance machining accuracy and efficiency. The table, measuring 15.7" in diameter, can support loads up to 500 lbs, making it suitable for various industrial applications. Compact yet robust, the UMC-500SS has dimensions of 120" x 98" x 110" and weighs in at 13,500 lbs, allowing it to fit easily into diverse workshop settings. This model is an excellent choice for operations requiring high-speed machining combined with precision and reliability.
