2013 Miyano BNA-42 DHY w/ Milling & Subspindle, Y Axis, Dual Front and Rear Turrets, Edge Bar Patriot 338 Barfeed, HPC
2013 Miyano BNA-42 DHY w/ Milling & Subspindle, Y Axis, Dual Front and Rear Turrets, Edge Bar Patriot 338 Barfeed, HPC
$69,950 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

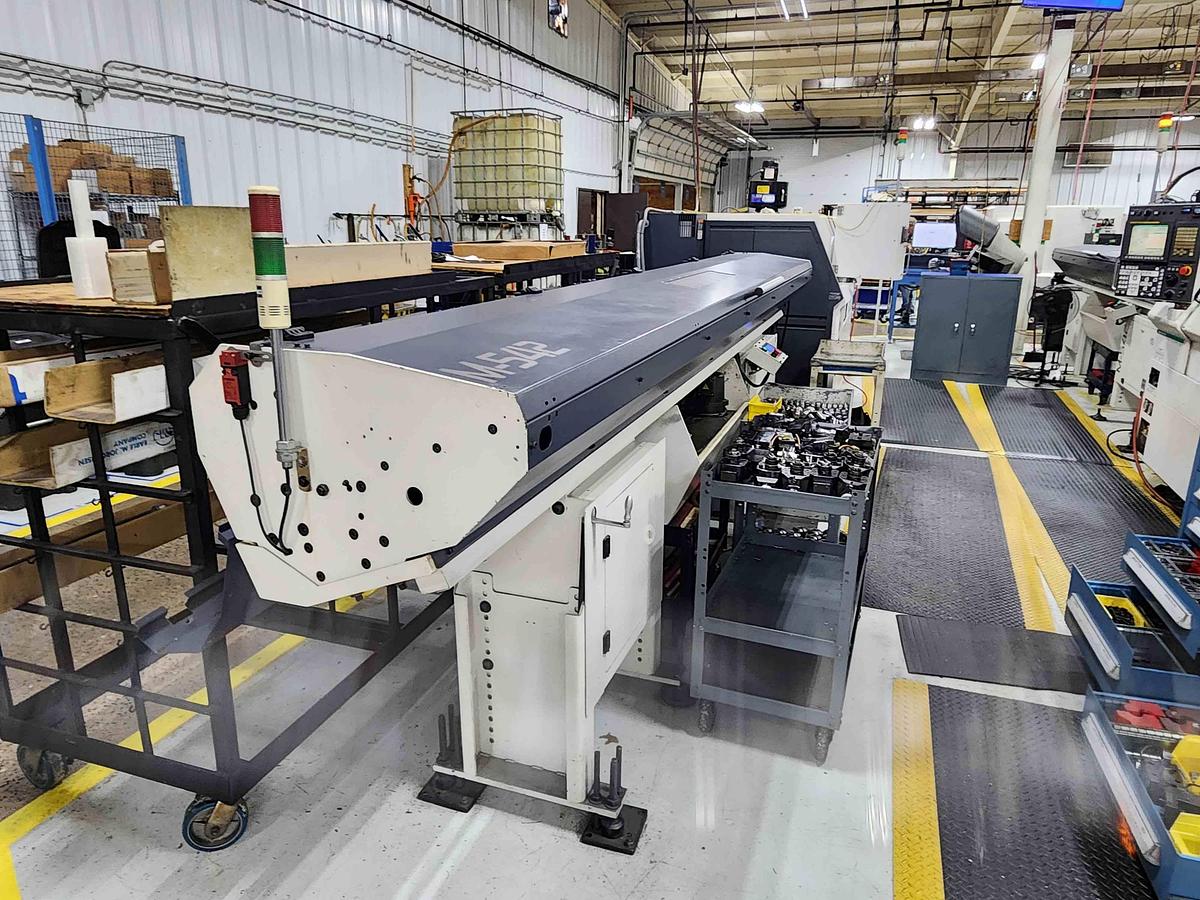

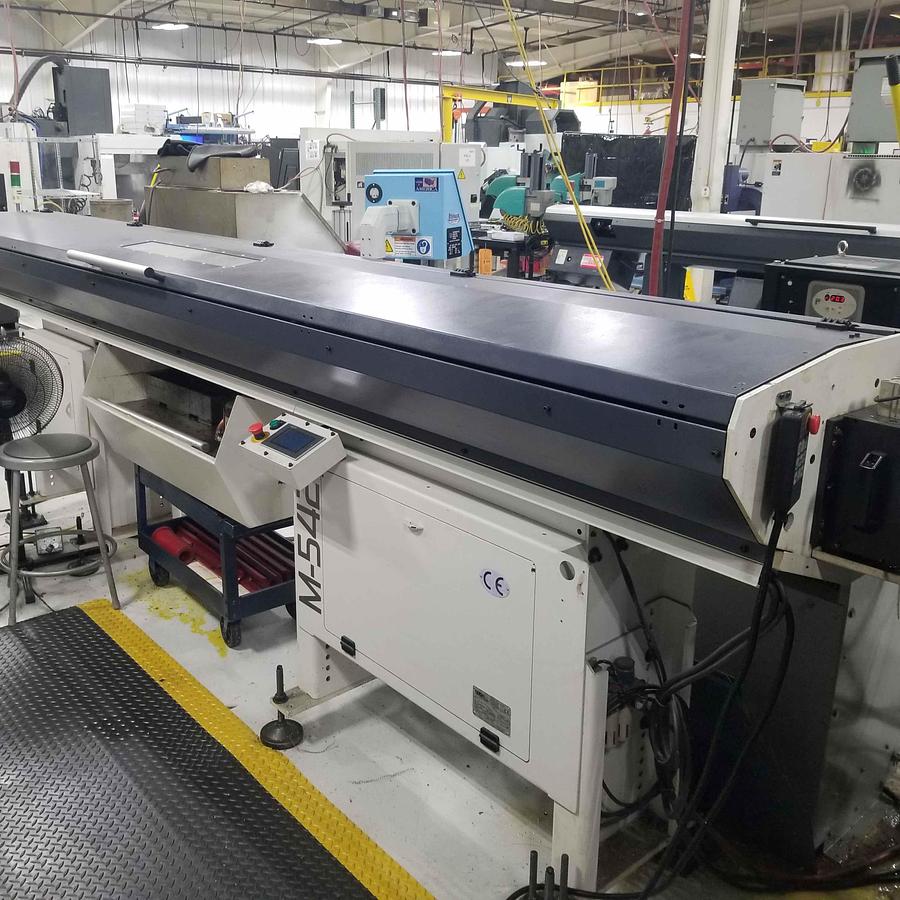

Miyano M-542 (Edge Patriot 338) Magazine Bar Feed
Live Milling/Drilling Capability
Subspindle
Dual Front/Rear Turret Design
C Axis Spindle Rotation Both Spindle
Y Axis Capability on Rear Turret
Collet Chuck on Main Spindle
Collet Chuck on Subspindle
Automatic Parts Catcher
Parts Exit Conveyor
Chip Conveyor
High Pressure Coolant
Rigid Tapping

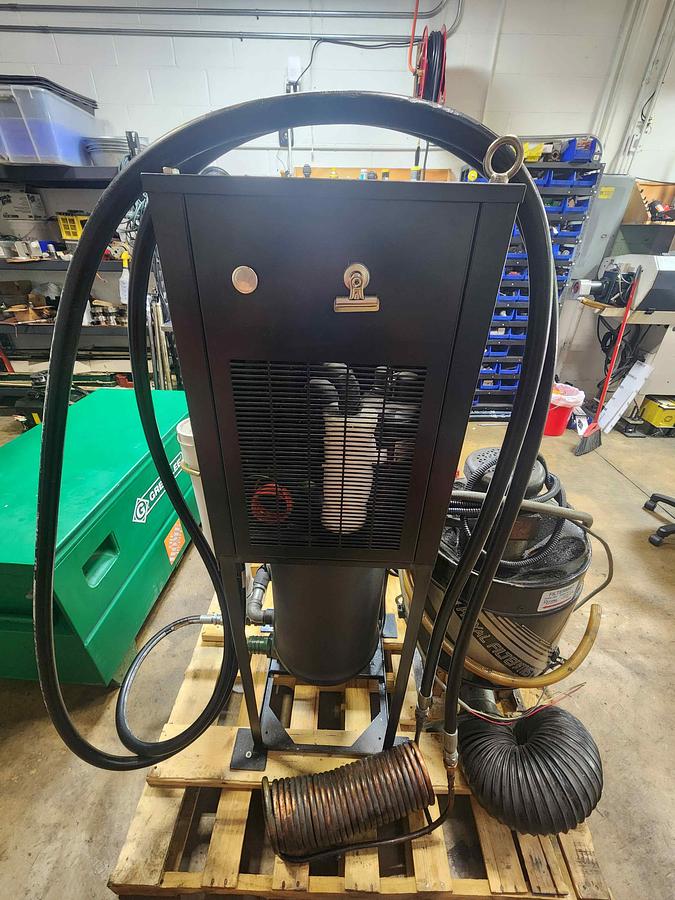

Chiller Unit
Mist Collector
Fixed Headstock Design
RS 232 Port Interface
Complete Coolant System with Tank & Pump

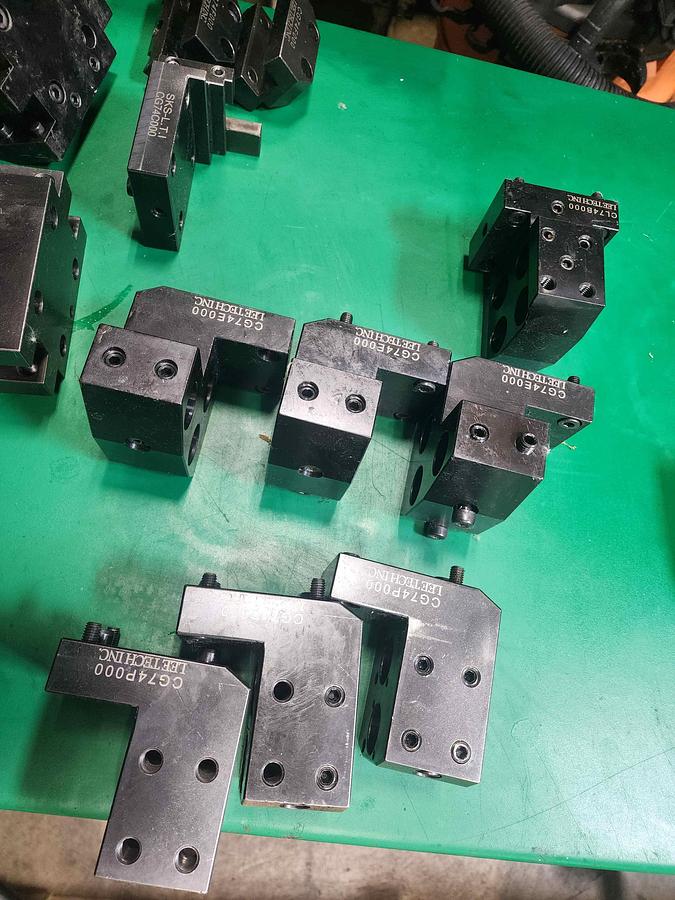

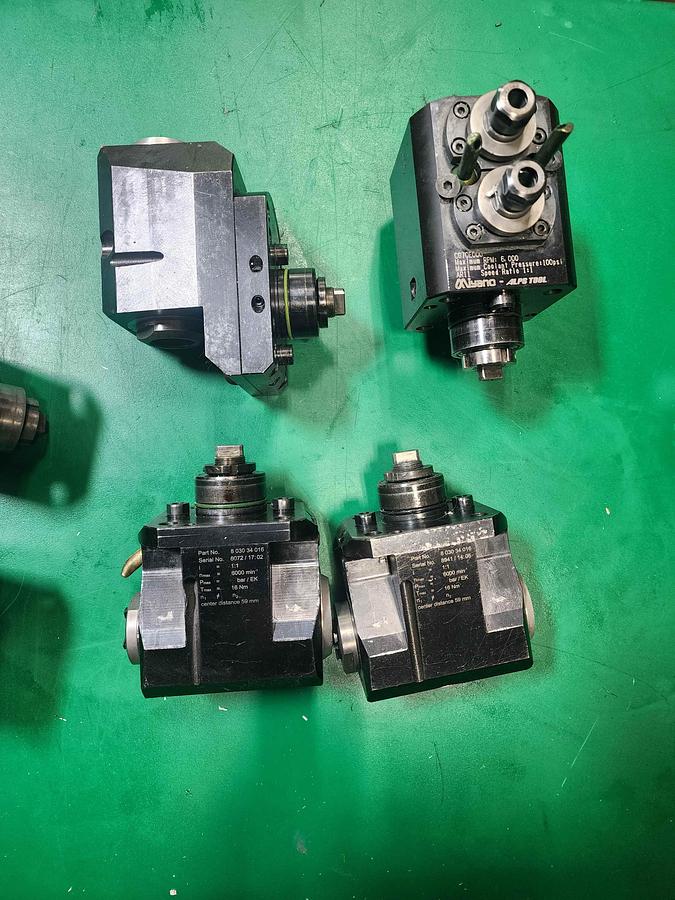

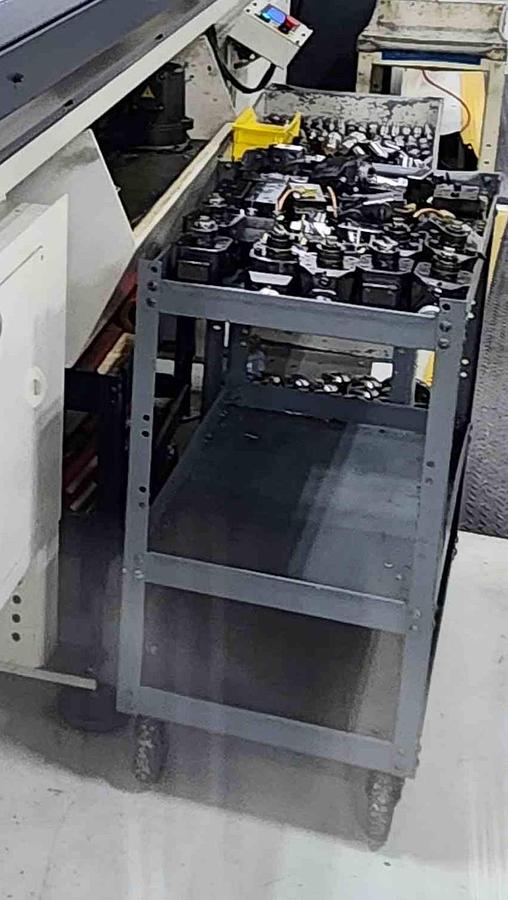

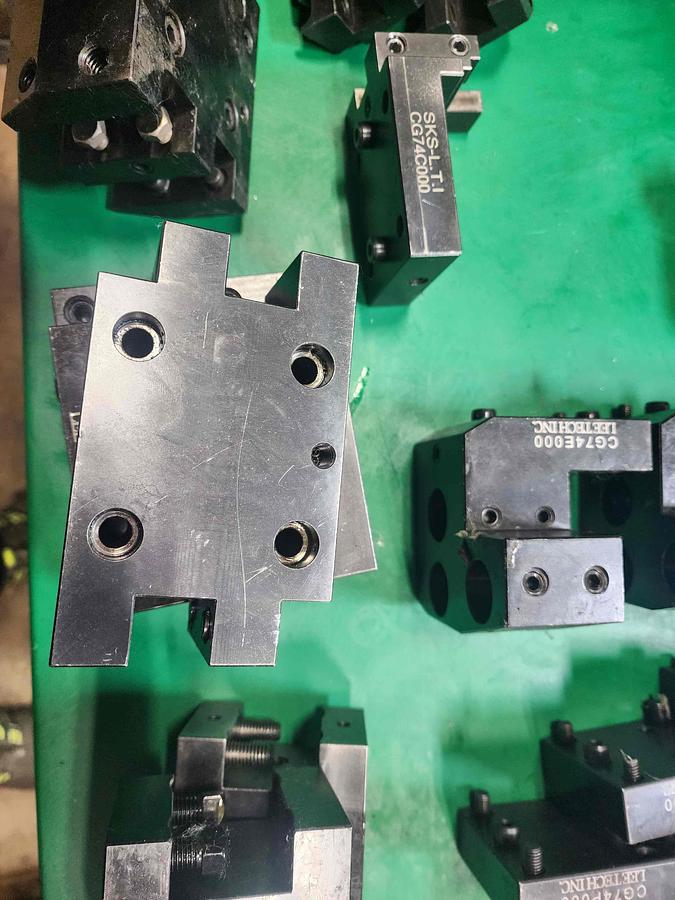

All Available Tooling - Large Assortment of both Static and Live Tooling

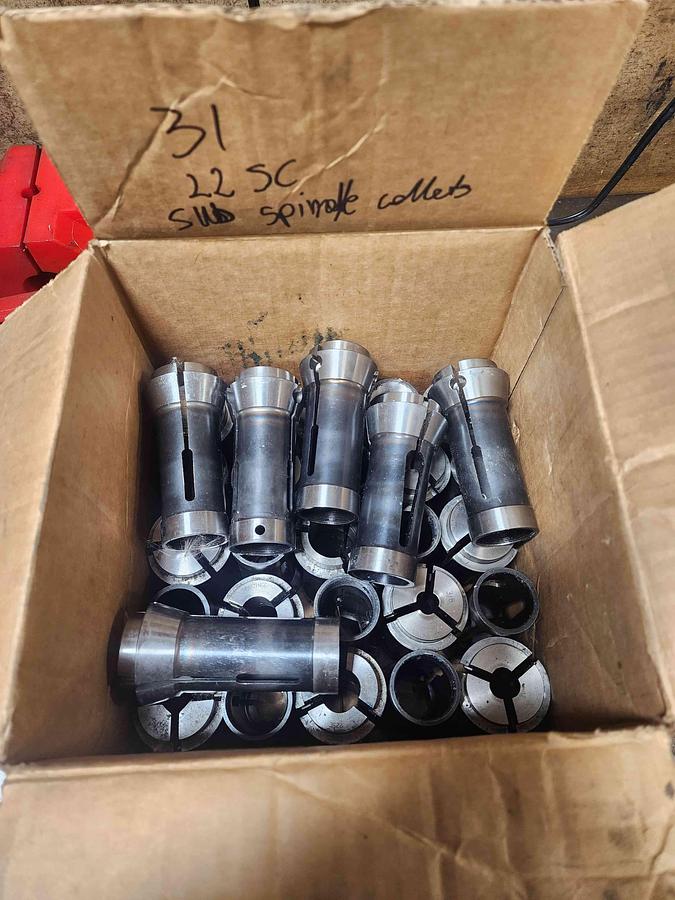

All Available Manuals, Tool Kit
Specifications
| Manufacturer | Miyano |
| Model | DNA-42 DHY |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120475 |

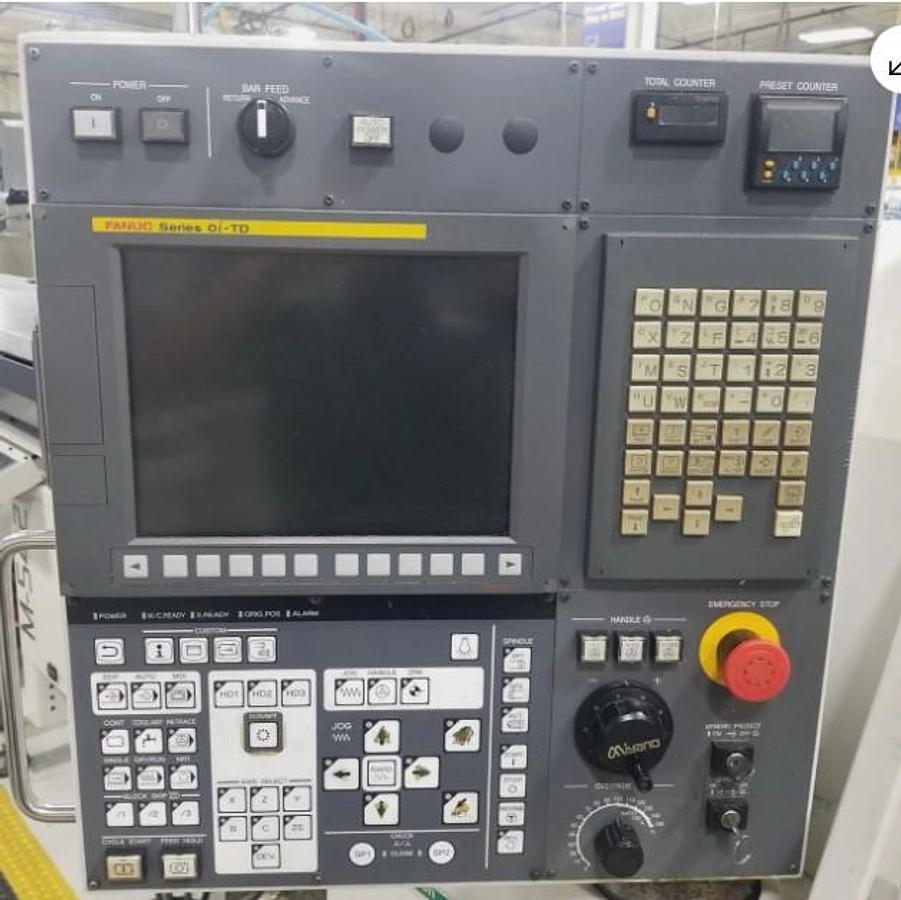

| Machine Control | Fanuc 0i-TD Series Control |
| Chuck types main / subspindle | Collet Chuck / Collet Chuck |
| Maximum Bar Capacity Spindle 1 / Spindle 2 | 1.65" / 1.34" |
| Standard Machining Length | 3.94" |
| X-Axis Travel - Both X1 and X2 | 5.52" |
| Y-Axis Travel | +/- 1.379" |
| Z-Axis Travel - Z1 / Z2 | 9.26" / 12.21" |
| B-Axis Travel (Subspindle) | 12.21" |
| Maximum Spindle Speed - Spindle 1 / Spindle 2 | 6,000 RPM / 5,000 RPM |
| Live Tooling Speed | 5,000 RPM |
| Spindle Motor - Main / Subspindle | 10 HP / 7.4 HP |
| Live Milling Motor | 3.75 HP |
| Number of Turret Positiions - Front Turret / Rear Turret | 8 Positions / 12 Positions |
| Number of Live Tools Capable - Rear Turret | 8 Positons |
| Rapid Traverse Rates X1, Z1 / Y1, X2, Z2 | 788 IPM / 473 IPM |
| Machine Dimensions | 88.25" x 58" x 66.2" |
| Machine Weight | 6,600 lbs. |
