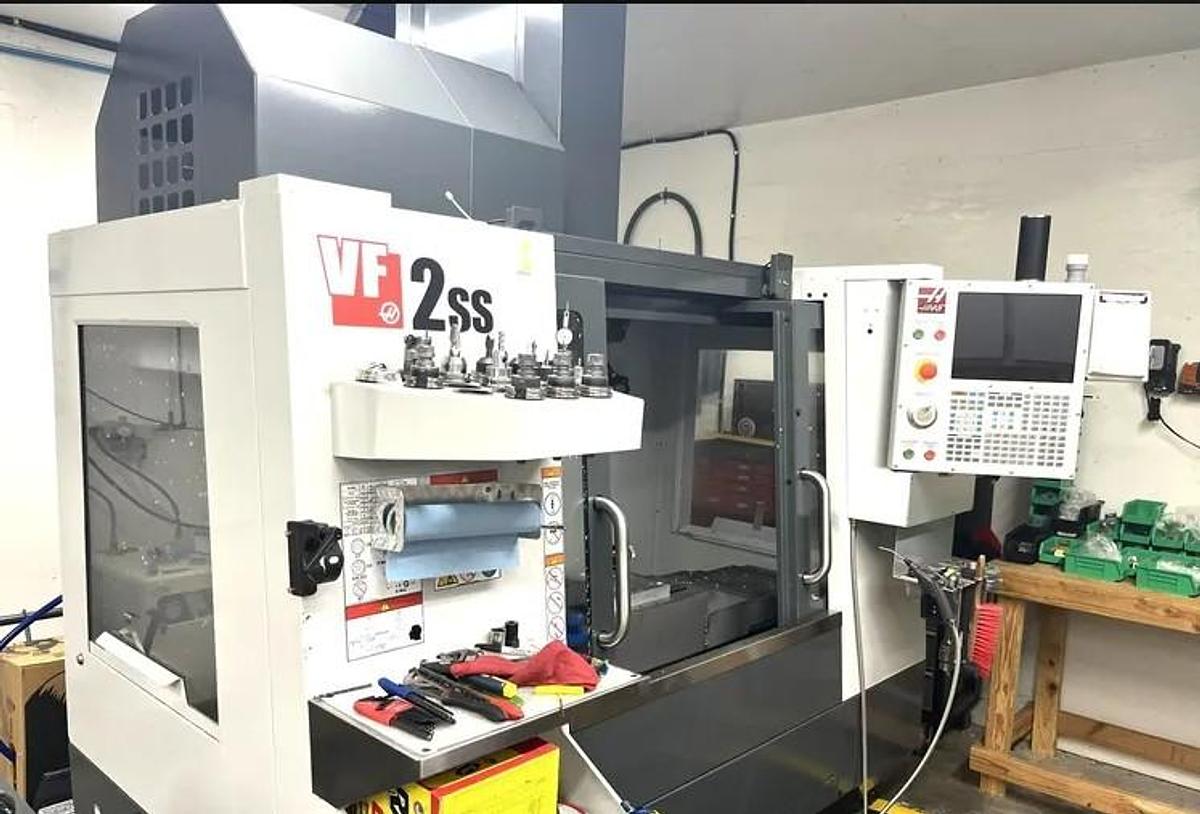

2021 Haas VF2SS with Coolant Thru Spindle, Haas Probing Package, 30 Station ATC, HSM, 12,000 RPM
2021 Haas VF2SS with Coolant Thru Spindle, Haas Probing Package, 30 Station ATC, HSM, 12,000 RPM
$69,950 (USD)
Location:Texas
Description
Coolant Through the Spindle - 300 PSI
Haas Wireless Probing Package with Tool & Part Probes
High Speed Machining
30+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor
Programmable Coolant Nozzle
High Pressure Flood Coolant System
Window Air Blast
Coolant Tank Filter Kit
Media Display By M-Code (M130)
High Speed Machining
Compensation Tables
Early Power Failure Detection
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Rigid Tapping
Complete Coolant System with Tank & Pump
1 GB Standard Programming Memory
Wireless Networking
Haas Drop
Safe Run
Haas Connect Remote Monitoring
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 220V Electrics
(2) Kurt Vices Included
**Price new today as equipped at $110,000**
**One Owner Machine, Has ONLY Cut Aluminum**

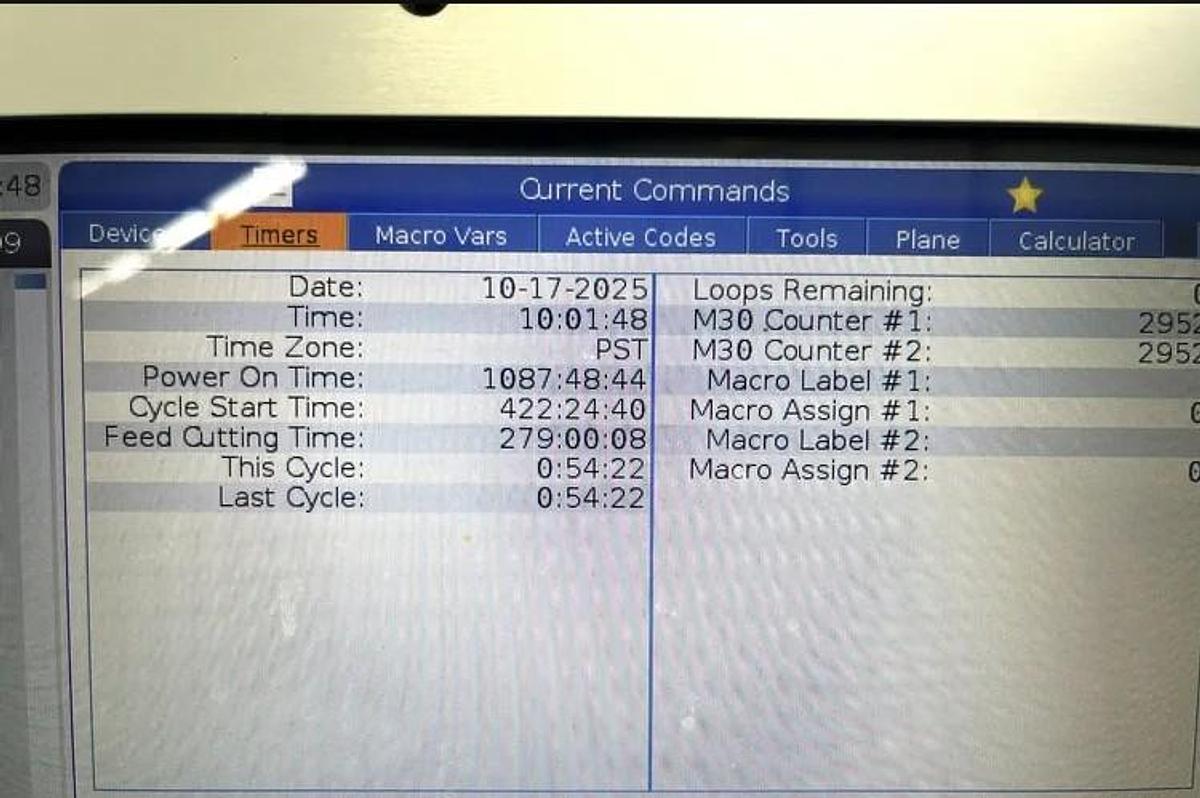

**Power On Hours 1,087**
**Feed Cutting Hours 279**
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2021 |
| Condition | Used |
| Stock Number | 120470 |
| Machine Control | Haas NextGen Control |
| Table size | 36" x 14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9000 lbs. |
