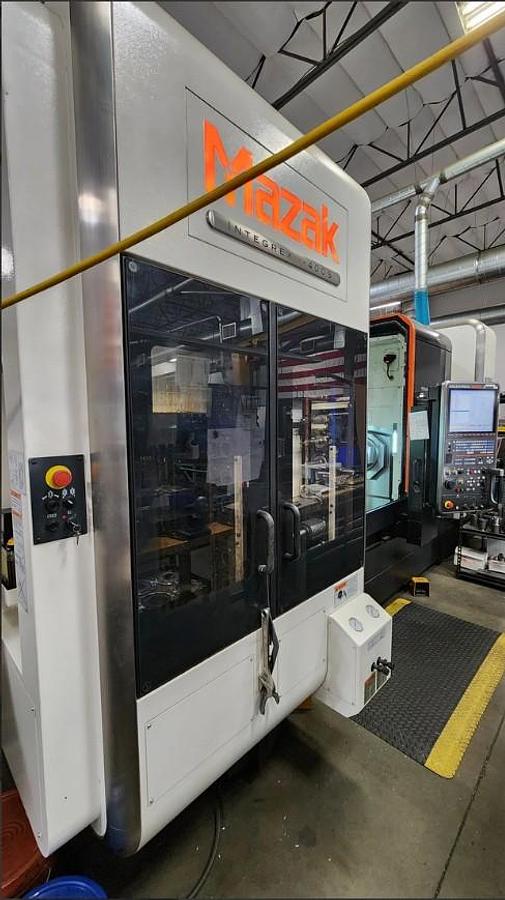

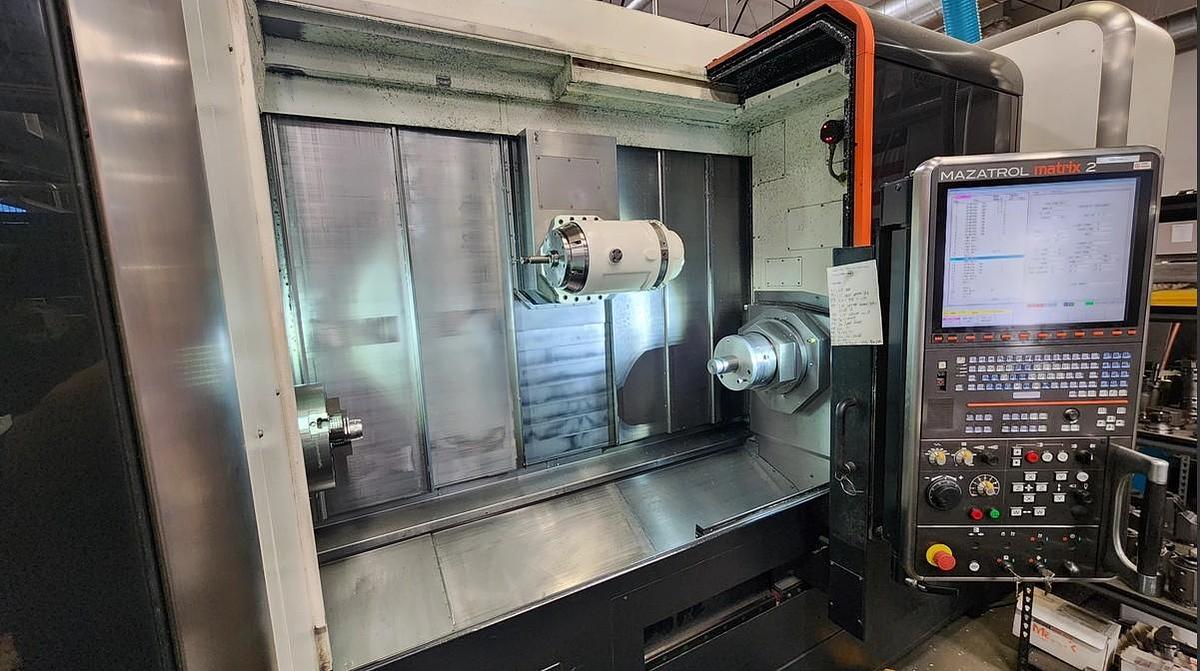

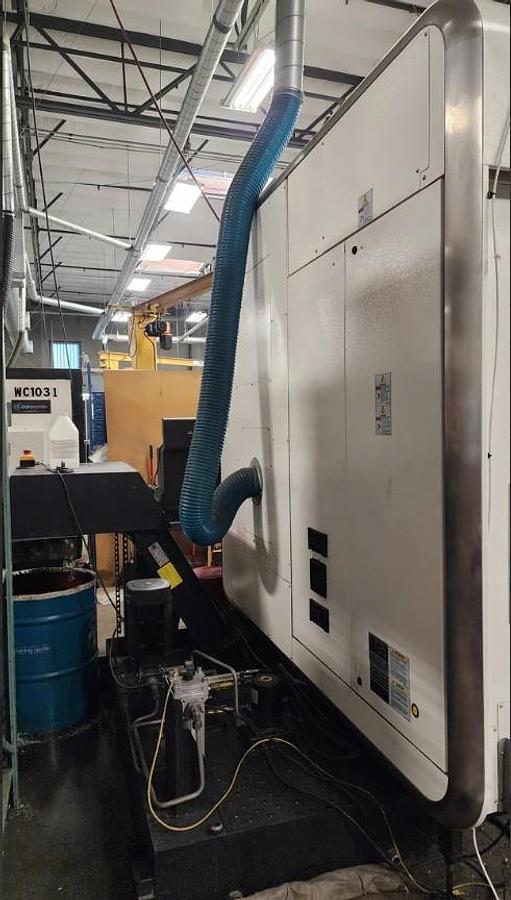

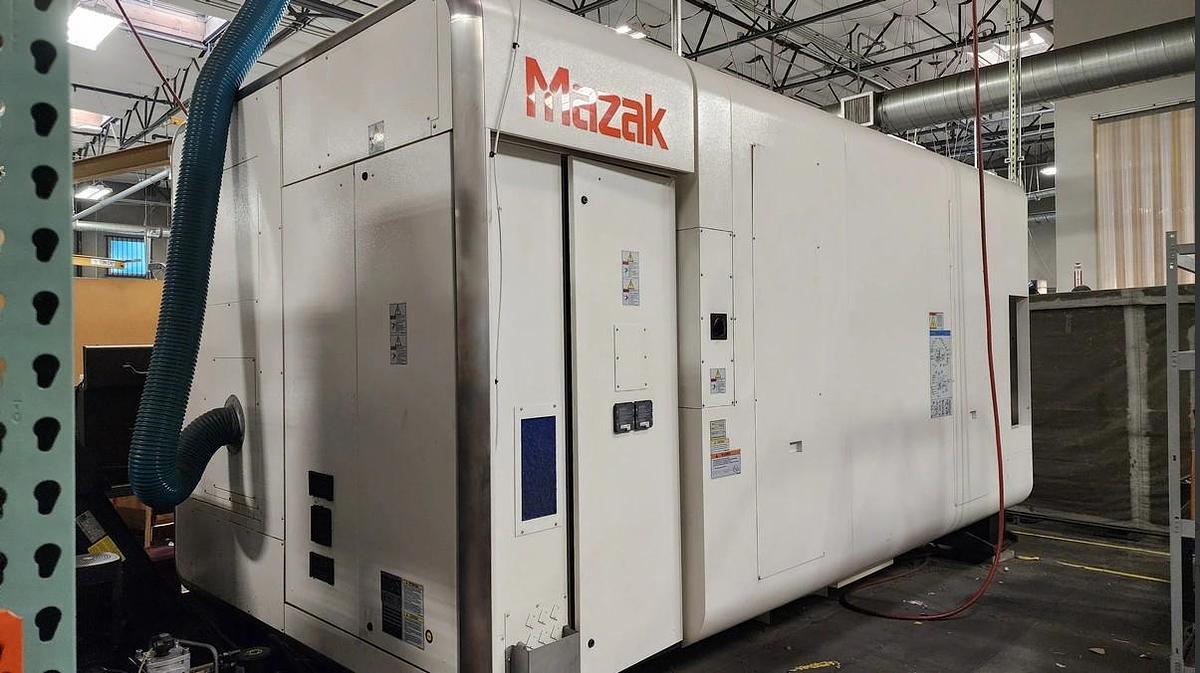

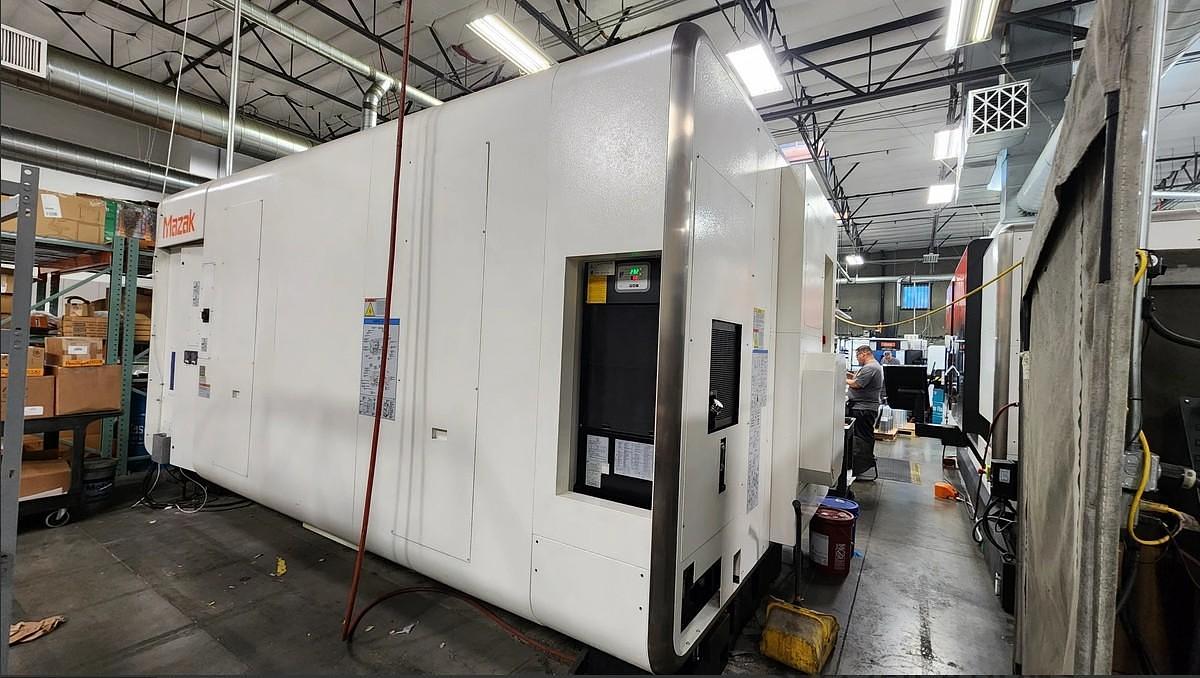

2014 Mazak Integrex i-400S Mill Turn Center with Live Tooling, Y Axis, Subspindle, 60" Centers, 4" Bar Capacity
2014 Mazak Integrex i-400S Mill Turn Center with Live Tooling, Y Axis, Subspindle, 60" Centers, 4" Bar Capacity
Contact us for price
Location:California
or
Call (863) 439-6066
Description

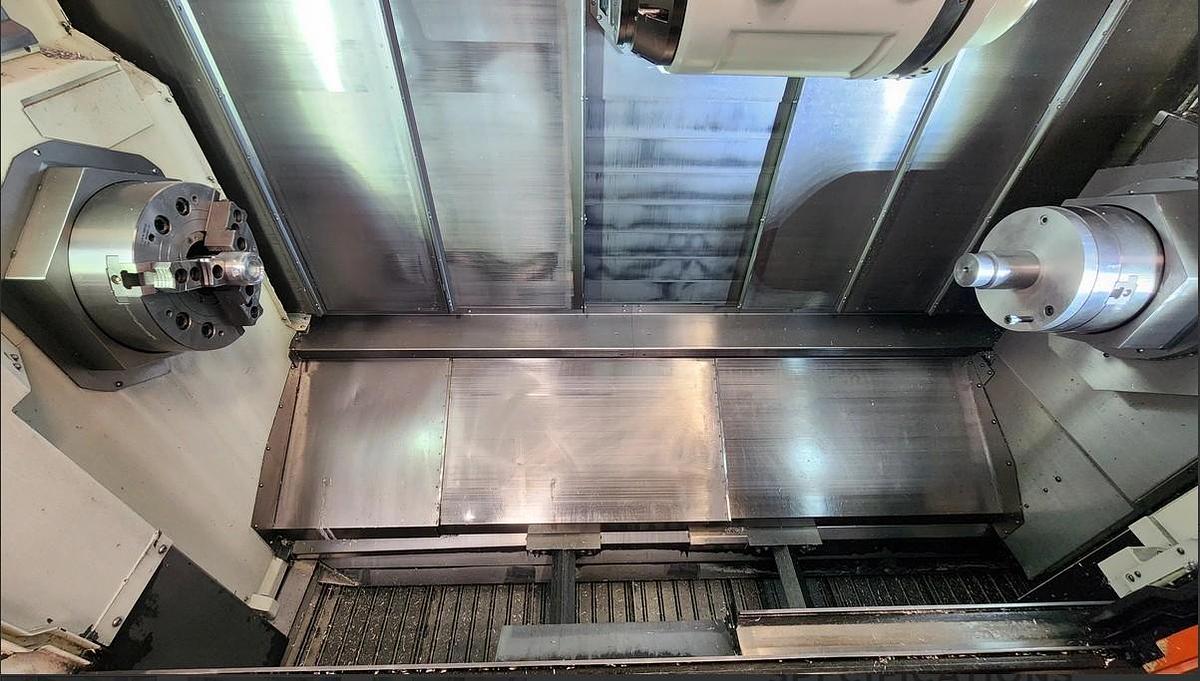

15" & 10" Hydraulic Chucks

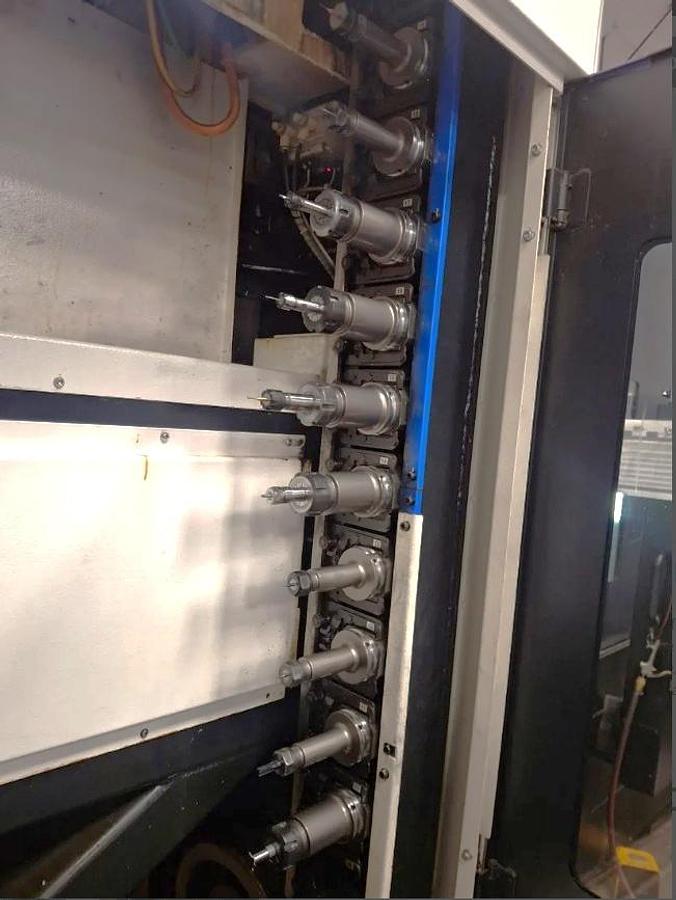

72 Position KM63Type Tool Magazine
Y Axis Capability
B Axis Pendulum Head
Subspindle
Full "C" Axis Main Spindle & Subspindle
2nd Spindle C Axis Feature

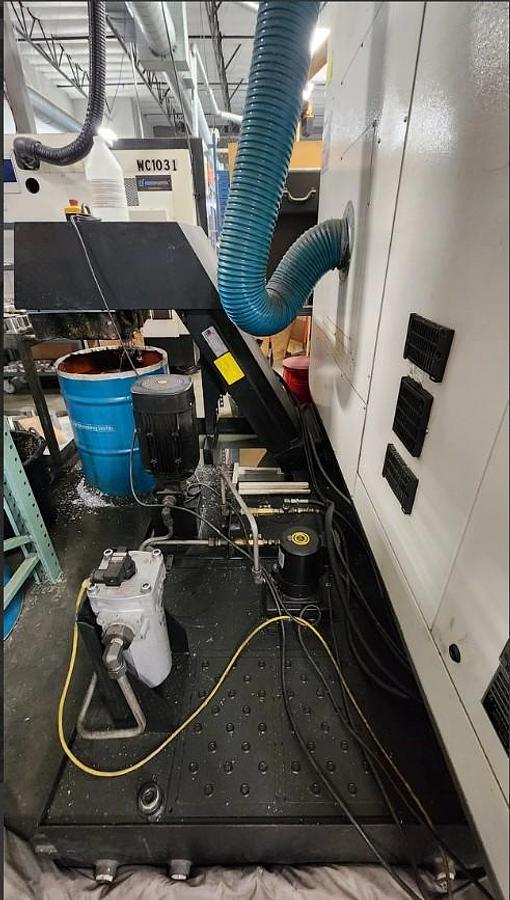

Chip Conveyor

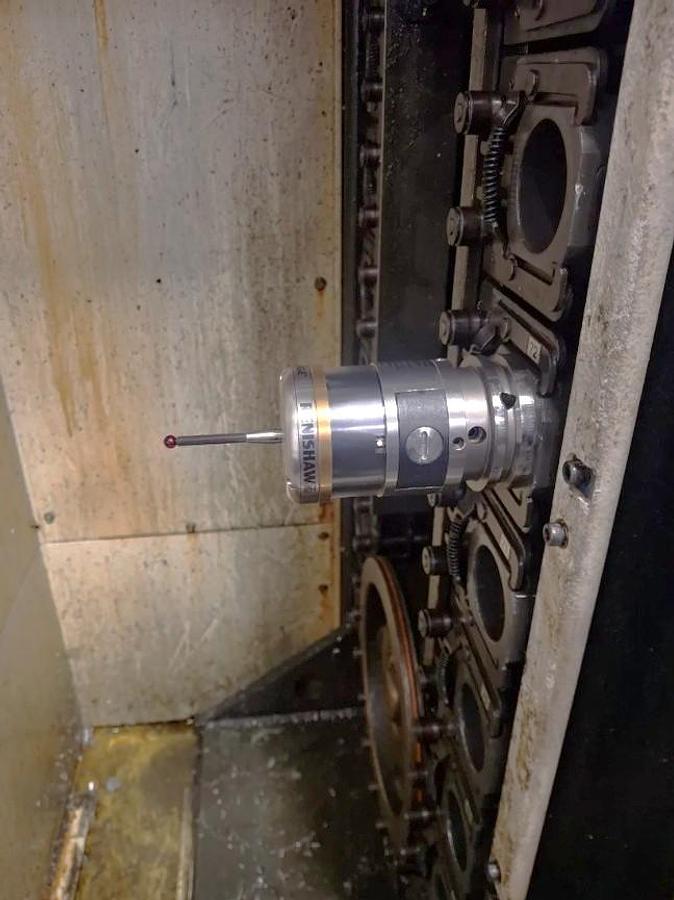

Renishaw Work Measuring Probe
Tool Radius Compensation
5 Axis Machining Package
231 PSI Thru Coolant Package
Work Setting Error Compensation (G54.4)
Main & Subspindle Synchronizaton
Milling Synchronous Tapping
IC Memory Card Interface
Cardbus Interface - 2 Slots
LAN Port Interface
USB Interface
Machine Wired 200-400V Three Phase

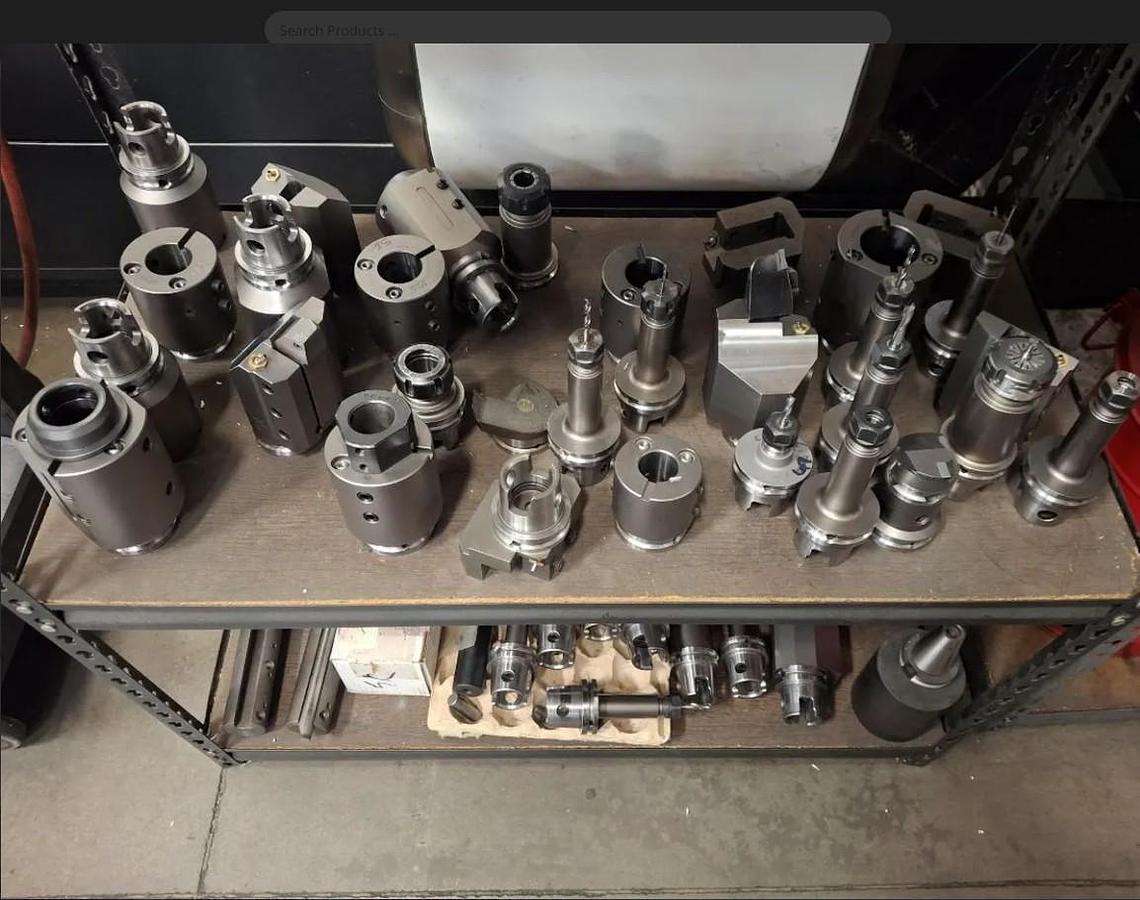

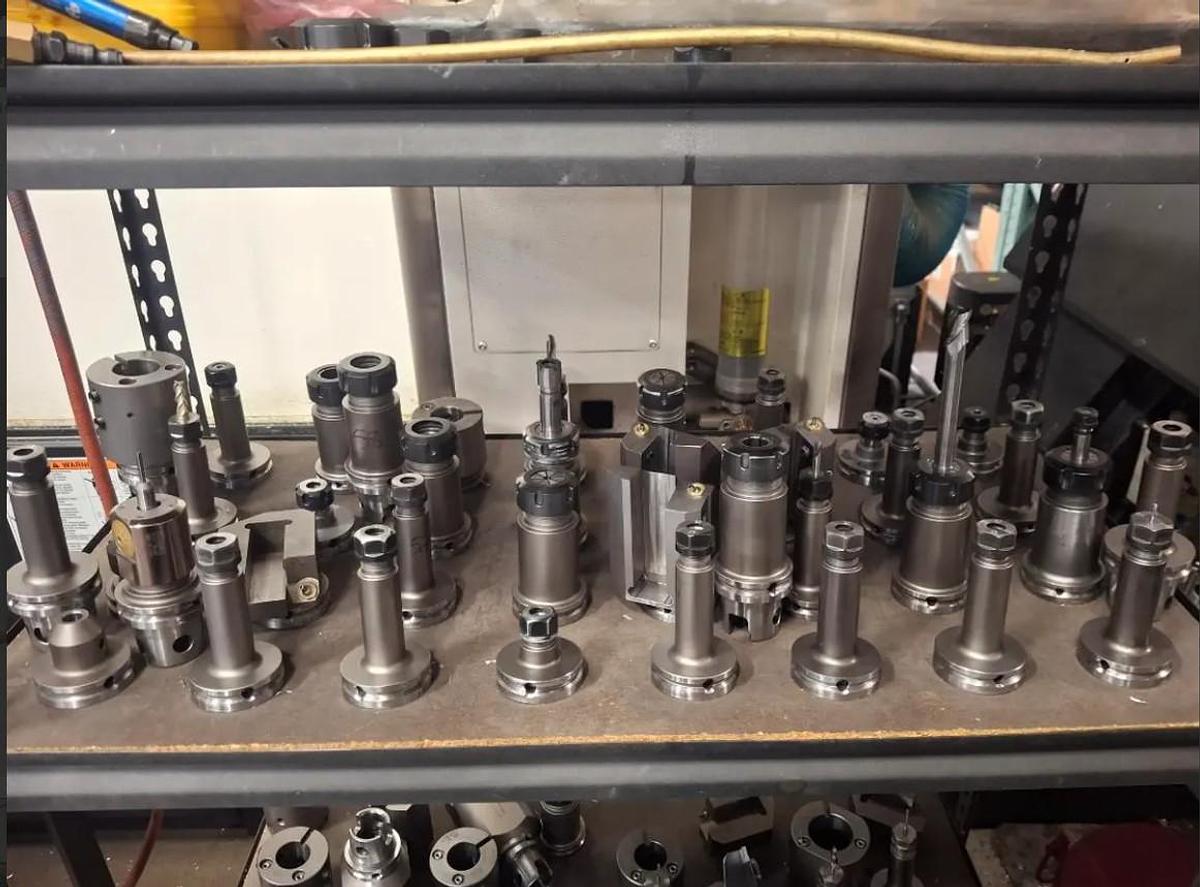

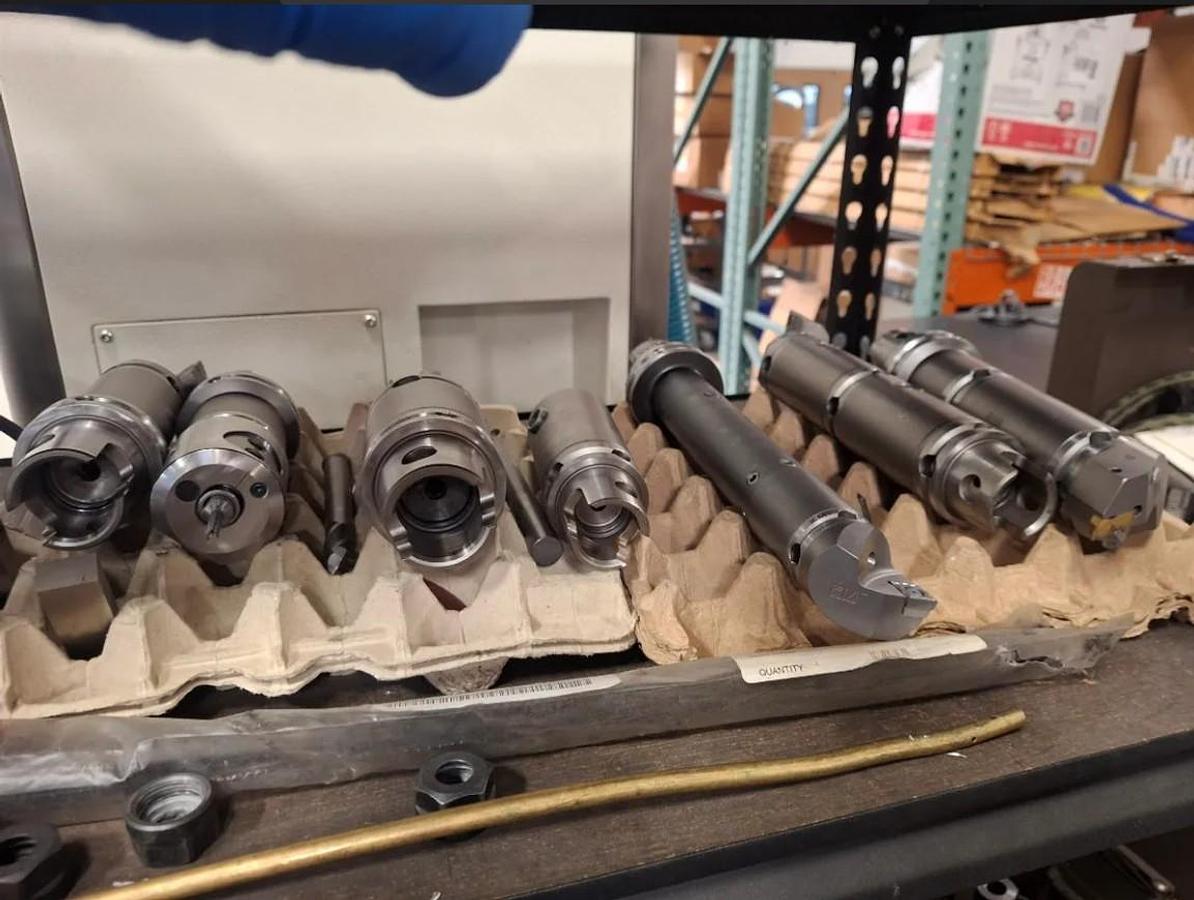

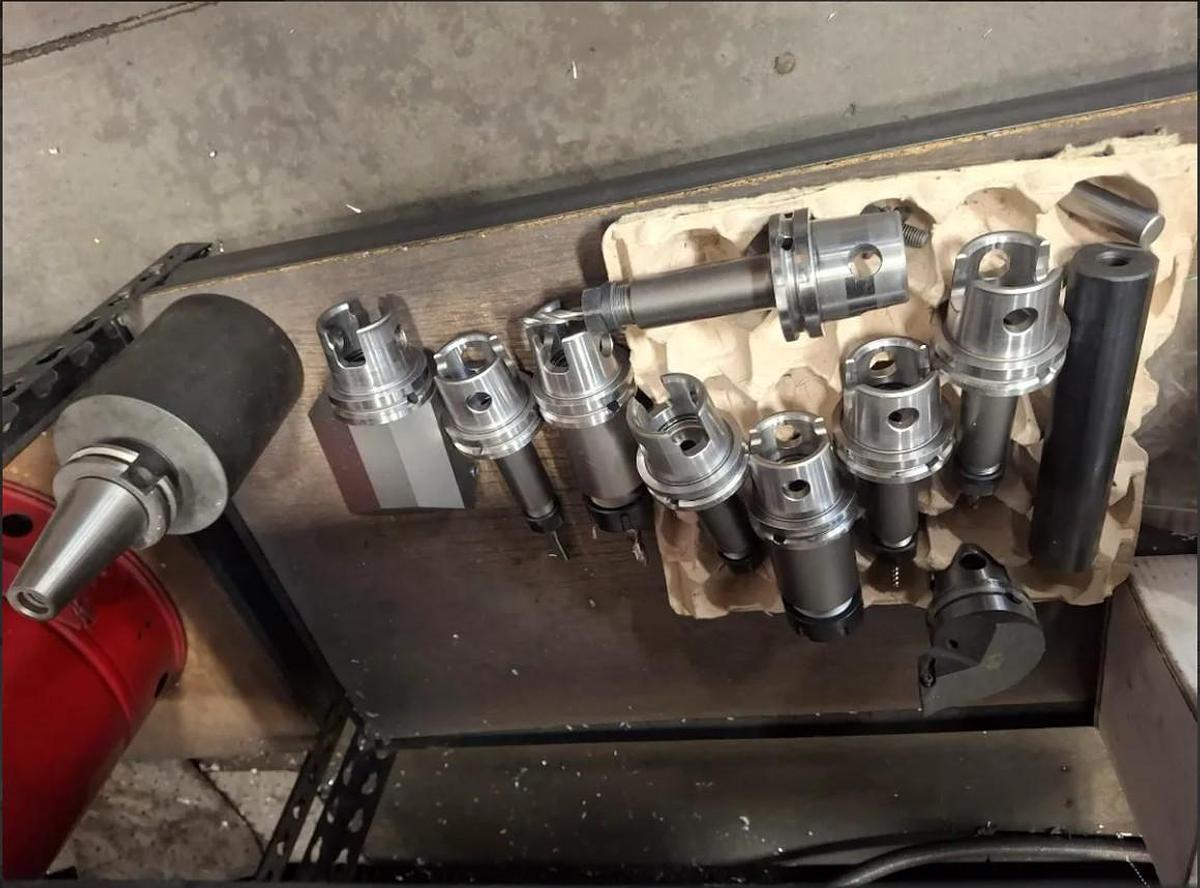

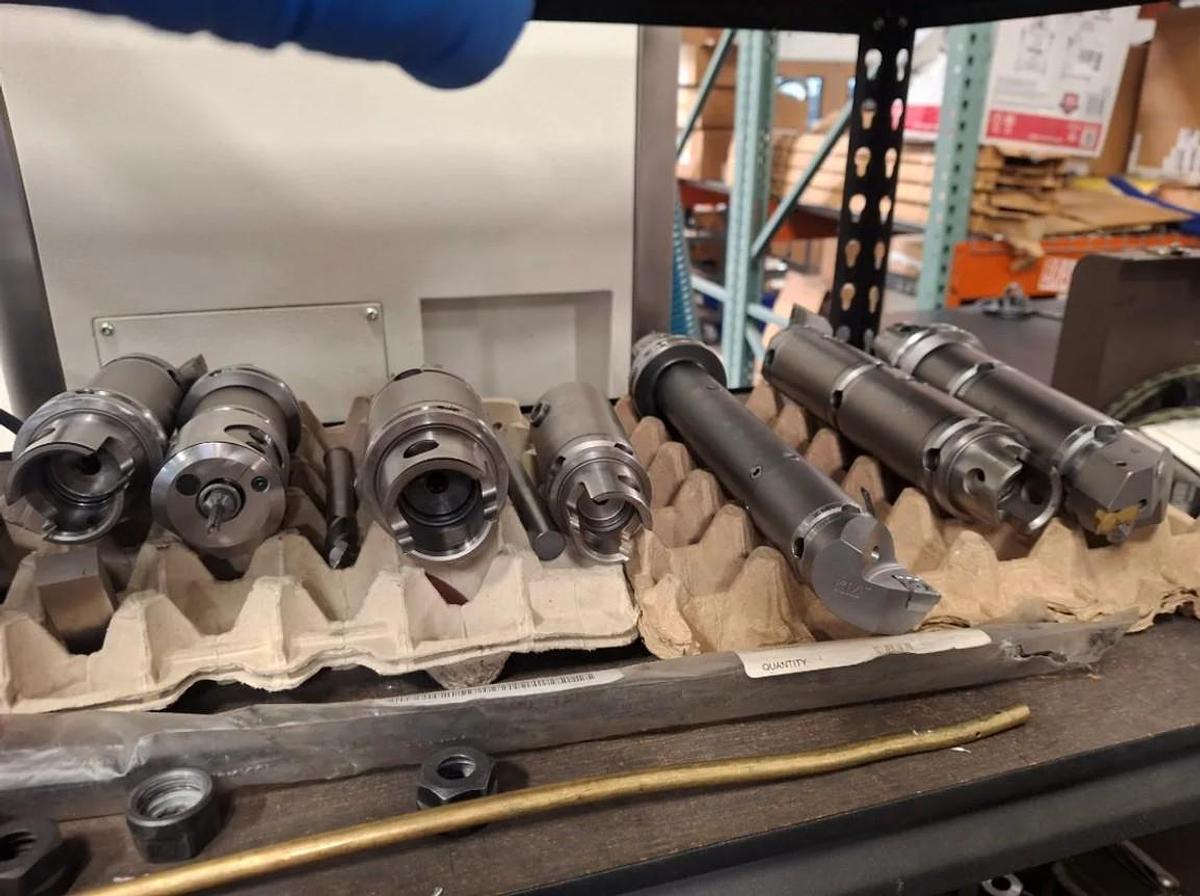

Assorted KM63 Tool Holders Included
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-400S |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120447 |

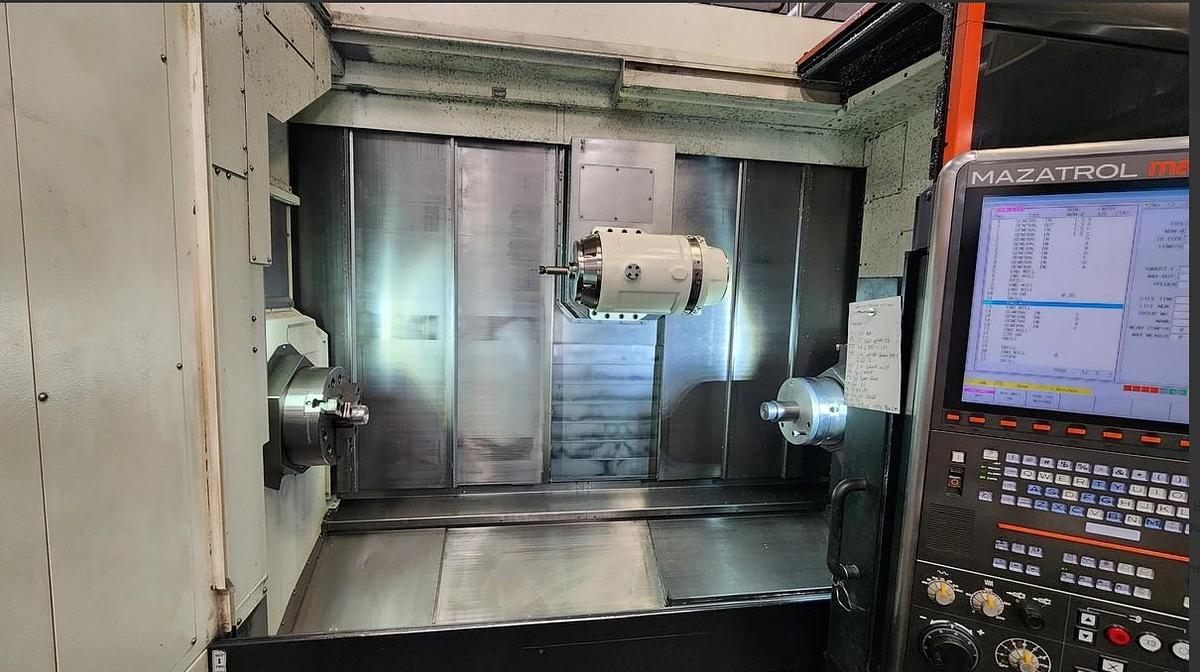

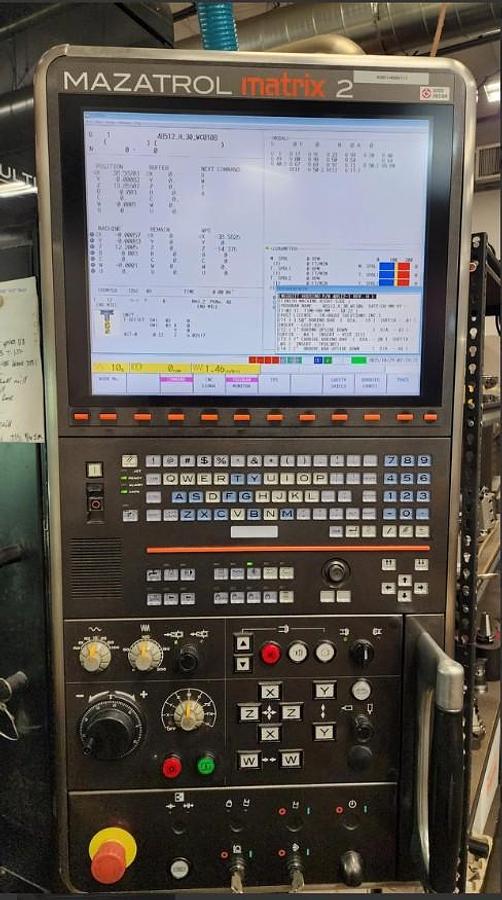

| Machine Control | Mazatrol Matrix 2 Control |
| Chuck size main / subspindle | 15" Hydraulic / 10" Hydraulic |
| Maximum swing | 25.91" |
| Maximum turning diameter | 25.91" |
| Maximum cutting length | 59.8" |
| Travel x axis | 24.8" |
| Travel y axis | +/- 4.53" |
| Travel z axis | 62.41" |
| W axis travel - subspindle | 60.24" |
| B axis movement | 225 Degrees |
| C axis main spindle & subspindle | .0001 Degree |
| Spindle nose/spindle bore/bar cap. | A2-8" / 4.41" / 4.02" |
| Spindle speeds | 35 - 3,300 RPM |
| Spindle motor | 40 HP |
| Subspindle nose/bore | A2-8" / 3.46" |
| Subspindle speeds | 4,000 RPM |
| Subspindle motor | 35 HP |
| Rotary tool spindle speed | 12,000 RPM |
| Rotary tool motor | 30 HP |
| Number of tools in atc | 72 Tools CAPTO C6 |
| Machine dimensions | 204"x110"x107" |
| Machine weight | 36,5620 lbs. |
