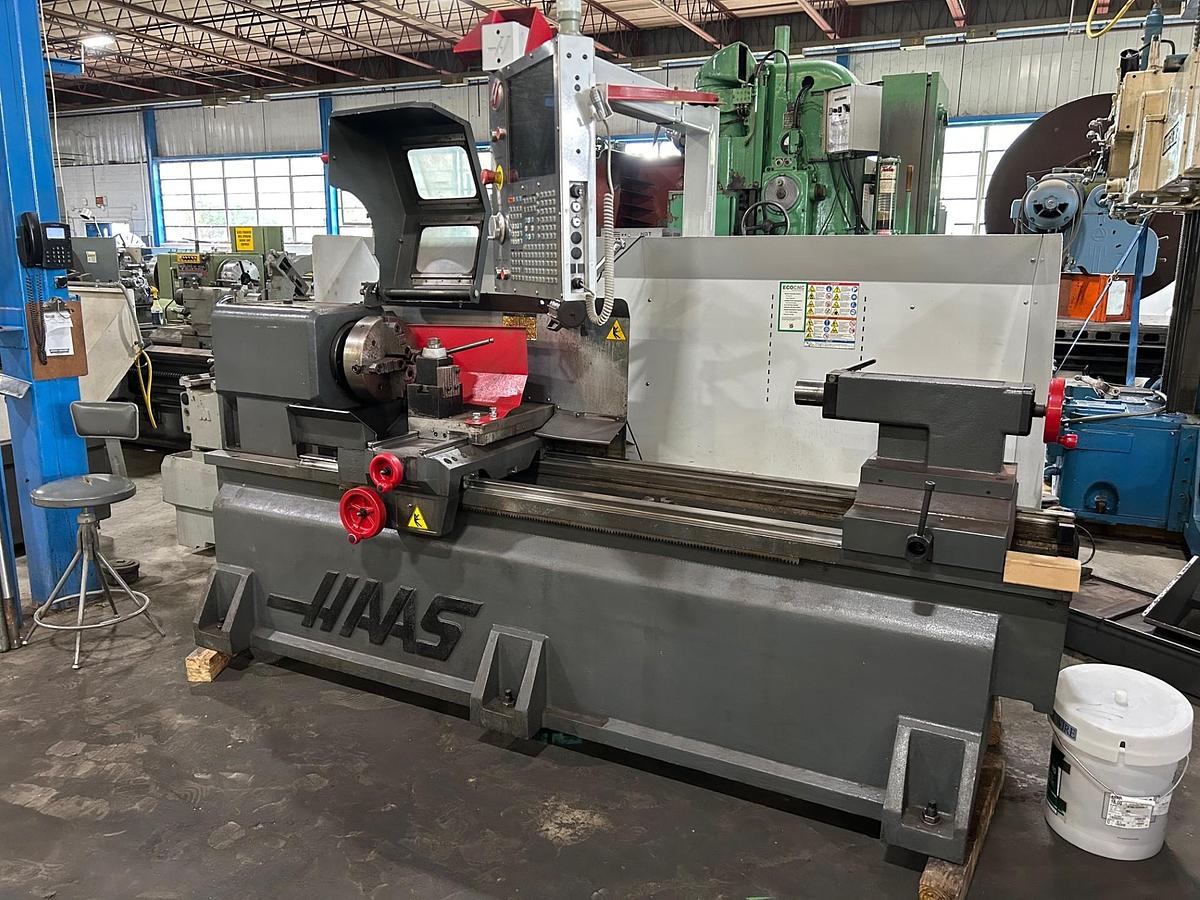

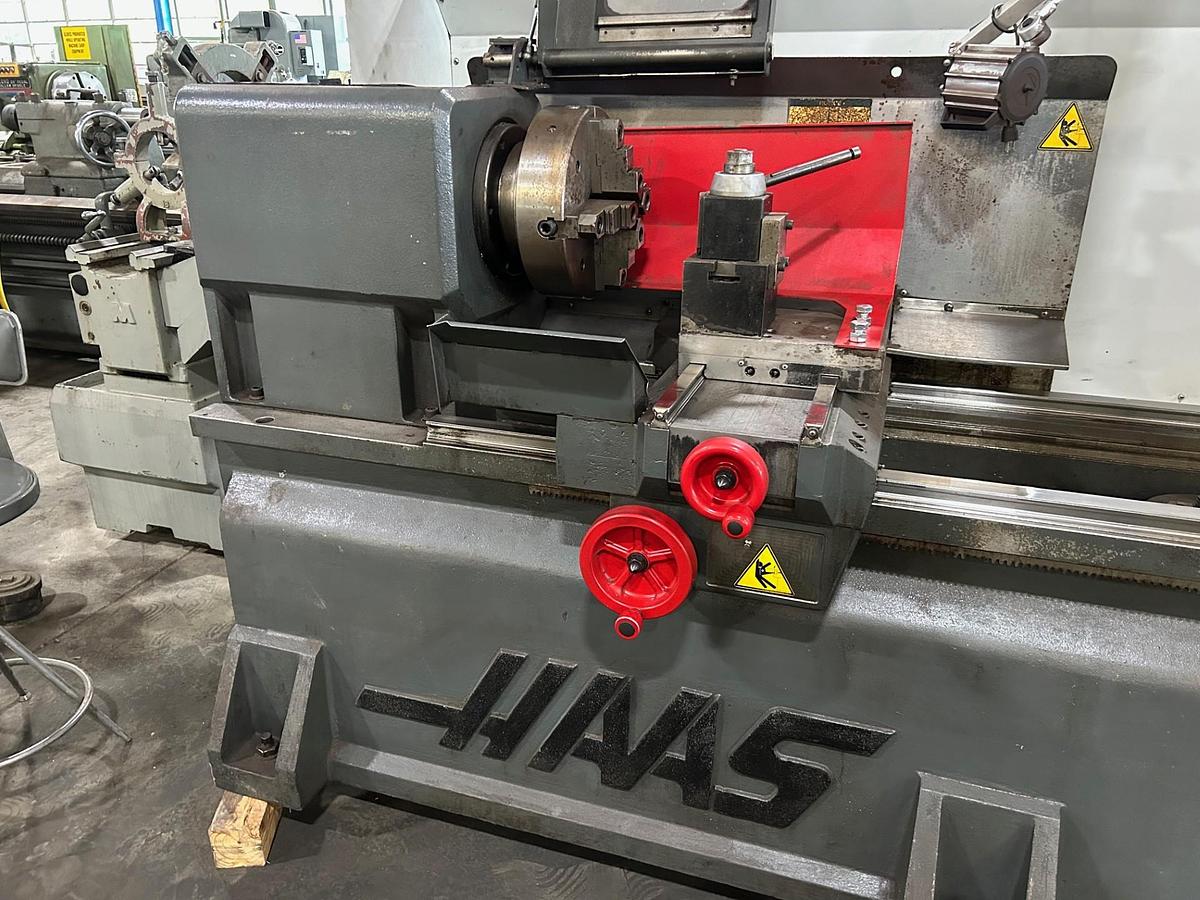

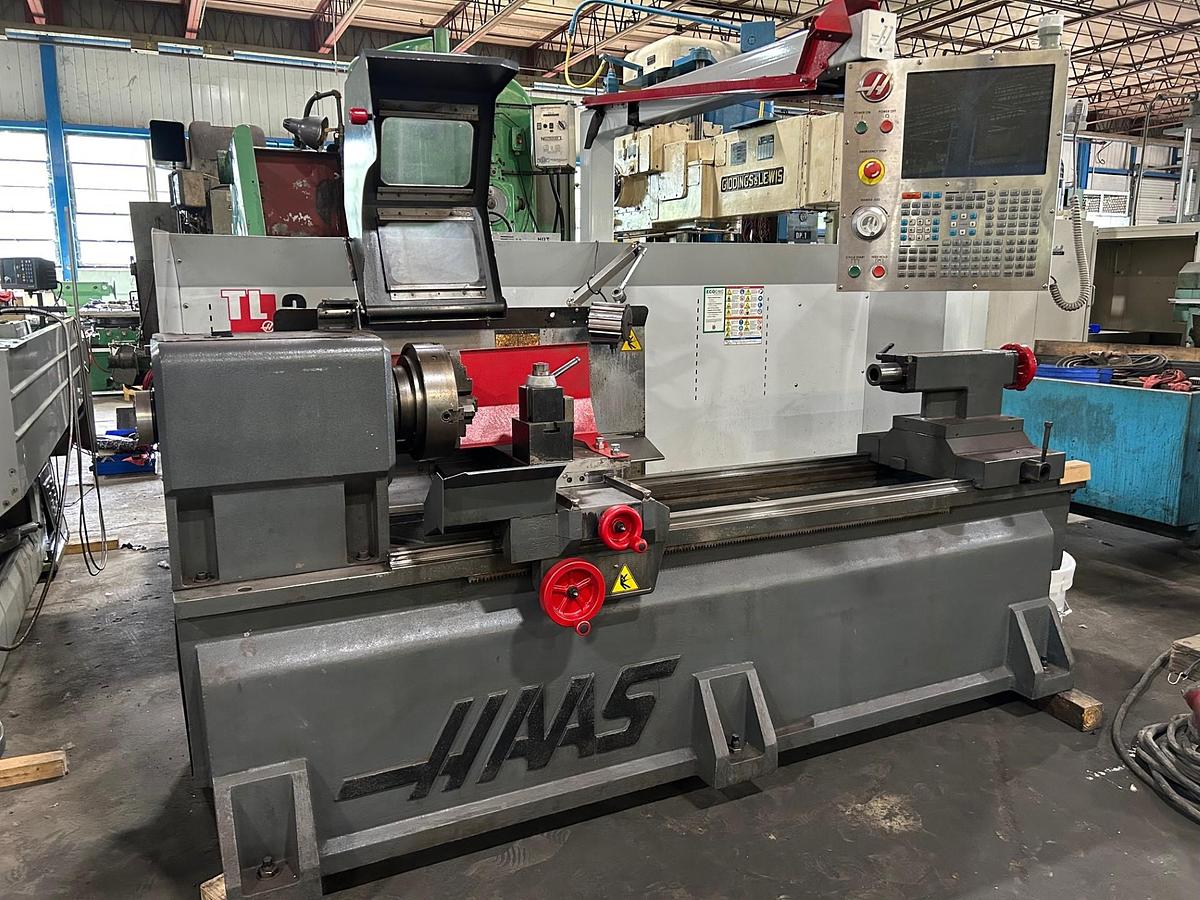

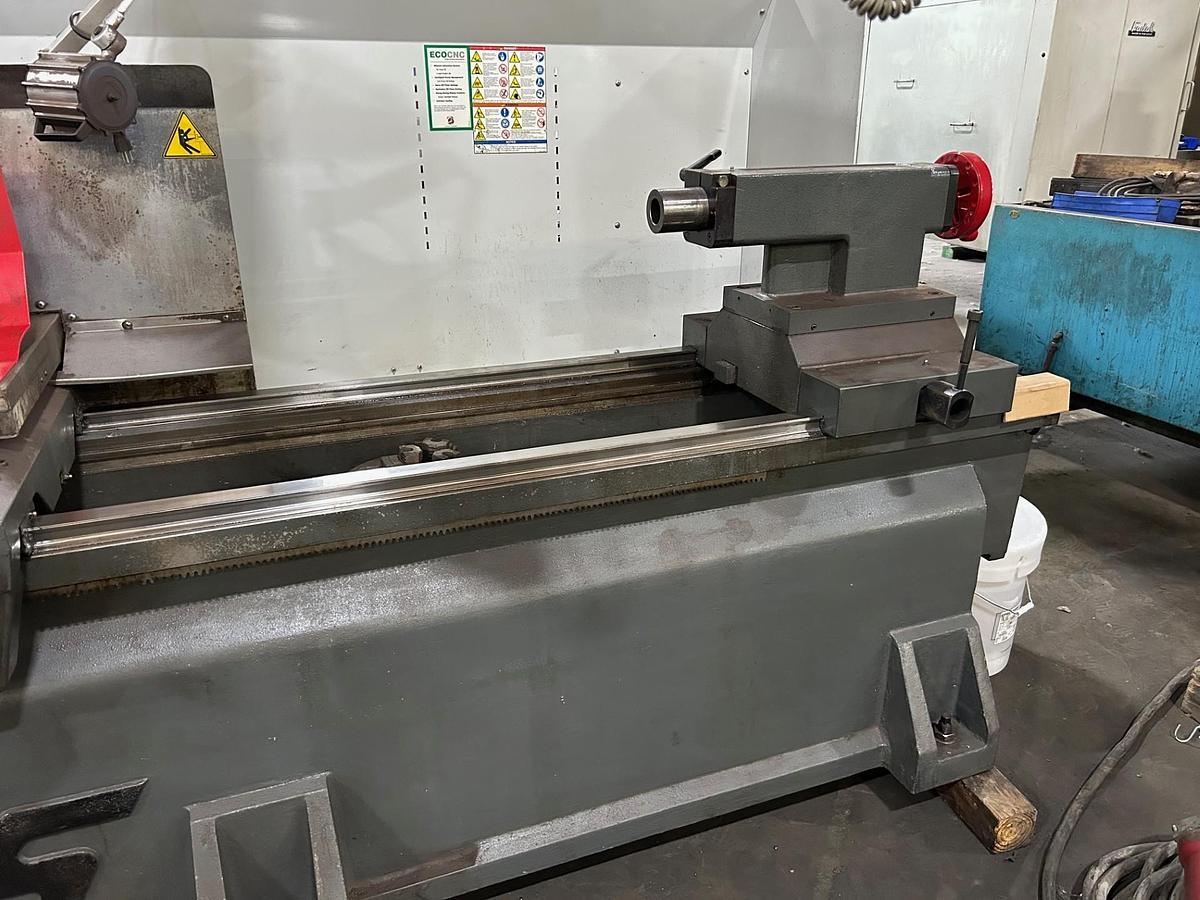

2012 Haas TL-3
2012 Haas TL-3
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

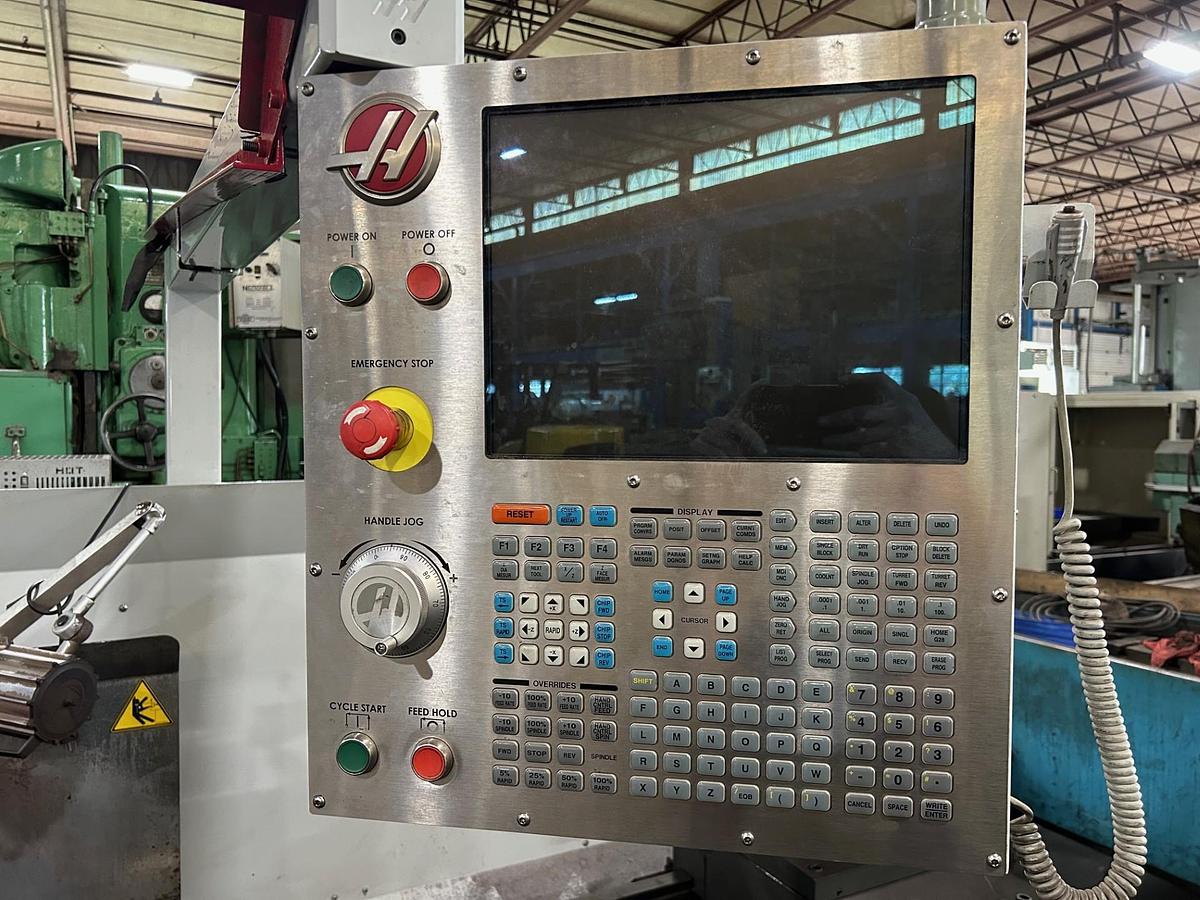

15" LCD Color Monitor
12" 3-Jaw Manual Chuck
12" 4-Jaw Manual Chuck
Memory Lock Key Switch
USB Port Interface
2-Speed Gearbox
Quick Change Tool Post
Coolant Tank & Pump
230 V 3-phase
Specifications
| Manufacturer | Haas |
| Model | TL-3 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120279 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 12" 3-Jaw & 4-Jaw Manual |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Machining Diameter | 20" |
| Distance Between Centers | 60" |
| X-axis travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0-1,800 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 18 hp |
| Number of Tool Positions | 4-Position Quick Change |
| Rapid Traverse Rates X/Z | 75 ipm / 150 ipm |
| Tailstock Bore Taper | #5MT |
| Machine Dimensions LxWxH | 123"x77"x87" |
| Machine Weight | 7,624 lbs |
