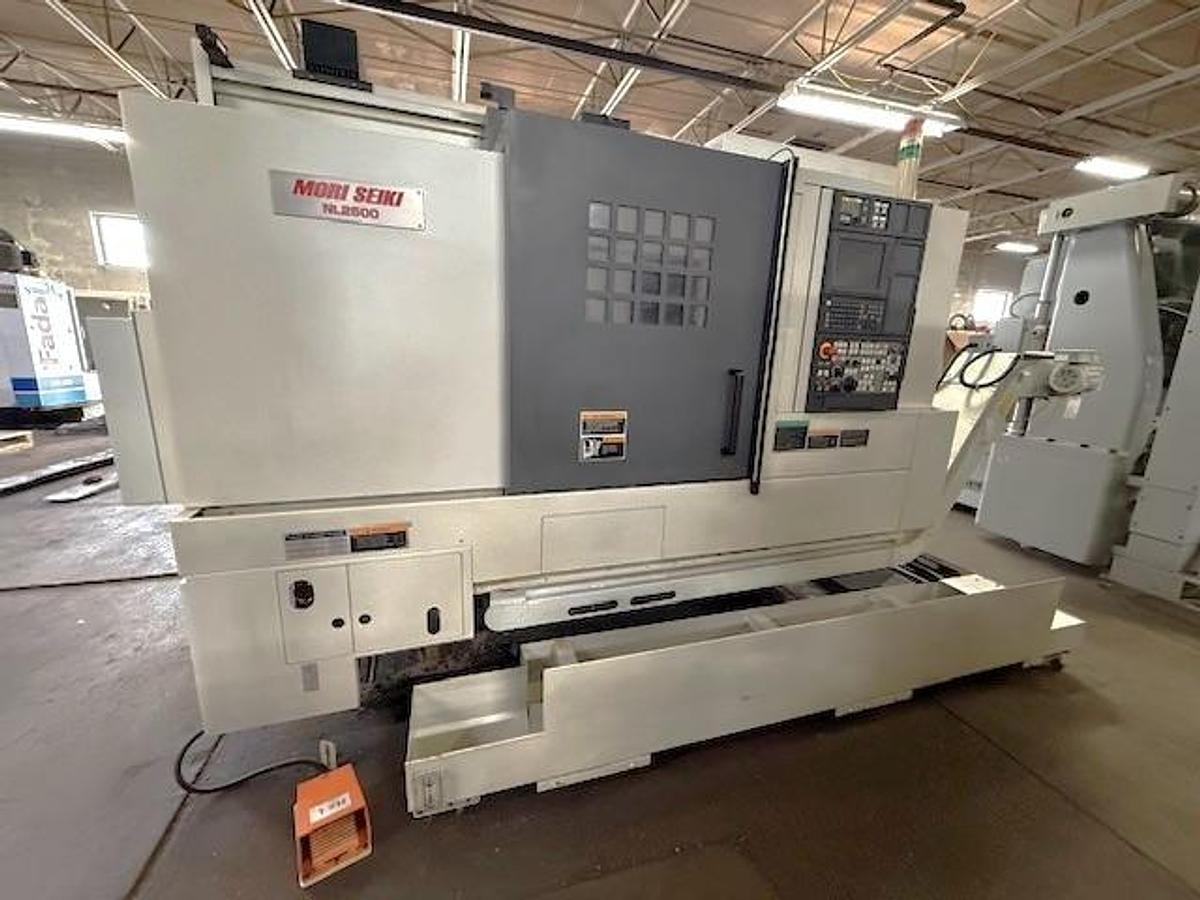

2009 Mori Seiki NL2500MC/700 with C Axis, Milling, Chip Conveyor, Chip Blaster HPC, Mist Collector, 3.1" Bar Capacity, 10" Chk
2009 Mori Seiki NL2500MC/700 with C Axis, Milling, Chip Conveyor, Chip Blaster HPC, Mist Collector, 3.1" Bar Capacity, 10" Chk
$79,000 (USD)
Location:Michigan
or
Call (863) 439-6066
Description

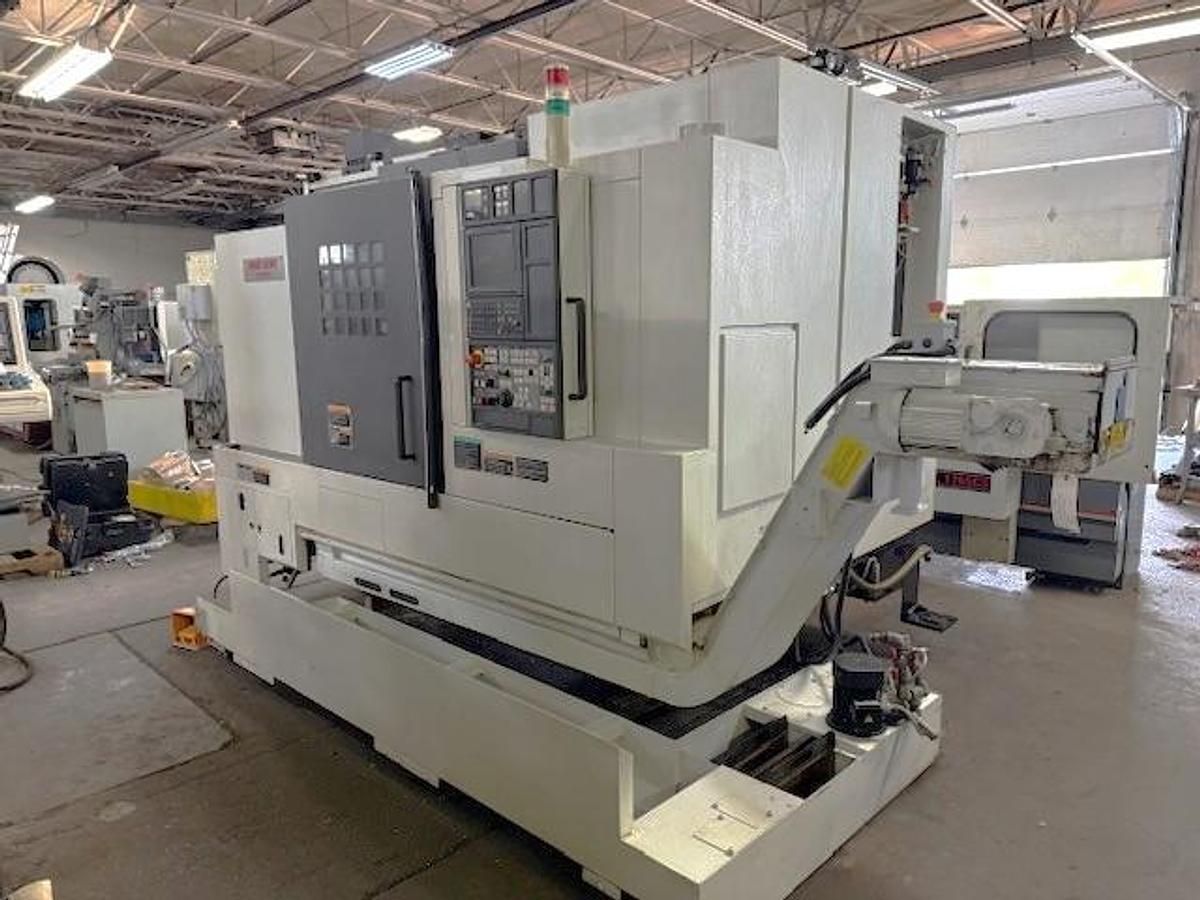

Full C Axis Spindle Rotation Live Milling/Drilling Capability 10" 3 Jaw Hydraulic Chuck Tool Presetter Chip Conveyor Tailstock

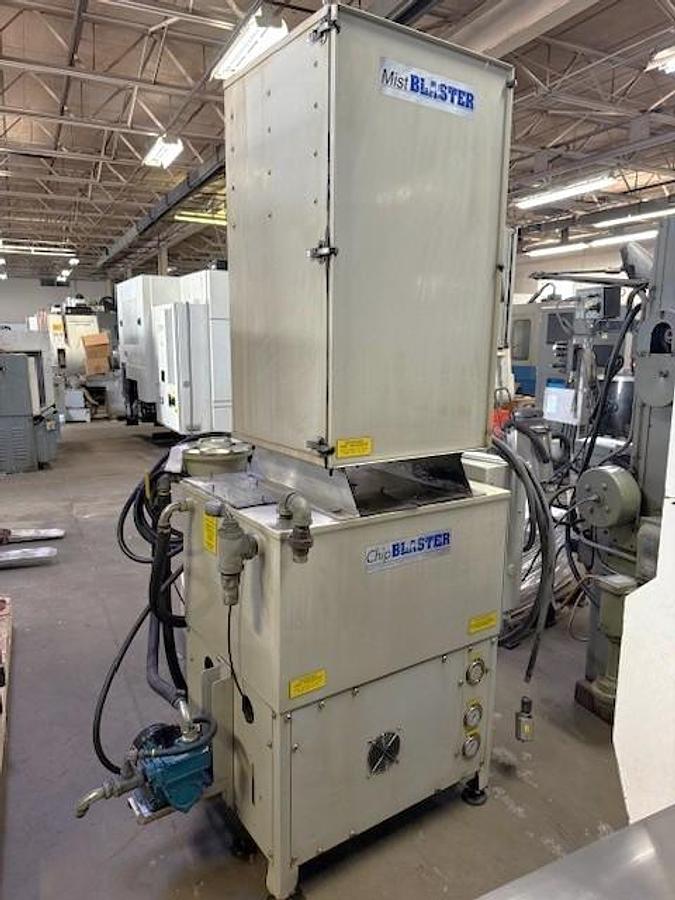

Chip Blaster J8/1000 Series High Pressure Coolant System

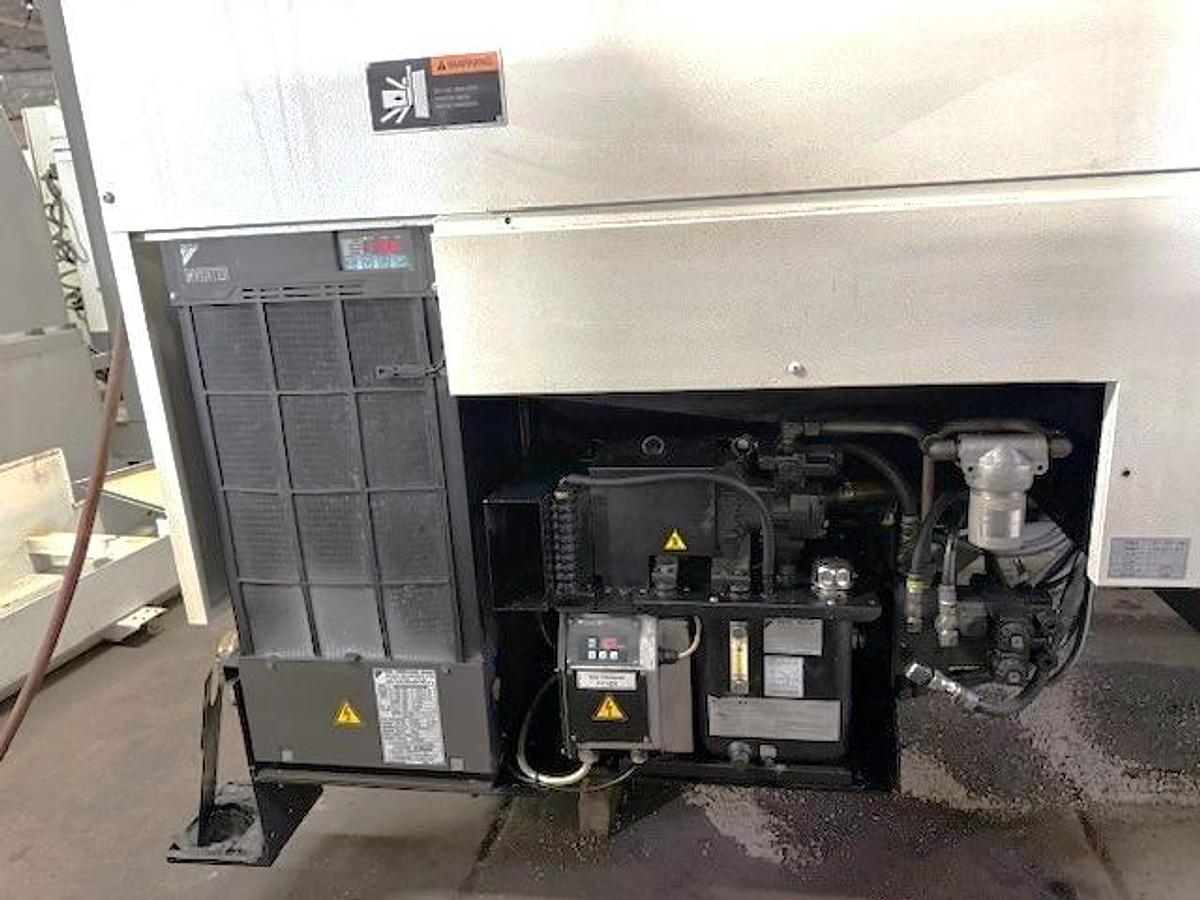

Mist Blaster Mist Collector Complete Coolant System with Tank & Low Pressure Pump

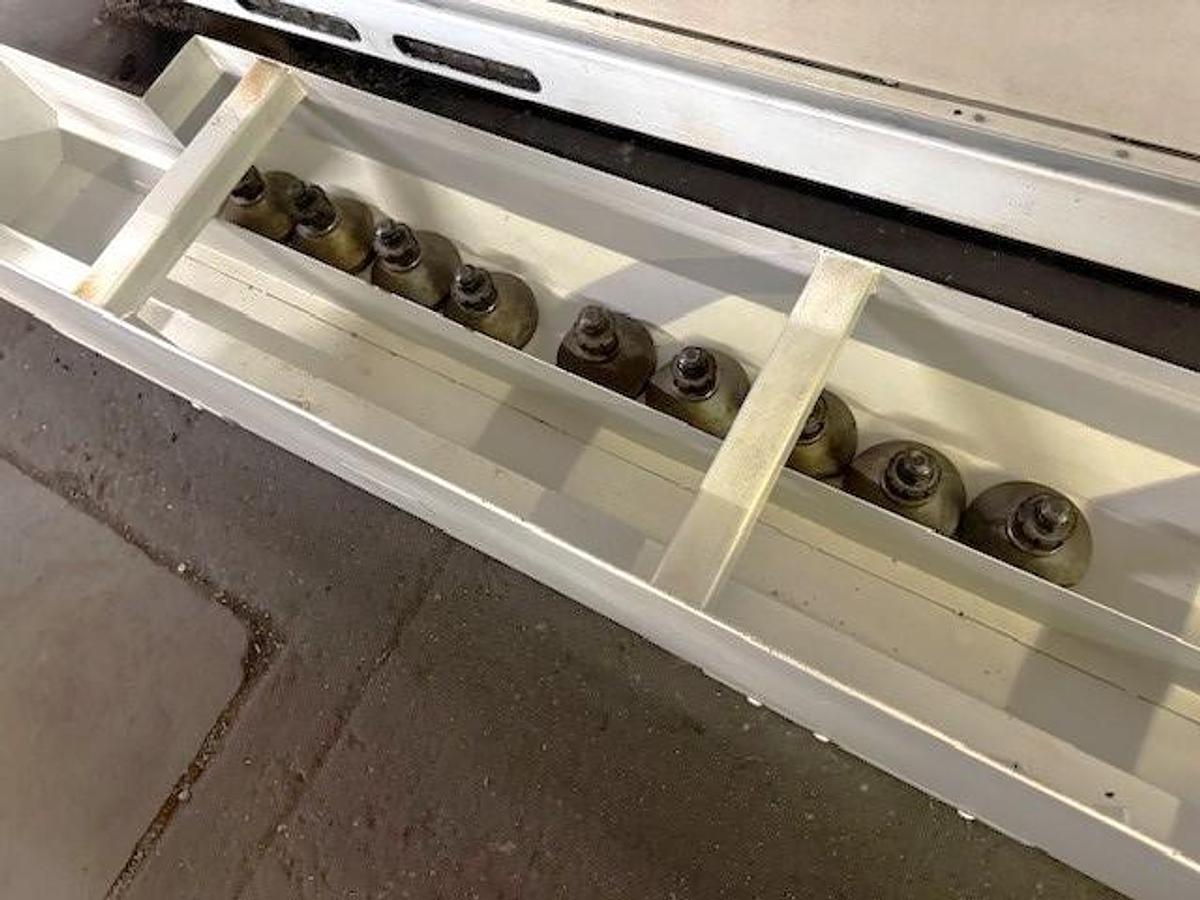

Card Interface RS 232 Port Interface All Available Static Tooling
(2) Live Tool Holders All Available Manuals
Leveling Pads

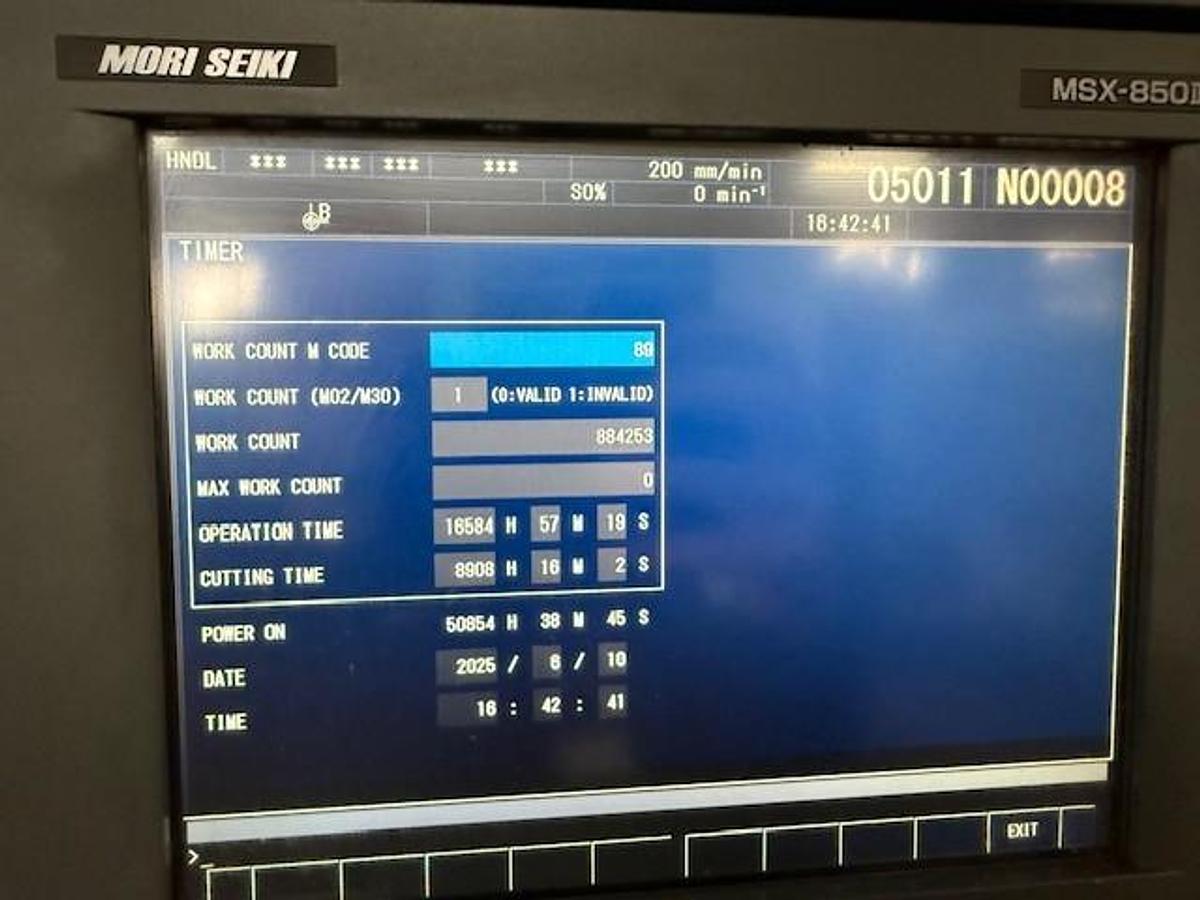

**Operation Hours 16,584**
**Cutting Hours 8,908**
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2500MC/700 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 120255 |
| Control | Mori/Fanuc MSX-850 III |
| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 36.4" |
| Maximum Swing Over Cross Slide | 29.7" |
| Maximum Turning Diameter | 14" |
| Maximum Turning Length | 27.7" |
| Maximum Bar Capacity | 3.1" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 31.3" |
| Spindle Nose / Spindle Bore | A2-8" / 3.6" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 30 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |
| Number of Tool Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 122" x 76" x 84" |
| Machine Weight | 13,640 lbs. |
