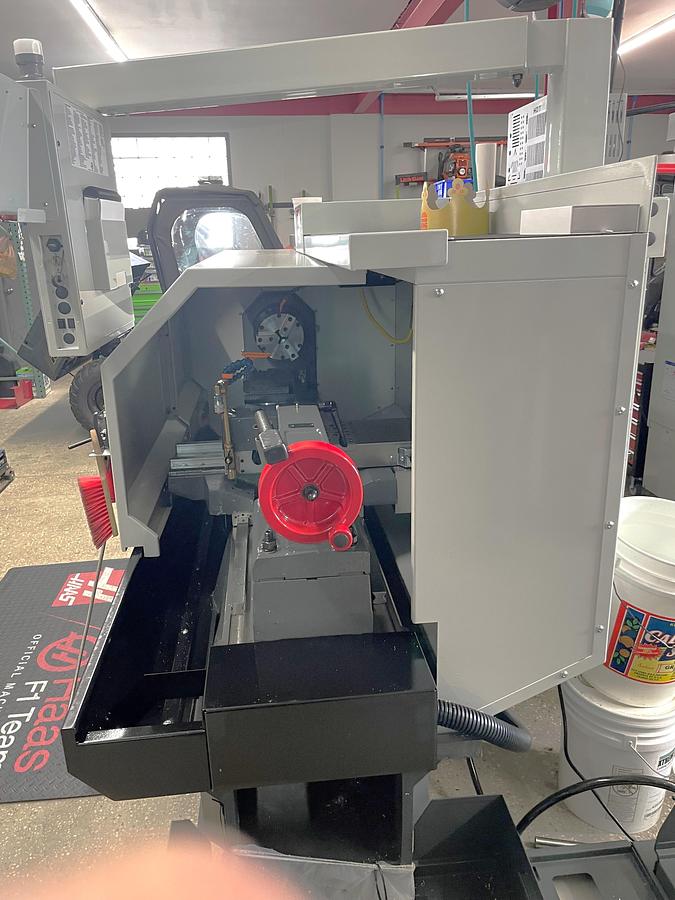

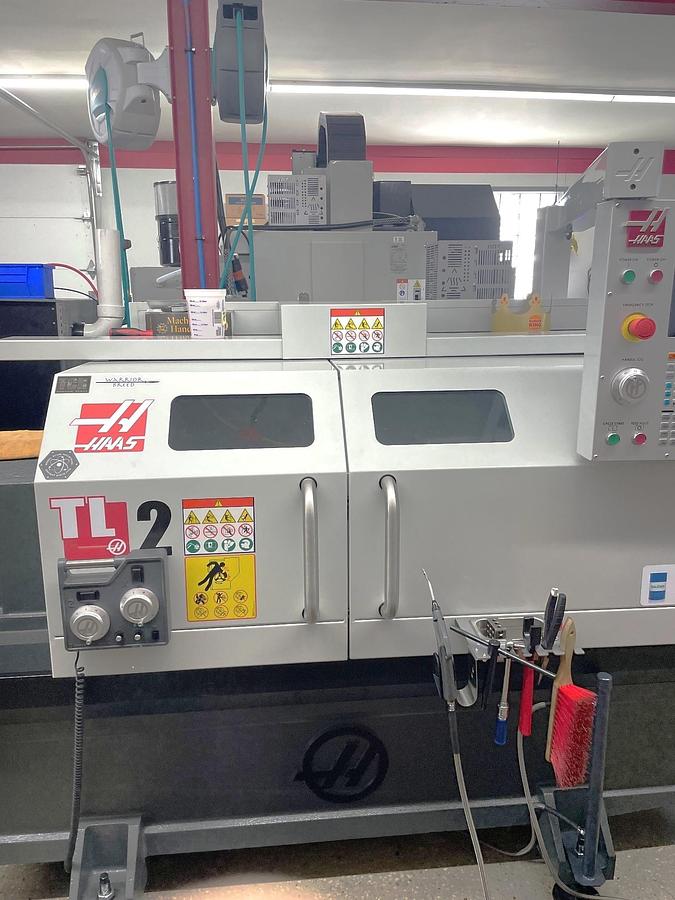

2024 Haas TL-2 with Enclosure, 2.31" Bore, Tailstock, 4 Station Turret, Elec. Handwheels, 8" Chuck, 3,000 RPM, Extended Warranty
2024 Haas TL-2 with Enclosure, 2.31" Bore, Tailstock, 4 Station Turret, Elec. Handwheels, 8" Chuck, 3,000 RPM, Extended Warranty
$45,000 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description

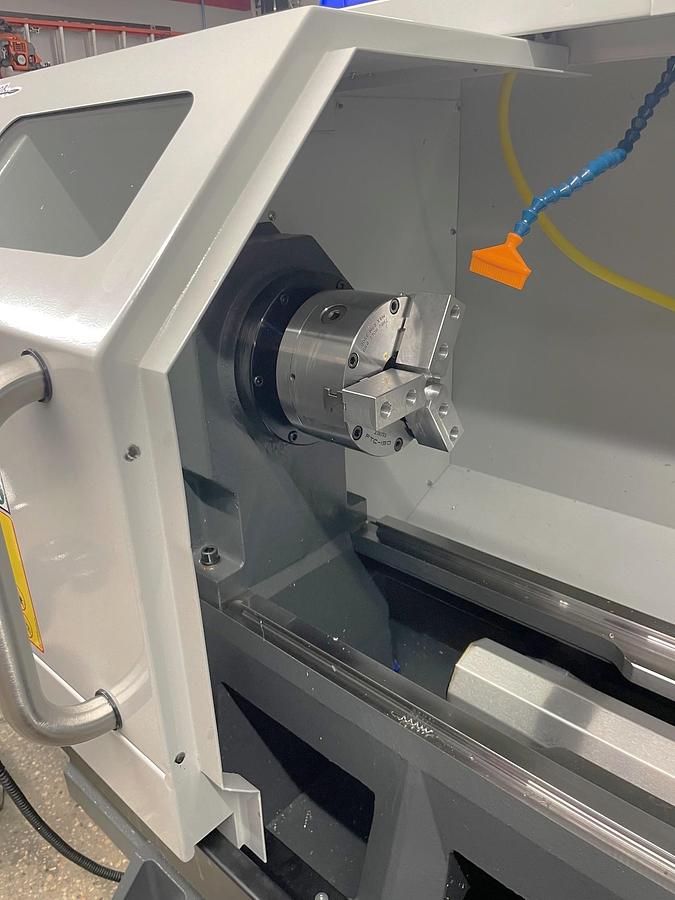

8" 3 Jaw Samchully FTC-190 Self Centering Manual Chuck
Tailstock
Electronic Hand Wheels

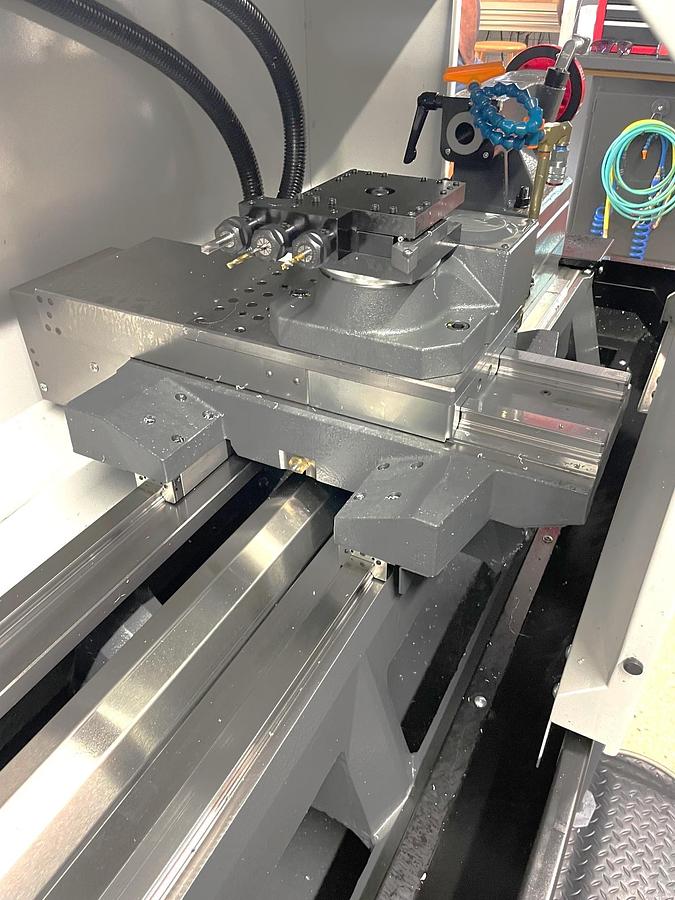

4 Station Turret
A2-5 Spindle Nose, 10 HP, 3,000 RPM
Full Enclosure Doors
Visual Part Programming System
User Definable Macros
Work Light
Coolant System with Tank & Pump 1 GB Program Memory
Early Power Failure Detection Module
Touch Screen Monitor
Haas Connect-Remote Monitoring
Haas Drop
WIFI Interface for Haas Control
Ethernet Interface
USB Port Interface RS 232 Port Interface Vector Drive Spindle
Wired 220V - 3 Phase Power
**Machine was sold new in May 2024 with 1 year extended warranty that ends approximately May of 2026**
**Priced New Today As Equipped at $61,865**

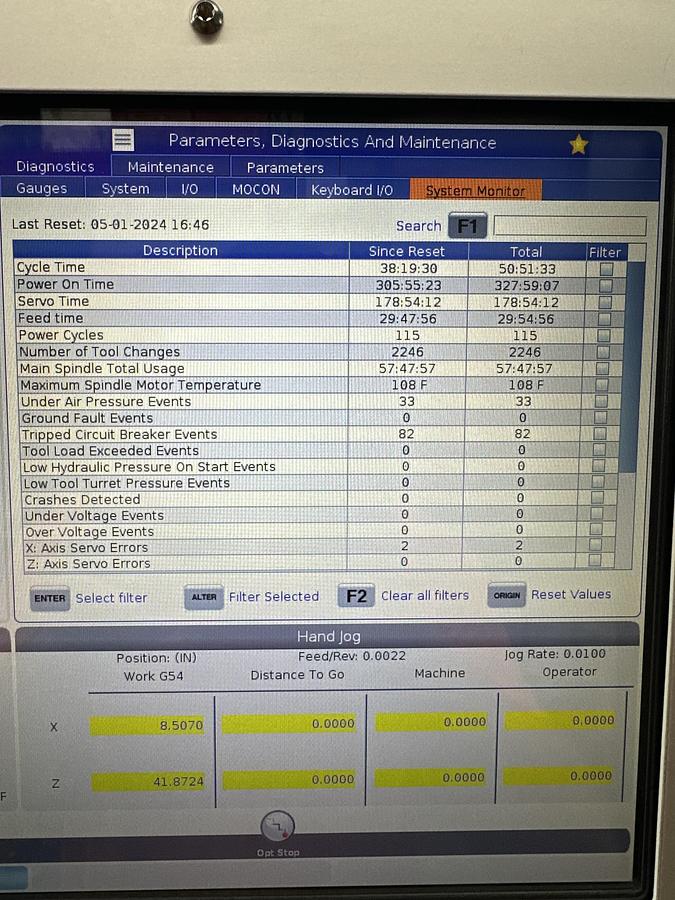

**VERY LOW HOURS**
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2024 |
| Condition | Used |
| Stock Number | 120140 |
| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Scroll Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Indexable Turret |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 138.6" x 57.4" x 72.4" |
| Machine Weight | 5,000 lbs. |
