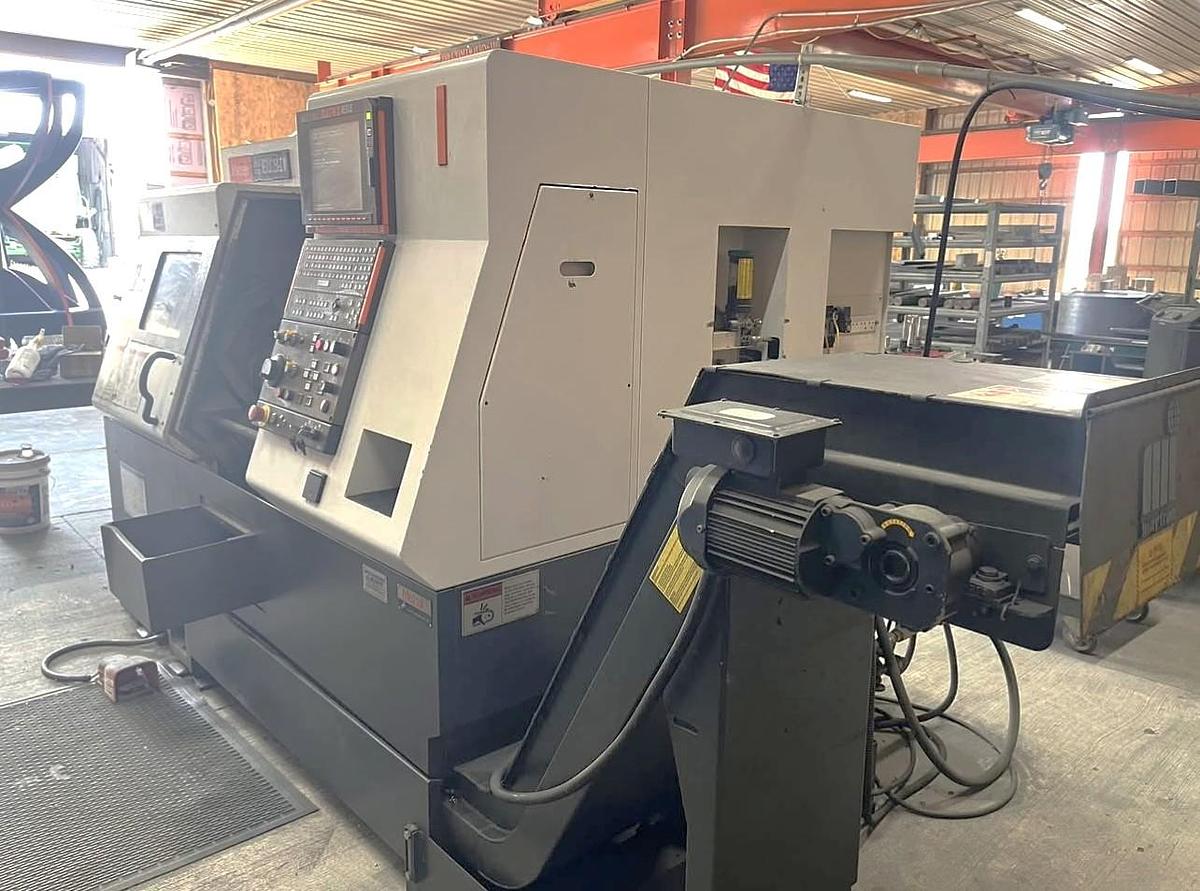

2007 Mazak Nexus QTN 250-II M with Chip Conveyor, Parts Catcher, (3) Live Tool Holders, Tailstock
2007 Mazak Nexus QTN 250-II M with Chip Conveyor, Parts Catcher, (3) Live Tool Holders, Tailstock
$59,950 (USD)
Location:Ohio
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck
Automatic Tool Eye
Chip Conveyor
Automatic Parts Catcher
Barfeed Interface ONLY
Programmable Tailstock (could use a new live center)
EIA/ISO Input Function
Mill Spindle Synchronous Tapping
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Multi Tap Transformer (Currently Wired 480V)
Miscellaneous Static Holders

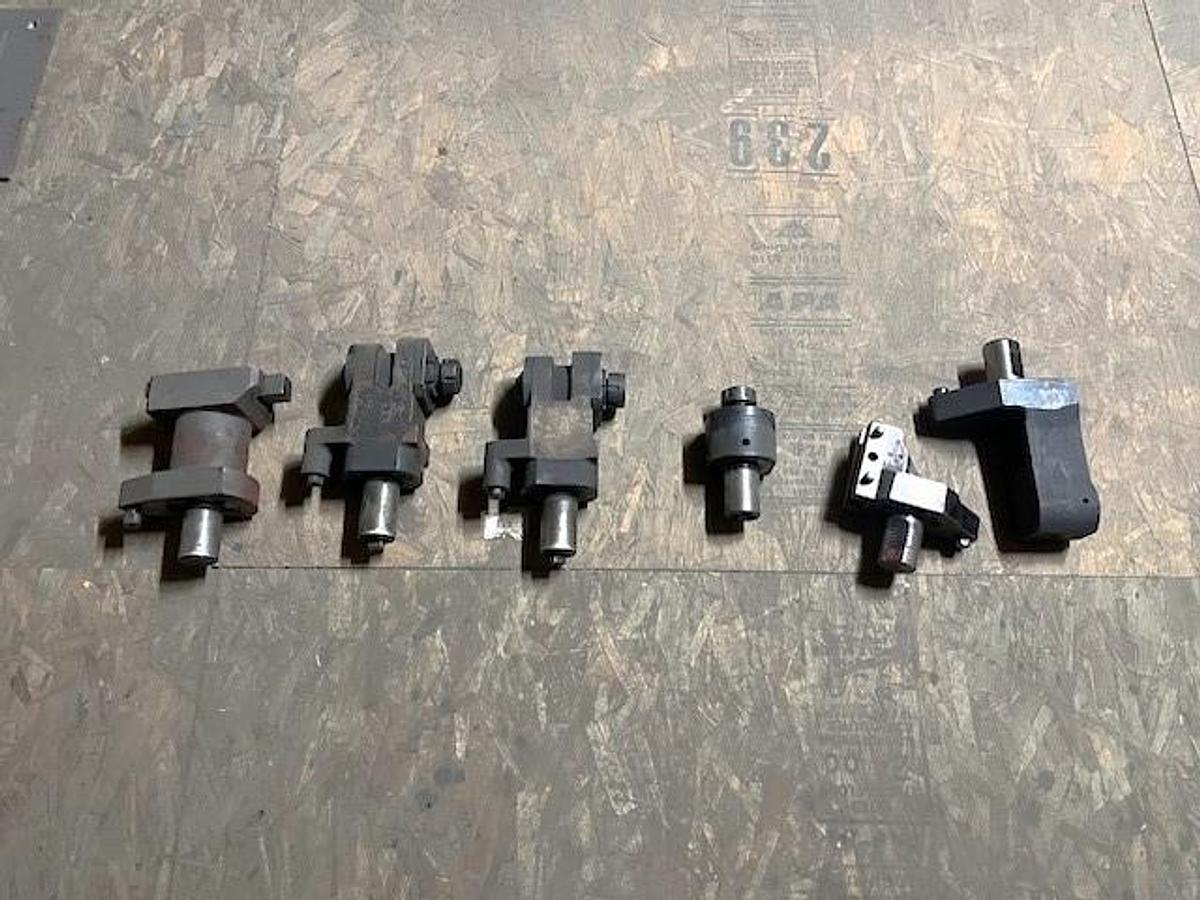

(3) Live Tool Holders
Hard Jaws, Boring Ring for Soft Jaws
All Available Manuals
**In plant, under power and able to be inspected**
**Manufactured New in December of 2007, Installed in 2008**
**Power On Hours 4,463**
**Total Cutting Hours 1,070**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250-II M |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120066 |
| Control | Mazatrol Matrix Nexus |
| Chuck Sizes | 10" 3 Jaw Hydraulic |
| Maximum Swing/Over Carriage | 26.5" / 14" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 21.28" |
| Distance Between Centers | 27.231" |
| X-Axis Travel | 9.055" |
| Z-Axis Travel | 22.75" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speed | 35 - 4,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Tailstock Taper | 21.75" / MT #5 |
| Machine Dimensions | 116" x 74" x 73" |
| Machine Weight | 12,500 lbs. |
