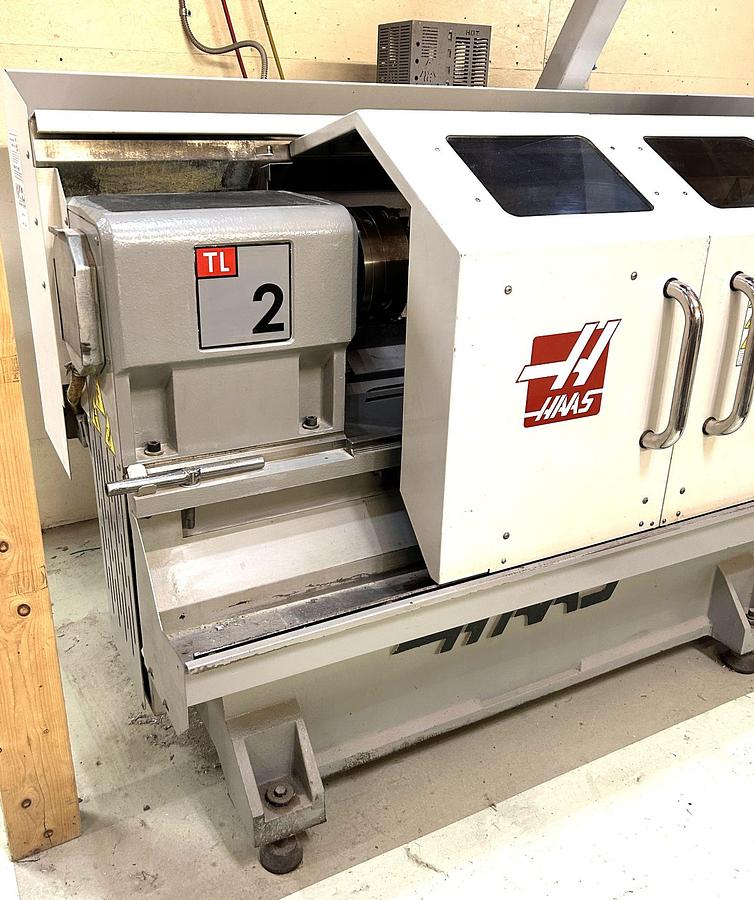

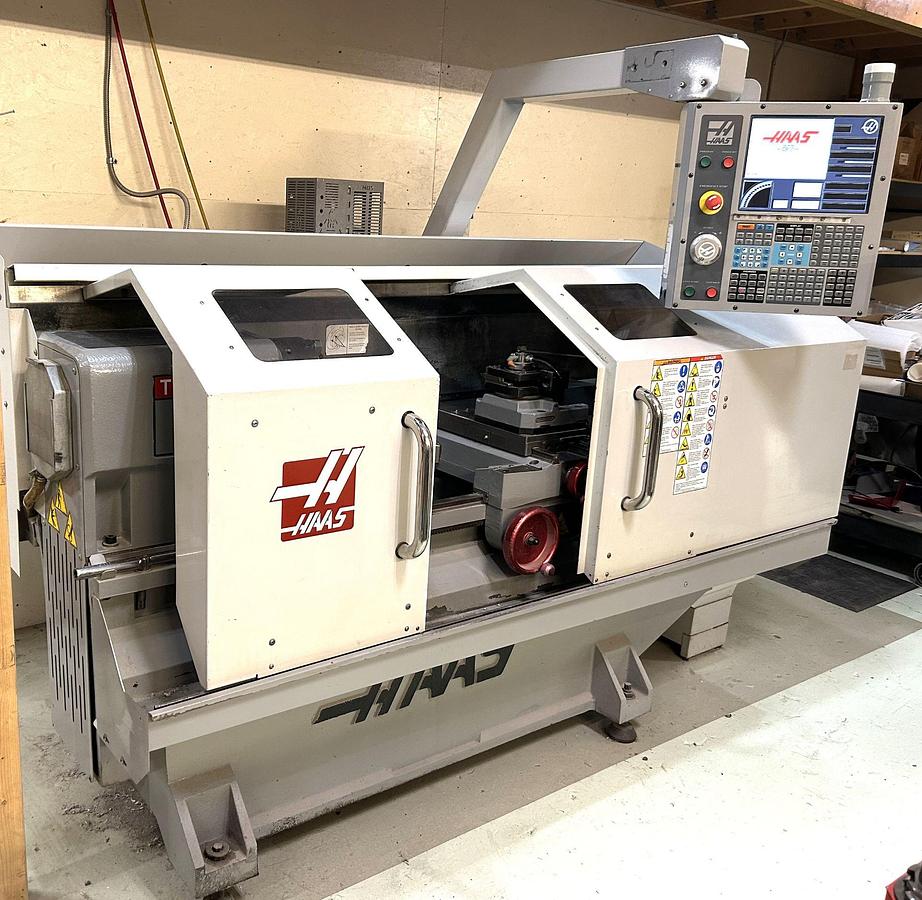

2007 Haas TL-2 with Tailstock, Tool Post and 8" 3 Jaw Chuck
2007 Haas TL-2 with Tailstock, Tool Post and 8" 3 Jaw Chuck
$22,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
Full Enclosure Doors

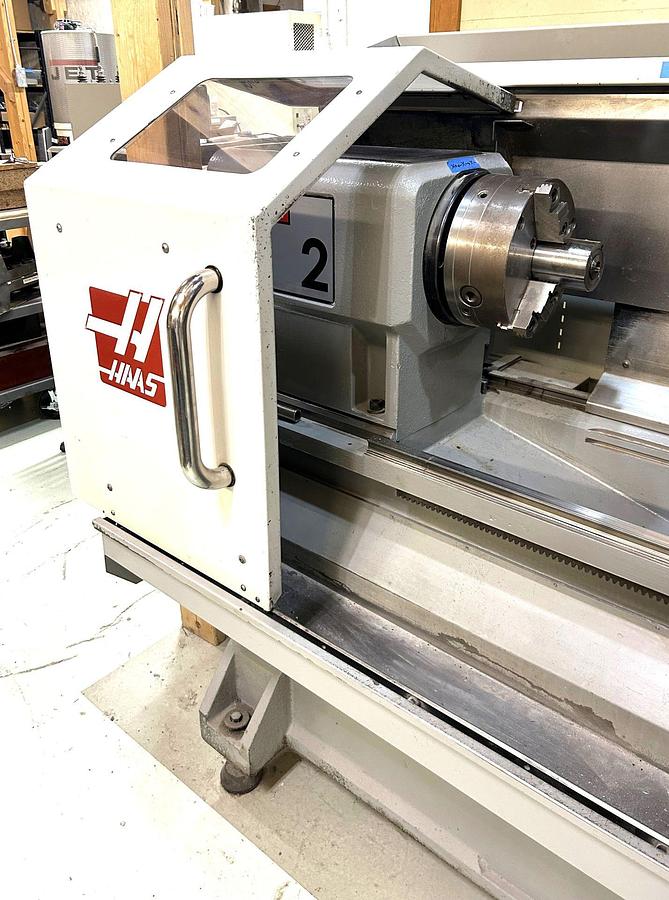

8" 3 Jaw Manual Chuck

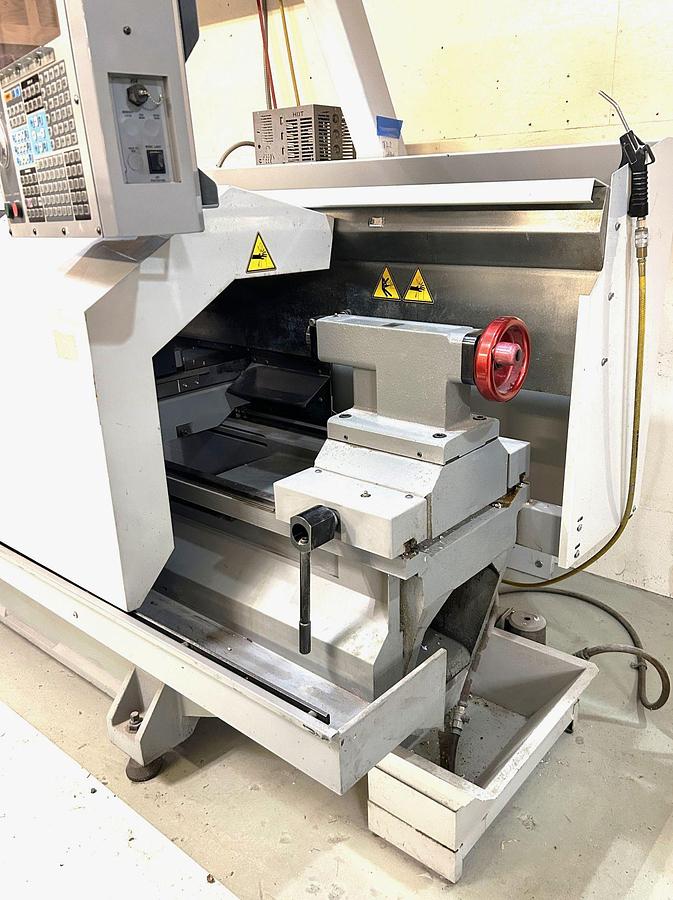

Tailstock

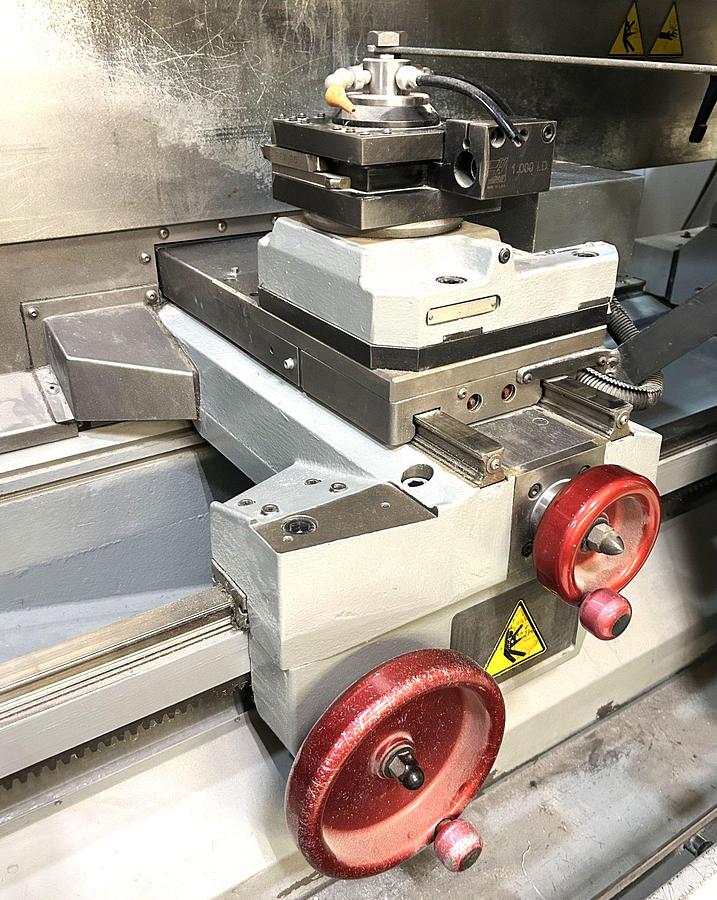

Tool Post
Manual Hand Wheels Integral Chip-Flow Channel Flip Down Safety Enclosure 1 MB Program Memory RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle Machine Can Run Either 240V Single Phase or 208V Three Phase Power
**Machine only cut plastic, did not use coolant. Does NOT have coolant tank or pump**
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120013 |

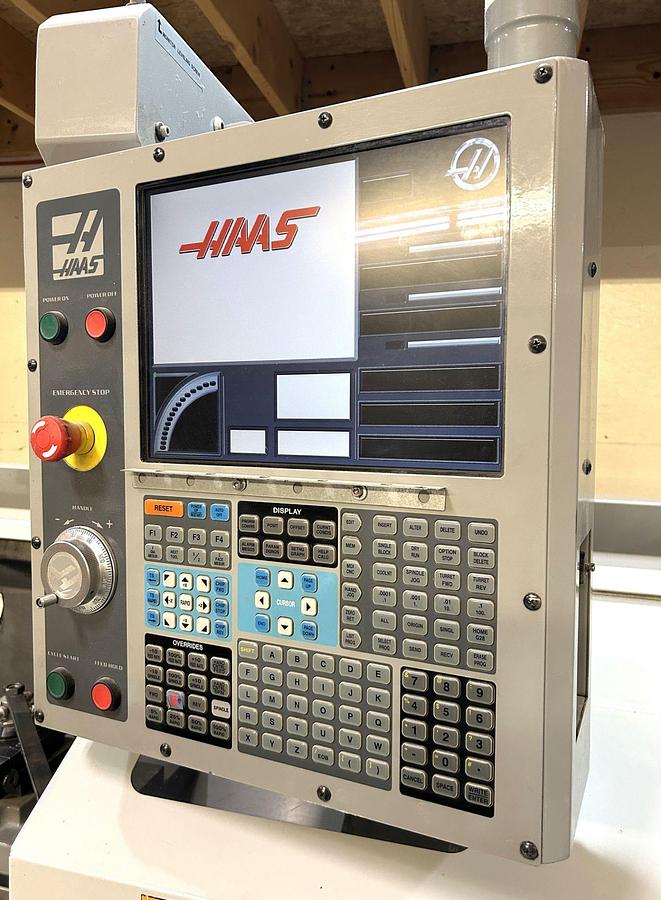

| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
