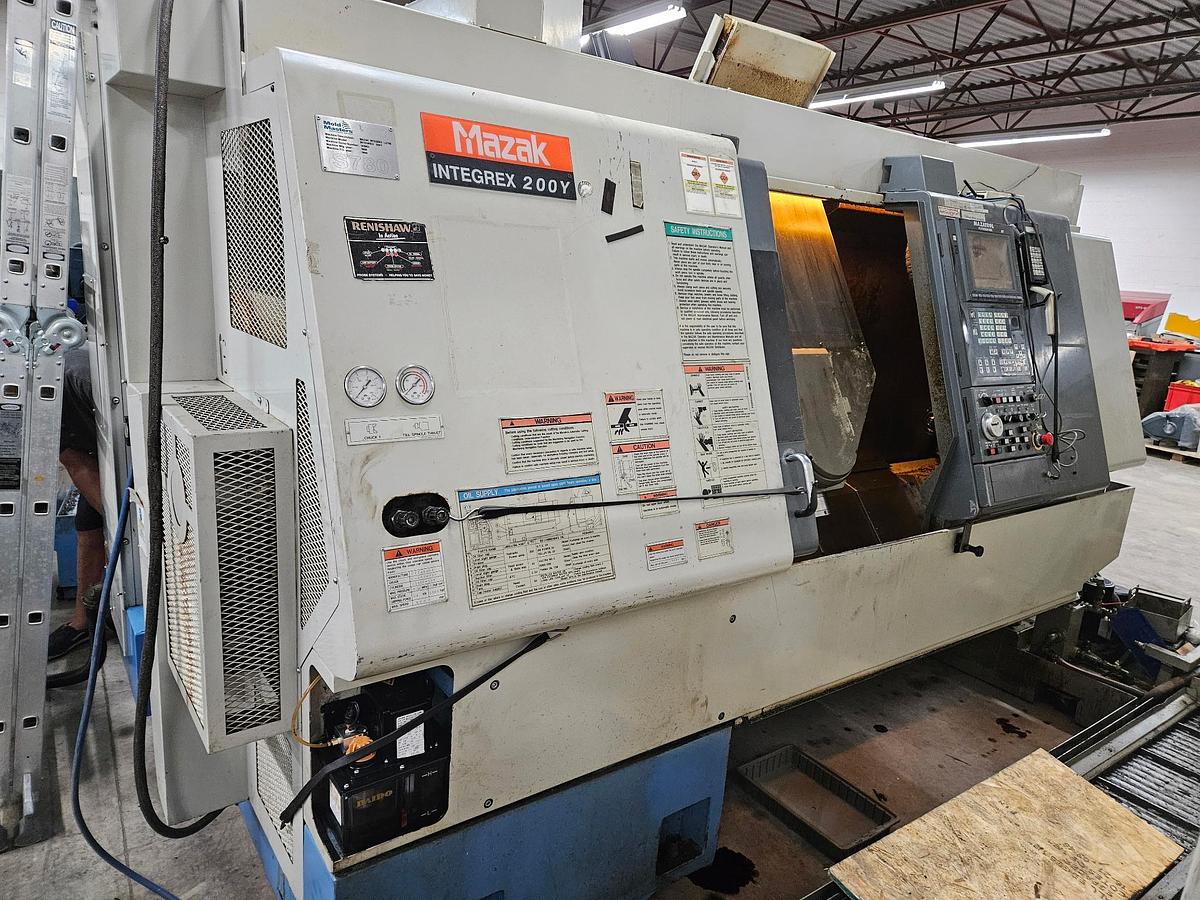

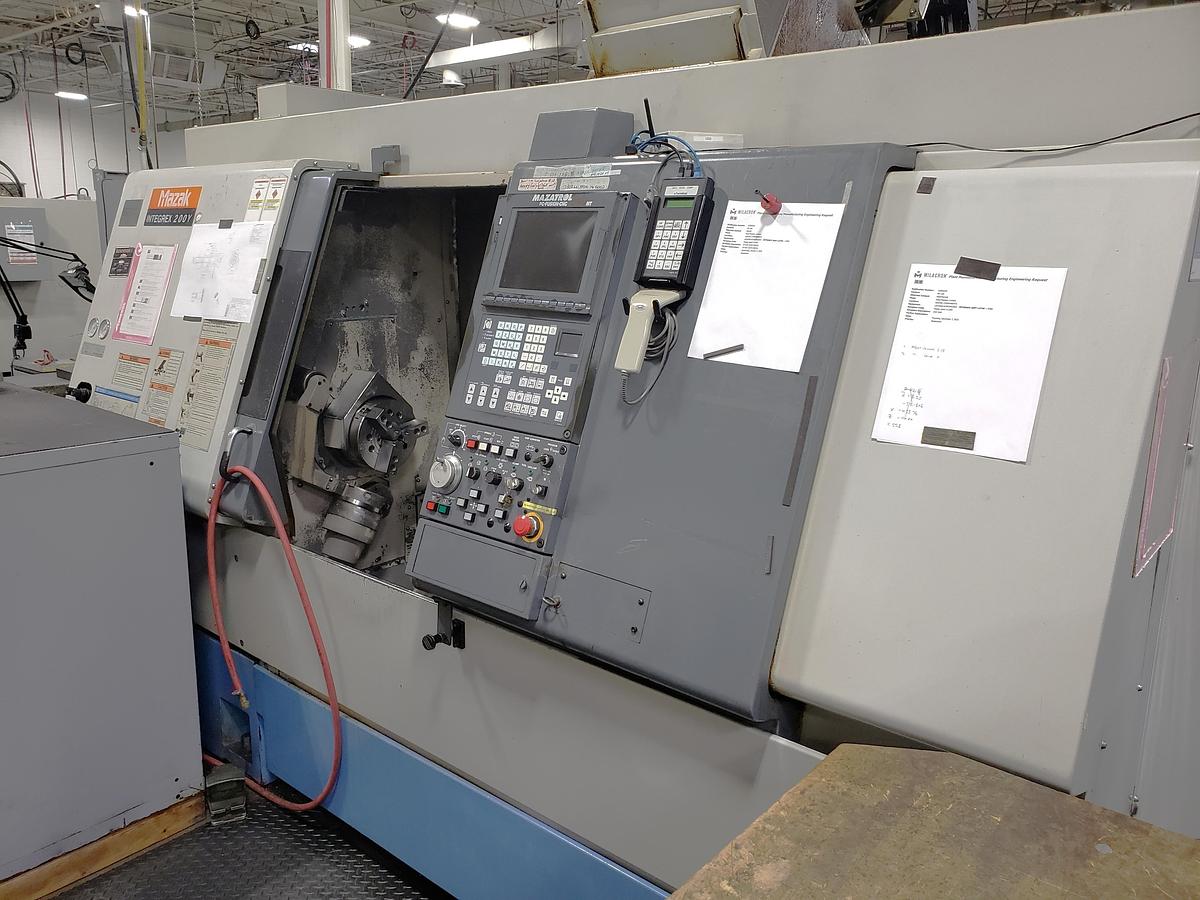

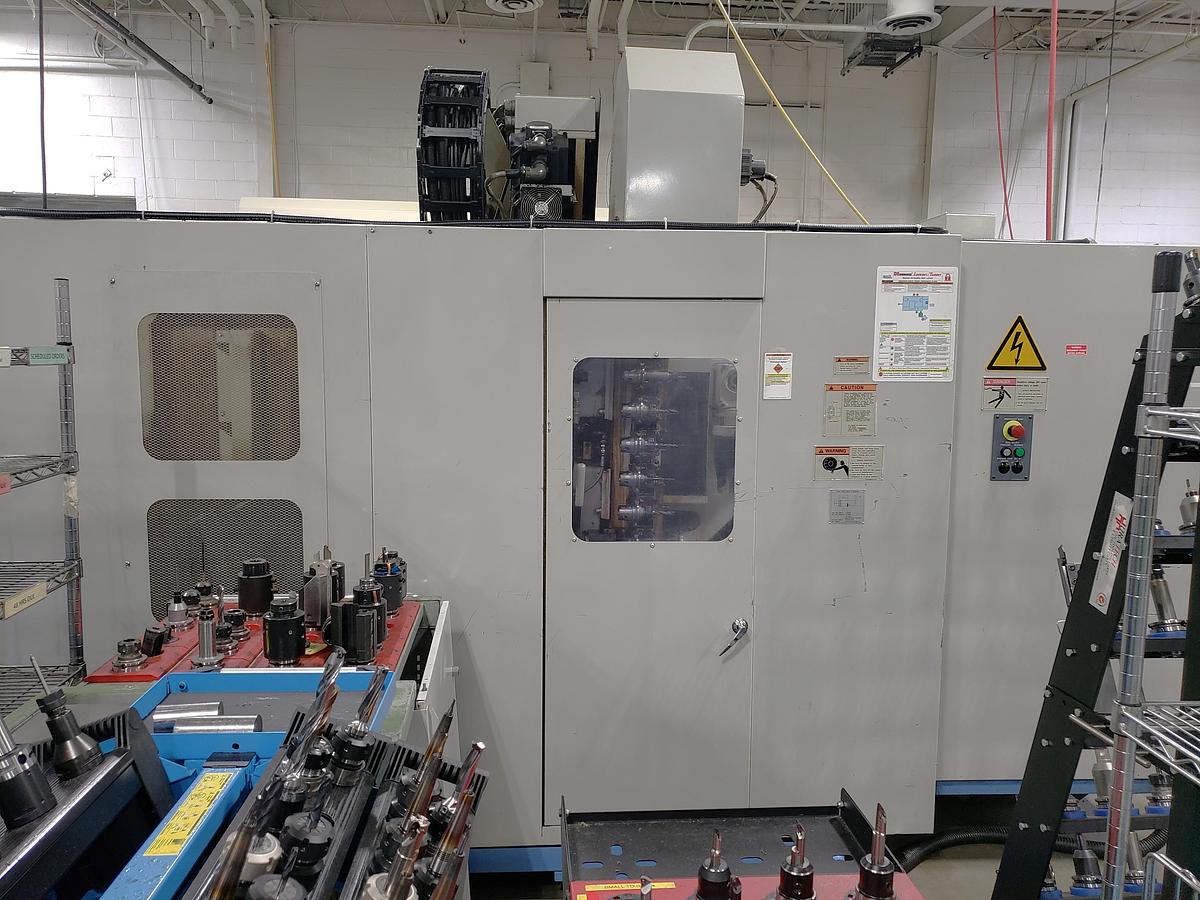

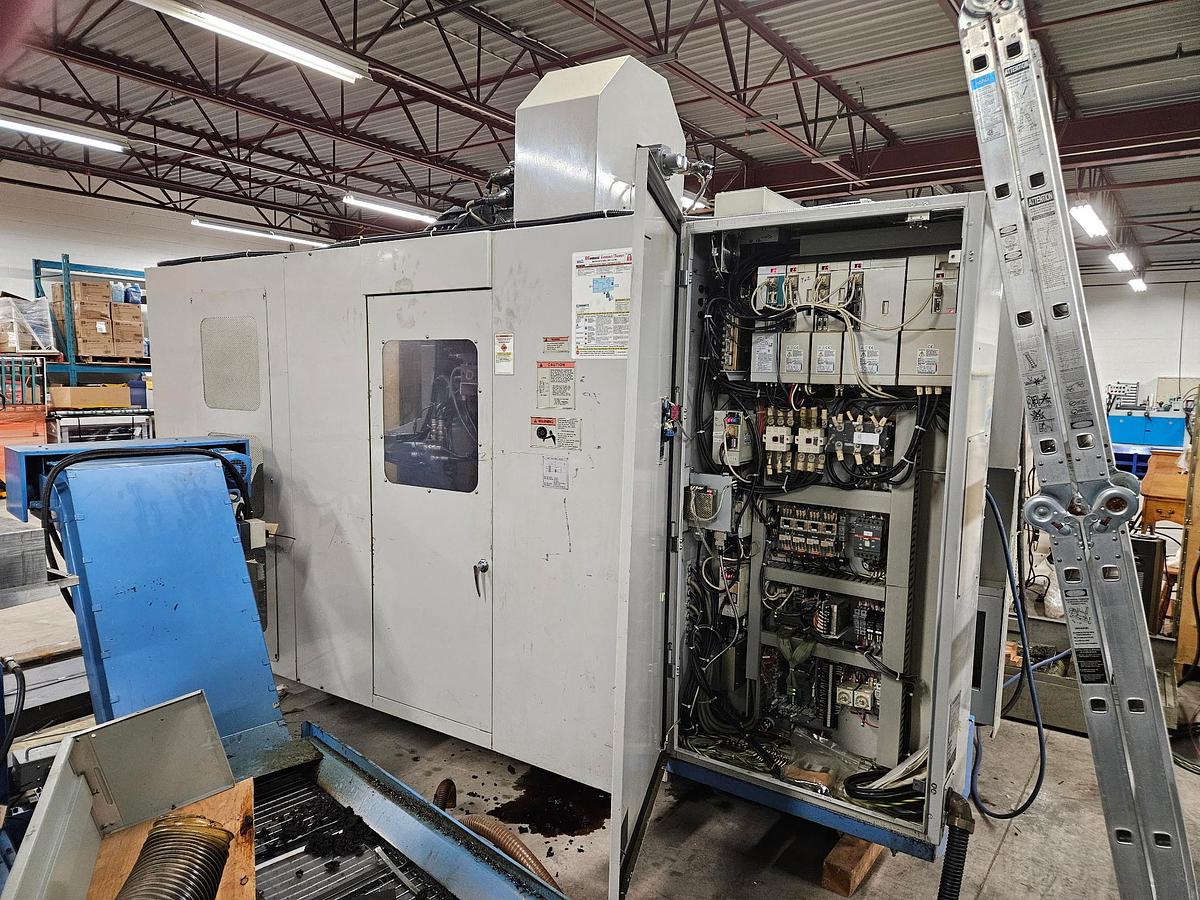

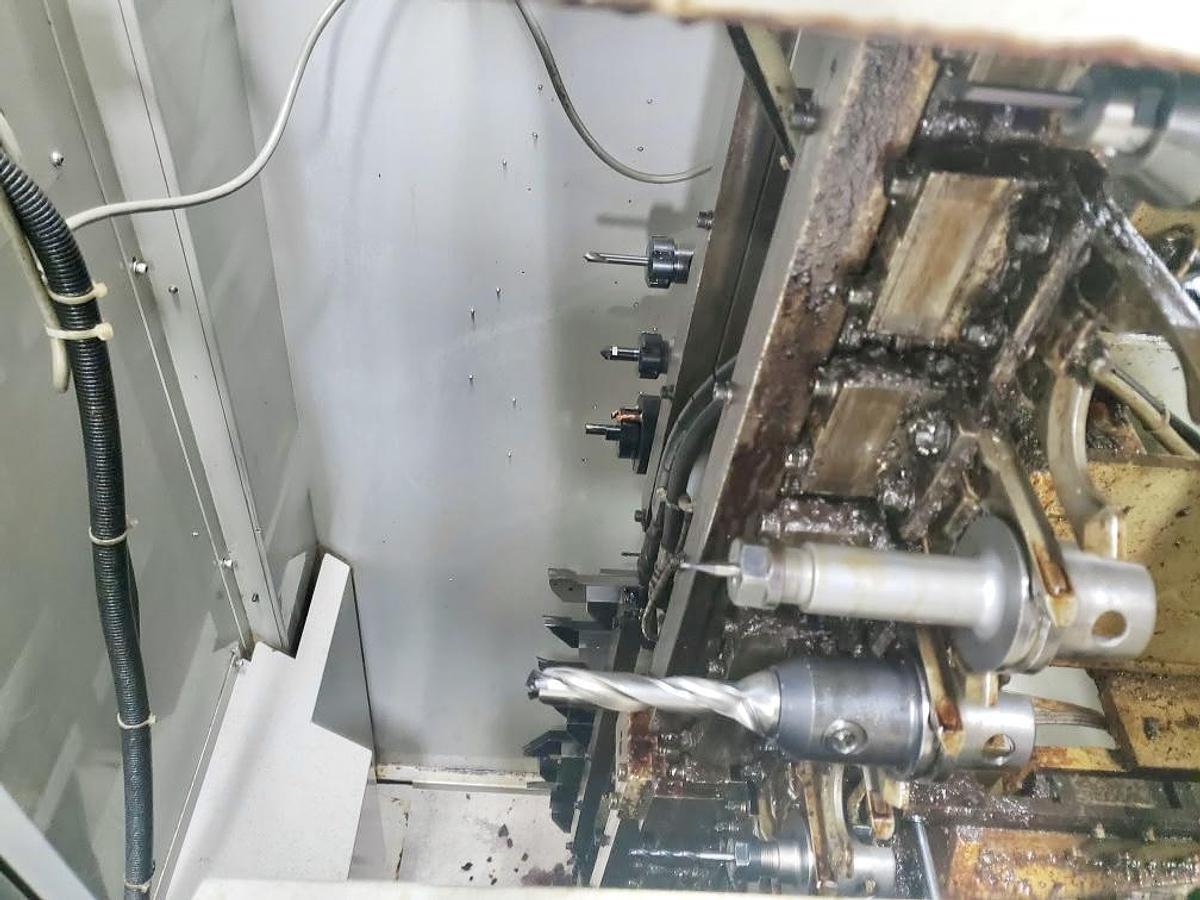

1999 Mazak Integrex 200Y 5 Axis Mill/Turn Lathe with 10,000 RPM Mill Tools
Sold
1999 Mazak Integrex 200Y 5 Axis Mill/Turn Lathe with 10,000 RPM Mill Tools
Location:Ontario, Canada
Description

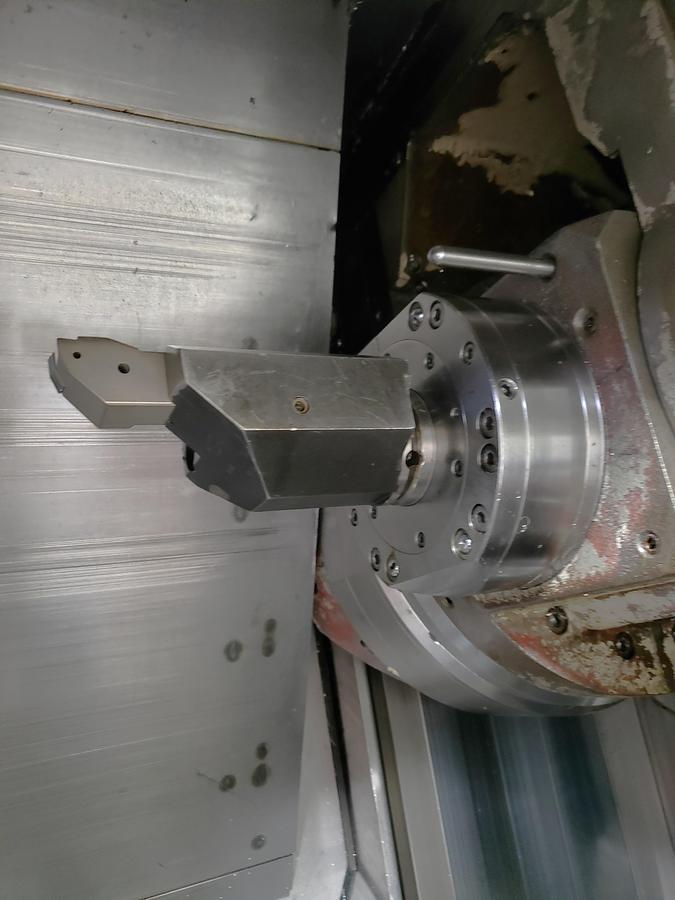

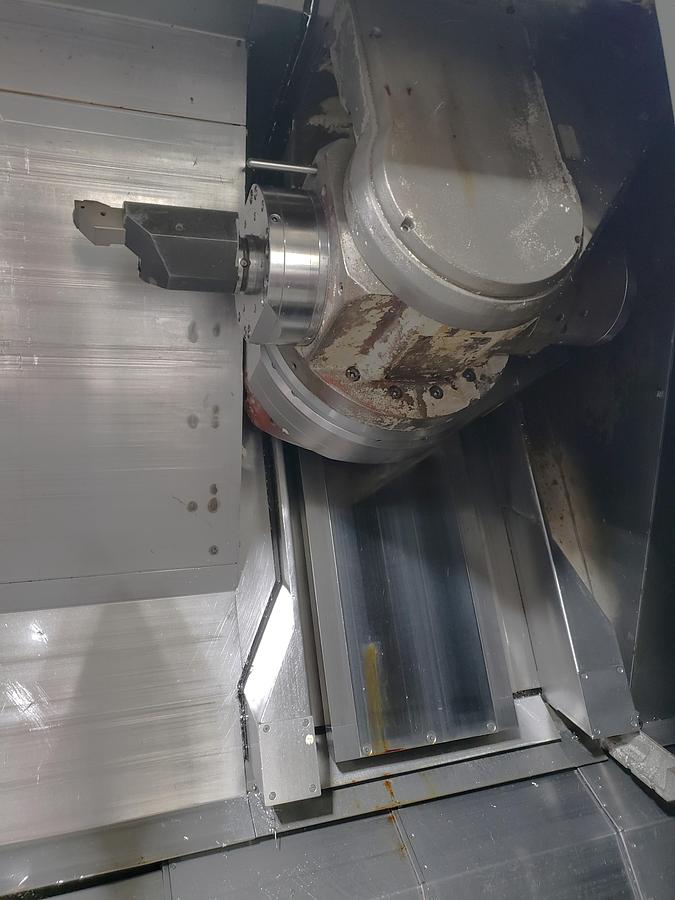

B-Axis Pendulum Style Head
Full C Axis Spindle Rotation
Milling/Drilling Capability
Y-Axis for off Center Line Work

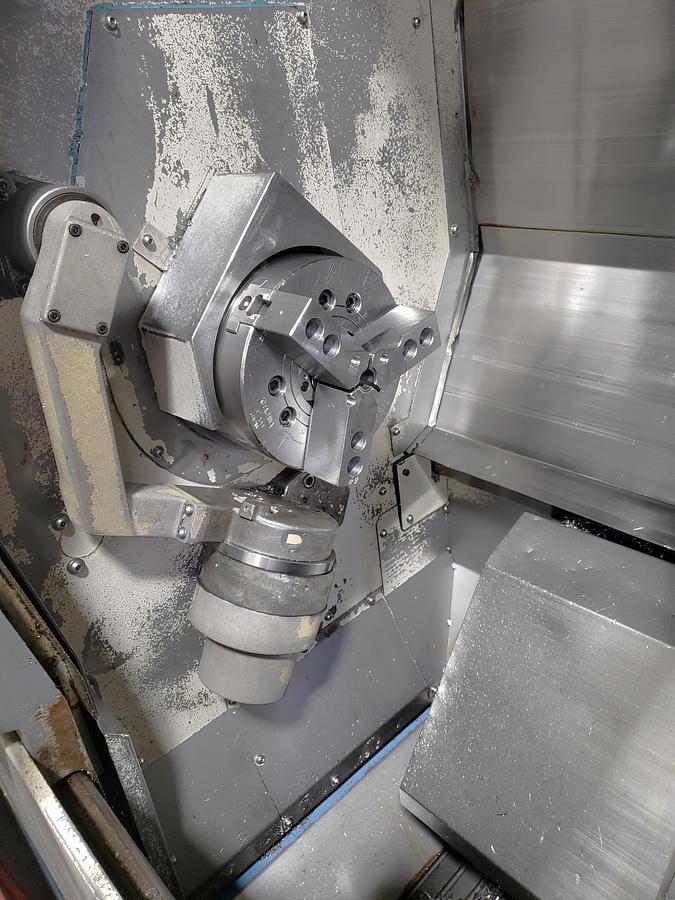

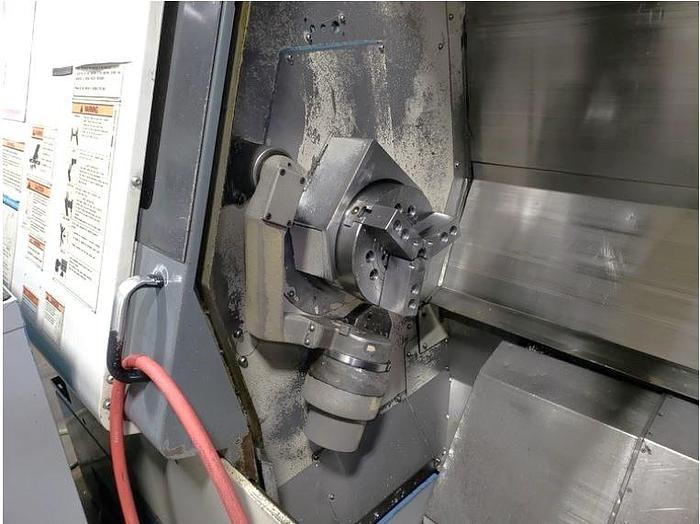

8" 3 Jaw Hydraulic Chuck

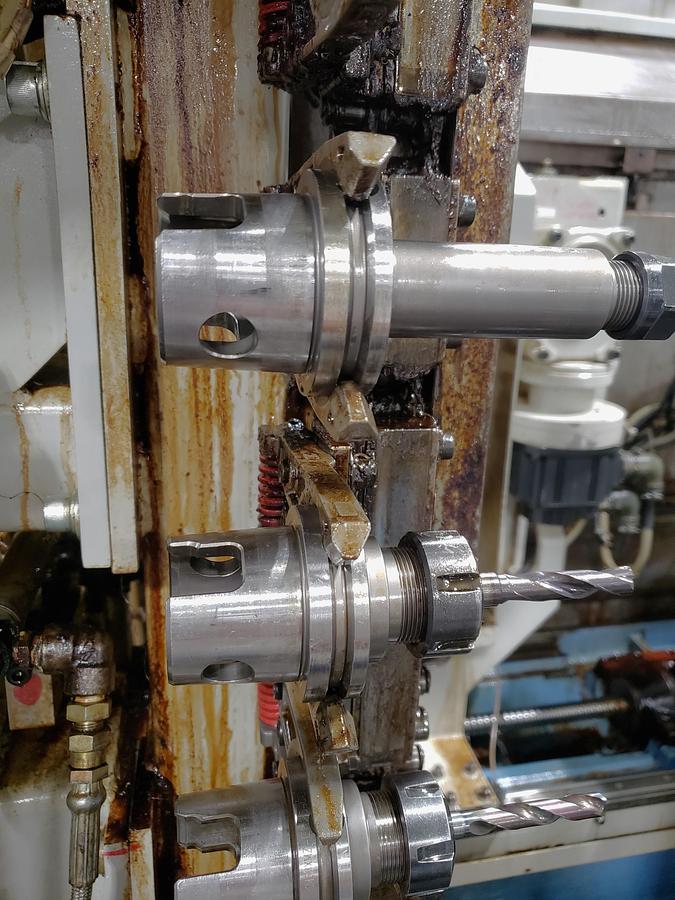

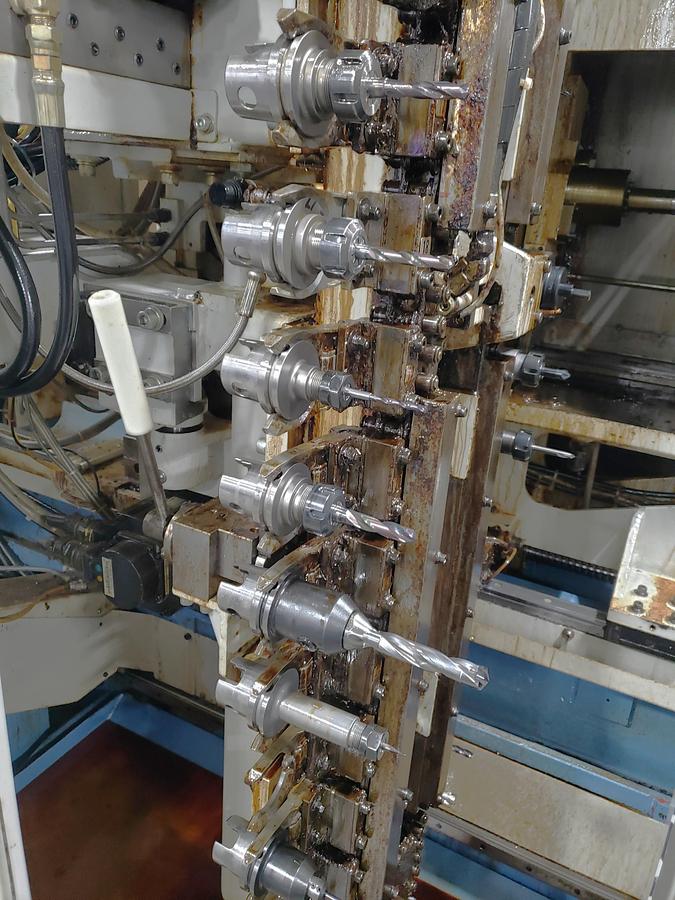

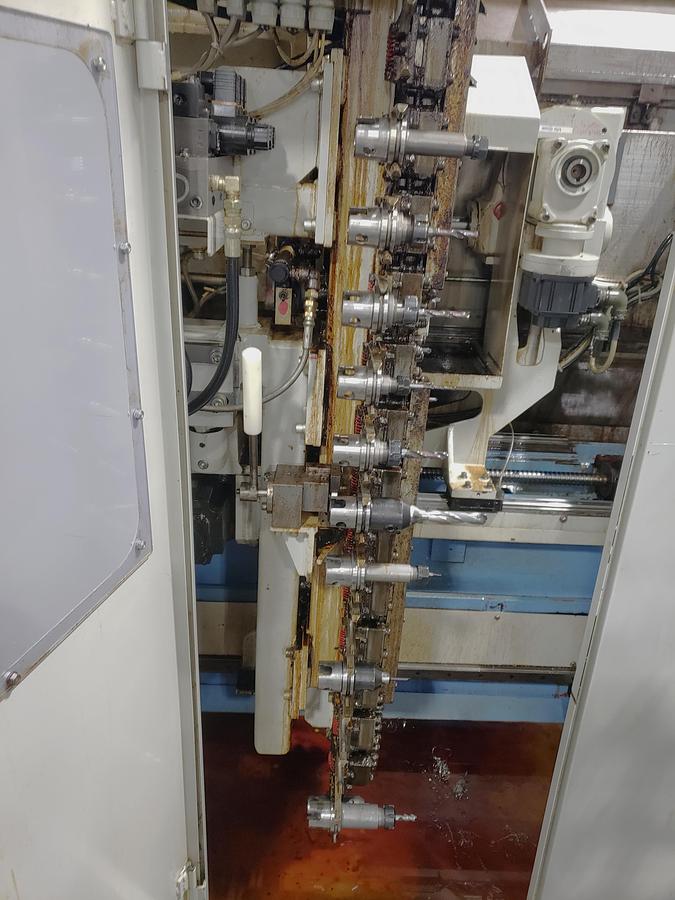

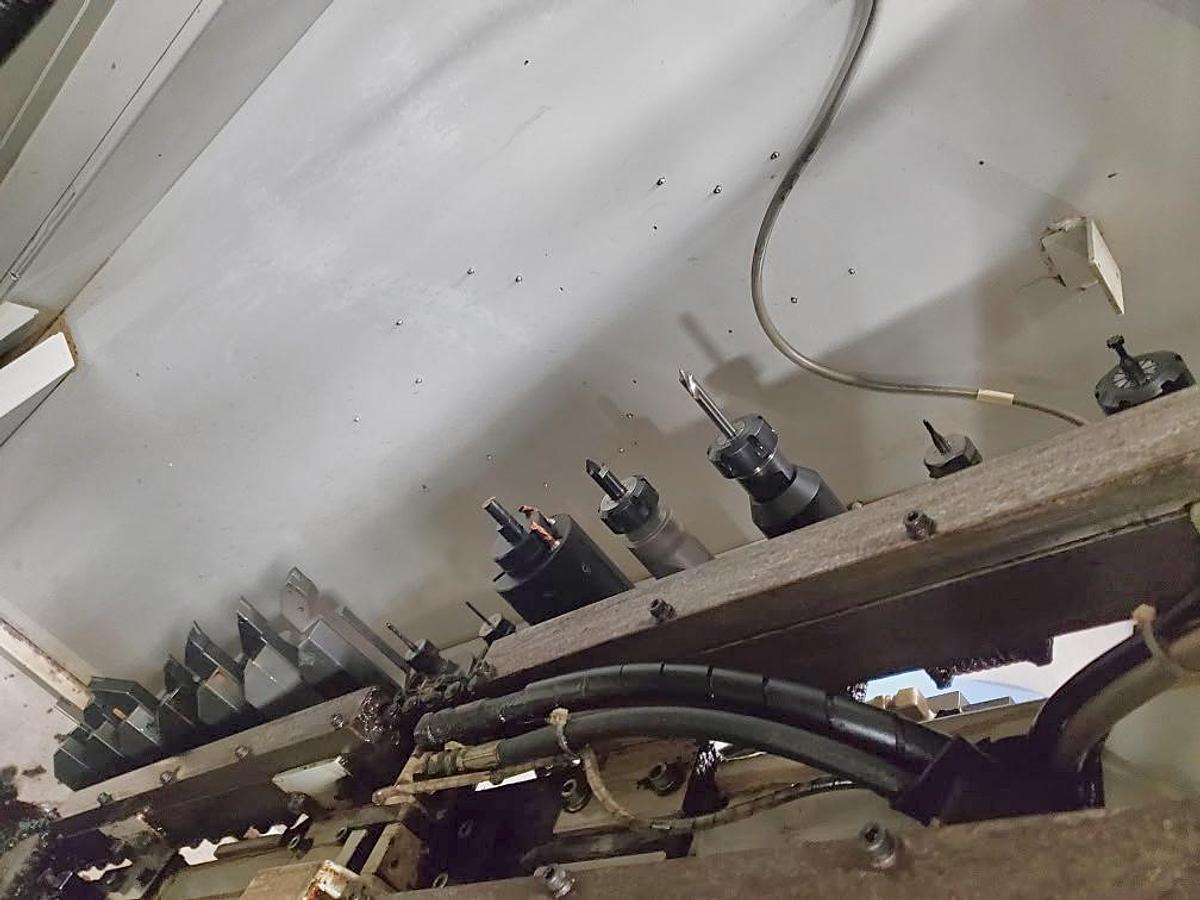

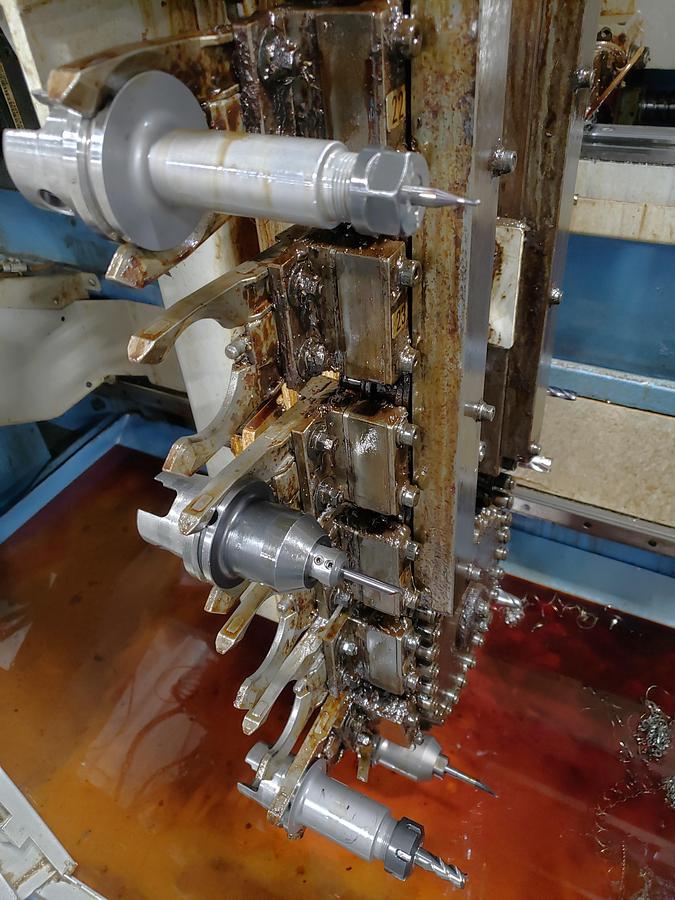

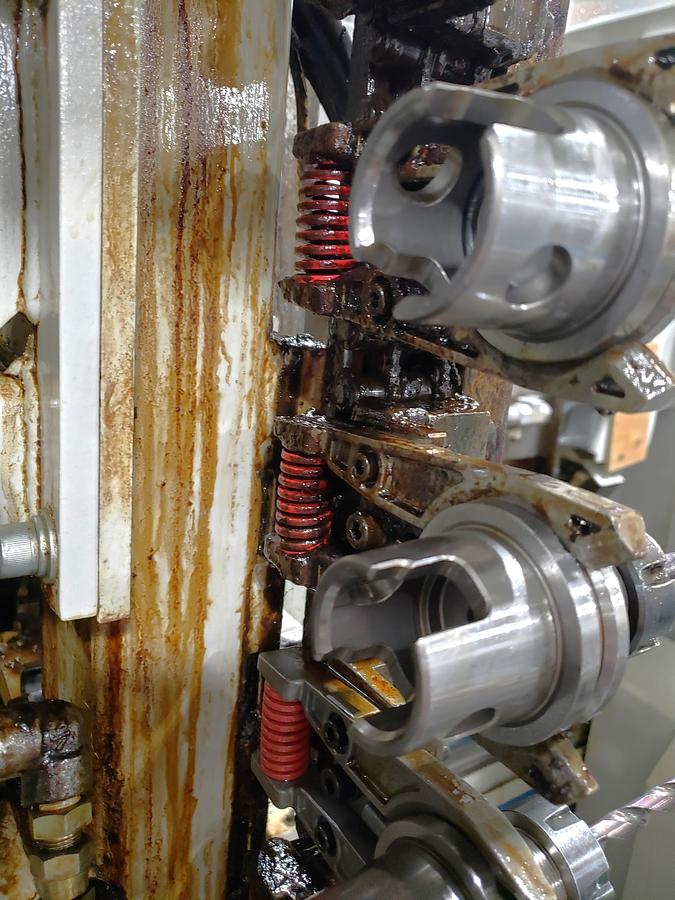

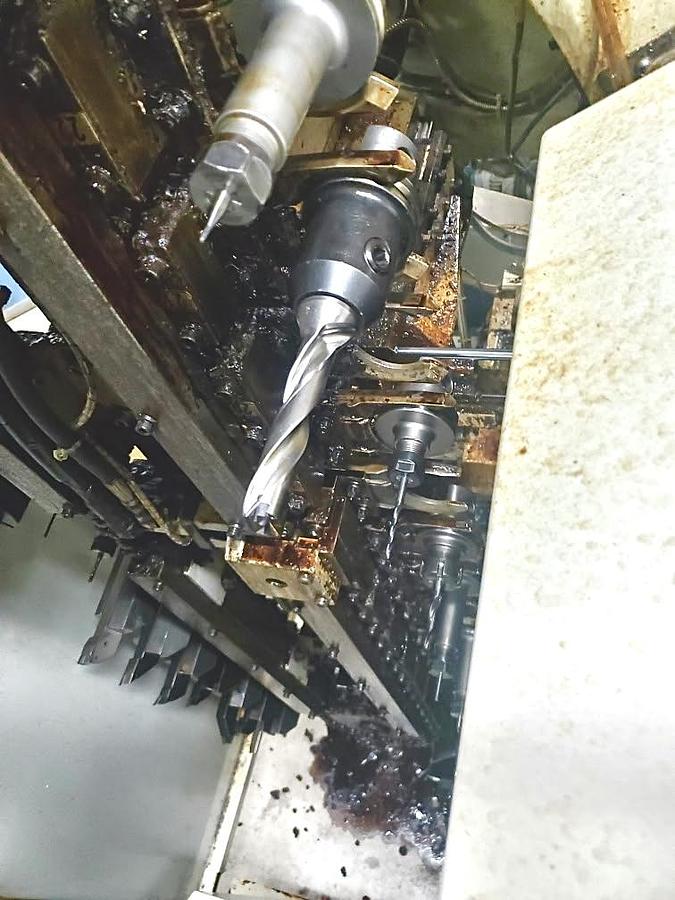

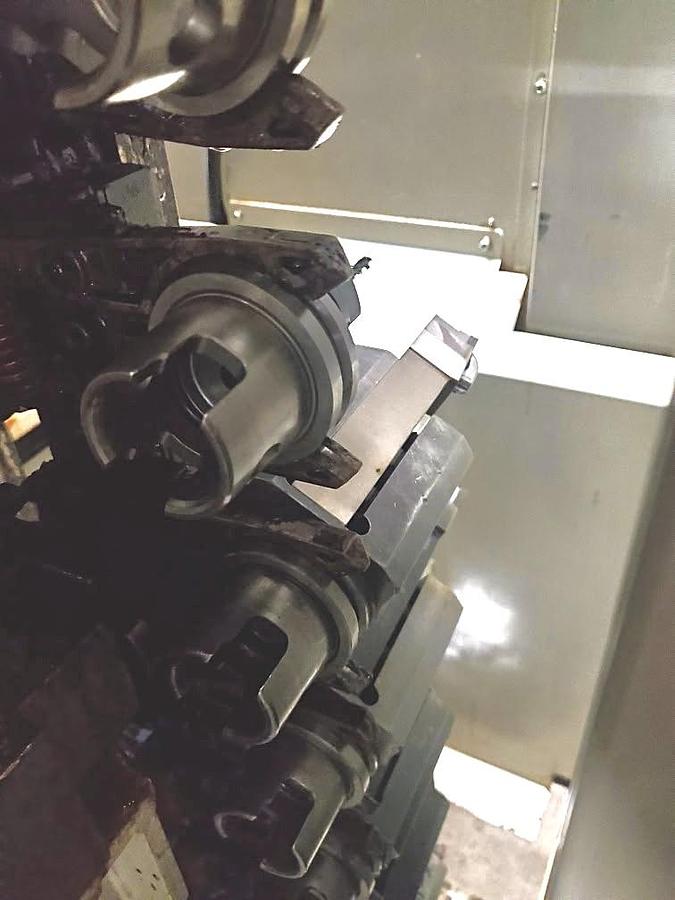

40 Station Tool Changer

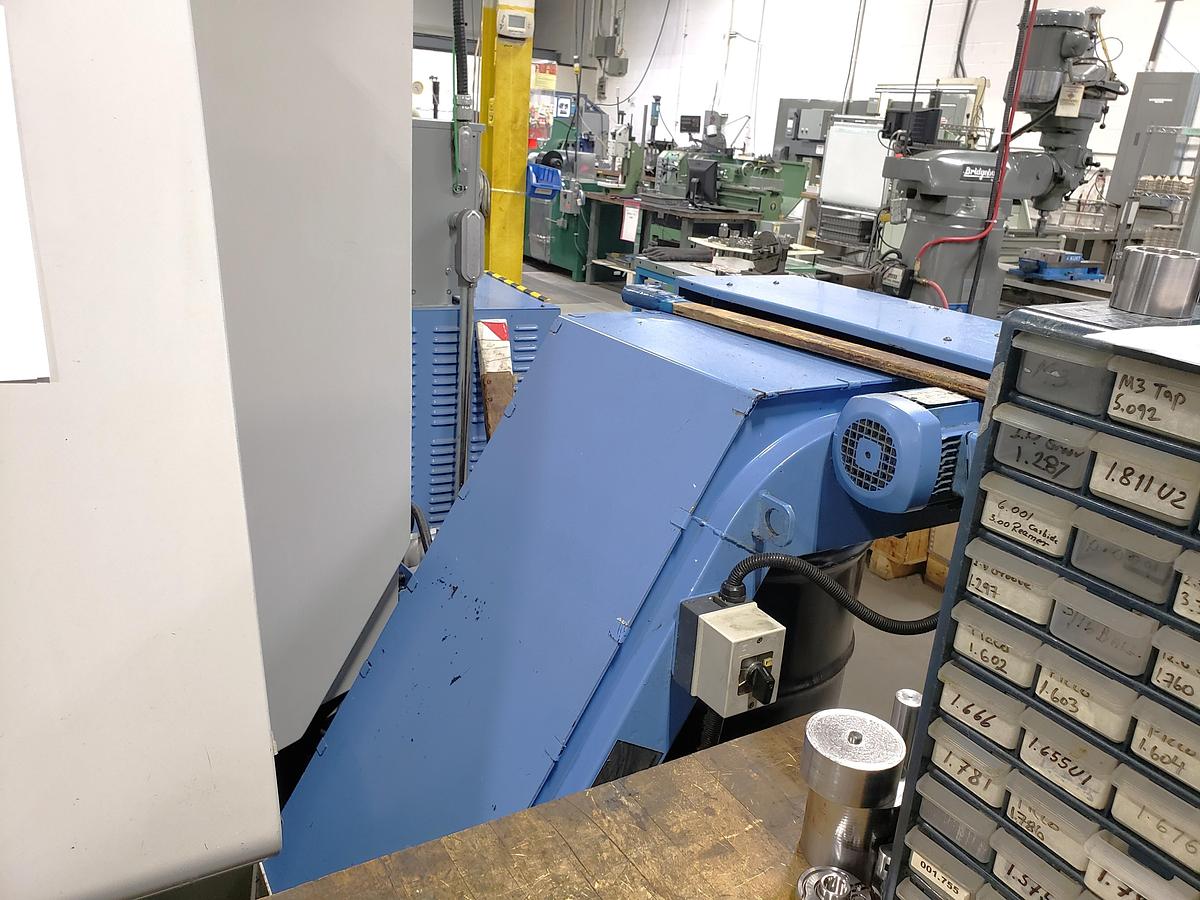

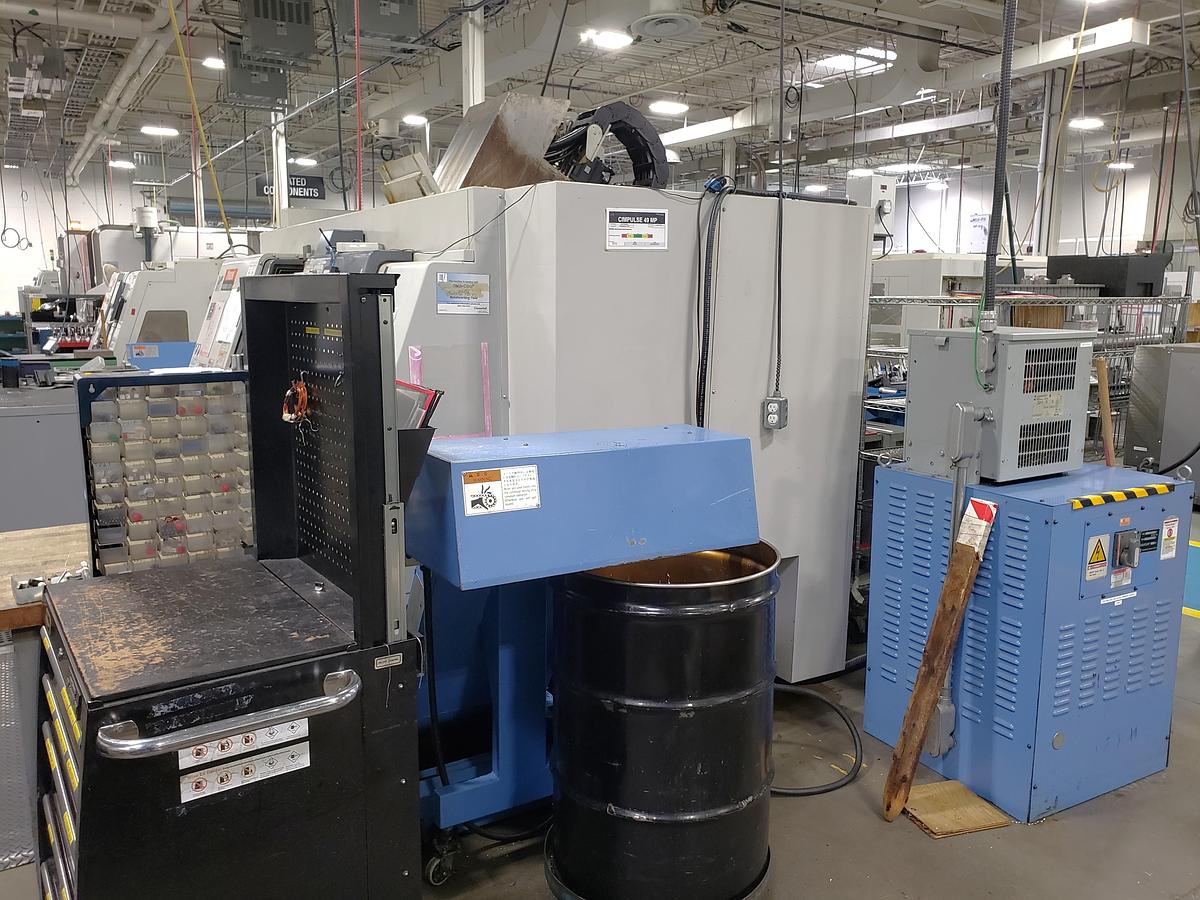

Chip Conveyor
Automatic Tool Eye

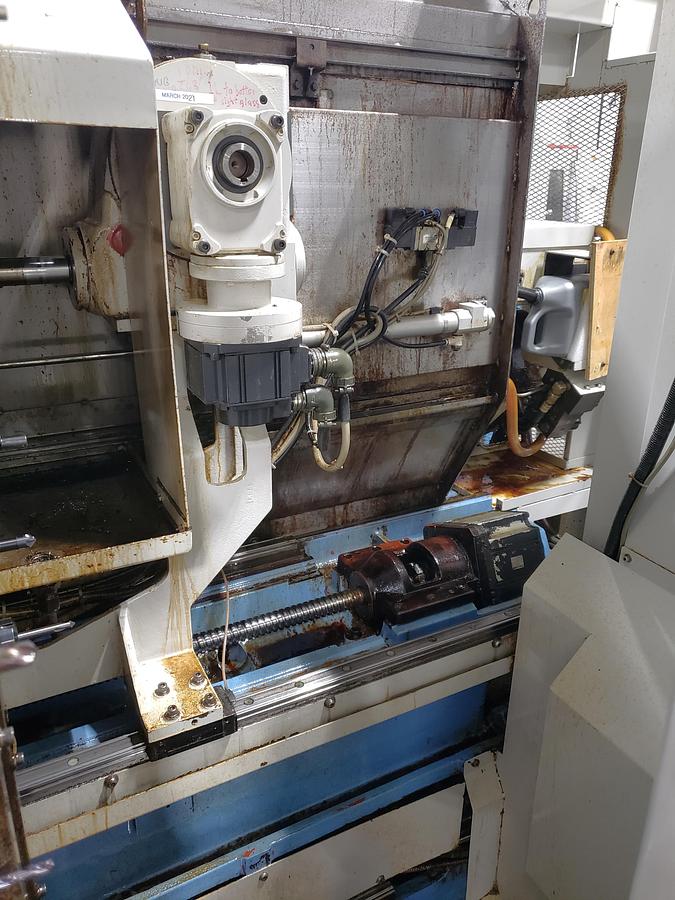

Programmable Tailstock

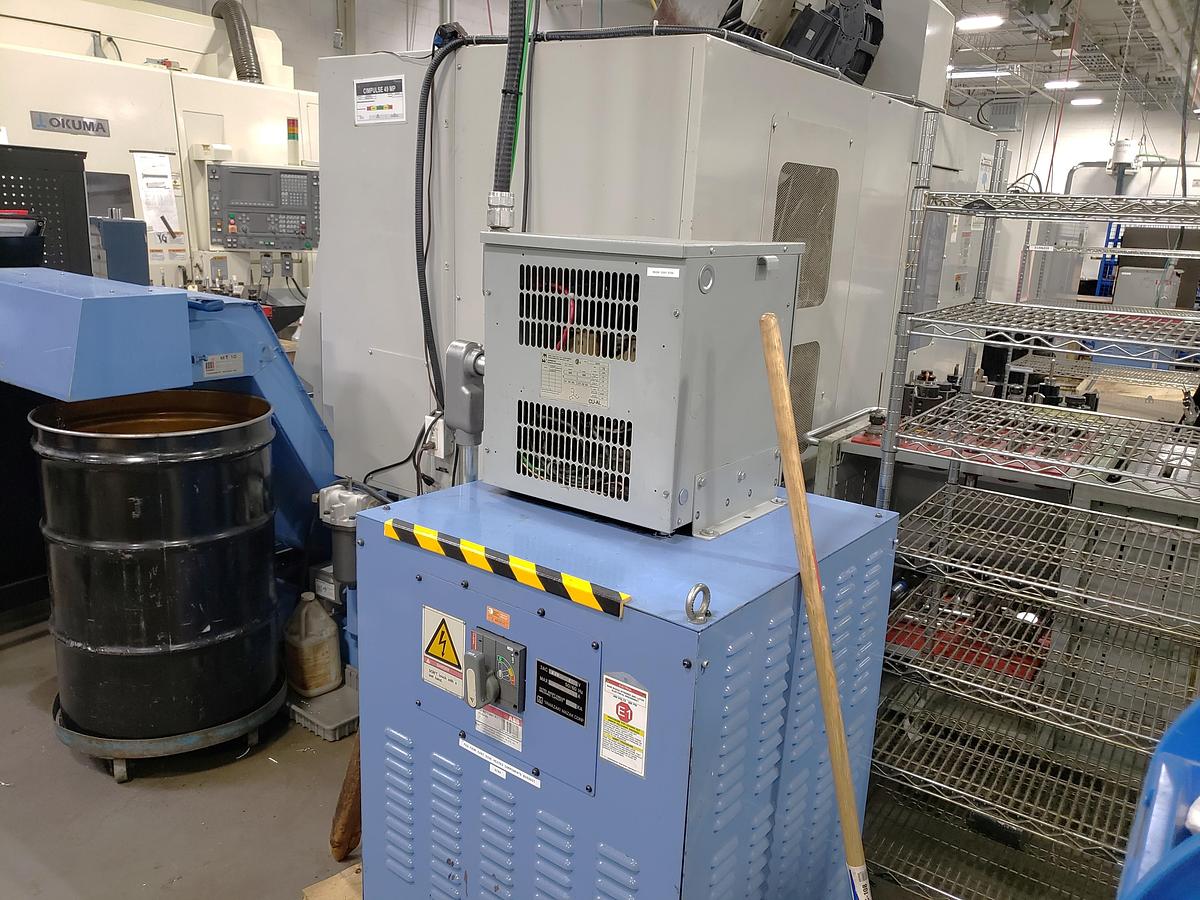

Multi-Tap Transformer - Currently Wired 200V Electrics
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex 200Y |
| Year | 1999 |
| Condition | Used |
| Stock Number | 119932 |

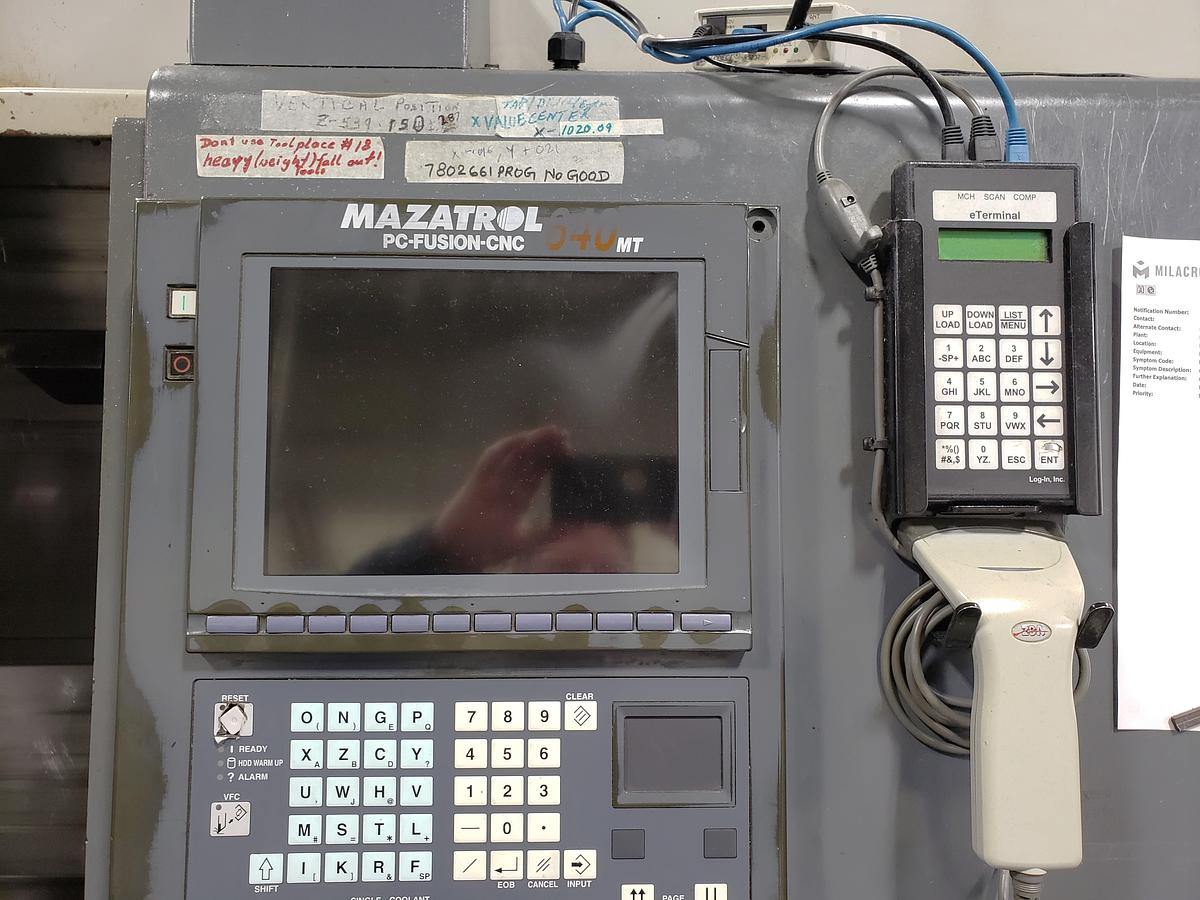

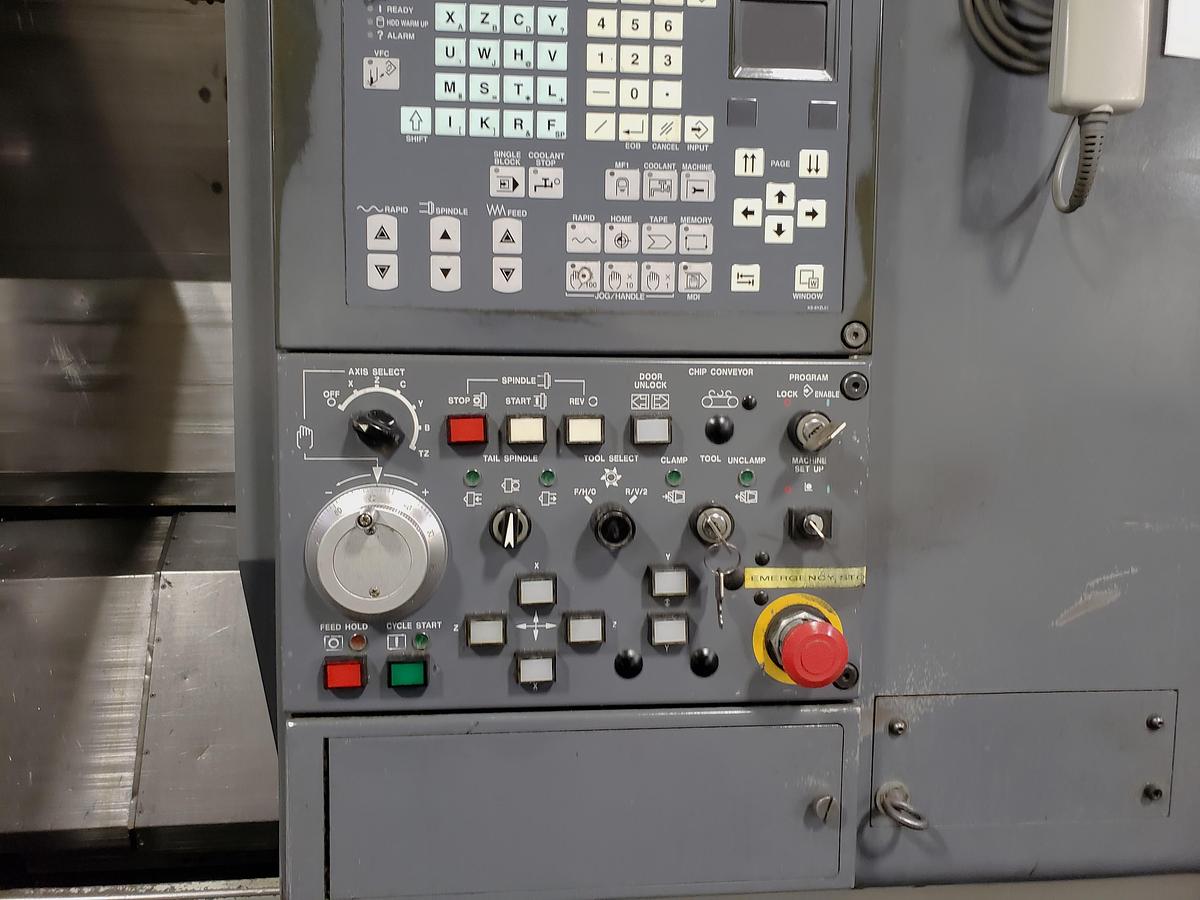

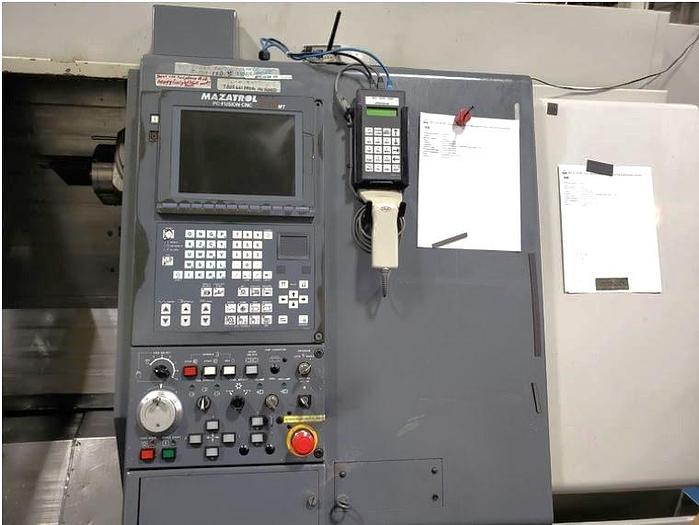

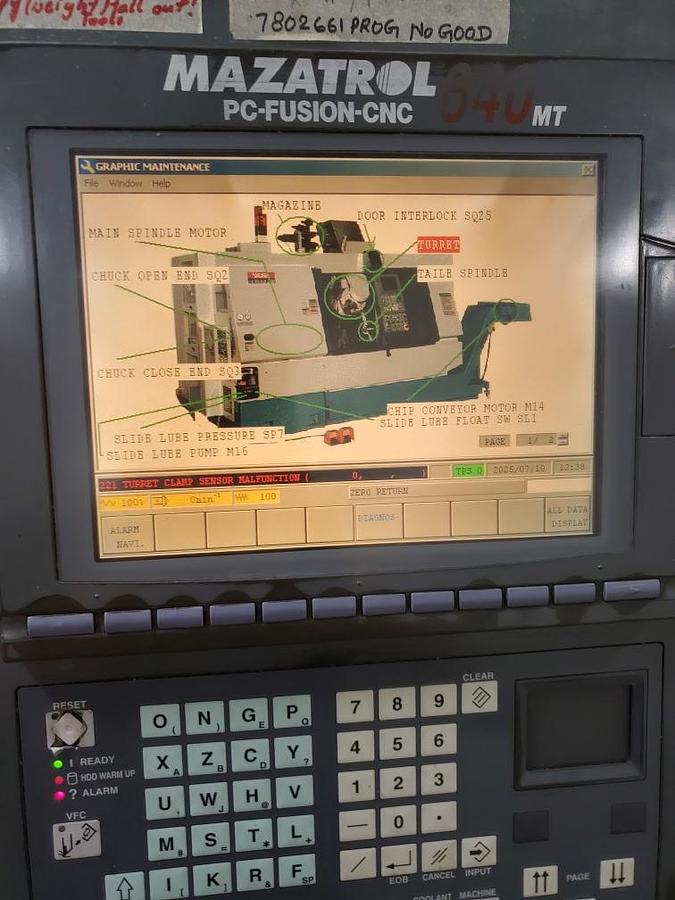

| Machine Control | Mazatrol Fusion 640MT |
| Chuck Size | 8" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 21.25" |
| Maximum Cutting Diameter | 21.25" |
| Maximum Machining Length | 40" |
| X-Axis Travel | 20.87" |
| Y-Axis Travel | +/- 3.15" |
| Z-Axis Travel | 42" |
| B-Axis Tilt Movement | 225 Degrees |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2" |

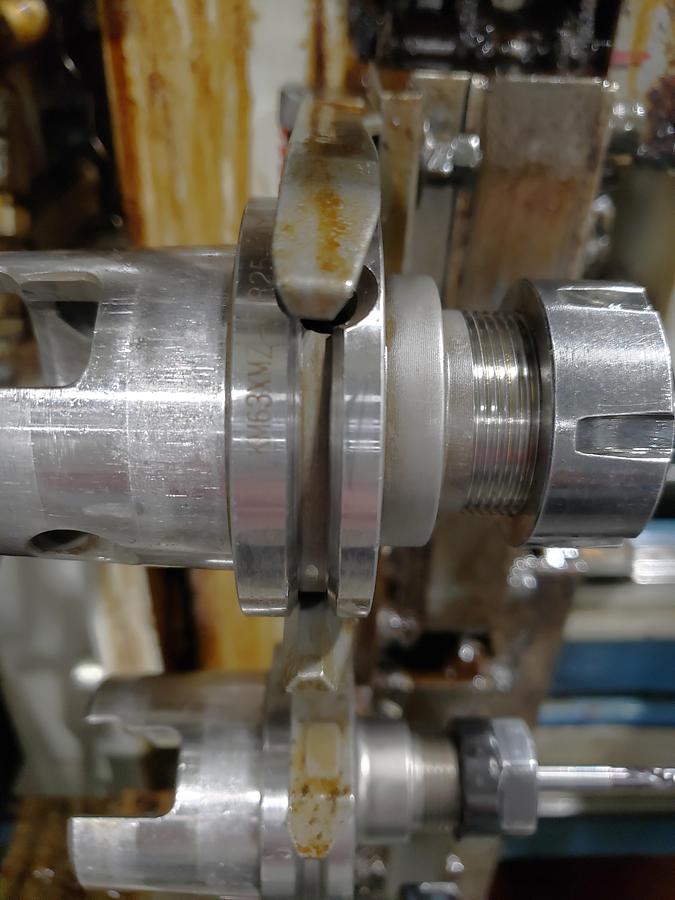

| Spindle Taper | KM63 |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 30 HP |
| Milling Spindle Motor | 20 HP |
| Milling Spindle Speed | 10,000 RPM |
| Tool magazine capacity | 40 Station Tool Changer |
| Rapid Traverse Rates (X, Y, Z) | 1181 ipm / 590 ipm / 1299 ipm |
| Rapid Traverse Rate C Axis | 400 RPM |
| Tailstock Body Travel / Center | 34.25" / #4 MT |
| Tailstock Quill Travel | 5.5" |
| Machine Dimensions LxWxH | 138"x83"x95" |
| Machine Weight | 12,980 lbs |
