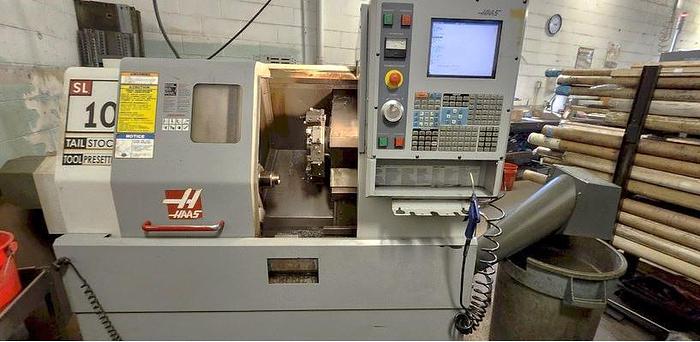

2006 Haas SL-10T
Sold
2006 Haas SL-10T
Location:Minnesota
Description
6" 3 Jaw Hydraulic Chuck
5C Collet Chuck
Auger Style Chip Conveyor
Tool Presetter
Tailstock
Coolant System with Tank & Pump
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Manuals
All Available Tool Holders Includes (4) Boring Bar Holders and Some Turning Tool Wedges
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119916 |

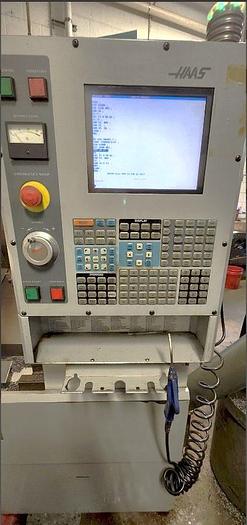

| Machine Control | Haas CNC Control |
| Chuck Size | 6" 3 Jaw Hydraulic & 5C Collet Chuck |
| Maximum Swing | 16.25 |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 6,000 RPM |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
