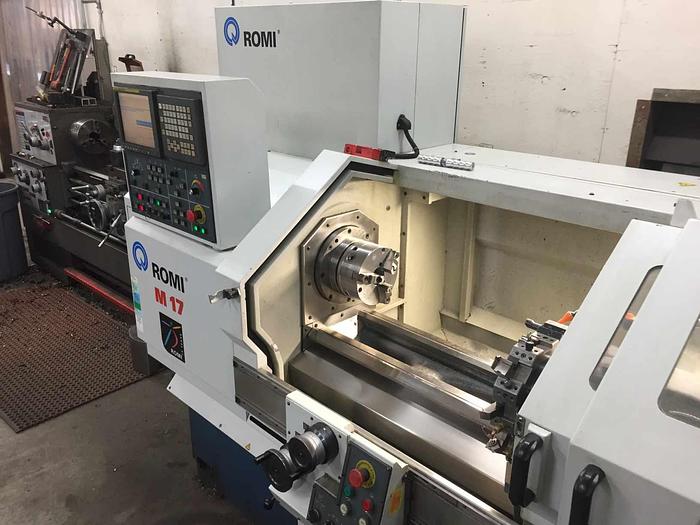

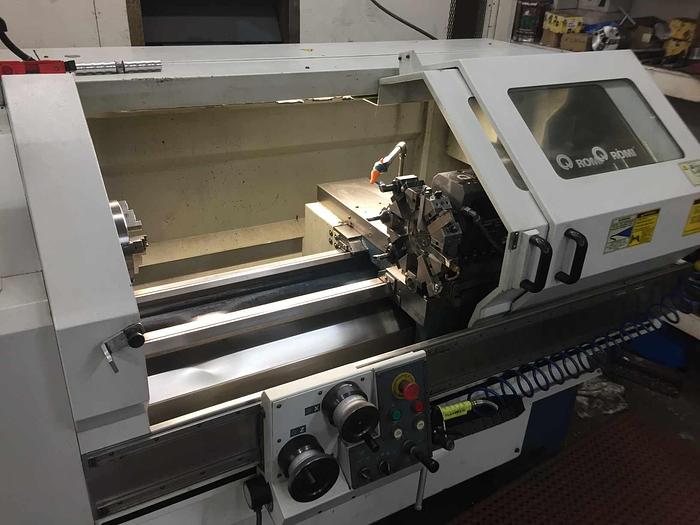

2005 Romi M-17
Sold
2005 Romi M-17
Location:Washington
Description
10" 3-Jaw Manual Chuck
Hand Wheels
8 Station Turret
Rigid Tapping
Tailstock
Coolant System
3.5" Floppy Disk Interface
RS 232 Port Interface
Specifications
| Manufacturer | Romi |
| Model | M-17 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119679 |
| Machine Control | Fanuc 21i-T |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing | 16.93" |
| Maximum Swing Over Cross Slide | 8.03" |
| Distance Between Centers | 43.46" |
| X-Axis Travel | 8.66" |
| Z-Axis Travel | 42.85" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.09" / 2" |
| Spindle Speed | 4 - 4,000 RPM |
| Spindle Motor | 10 HP |
| Turret Type | 8-Position |
| Rapid Traverse Rates X / Z | 394 IPM / 295 IPM |
| Tailstock Quill Travel / Taper | 4.72" / No. 4 MT |
| Machine Dimensions LxWxH | 110" x 51" x 80" |
| Machine Weight | 6,185 lbs |
