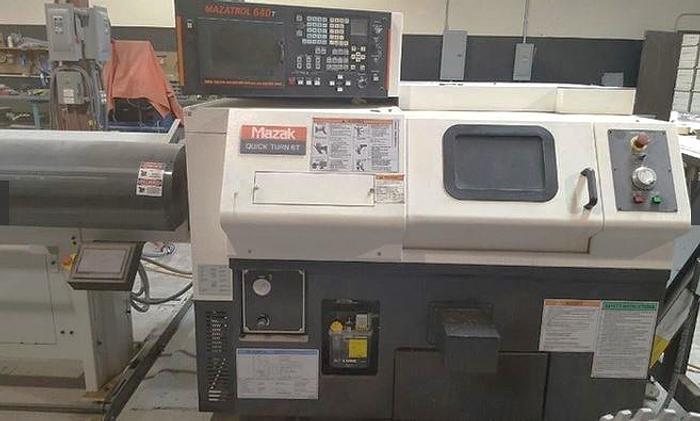

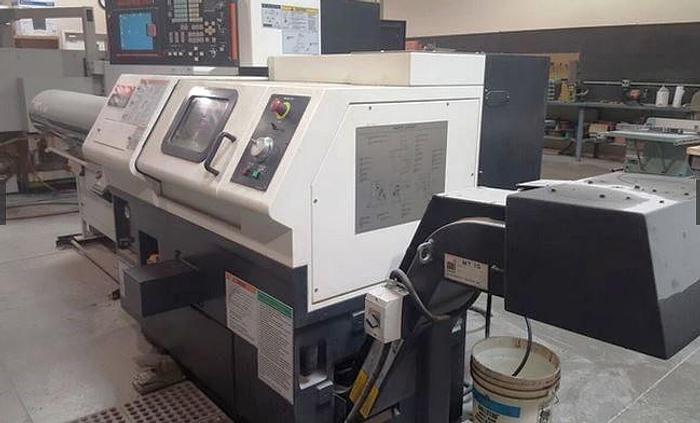

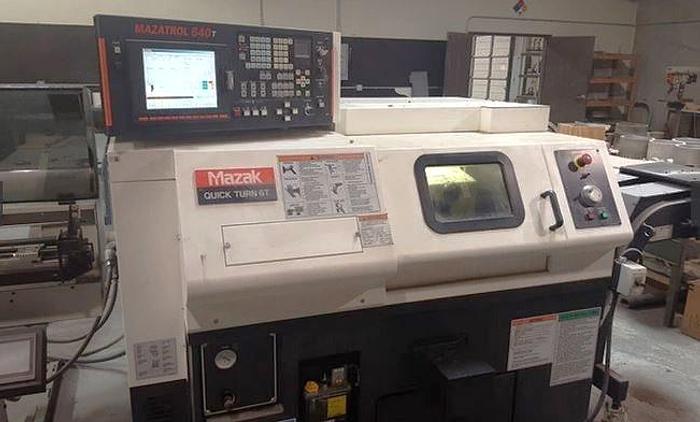

2011 Mazak QT-6T Chucker

2011 Mazak QT-6T Chucker

$29,500 (USD)

California

orCall (863) 439-6066

Description

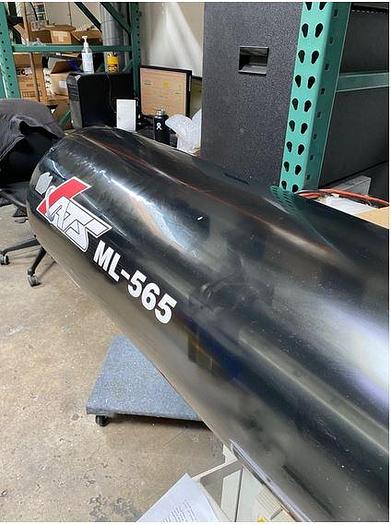

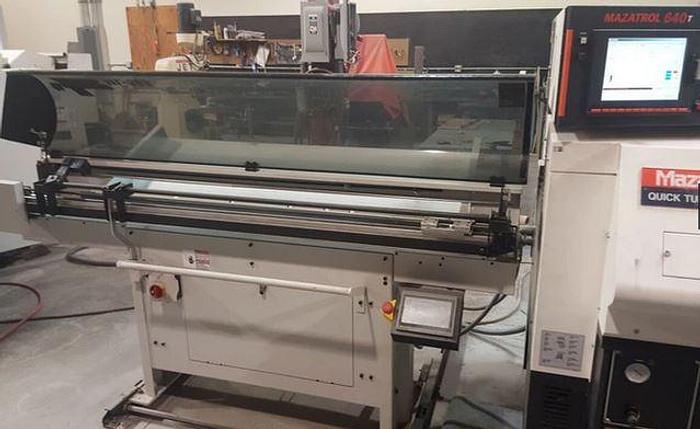

ATS Systems Model ML-565S Servo Short Magazine Barfeeder

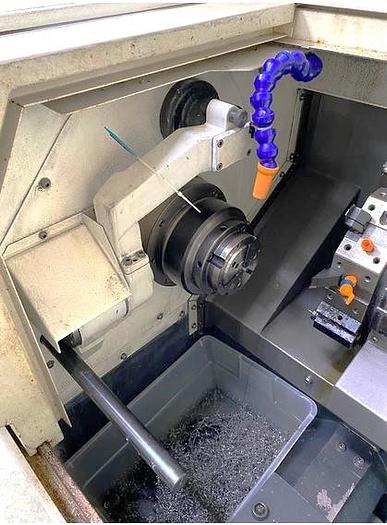

5" 3 Jaw Hydraulic Chuck

Collet Chuck

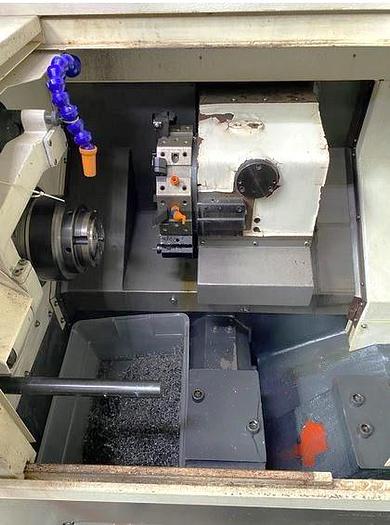

12 Position Turret

Manual Tool Eye

Parts Catcher (has shaft, but no catch bucket)

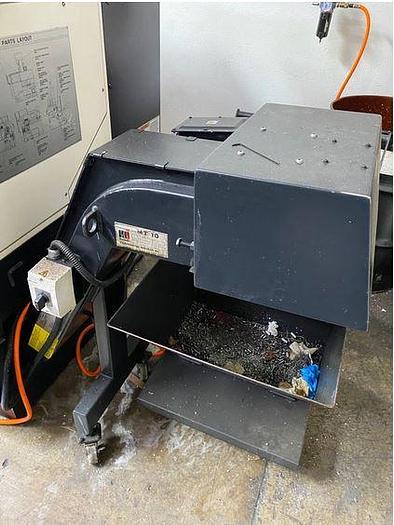

Chip Conveyor

High Power Coolant

EIA/ISO Option Package

Coolant System with Tank and Pump

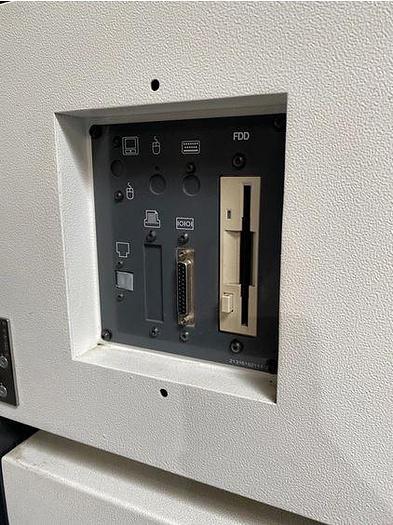

PCM CIA Interface - 2 Slots

3.5" Floppy Disk Interface

RS 232 Port Interface

Door Interlock

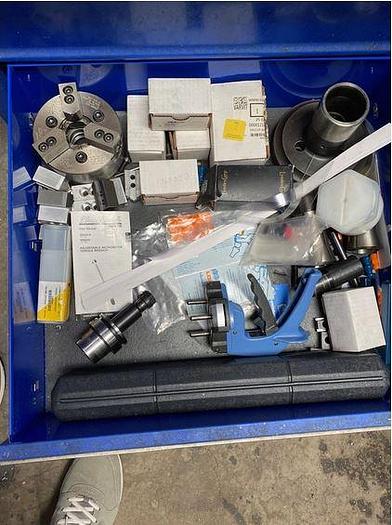

Integral Spindle Motor Design All Available Tooling All Available Manuals

Multi-Tap Transformer

Mazak Relocation Device


**Machine has been used very little, mostly plastic, but also some stainless and aluminum, only ran one production job making a small rulon plastic roller of 4mm diameter x 2.5" length**


**Power On Hours 2,045**

**Auto Operation Hours 1,330**

**Auto Cutting Hours 1,267**

**Total Cutting Hours 905**

Specifications

ManufacturerMazak
ModelQT-6T
Year2011
ConditionUsed
Stock Number119472

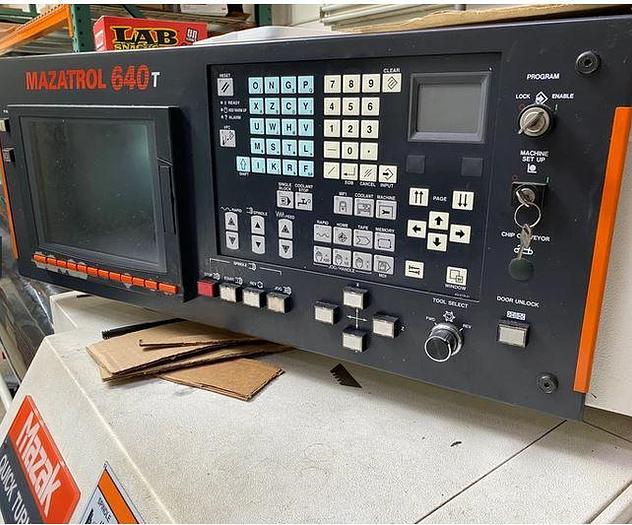

ControlMazatrol Fusion 640T
Chuck Size 5" 3-Jaw Hydraulic / Collet Chuck
Maximum Swing17.32"
Maximum Cutting Diameter5.19"
Maximum Machining Length7.68"
X-Axis Travel3.15"
Z-Axis Travel7.88"
Spindle Nose / Bore / Bar Capacity4.53" Flat Nose / 1.73" / 1.26"
Spindle Speeds35 - 7,000 RPM
Spindle Motor7.5 HP
Number of Turret Positions12 Position Turret
Rapid Traverse Rates X/Z1181 / 1181 IPM
Machine Dimensions LxWxH68"x53"x62"
Machine Weight4,650 lbs
