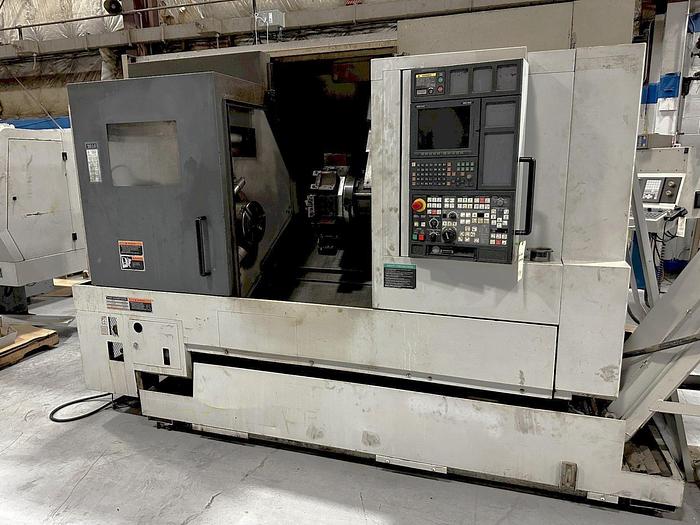

2004 Mori Seiki NL2500Y/700

2004 Mori Seiki NL2500Y/700

$54,500 (USD)


orCall (863) 439-6066


Full C Axis Spindle Rotation Live Milling/Drilling Capability Y Axis Capability 10" 3 Jaw Hydraulic Chuck Tool Presetter Chip Conveyor Programmable Tailstock Complete Coolant System with Tank & Pump RS 232 Port Interface Wired 220V Electrics (2) Live Toolholders All Available Static Tooling All Available Manuals


ManufacturerMori Seiki
Stock Number119338
ControlMori/Fanuc MSX-850

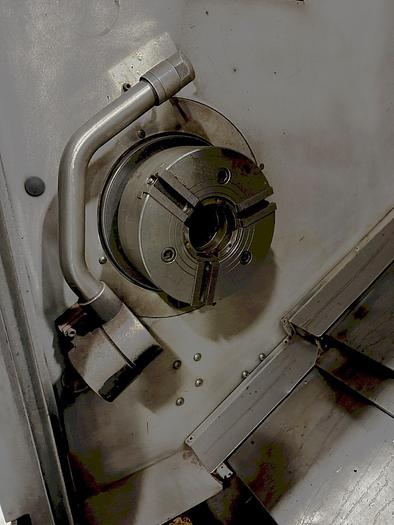

Chuck Size10" 3 Jaw Hydraulic Chuck
Maximum Swing over Bed36.4"
Maximum Swing Over Cross Slide29.7"
Maximum Turning Diameter14"
Maximum Turning Length27.7"
X-Axis Travel10.2"
Y-Axis Travel3.9"
Z-Axis Travel31.3"
Spindle Nose / Spindle BoreA2-8" / 3.1"
Spindle Speeds4,000 RPM
Spindle Motor25 HP
Rotary Tool Speed / Rotary Motor6,000 RPM / 7.5 HP

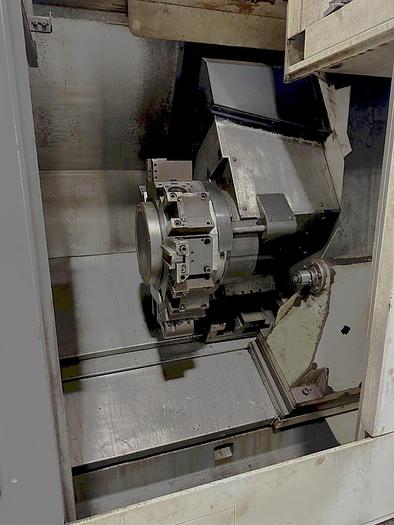

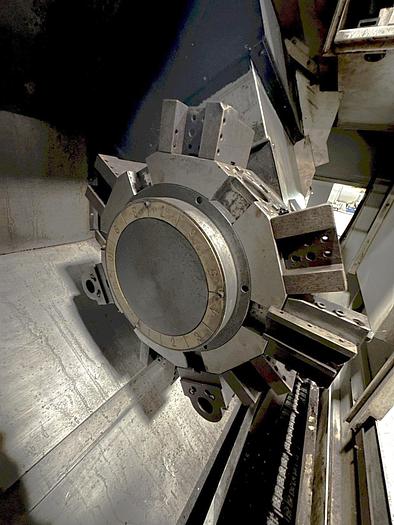

Number of Tool Positions12 Station Turret
Rapid Traverse Rates X, Z / Y1181 IPM / 394 IPM
Machine Dimensions122" x 80" x 84"
Machine Weight13,640 lbs.
