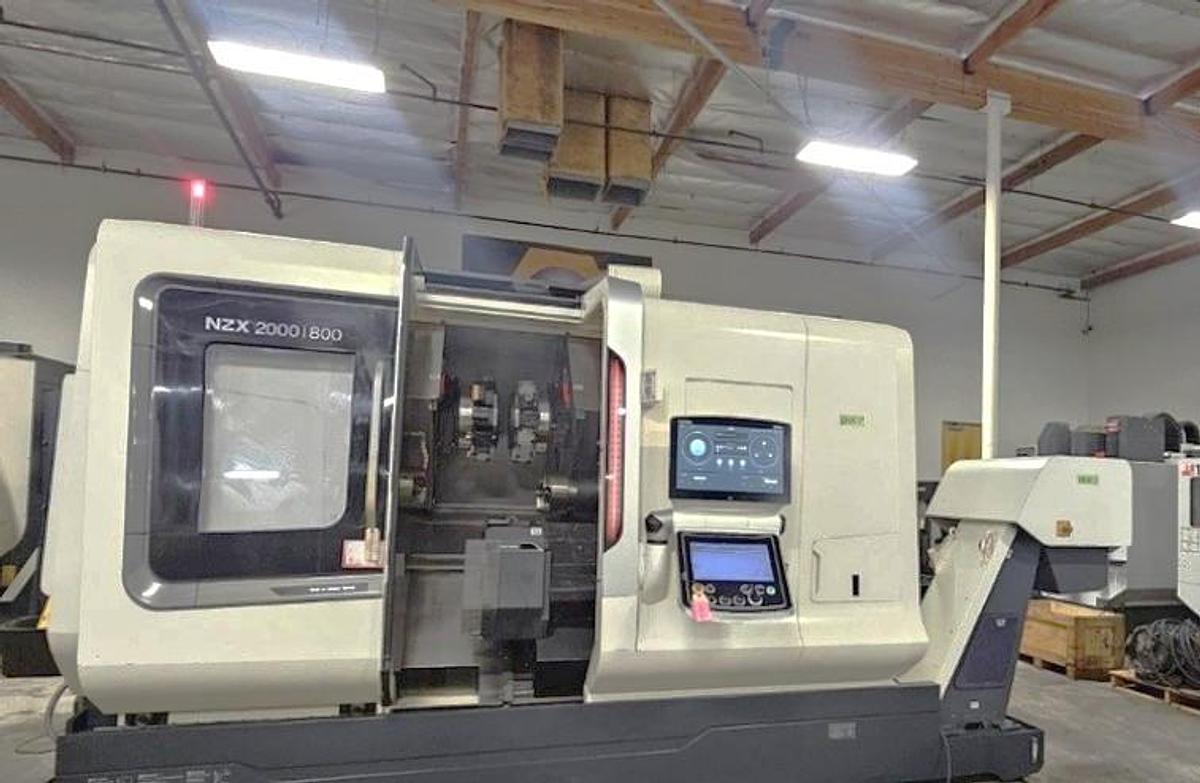

2019 DMG Mori NZX-2000/800STY3 with Twin Spindles, 3 Turrets all with Milling & Y Axis Capability,
2019 DMG Mori NZX-2000/800STY3 with Twin Spindles, 3 Turrets all with Milling & Y Axis Capability,
Contact us for price
Location:California
or
Call (863) 439-6066
Description

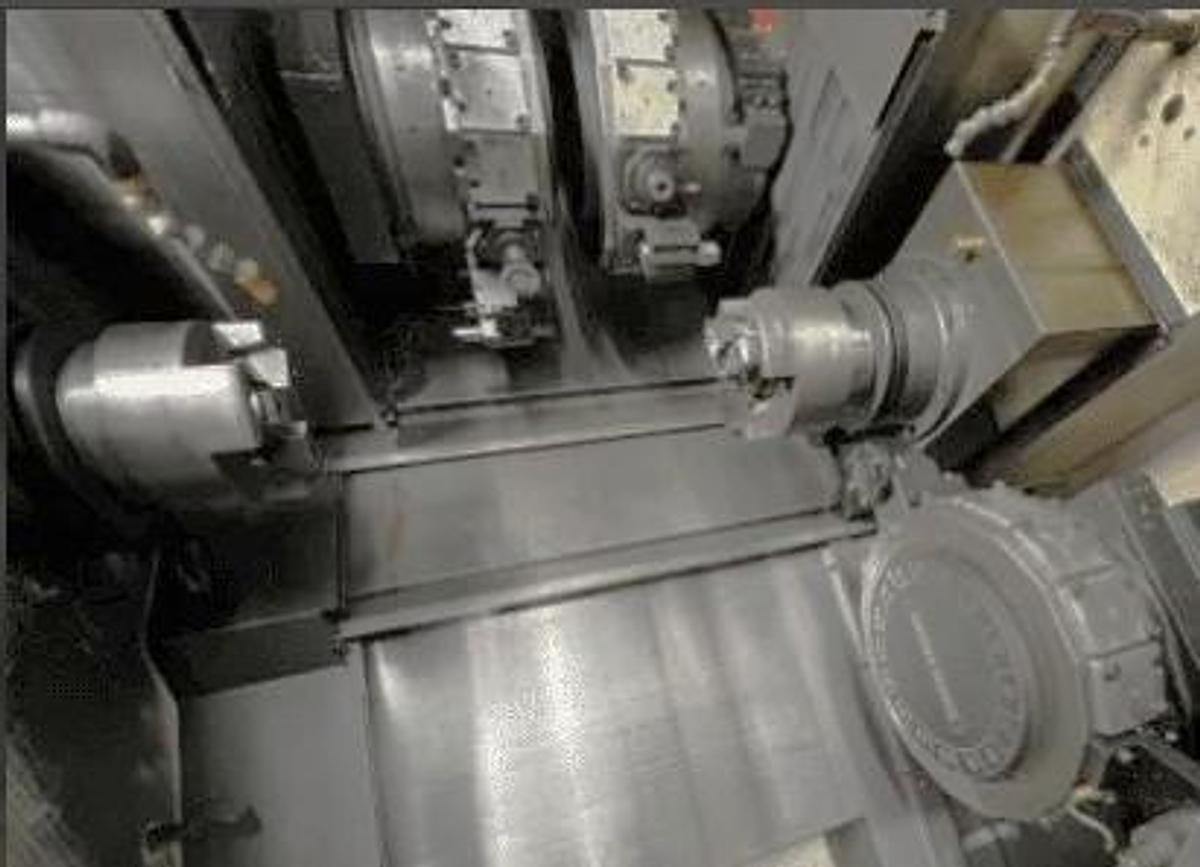

Twin Spindle Design

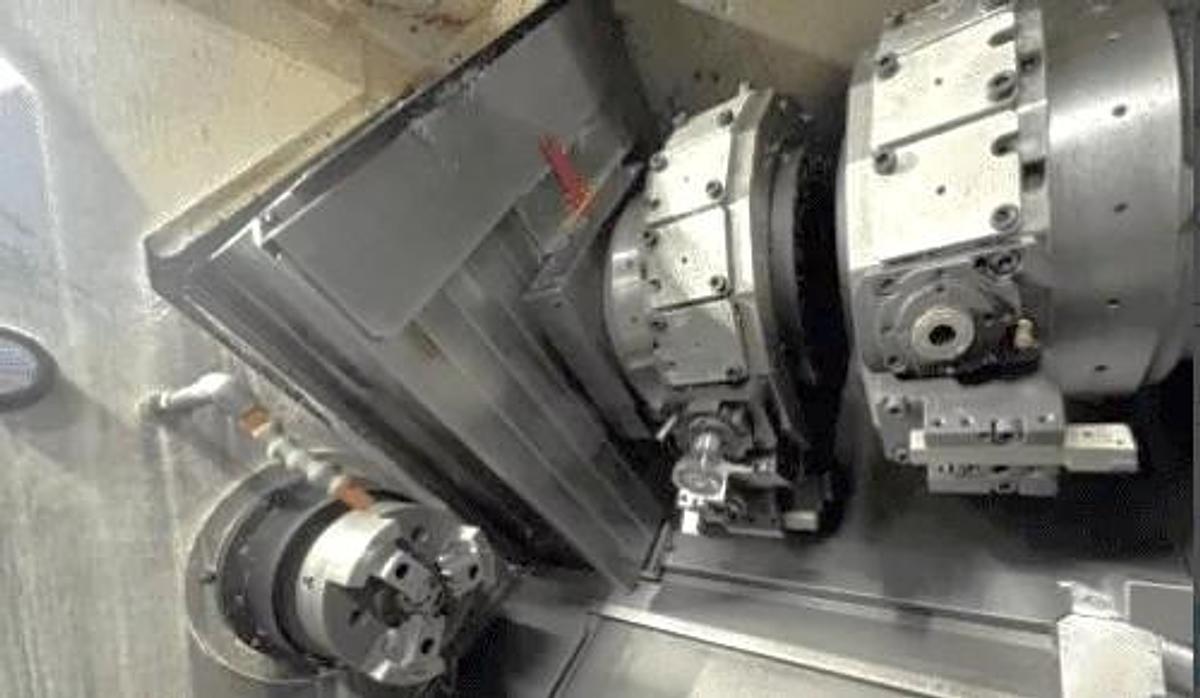

(3) Turrets with Two Upper and One Lower
Y Axis Capability on all Three Turrets
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
6,000 RPM Milling Feature
Chip Conveyor Side Exit
Tool Presetter for Left and Right Spindle
(5) External M-Codes
Coolant Gun
Chuck Top Coolant
Gear Skiving
Gear Hobbing F
Air Purge (Left & Right Spindles)
Air Blow for Tool Tip (T1, T2 & T3)
3-D Coordinate Conversion
X Axis Direct Scale Feedback (X1, X2, X3)
X-Axis Direction JIS/ISO
(5) External M Codes
Tool Retract & Recover
C-Axis High-Precision Indexing
Status Lights
Work Light
21.5" Color Ergoline Touch TFT
Ethernet Capability
USB Port Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | DMG Mori |
| Model | NZX-2000/800STY3 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119173 |
| Machine Control | Celos (F31IB) CNC Control |
| Chuck Sizes Main / Subspindle | 8" 3-Jaw Hydraulic on Both |
| Maximum Swing over Bed | 31.5" |
| Maximum Turning Diameter | 12.5" |
| Maximum Turning Length | 31.8" |
| Distance Between Spindles | 44.4" |
| X-Axis Travel | 8.3" all 3 Turrets |
| Y-axis travel | 4.3" all 3 Turrets |
| Z-Axis Travel | Z1-11.8" / Z2-31.9" / Z3-8.3" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.9" / 2.5" |
| Main & Subspindle Speeds | 5,000 rpm |
| Subspindle Motor | 33.3 hp left & 30 hp right spindle |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 10/7.5 HP (All 3 Turrets) |
| Number of Turrets | 3 Turrets |
| Number of Turret Positions | 16 All Live Capability |
| Machine Dimensions LxWxH | 199.3"x111.6"x91.3" |
| Machine weight | 21,120 lbs |
