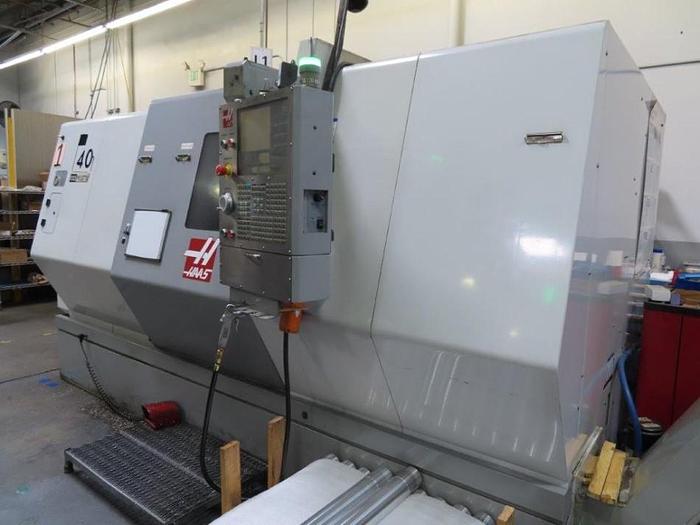

2007 Haas SL-40 Chucker
Sold
2007 Haas SL-40 Chucker
Location:California
Description

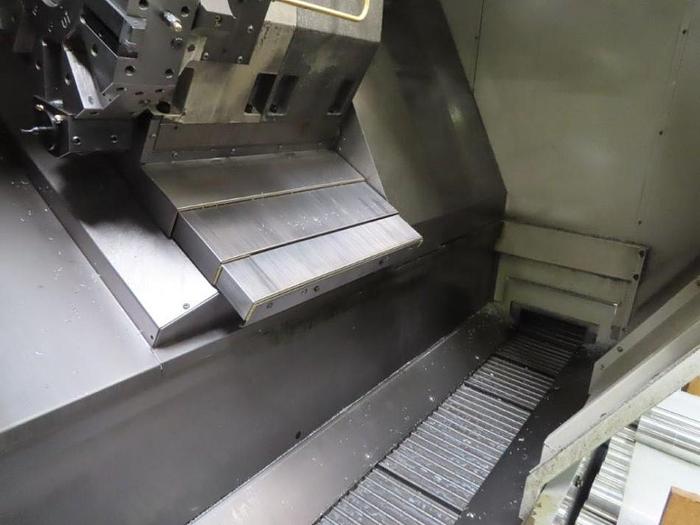

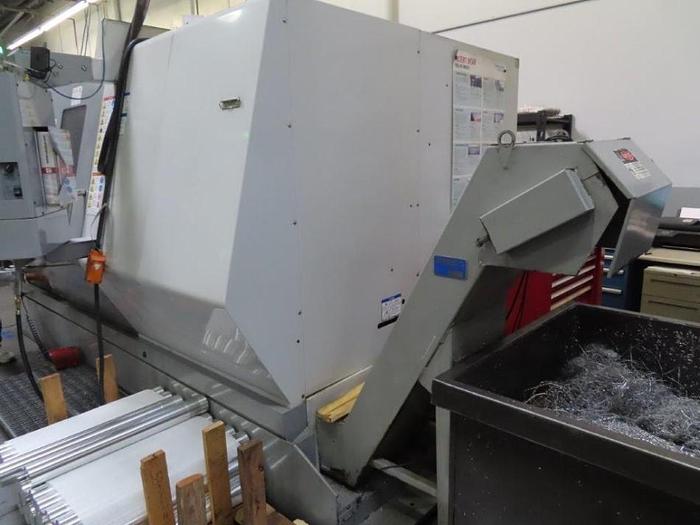

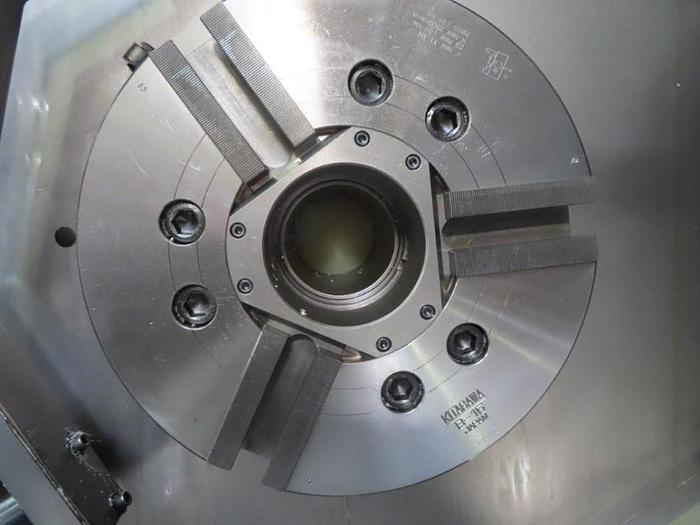

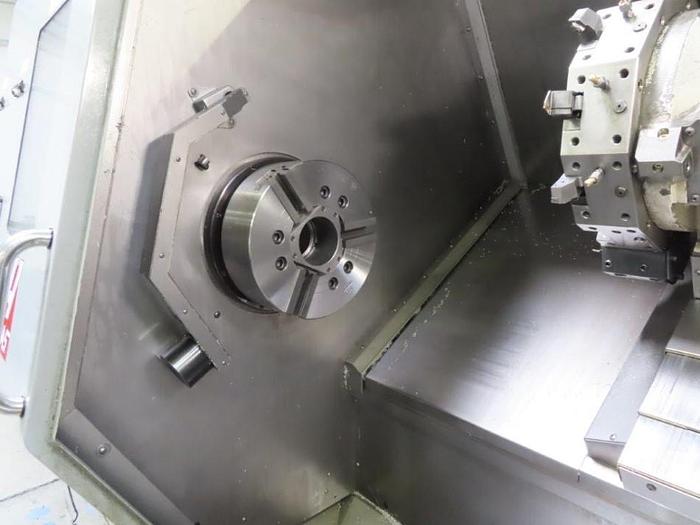

15" 3 Jaw Hydraulic Chuck 4" Bar Capacity Chip Conveyor - Belt Style
Tool Presetter

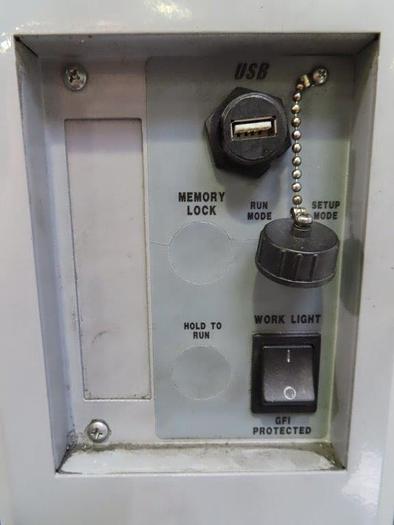

2 Speed Geared Headstock RS 232 Port Interface Rigid Tapping 95 Gallon Coolant Tank with Pump All Available Manuals
All Available Tool Blocks
Wired 208/230V Electrics
**This is a Chucker with NO Tailstock**
Specifications
| Manufacturer | Haas |
| Model | SL-40 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119063 |

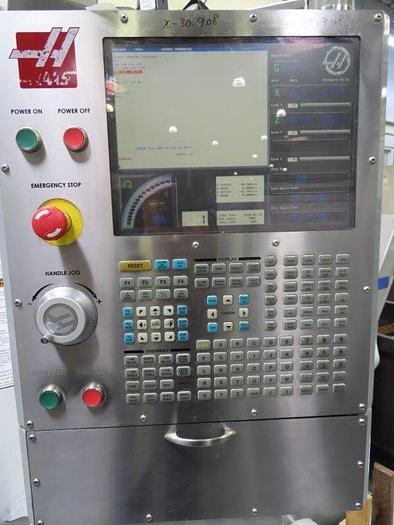

| Control | Haas CNC Control |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 44" |
| Maximum Distance Between Centers | 51" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 55 HP |

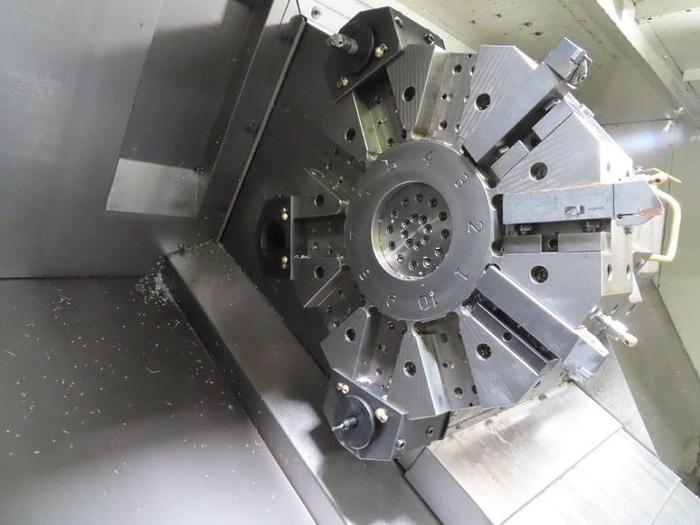

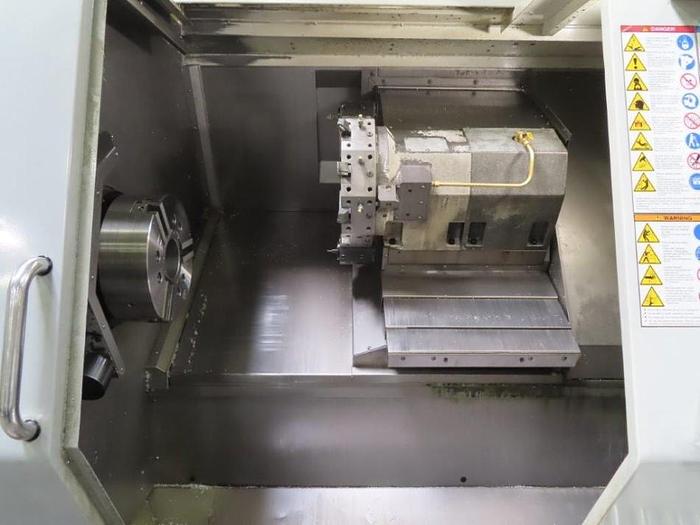

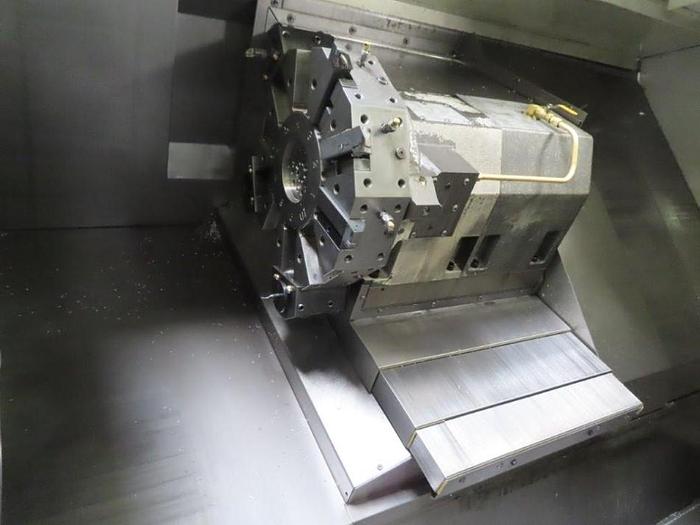

| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions | 170" x 102" x 89" |
| Machine Weight | 25,000 lbs. |
