2015 Haas ST-30
2015 Haas ST-30
$49,950 (USD)
Ontario, Canada
orCall (863) 439-6066
Description
Programmable Tailstock

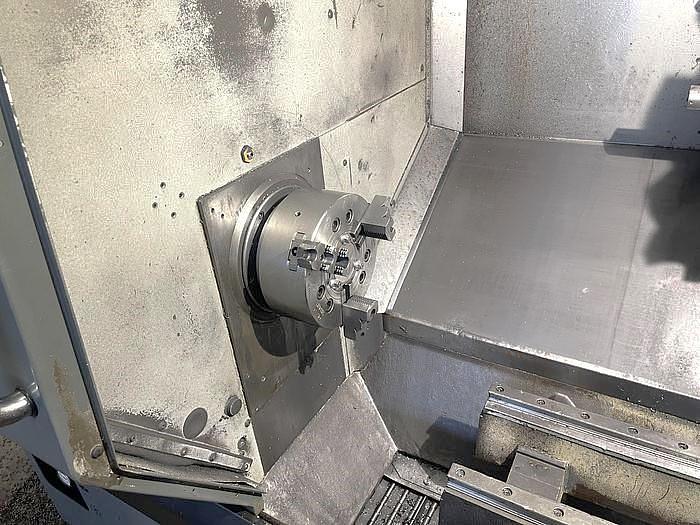

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
2 Speed Gearbox
Rigid Tapping
Spindle Orientation
RS 232 Port Interface
All Available Tool Blocks
Coolant System with Tank & Pump
Assorted Tool Holders
Wired 195-260V Electrics
**Manufactured New in November of 2015, Installed in 2016**
Specifications
| Manufacturer | Haas |
| Model | ST-30 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119056 |
| Machine Control | Haas CNC Control |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 18" |
| Maximum Machining Length | 23" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 26" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 30 - 3,400 RPM |
| Spindle Motor | 30 HP |

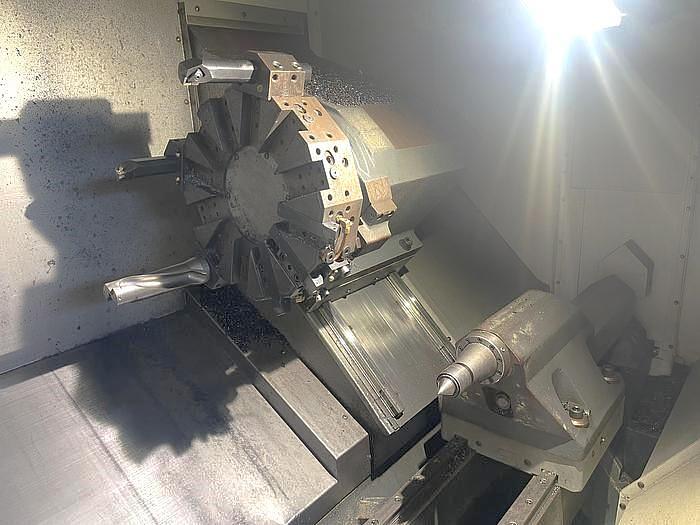

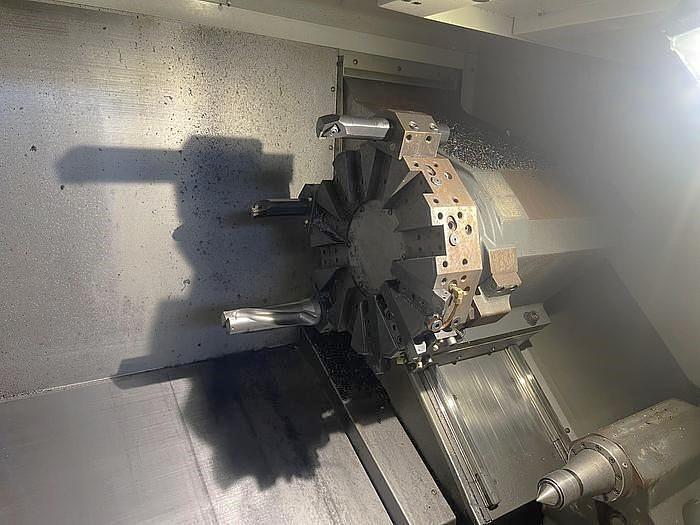

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |

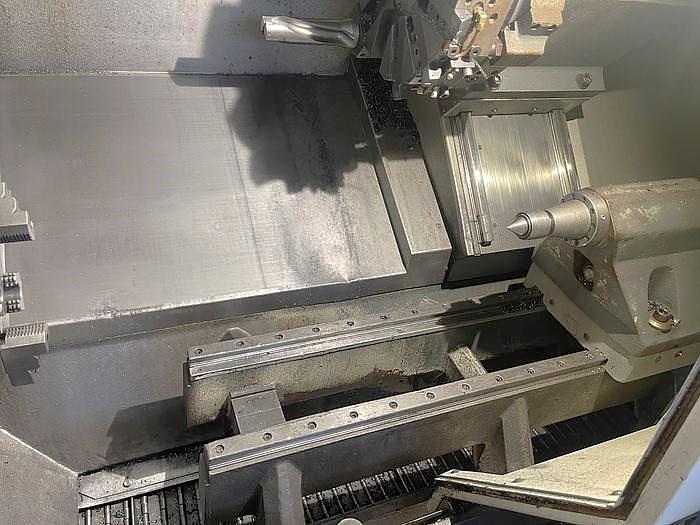

| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 12,540 lbs. |
