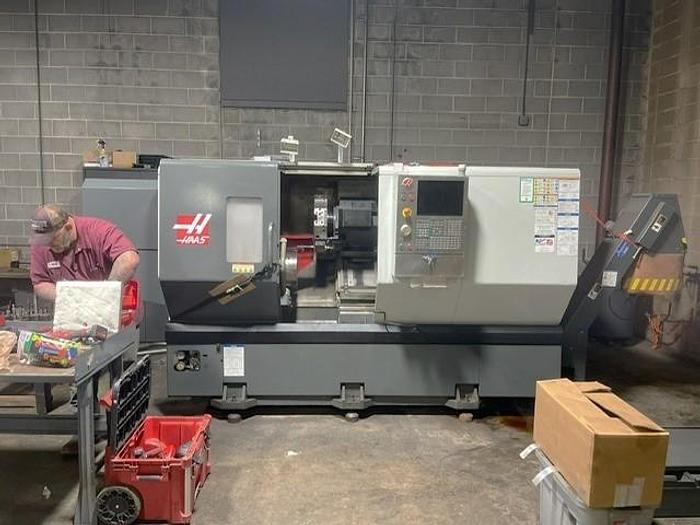

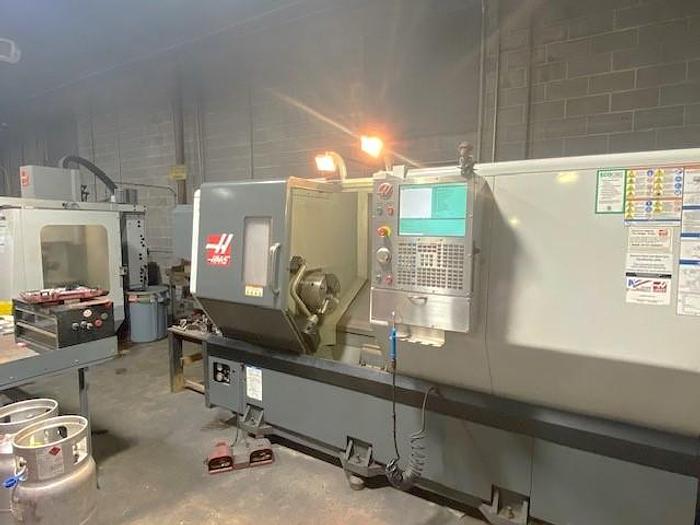

2011 Haas ST30Y Big Bore

2011 Haas ST30Y Big Bore

$69,500 (USD)


orCall (863) 439-6066


4" Bar Capacity Big Bore Spindle Option

Full C Axis Spindle Rotation - High Torque

Live Milling/Drilling Capability

Y Axis Capability

Programmable Tailstock

12" 3 Jaw Hydraulic Chuck

2 Speed Gearbox

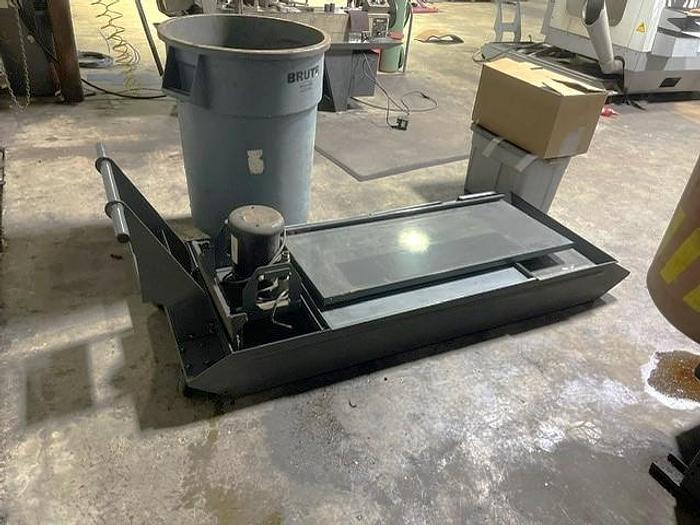

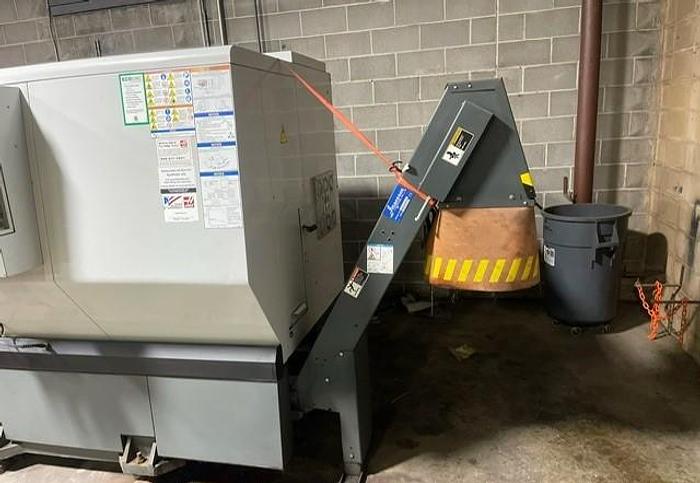

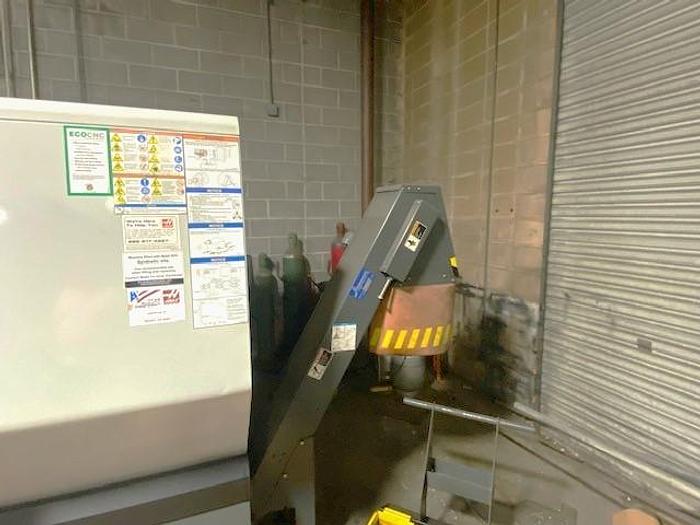

Chip Conveyor

Tool Presetter

High Intensity Lighting

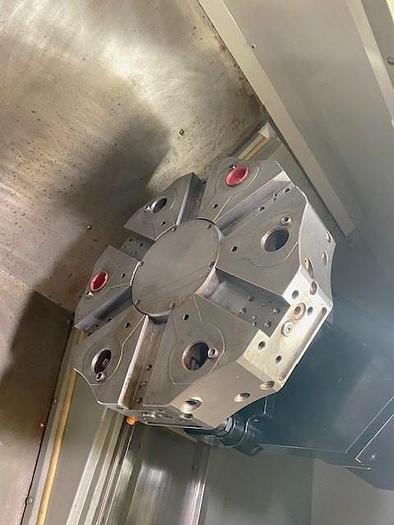

12 Station Hybrid Style Turret

Spindle Orientation

Visual Quick Code Programming

Early Power Failure Detection Module

Rigid Tapping

15" Color LCD Monitor

USB Port Interface

RS 232 Port Interface

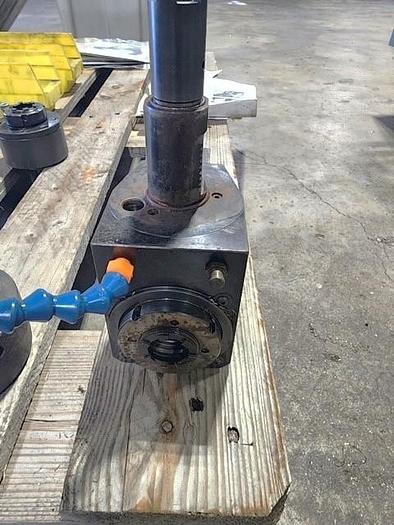

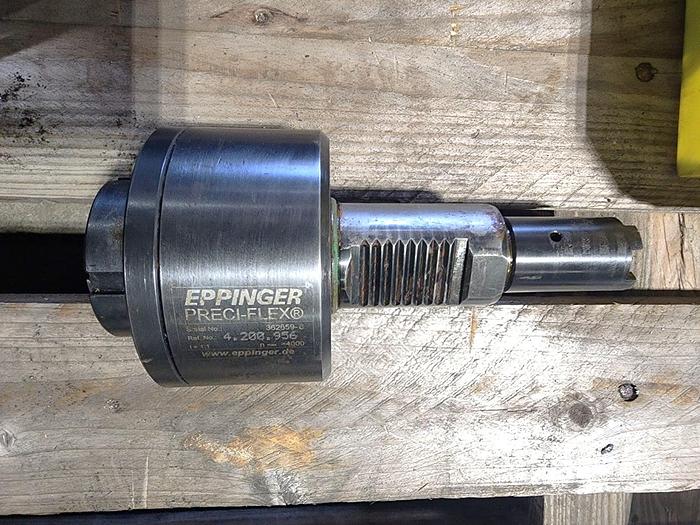

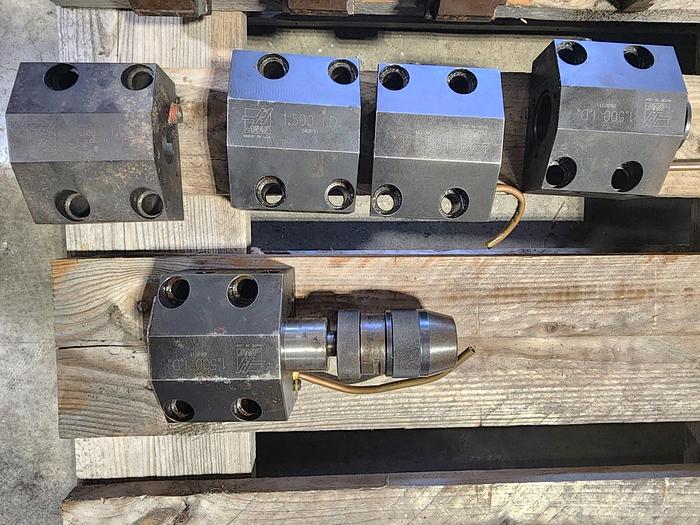

(1) Axial Live Tool Holders

(1) Radial Live Tool Holders

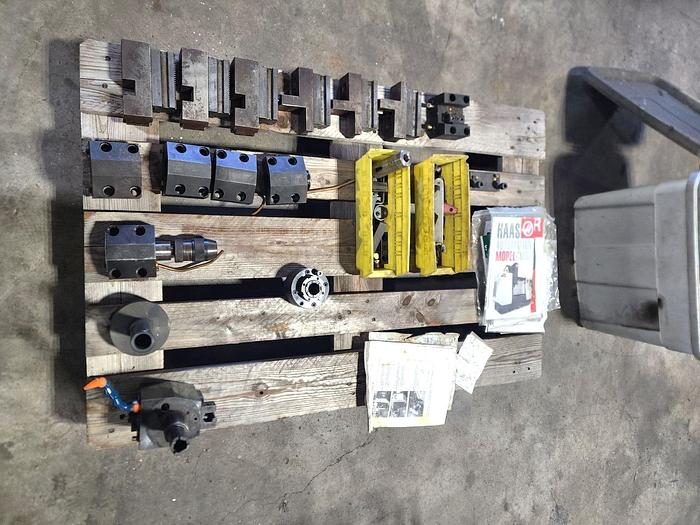

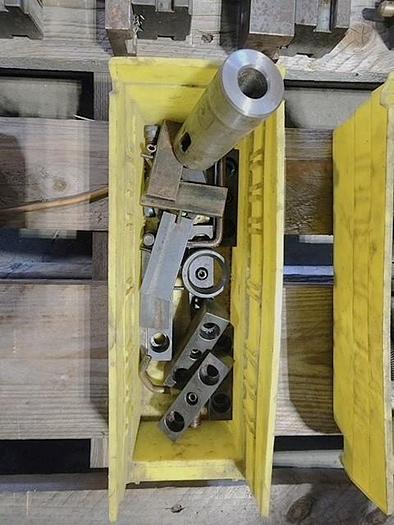

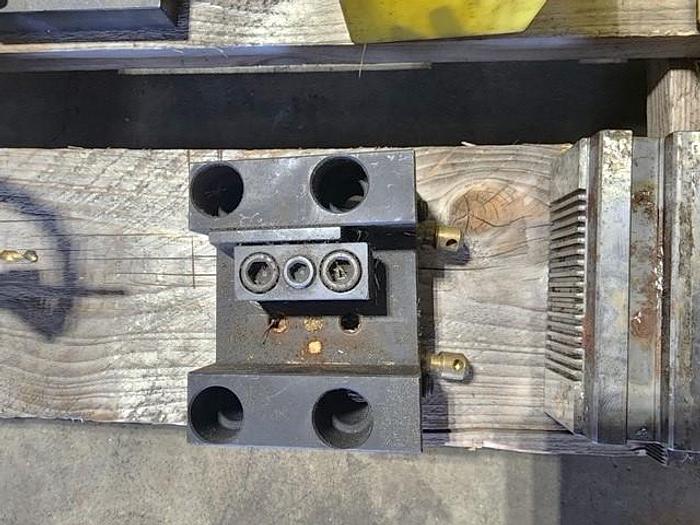

Assortment of Static Tool Blocks

Wired 195-260V Electrics

**Manufactured New in November of 2011**

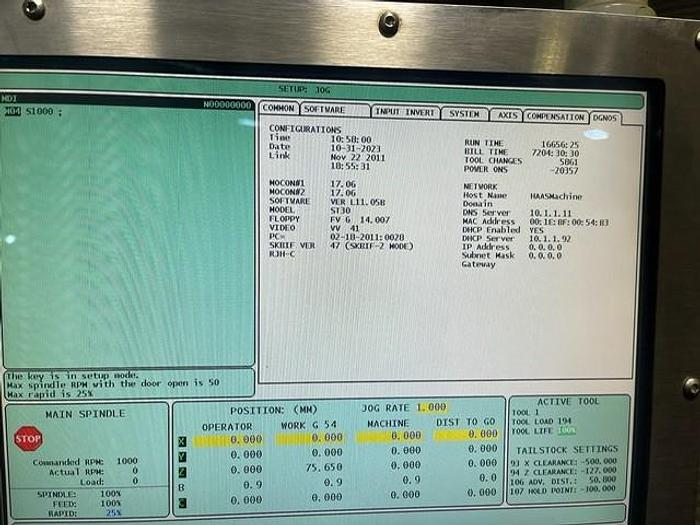

**Approximately 7,204 Spindle Run Hours**

**Replacement Cost as Equipped $156,670**


ModelST30Y Big Bore
Stock Number119024
Machine ControlHaas CNC Control
Maximum Swing31.75"
Maximum Turning Diameter18"
Maximum Machining Length23"
Maximum Bar Capacity4"
X-Axis Travel12.5"
Y-Axis Travel+/- 2.0"
Z-Axis Travel26"
C Axis Spindle Rotation.001 Full C Axis Rotation
Spindle Nose / Spindle BoreA2-8" / 4.62"
Spindle Speeds30 - 2,400 RPM
Spindle Motor40 HP - 2 Speed Gearbox
Rotary Tool Speed / Rotary Motor4,000 RPM / 5 HP
Number of Turret Positions12 Station Turret -Hybrid Type Turret
Rapid Traverse Rates X, Y / Z472 IPM / 945 IPM

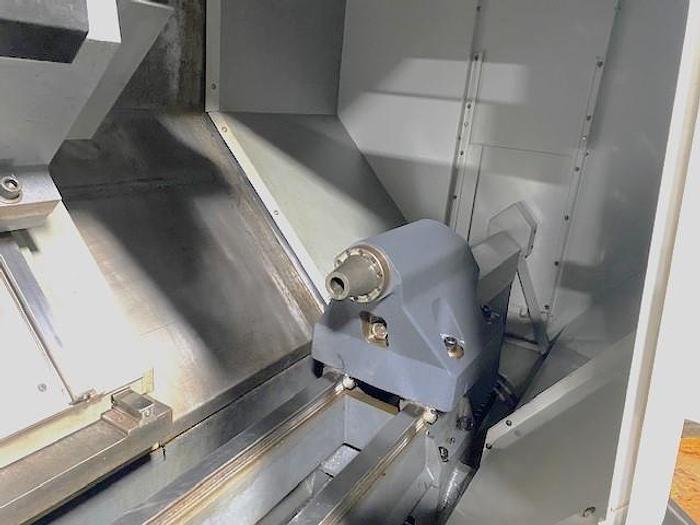

Tailstock Body Travel / Taper20" / MT #4
Machine Dimensions171" x 90" x 83"
Machine Weight13,540 lbs.
