2002 Toshiba TMD-13 with Live Tooling
No longer available

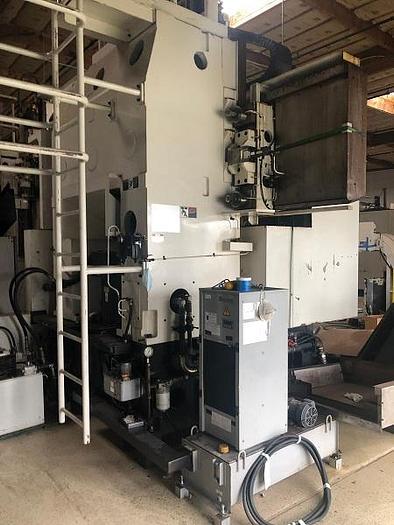

2002 Toshiba TMD-13 with Live Tooling
Location:California

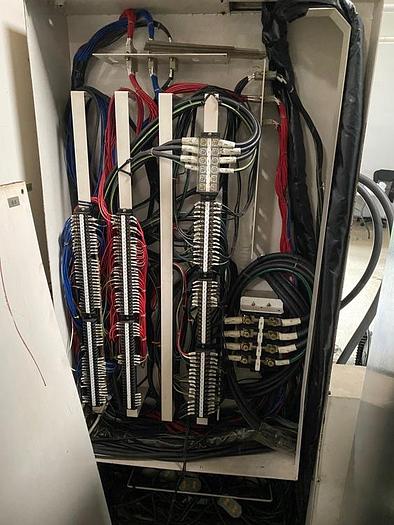

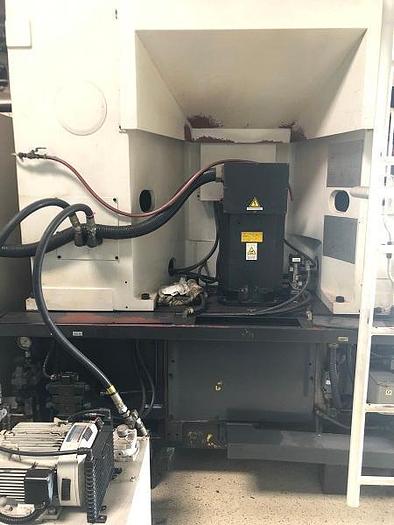

Description
Live Milling Spindle
Full Guarding
Chip Conveyor
All Available Manuals
Machine sat for 4 years after Boeing pulled the work from the supplier
The Ram, Hydraulics and other Items were rebuilt in 2019
Machine Runs good
Specifications
| Manufacturer | Toshiba |
| Model | TMD-13 with Live Tooling |
| Year | 2002 |
| Condition | Used |
| Stock Number | 118950 |

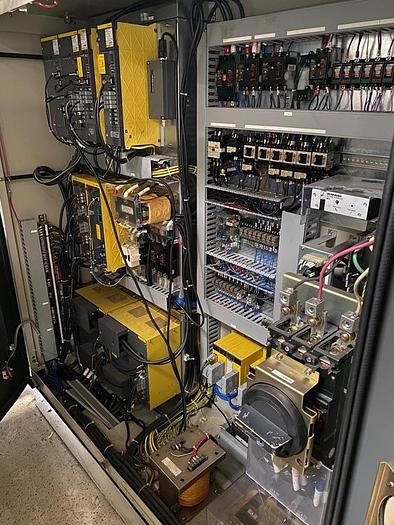

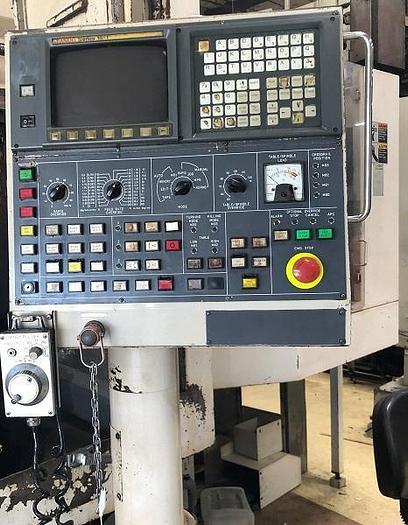

| Machine Control | Fanuc 15T |

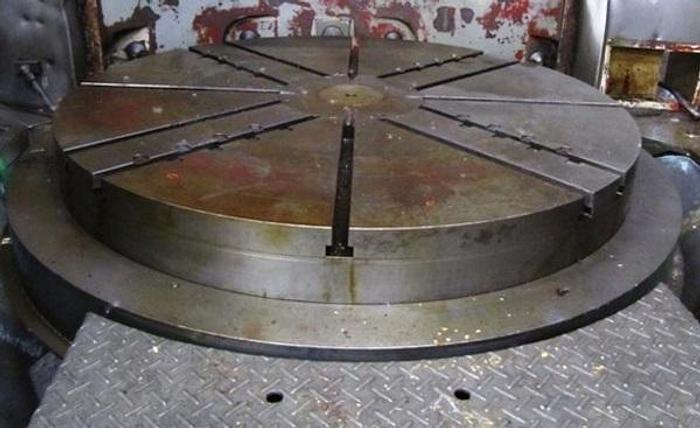

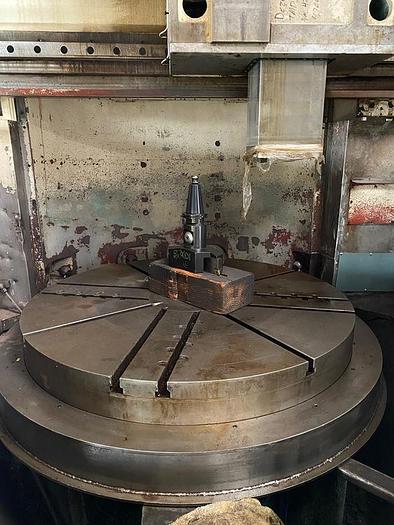

| Table Diameter | 49.2" |
| Maximum swing | 63" |
| Maximum Cutting Height | 35.4" |
| Table load capacity | 17,000 lbs |
| Horizontal Travel of Rail Head | -24.8" to 36.2" |
| Vertical Travel of Ram | 31.5" |
| Vertical Travel of Crossrail | 19.7" |
| Work Height Under the Rail | 43.1" |
| Table Speed | 2-360 RPM |
| Number of Table Speed Ranges | 2 |
| Feedrates X and Z Axis | .1 to 78.7 IPM |
| Feedrates C-Axis | 1 to 315 IPM |
| Rapid Traverse Rates X/Z/C | 472 IPM / 315 IPM / 1080 IPM |
| Type of Ram | Square, Fully Enclosed Type |
| Ram Guideway | 4 Guideways Closed Type |
| Ram Section | 8.66"x8.66" |
| Spindle Taper | ISO #50 |

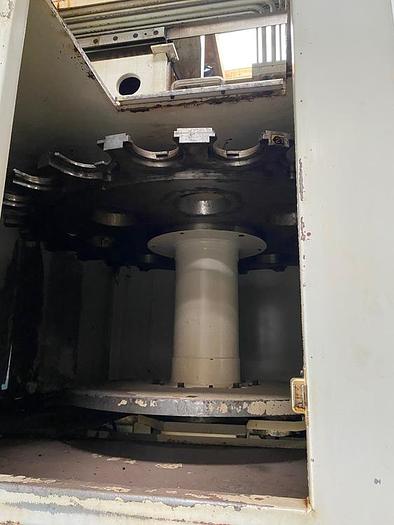

| Tool Magazine Capacity | 24 ATC |
| Live Spindle Speeds | 12.5 to 1,500 RPM |
| Live Spindle Motor | 20 HP |
| Table Motor | 50/40 HP |
| Spindle Motor | 20/14.7 HP |
| Feed Motor | 4.4 HP |
| Machine Dimensions LxWxH | 176"x226"x210" |
| Machine Weight | 61,730 lbs |
