2021 Haas CL-1 w/ C Axis and Live Tooling


2021 Haas CL-1 w/ C Axis and Live Tooling

New York, NY


High Performace Live Tooling Option with C Axis - Used (2) ER-11 Spindles, up to 6,000 rpm max at 1/2 HP (accepts 1/16"-1/4" collets)

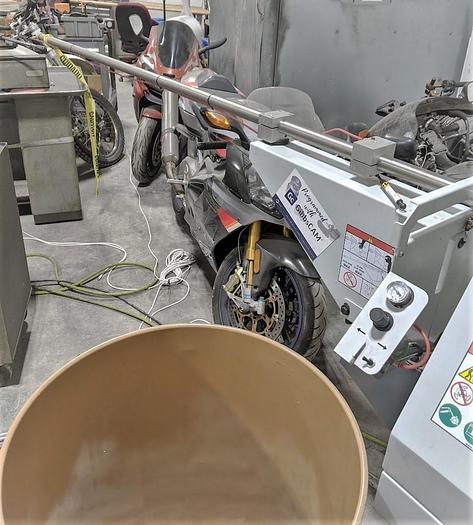

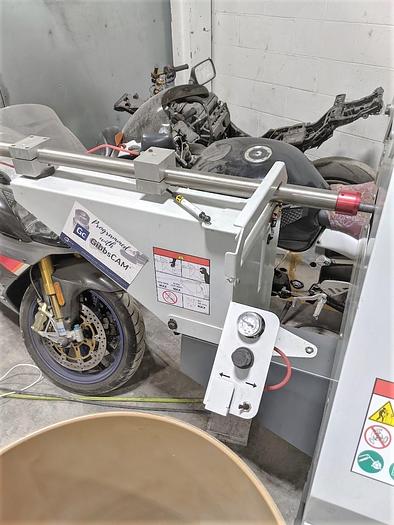

6' Fully Integrated Pneumatic Barfeeder for diameters of .25" x 1" and up to 72" length, use at up to 3,000 rpm

Parts Catcher

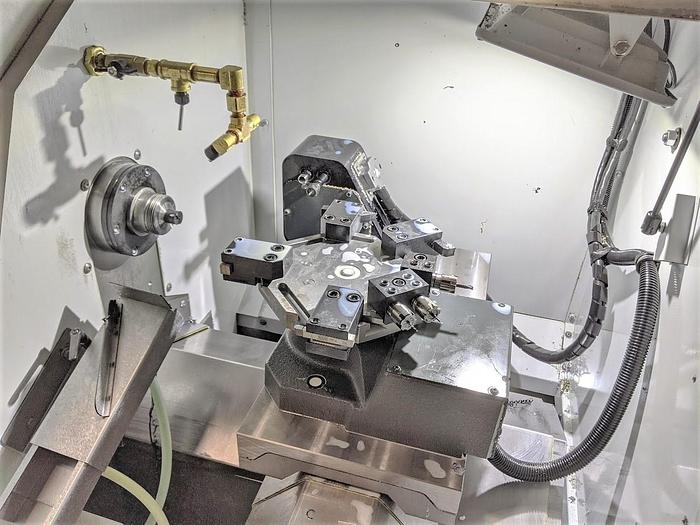

8 Station Turret

2 Station ER-11 Live Milling Locations

Spindle Orientation

Coolant Tank with Pump and 13 Gallon Capacity

Rigid Tapping

15" Color LCD Monitor

Ethernet Interface

USB Port Interface

1 GB Program Memory

Memory Lock Key Switch

Window Air Blast

Haas Drop

Haas Connect: Remote Monitoring

Media Display M-Code M130

Wifi Connection for Haas Control

Early Power Failure Detection Module

Electrics Wired 220V/3 PH/50-60 HZ Or Able To Be Wired Single Phase

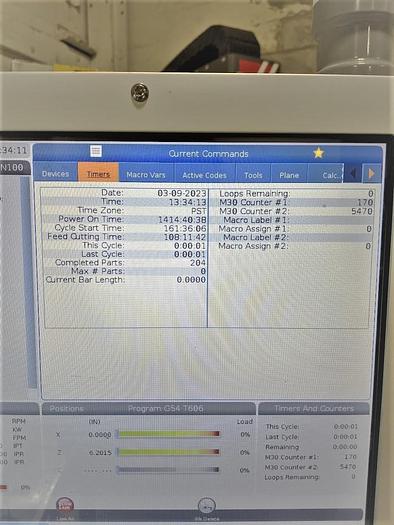

**Power On Hours: 1,414**

**Cycle Start Hours: 161**

**Feed Cut Hours: 108**

**New Price as Equipped: $61,826**


ModelCL-1 w/ C Axis and Live Tooling
Stock Number118626
Machine ControlHaas CNC Control
Chuck Size5C Nose
Maximum Swing Over Cross Slide11"
Maximum Machining Diameter5.0"
Maximum Machining Length8"
X-Axis Travel12"
Z-Axis Travel8"
C Axis Spindle Rotation0.01 Degree
Spindle Speed6,000 RPM
Spindle Nose / Spindle Bore / Bar Capacity5C Type / 1.25" / 1"
Spindle Motor5 HP
Turret Type8 Position Turret
Rapid Traverse Rates X/Z757 IPM
Cutting Feedrates500 IPM
Machine Dimensions LxWxH78" x 62" x 80"
Machine Weight2,240 lbs
