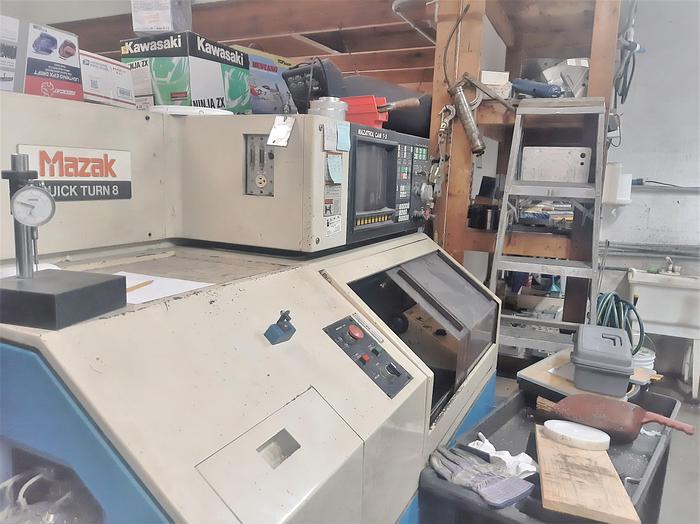

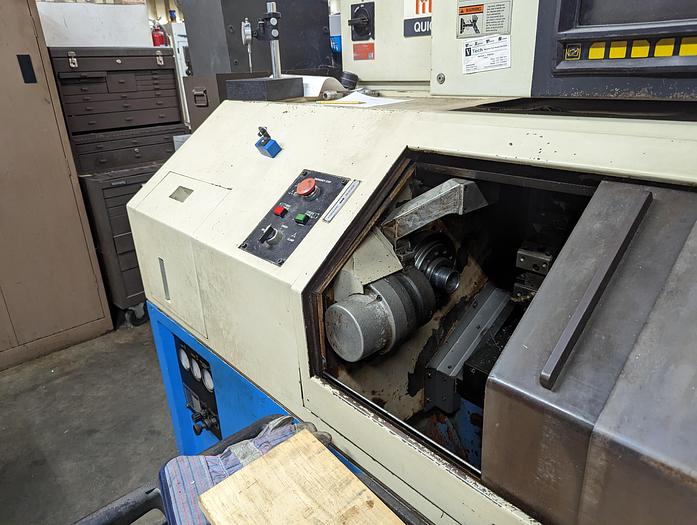

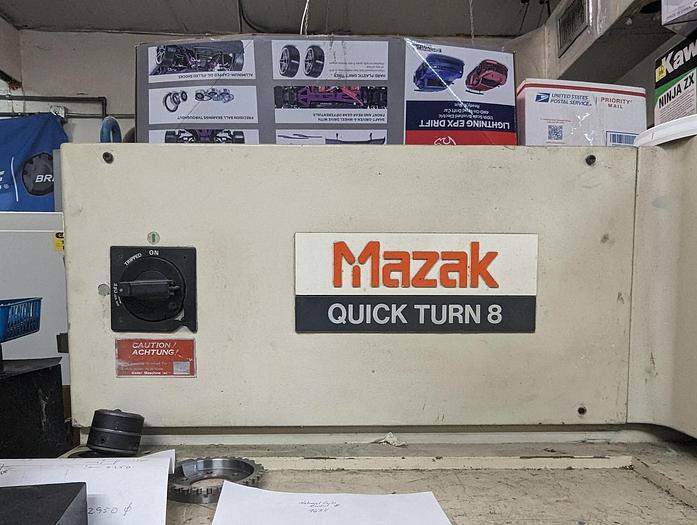

1986 Mazak QT8
Sold
1986 Mazak QT8
Location:Florida
Description

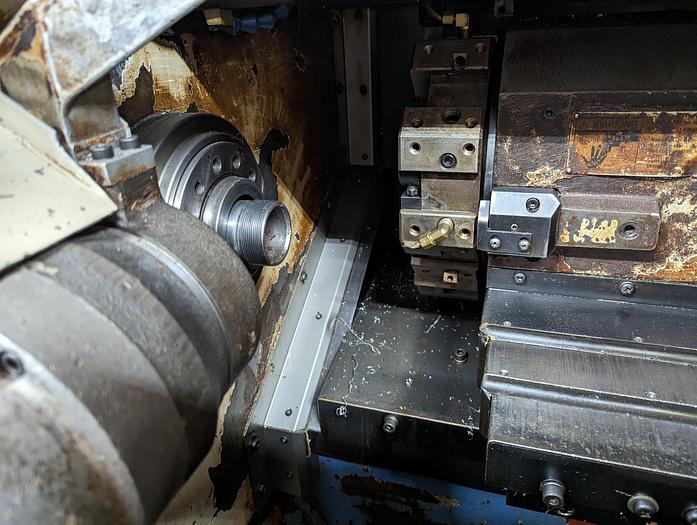

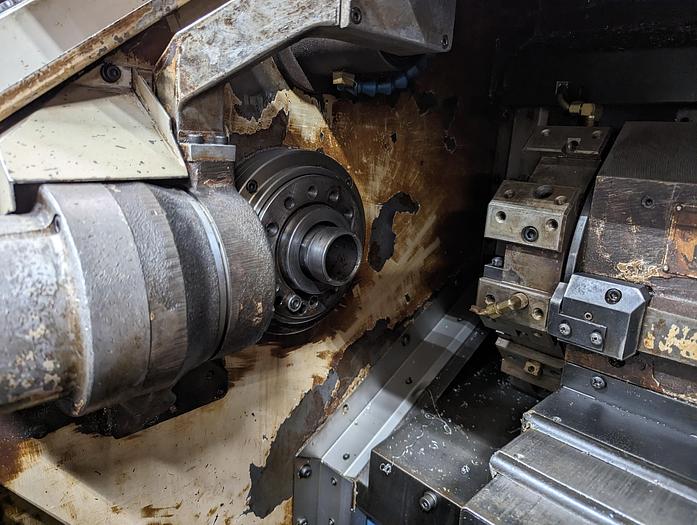

6" 3 Jaw Hydraulic Chuck

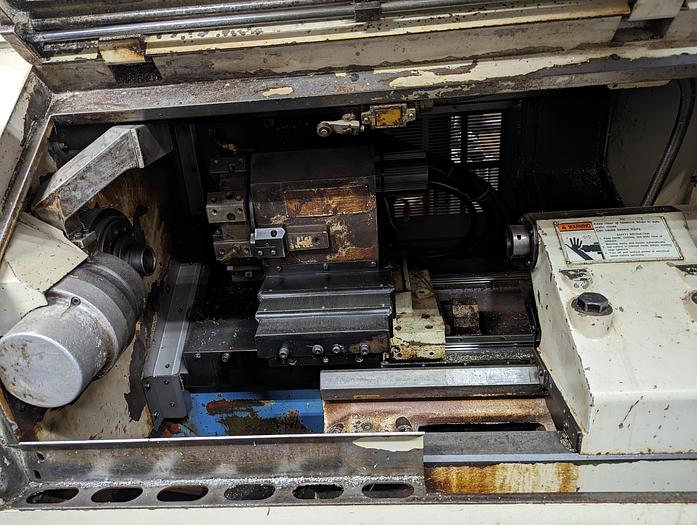

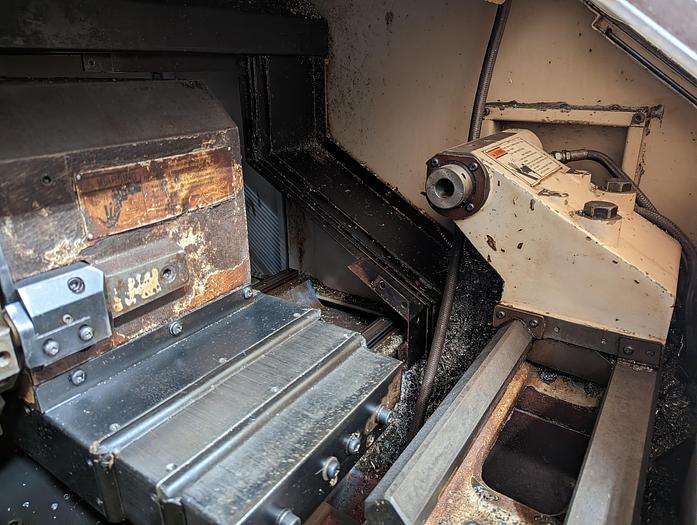

Tailstock
Automatic Tool Eye

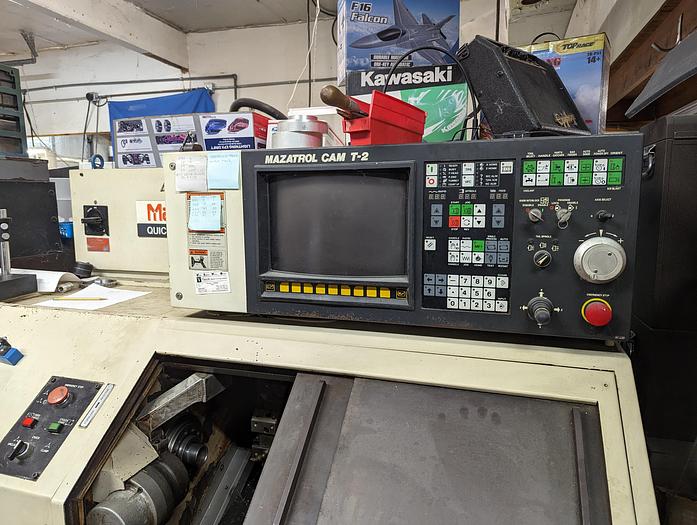

Color Graphics Control
Complete Coolant System with Tank and Pump
Multi-Tap Transformer

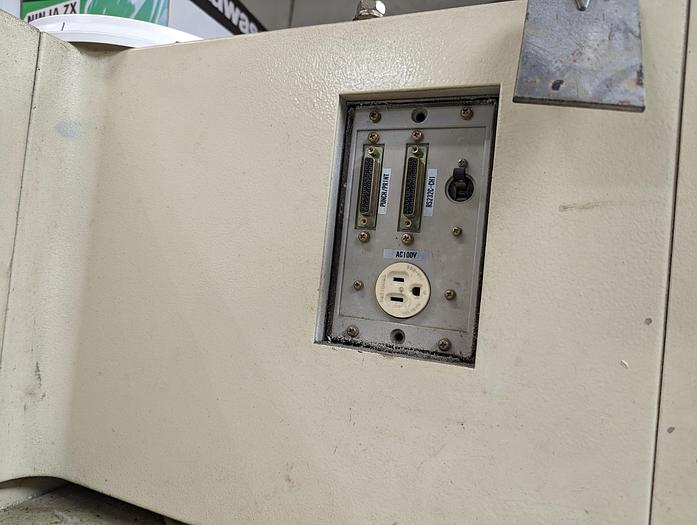

RS 232 Port Interface
All Available Manuals and Tool Blocks
**Machine was decommissioned after experiencing an issue with the turret occasionally spinning and not finding its tool selection**
**Spindle and axis movement are fine, as is tailstock**
Specifications
| Manufacturer | Mazak |
| Model | QT8 |
| Year | 1986 |
| Condition | Used |
| Stock Number | 118611 |
| Machine Control | Mazatrol T-2 |

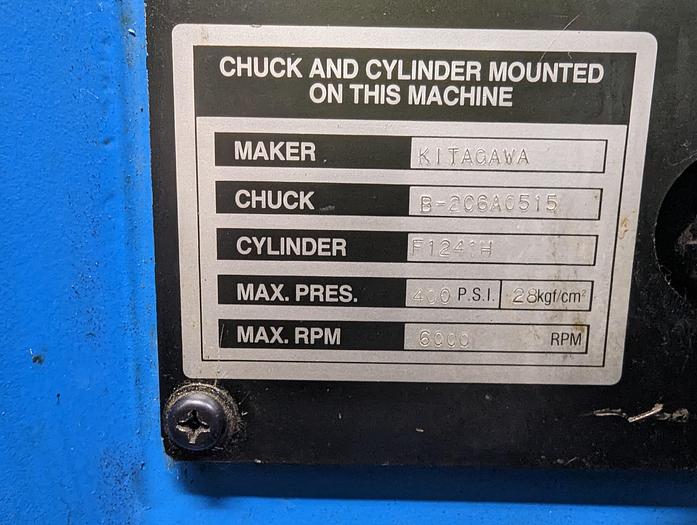

| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 11" |
| Maximum Cutting Length | 10" |
| X-Axis Travel | 3.75" |
| Z-axis travel | 11.4" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 1.97" / 1.5" |
| Spindle Speed | 4,500 rpm |
| Spindle Motor | 10 hp / 7.5 hp |
| Rapid Traverse Rates X / Z | 470 ipm / 945 ipm |
| Number of Turret Positions | 8 Positions |
| Machine Dimensions LxWxH | 75"x48"x67" |
| Machine Weight | 5,730 lbs |
