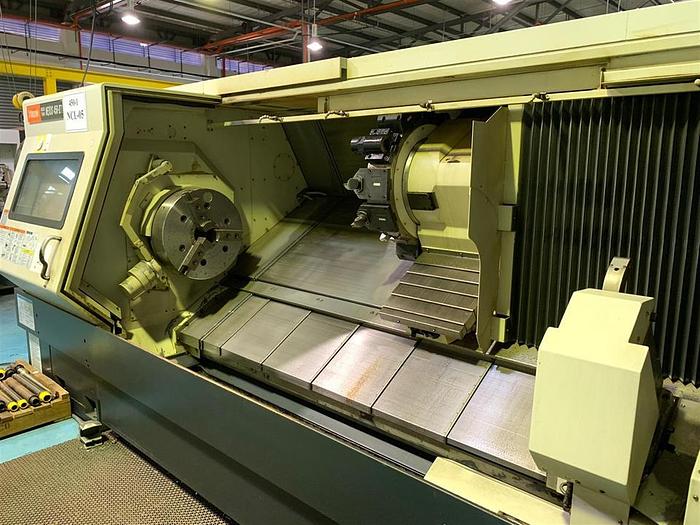

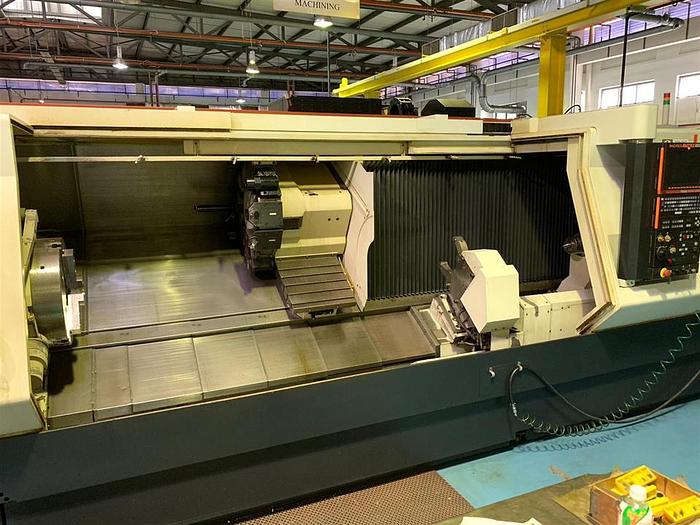

2010 Mazak Nexus QTN 450-II/3000 Mazatrol Matrix Nexus
Sold
2010 Mazak Nexus QTN 450-II/3000 Mazatrol Matrix Nexus
Location:Dundee, FL
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/3000 Mazatrol Matrix Nexus |
| Year | 2010 |
| Condition | Used |

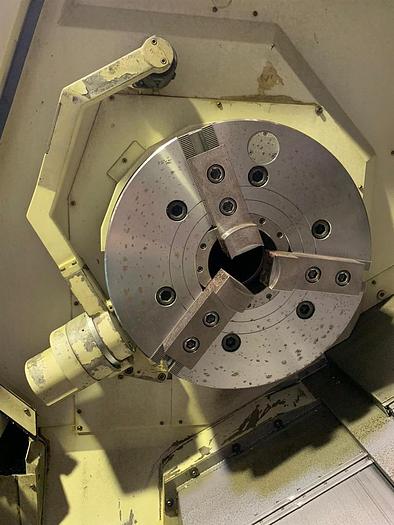

| Chuck size | 21" Hyd Chk |
| Maximum swing | 33.26" |
| Maximum cutting diameter | 22.83" |
| Maximum distance between centers | 122.6" |
| Maximum bar capacity | 6.5" w/ current chk |
| X-axis travel | 12.2" |
| Z-axis travel | 124.8" |
| Spindle nose / spindle bore | A2-15" / 7.23" |
| Spindle speed | 2,000 RPM |
| Spindle motor | 5 HP |
| Spindle torque | 1363 ft/lbs. |

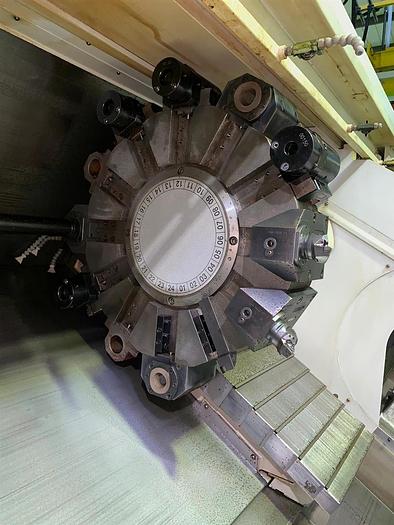

| Number of turret positions | 24 Position Turret |
| Rapid traverse rates | 1181 IPM |
| Tailstock quill diameter / center | 3.94" / MT#5 |
| Tailstock body travel | 113.4" |
| Machine dimensions lxwxh | n/a |
| Machine weight | 29,417 lbs |
