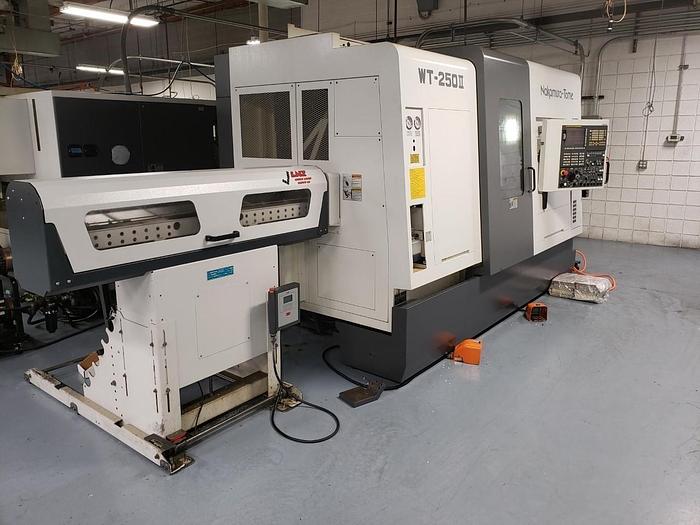

2008 Nakamura Tome WT-250 II MMY
No longer available
2008 Nakamura Tome WT-250 II MMY
$119,500 (USD)
Location:Arizona
Description

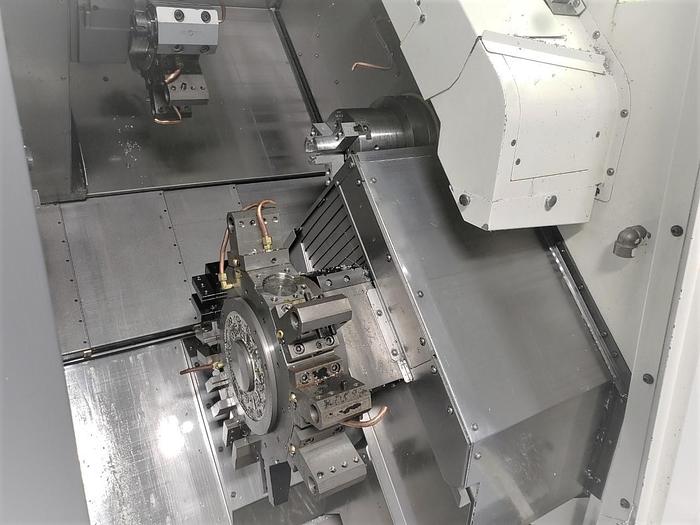

(1) 12 Position Upper Turret -Live Tool Capabilty

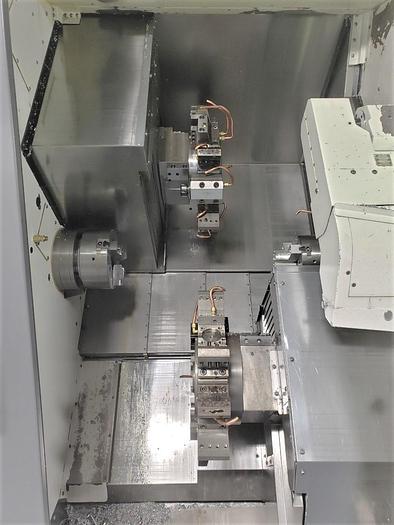

(1) Lower Turret with 12 Positions - Live Capability Twin Spindle Design
Y Axis Capability on Upper Turret Only Full C Axis on Both Spindles Live Milling/Drilling Capability
Subspindle
8" 3 Jaw Hydraulic Chuck on Main Spindle 6" 3-Jaw Hydraulic Chuck on Sub Spindle

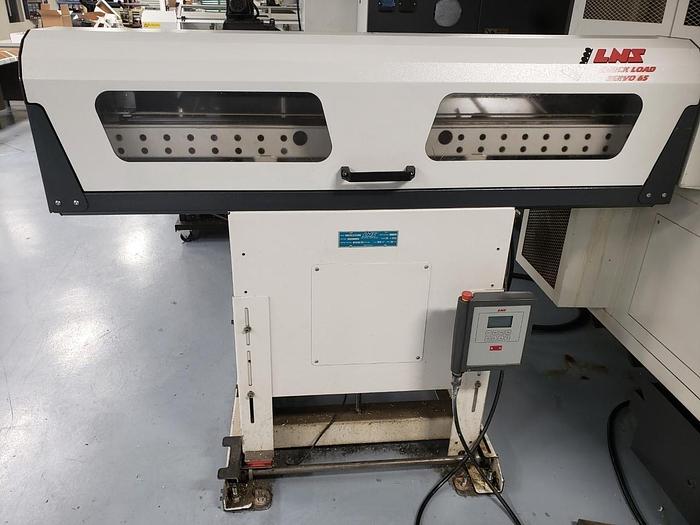

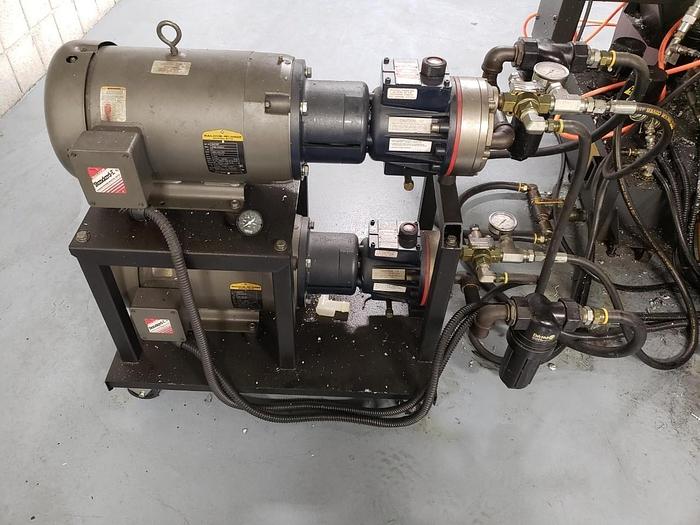

LNS Quick Load Servo 65 Short Magazine Barfeeder Parts Catcher Chip Conveyor High Pressure Coolant System
All Available Manuals Wired 200/220V Electrics
Specifications
| Manufacturer | Nakamura Tome |
| Model | WT-250 II MMY |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118509 |

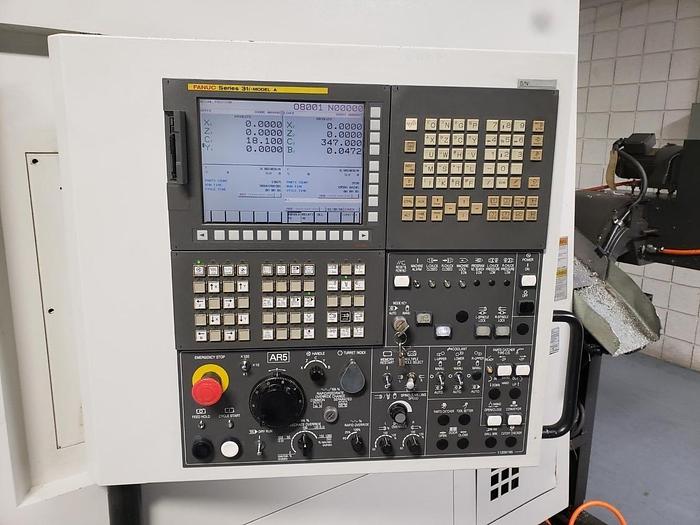

| Control | Fanuc 31i-A |
| Chuck Sizes Main / Subspindle | 8" Hyd / 6" Hyd. Chucks |
| Maximum Swing | 16" |
| Maximum Turning Diameter | 15.34" |
| Maximum Turning Length | 17.12" |
| Maximum Bar Capacity Left Spindle / Right Spindle | 2.56" / 2.54" |
| X1 / X2 Axis Travel | 7.67" / 7.67" |
| Y-Axis Travel Upper Turret | +/- 1.38" |
| Z1 / Z2 Axis Travel | 18.9" / 18.9" |
| C Axis Spindle Rotation - Both Spindles | 0.001 degree |
| Number of Turrets | 2 Turrets |
| Number of Turret Positions | 12 Stations / 24 Positions - Both |
| Spindle Speed / Spindle Motor Left Spindle | 4,500 RPM / 25 HP |
| Spindle Speed / Spindle Motor Right Spindle | 4,500 RPM / 15 HP |
| Milling Spindle Speed / Milling Motor | 5,000 RPM / 7.5 HP |
| Machine Dimensions | Not Available |
| Machine Weight | 25,300 lbs. |
