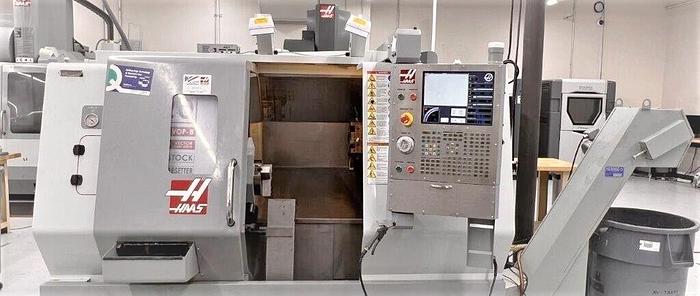

2007 Haas SL-20T
Sold
2007 Haas SL-20T
$38,950 (USD)
Location:Arizona
Description

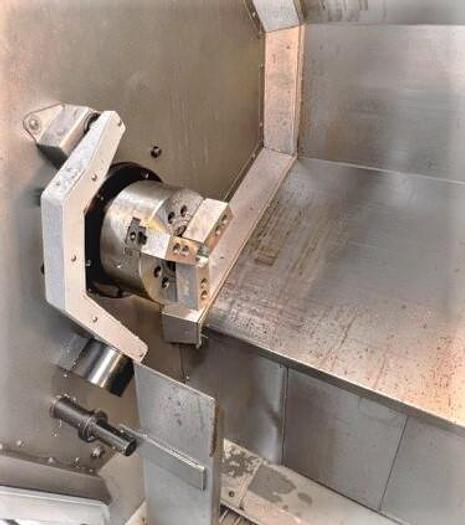

8" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Tool Presetter

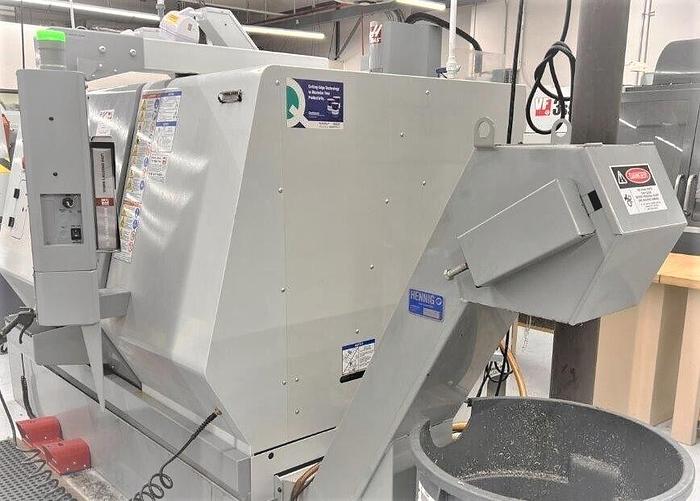

Chip Conveyor - Side Exit, Belt Type
Automatic Parts Catcher
Haas Intuitive Programming System
Spindle Orientation
High Intensity Lighting
Dual Foot Pedals
USB Port Interface
RS 232 Port Interface
208/230V 3 Phase Power
All Available Manuals
**Came out of a tech school**
**2,464 Servo Hours**
**ONLY 450 Spindle Hours**
Specifications
| Manufacturer | Haas |
| Model | SL-20T |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118434 |

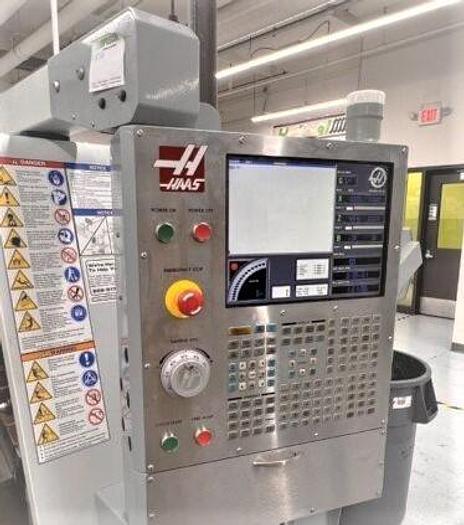

| Machine Control | Haas CNC Control |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 20" |
| X-Axis Travel | 8.45" |
| Z-Axis Travel | 20" |
| Spindle Speeds | 4,000 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.0" / 2.0 |
| Spindle Motor | 20 HP |
| Spindle Torque | 120 ft/lbs |

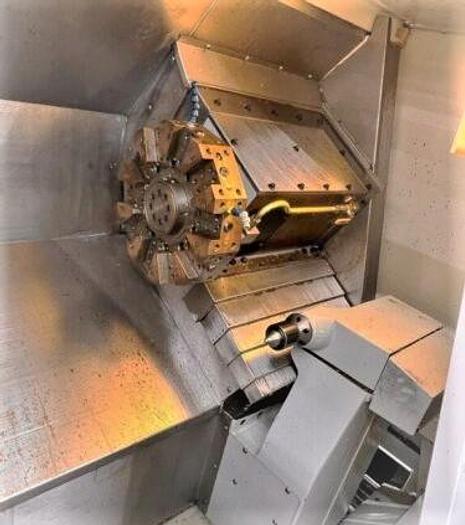

| Number of Turret Positions | 10 Station Block Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.9" / 4.7" / #4 MT |
| Machine Dimensions LxWxH | 126.5"x62"x72" |
| Machine Weight | 9,000 lbs |
