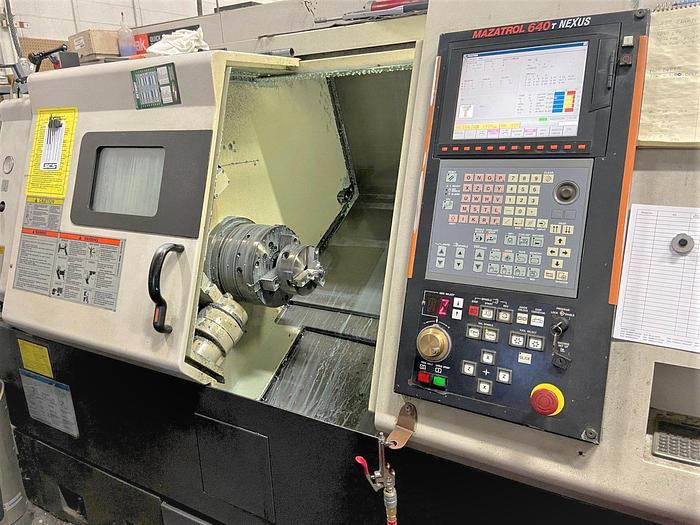

2005 Mazak Nexus QTN 250M
Sold
2005 Mazak Nexus QTN 250M
$59,950 (USD)
Location:Michigan
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck
Automatic Tool Eye
Chip Conveyor
Programmable Tailstock
Mill Synchronous Tapping
Coolant System with Tank & Pump
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
EIA/ISO Input Function for G Code Programming
Multi Tap Transformer
All Available Manuals

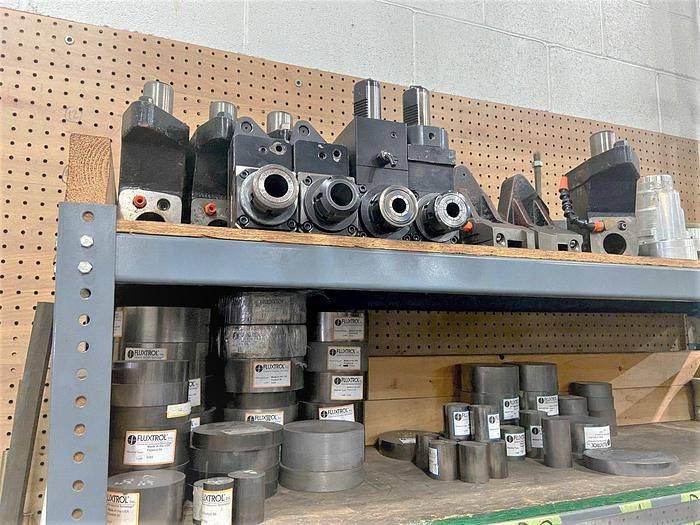

All Available Tooling with (4) Live Tool Holders

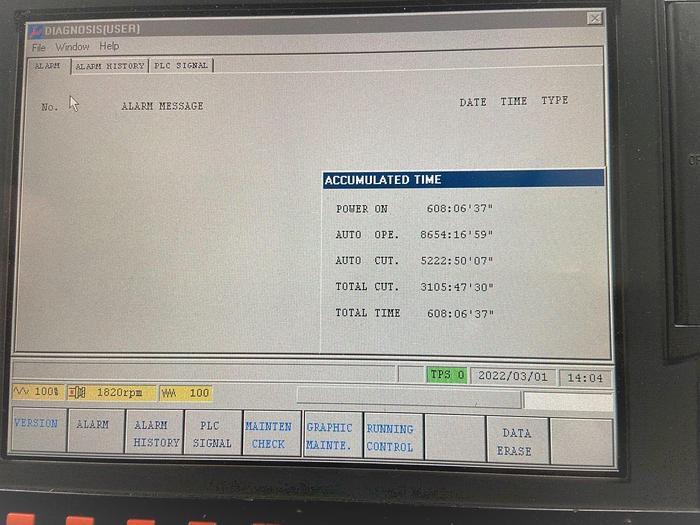

Auto Operation Hours 8,654
Auto Cutting Hours 5,222
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250M |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118234 |

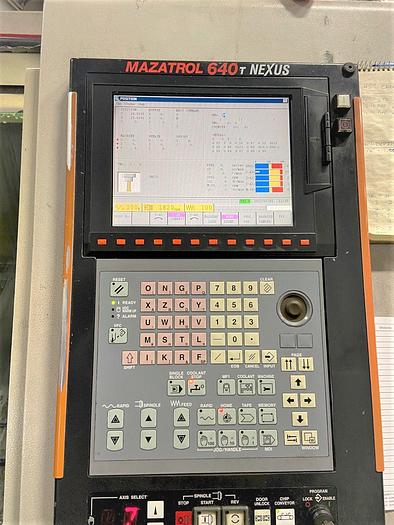

| Control | Mazatrol 640T Nexus |
| Chuck Sizes | 10" 3 Jaw Hydraulic |
| Maximum Swing | 26.57" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 19.85" |
| X-Axis Travel | 9.055" |
| Z-Axis Travel | 22.75" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speed | 35 - 4,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Tailstock Taper | 21.75" / MT #5 |
| Machine Dimensions | 105" x 71" x 73" |
| Machine Weight | 11,500 lbs. |
