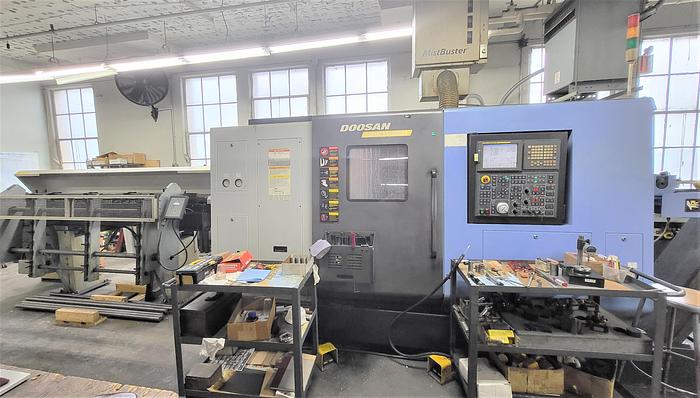

2007 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe
2007 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe
$79,950 (USD)
Florida
Description
Full C Axis Spindle Rotation - Both Spindles
Live Milling/Drilling Capability - Both Turrets Y Axis Capability on Upper Turret
Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design
LNS Move S2 Short Load Barfeeder - S/N 211013 (new in 2008)
(2) 8" 3 Hydraulic Chucks on both Spindles
Tool Presetter
Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Ethernet Interface
PCMCIA Card Interface RS 232 Port Interface
3 Color Machine Status Condition Lights
Boxed Ways
Coolant Tank with Pump All Available Manuals
(2) Live Tool Holders - (1) Axial and (1) Radial each
(2) Turning Holders
(3) Single Position Boring Holders
(1) Double Position Boring Holder
Wired 200/220V Electrics
**Manufactured New in September of 2007**
**Barfeed was added in 2008**
**Upper Turret Cutting Hours 19,208
**Lower Turret Cutting Hours 7,010
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118197 |
| Control | Fanuc 18i-TB Control |
| Chuck Size | 8" Hydraulic Chuck on both Spindles |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.1" |
| Distance Between Spindles | 38.582" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | 0.001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 98" |
| Machine Weight | 17,196 lbs. |
