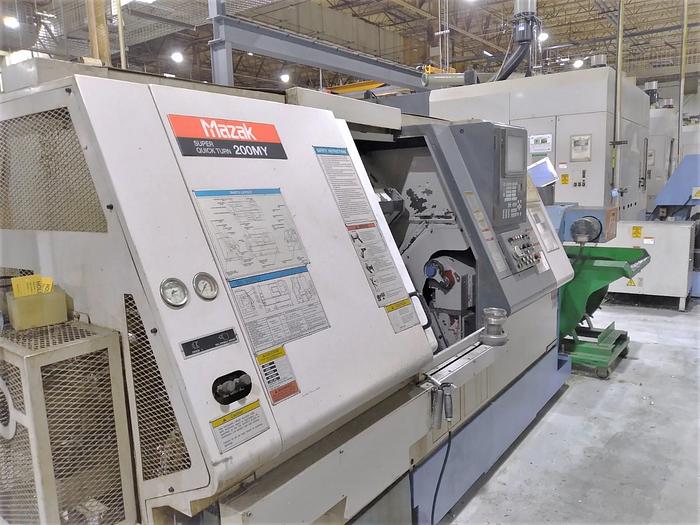

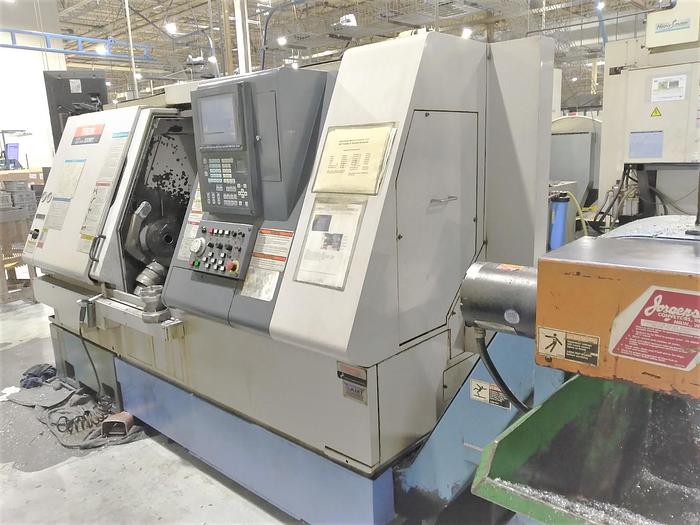

2003 Mazak SQT200MY


2003 Mazak SQT200MY



Y Axis Capability (For Off Centerline Work) Full C Axis Spindle Rotation Live Milling / Drilling Capability Chip Conveyor Automatic Tool Eye Tailstock with Programmable Quill Background Tool Path Check Mill Spindle Synchronous Tapping RS 232 Port Interface 3.5" Floppy Disk Drive Interface Memory Card Interface EIA/ISO Input Function Multi Tap Transformer

**No live toolholders**

**Cut Aluminum


Stock Number118173
ControlMazatrol Fusion 640T

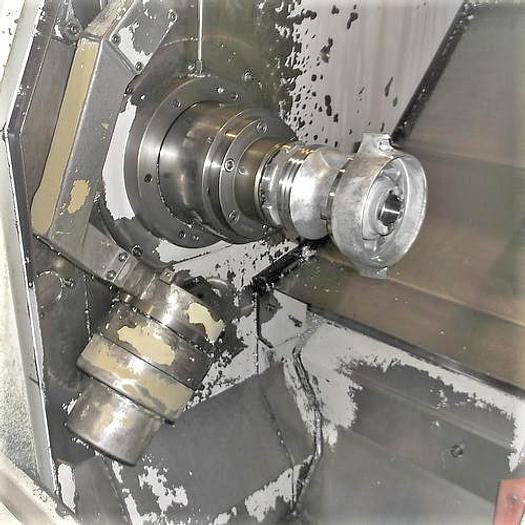

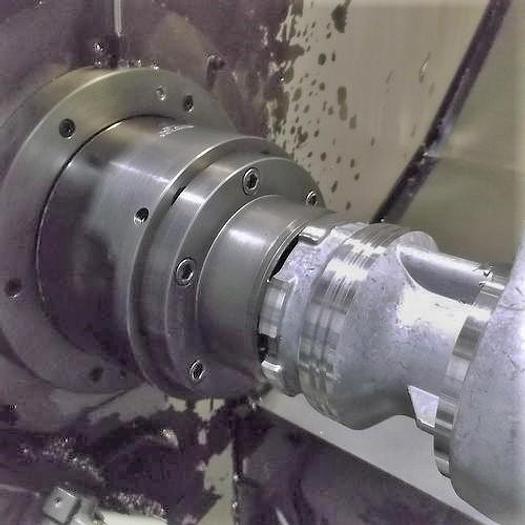

Chuck Size8" Hydraulic & Collet Chuck
Maximum Swing over Bed20.67"
Maximum Swing Over Cross Slide13.78"
Maximum Machining Diameter11.81"
Maximum Machining Length21.30"
Maximum Bar Capacity2.01"
X-Axis Travel7.09"
Y-Axis Travel3.94" (+/- 1.97")
Z-Axis Travel22.64"
C Axis Spindle Rotation.001 Degree
Spindle Nose / Spindle BoreA2-6" / 2.4"
Spindle Speeds35 - 5,000 RPM
Spindle Motor25 HP
Rotary Tool Speed / Rotary Motor4,500 RPM / 5 HP

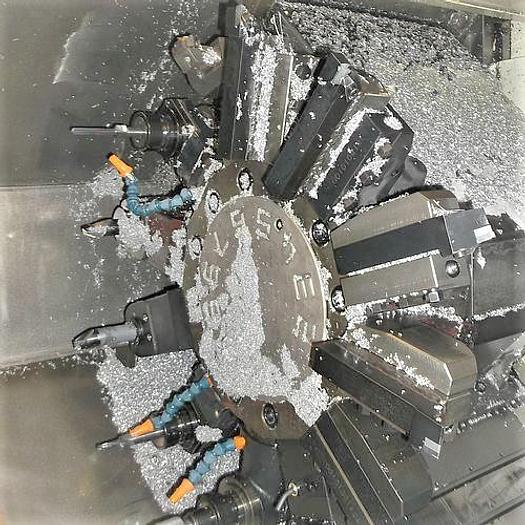

Number of Turret Positions12 Station Turret
Rapid Traverse Rates X, Z / Y / C1181 IPM / 472 IPM / 400 RPM
Tailstock Taper / Quill DiameterMT #5 / 3.15"
Tailstock Body Travel / Quill Travel15.75" / 5.91"
Machine Dimensions119" x 71" x 78"
Machine Weight12,321 lbs.
