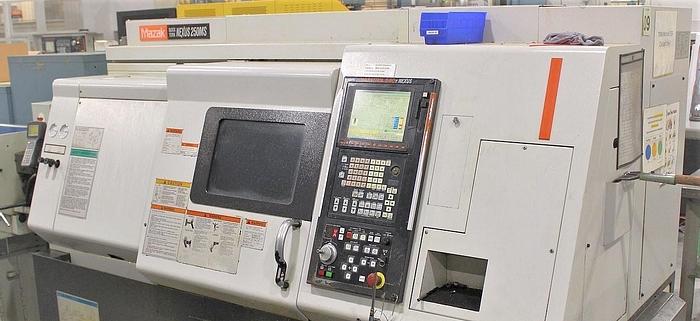

2007 Mazak Nexus QTN 250MS
Sold
2007 Mazak Nexus QTN 250MS
$79,500 (USD)
Ohio
Description
Full C Axis Spindle Rotation on Main & Subspindle
Live Milling / Drilling Capability
Subspindle

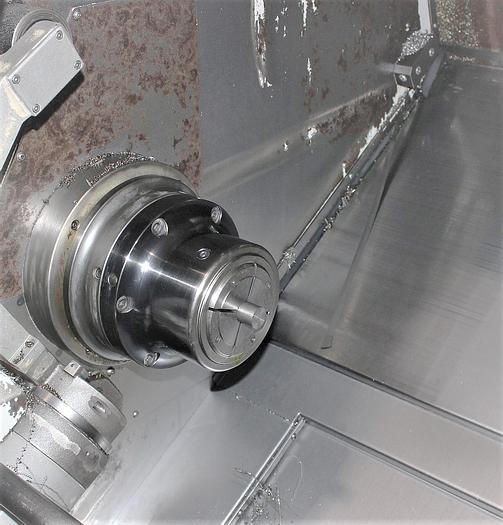

ATS S-30 Collet Chuck on Main Spindle

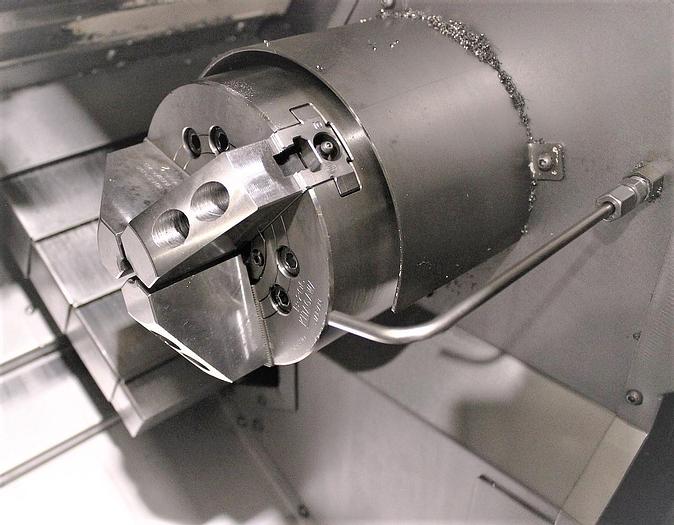

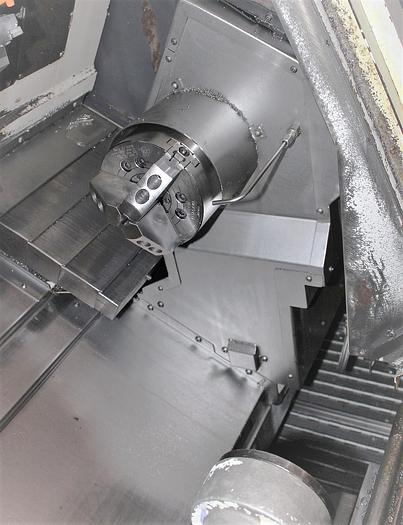

6" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye
Chip Conveyor
Automatic Parts Catcher

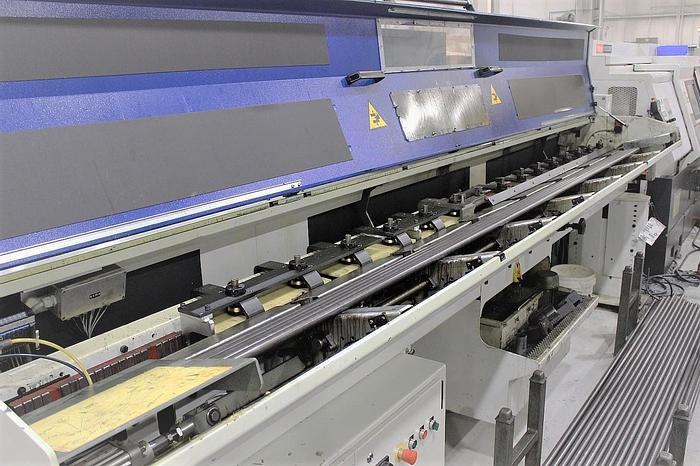

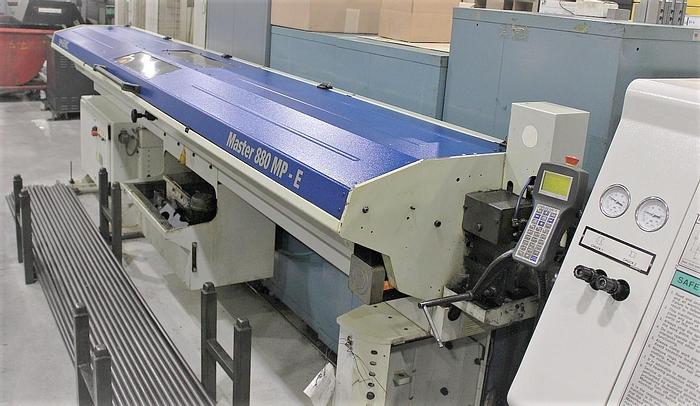

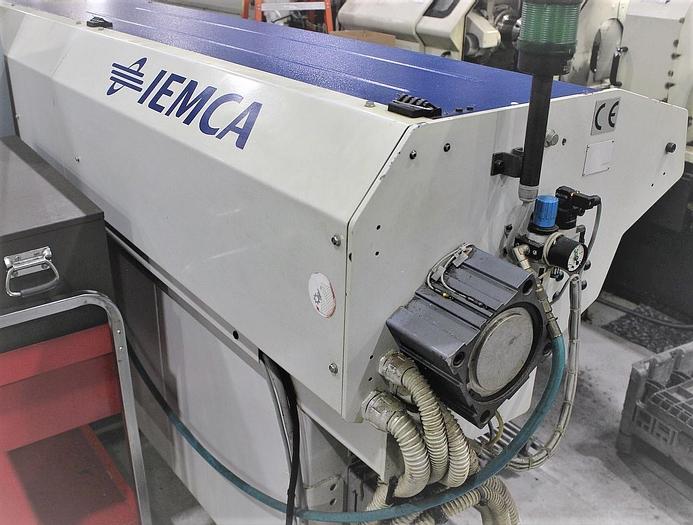

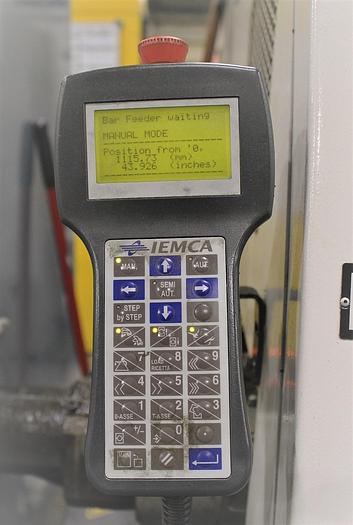

Iemca Master 880MP 38LL Autoload Type Bar Feeder
High Power Coolant
Background Tool Path Check
Mill Spindle Synchronous Tapping
RS 232 Port Interface
3.5" Floppy Disk Drive Interface
Chuck Air Blast - Second Spindle
EIA/ISO Input Function for G Code Programming
Multi Tap Transformer
(2) OD Type Turning Holders (tandem type)
(2) Boring Holders for 1" and 1.5"
(1) Channel Set for Barfeed
(1) Live Milling Holder
All Available Manuals

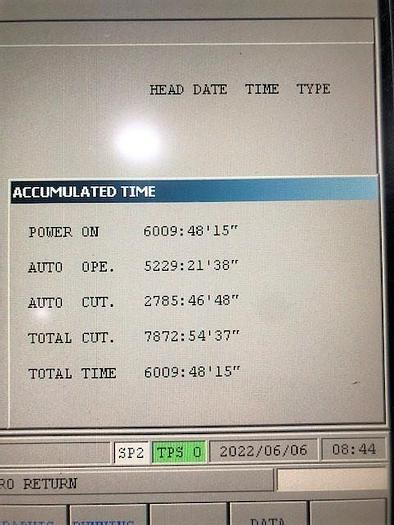

7,872 Total Cut Hours
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250MS |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118102 |

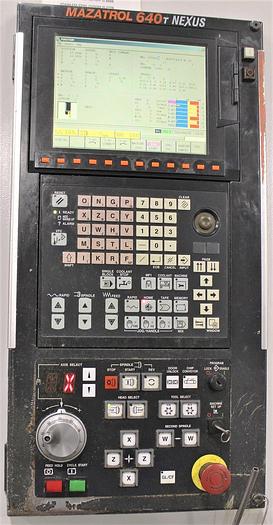

| Control | Mazatrol Fusion 640T Nexus |
| Chuck Sizes | S-30 Collet on Main Spindle/6" Hyd on Subspindle |
| Maximum Swing/Over Carriage | 26.5" / 14" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Distance Between Spindles | 21.28" |
| X-Axis Travel | 9.055" |
| Z-Axis Travel | 22.63" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| B-Axis Travel (Subspindle) | 23.0" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speed / Sub Spindle Speed | 4,000 RPM / 6,000 RPM |
| Spindle Motor / Sub Spindle Motor | 35 HP / 10 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |

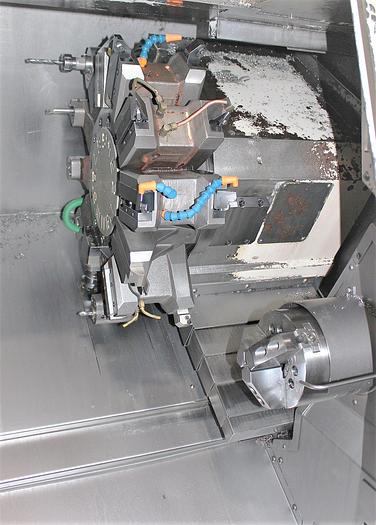

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, B / Z | 1181 IPM / 1299 IPM |
| Machine Dimensions | 115" x 74" x 73" |
| Machine Weight | 11,464 lbs. |
