1991 Mazak QT35N/1000

1991 Mazak QT35N/1000

$23,500 (USD)

Location:Illinois

orCall (863) 439-6066

Description

Chip Conveyor

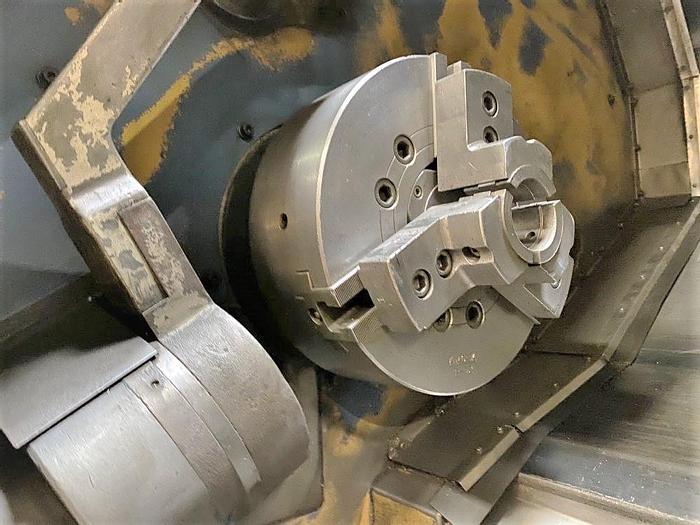

12" 3 Jaw Kitagawa B-12 Hydraulic Chuck

Programmable Tailstock

Automatic Tool Eye - needs work

Multi Tap Transformer

RS-232C Port for DNC Interface

Coolant System with Tank & Pump

Color Graphics Control

Extended Program Memory

All Available Tooling

All Available Manuals


Specifications

ManufacturerMazak
ModelQT35N/1000
Year1991
ConditionUsed
Stock Number117884

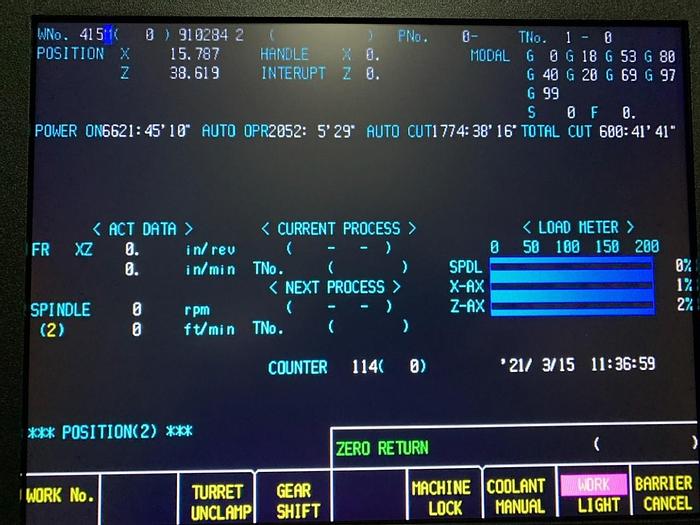

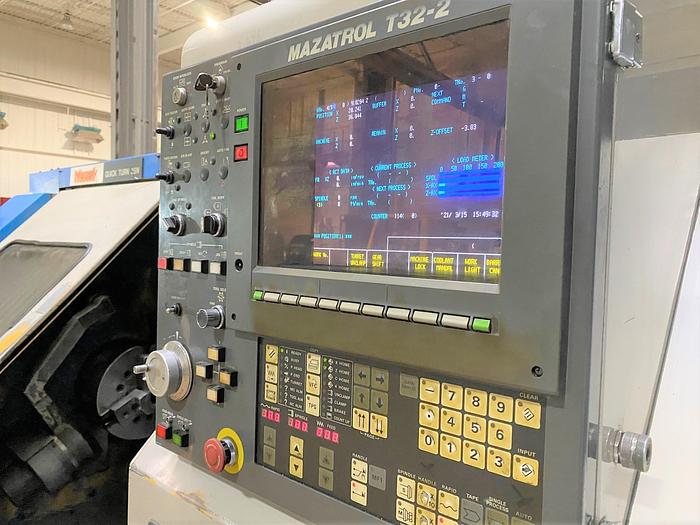

Machine ControlMazatrol T32-2 Color Graphics Control
Chuck Size12" 3-Jaw Chuck
Maximum Swing20"
Maximum Cutting Diameter15.75"
Maximum cutting length41.02"
X-Axis Travel11"
Z-Axis Travel41.42"
Spindle Nose / Bore / Bar CapacityA2-8" / 3.15" / 2.75"
Spindle Speeds35 - 3,000 RPM - 2-Ranges

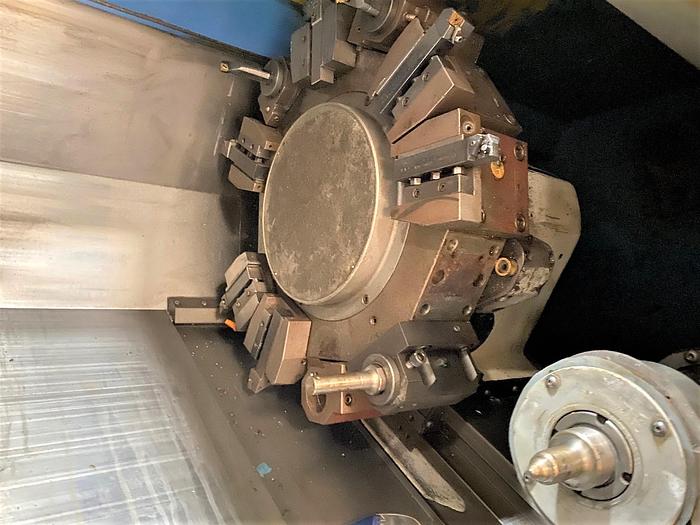

Number of Turret Positions12 Sided / 24 Positions
Rapid Traverse Rates X/Z472 IPM / 709 IPM
Tailstock Body Travel / Center34.5" / #5 MT
Tailstock Quill Travel3.94"
Machine Dimensions LxWxH145" x 81" x 75"
Machine Weight12,570 lbs
