2017 Omniturn GT-75 Series III
Sold
2017 Omniturn GT-75 Series III
Location:California
Description
Gang Style
Live Milling Capability
C Axis Spindle Rotation
Omni Zip Loader Bar Feeder
Parts Catcher
Pneumatic Collet Closer
Miscellaneous Tooling on Tool Plate

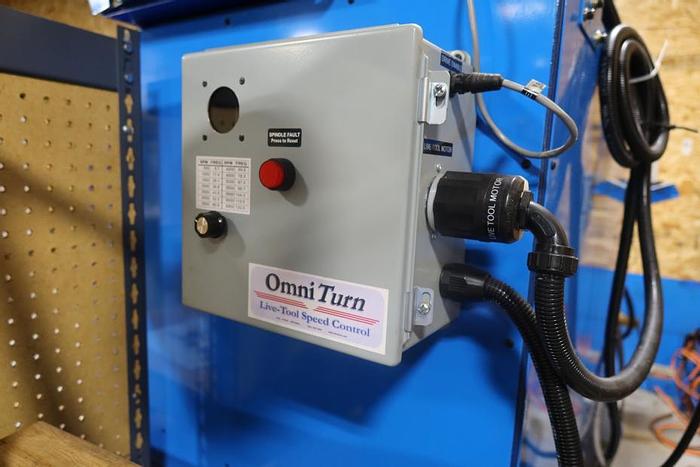

Variable Speed Flexible Shaft Drive & Live Tool
Linear Guides
All Available Manuals
Specifications
| Manufacturer | Omniturn |
| Model | GT-75 Series III |
| Year | 2017 |
| Condition | Used |
| Stock Number | 118014 |
| Control | Omniturn |
| Chuck Size | 5C Collet Nose |
| Maximum Cutting Diameter | .6" |
| Spindle Nose / Bore / Bar Capacity | 5C w/4 Camlock / 1.125" / 1.06" |
| Spindle Speed | 4,000 rpm |
| Spindle Motor | 5 hp |
| X-Axis Travel | 12" |
| Z-Axis Travel | 9" |
| C-Axis Rotation | .001 Degrees |
| Number of Tool Positions | Gang Style |
| Threading | 240 tpi to .5 tpi |
| Rapid Traverse Rates | 300 ipm |
| Machine Dimensions LxWxH | 34"x66"x75" |
| Machine Weight | 1,650 lbs |
