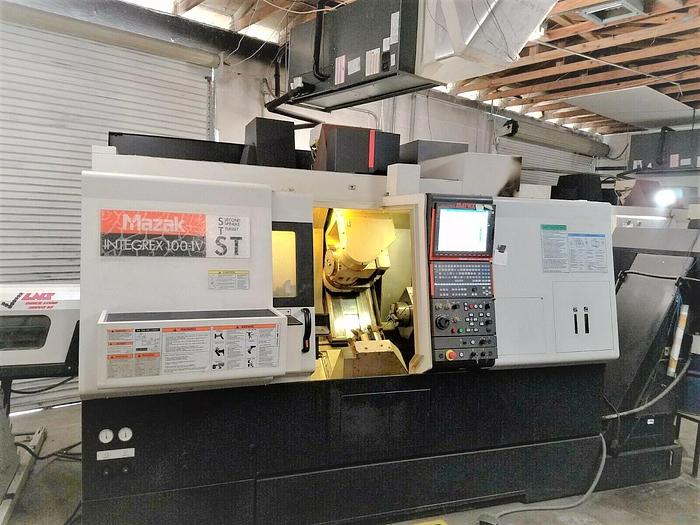

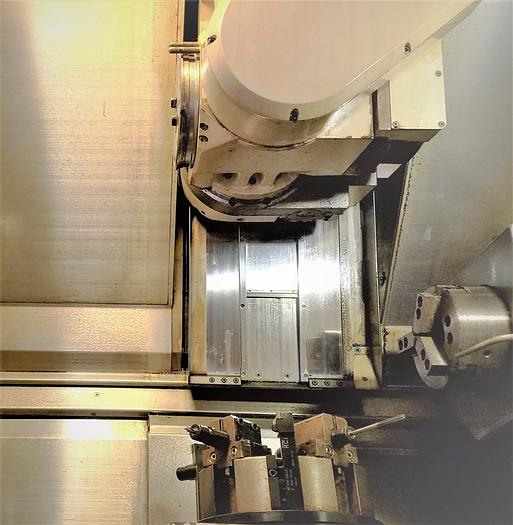

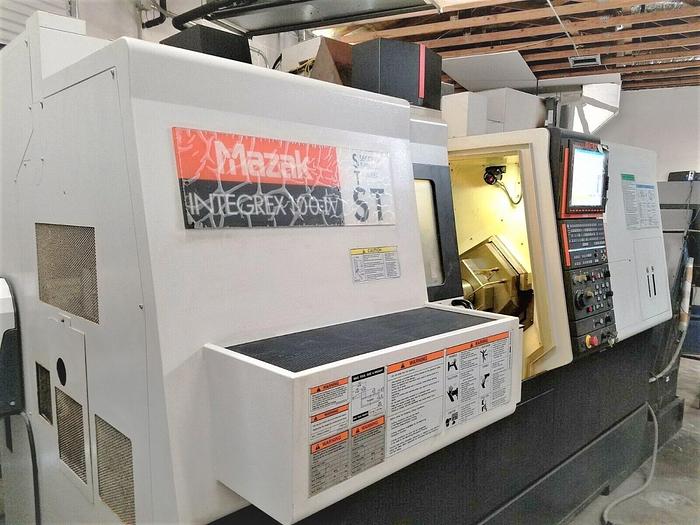

2008 Mazak Integrex 100-IVST


2008 Mazak Integrex 100-IVST

$149,950 (USD)



Y-axis Capabiliity


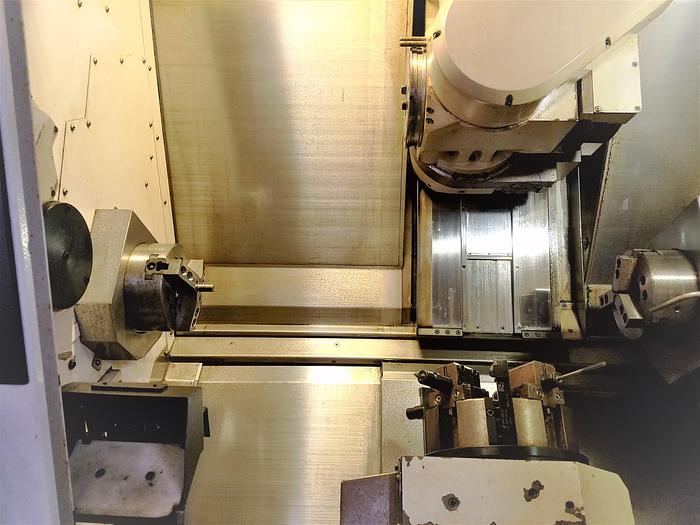

9 Station Lower Turret

Pendulum Style B Axis 225 Degree with Contouring

C Axis 0.0001 Degree Increment - Main & Subspindle

***C1 Axis Is In Need Of Replacement Of Encoder, Seller Has Part ($850) But Is Selling As Is**

Live Milling/Drilling Capability

40 Station Tool Magazine (CAT 40)

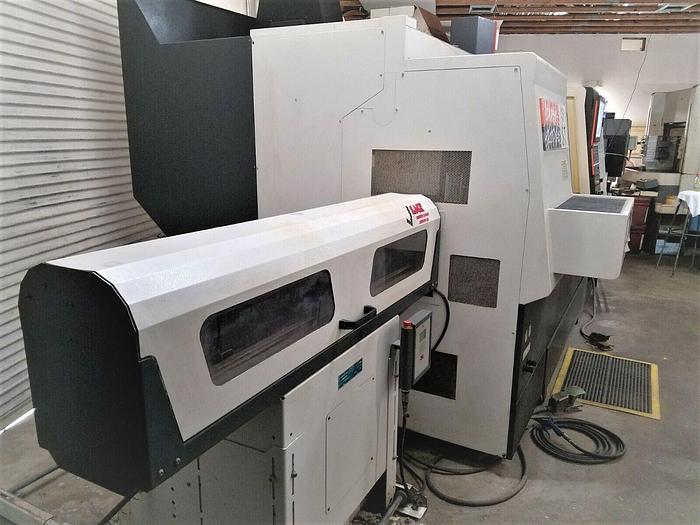

LNS Quick Load Servo Barfeed System

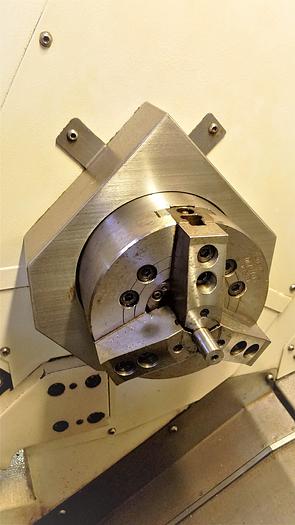

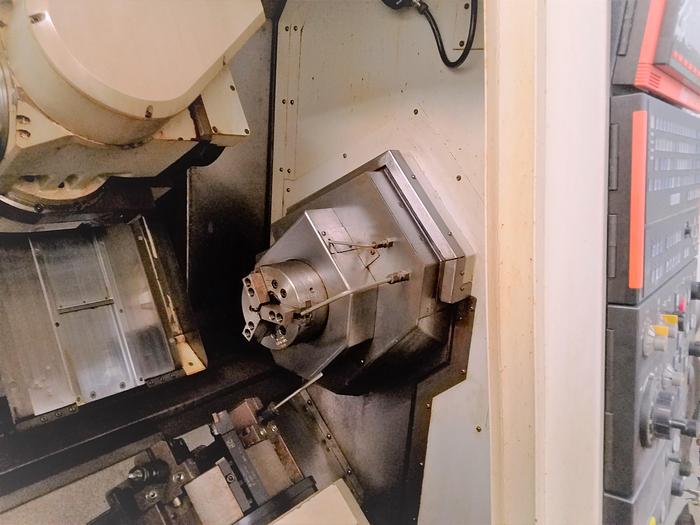

(2) 6" 3 Jaw Hydraulic Chucks

Automatic Parts Catcher w/ Ejector

Chip Conveyor

Milling Spindle Synchronous Tapping

Automatic Tool Eye (no probe)

Plumbed for 1,000 PSI Coolant (no pump)

Coolant Through Milling Head

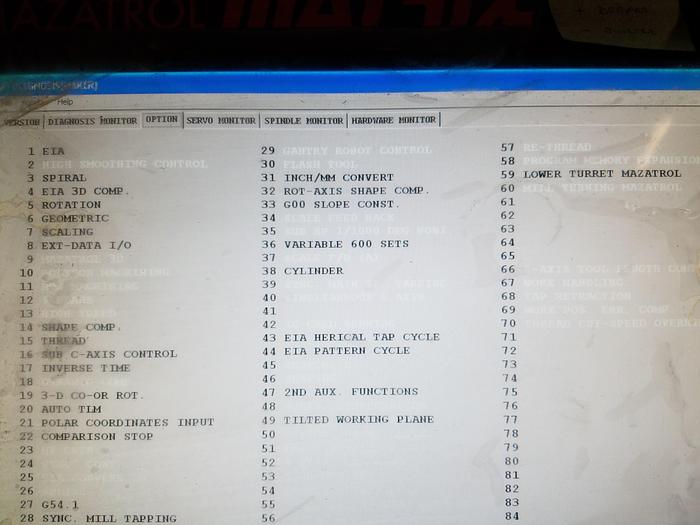

EIA/ISO Input Function

EIA/ISO 3D Compensation

EIA/ISO Helical Tapping Cycle

EIA/ISO Pattern Cycle

3D Coordinate Rotation

Sub C Axis Control

Tilted Work Plane

2nd Auxillary Functions


Variable 600 Sets

G00 Slope Const.

Inverse Time Function

Shape Compensation


External Data Input / Output

Rotary Axis Shape Compensation

Spiral Interpolation

Coordinate Rotation & Scaling



Polar Coordinates Input

Comparison Stop

Auto Chuck Jaws Open and Close

Windows XP Operating System for Mazak

Auto Power Off

15” Color LCD Monitor

Inch/Metric Conversion

LAN Port Interface

Cardbus Interface (2 slots)

USB Port Interface

RS 232 Port Interface

All Available Manuals

**Floor Space Requirement with Barfeed is 20' x 9'**

**Includes 40 Tool Holders for Tool Changer valued at near $10,000 plus another (4) Holders for the lower turret**

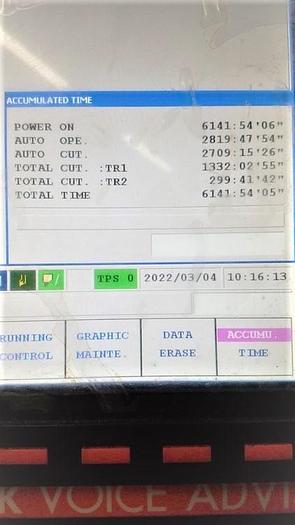

**Total Cut Hours on Turret One 1,332 Hours**

**Total Cut Hours on Turret Two 299 Hours**


ModelIntegrex 100-IVST
Stock Number118004

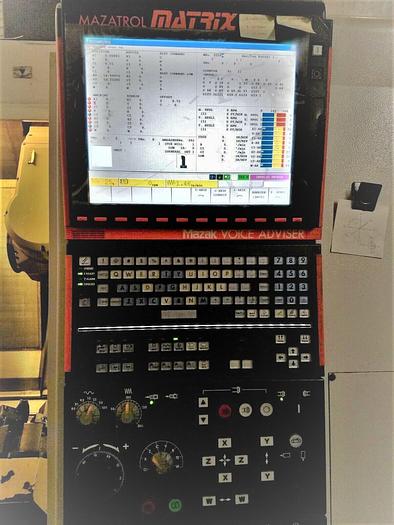

ControlMazatrol Matrix w/ Voice Advisor
Chuck Sizes Main / Subspindle6" 3-Jaw Hydraulic / 6" Hydraulic Chuck
Maximum Swing21.46"
Maximum Swing Using Y Axis16.22" - 21.46"
Maximum Swing Over Cross Slide13.86"
Maximum Swing Over Lower Turret15.75"
Maximum Cutting Diameter - Chucking21.46" Upper Turret
Maximum Machining Length29.65"
Maximum Distance Between Chuck Faces28.9"
B-Axis Tilt Movement225 Degrees
C-Axis Spindle Rotation - Both Spindles0.0001 Degrees
X-Axis Travel Upper Turret / Lower Turret16.14" / 8.66"
Y-Axis Travel Upper Turret ONLY+/- 2.75"
Z-Axis Travel Upper Turret / Lower Turret31.69": / 30.71"
W-Axis Subspindle Travel31.3"
Main & Subspindle Nose / BoreA2-5" / 2.4"
Main & Subspindle Speeds6,000 RPM
Main & Subspindle Motor15 HP / 10 HP
Number of Tool Positions40 Station Tool Changer
Number of Turret Positions1 Position Turret
Turret Spindle TypeCAT 40
Rotary Tool Speed / Rotary Motor12,000 RPM / 7.5 HP
Number of Lower Turret Positions9 Station Turret
Machine Dimensions121.06" x 97.73" x 88.3"
Machine Weight18,078 lbs.
