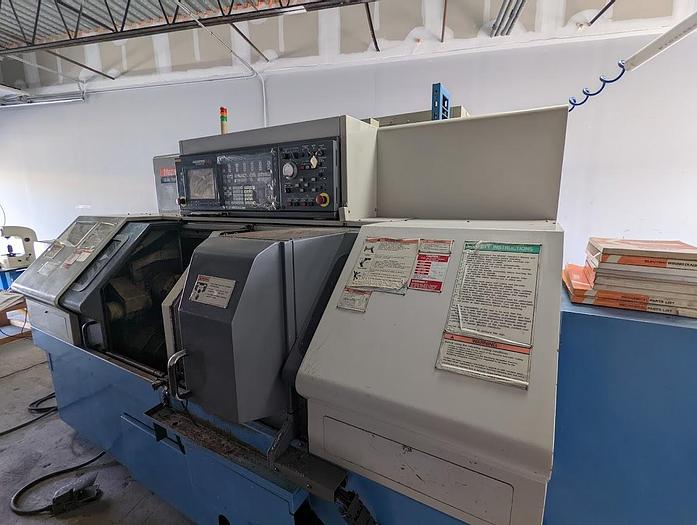

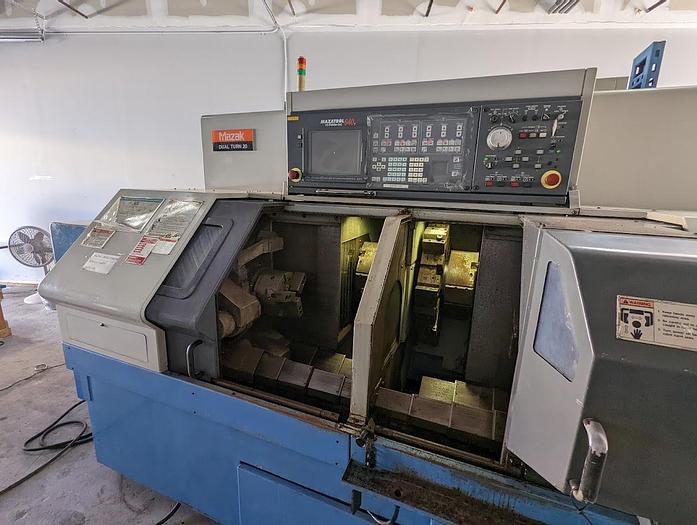

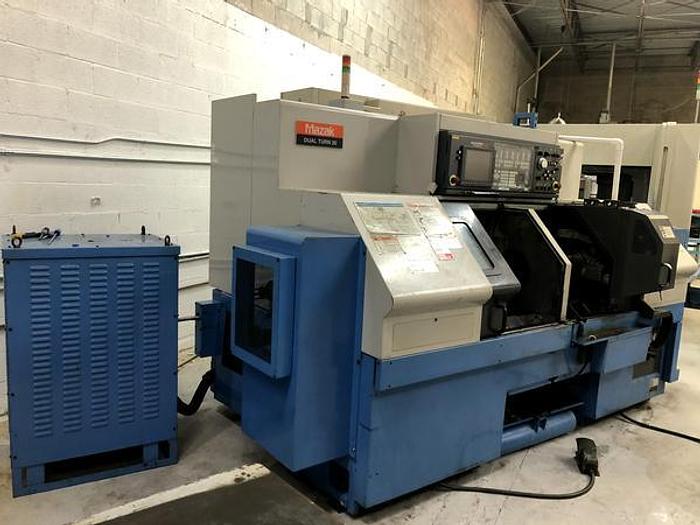

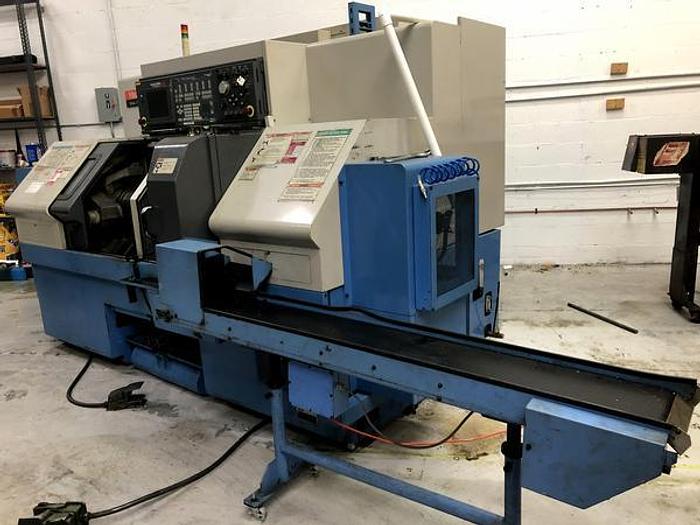

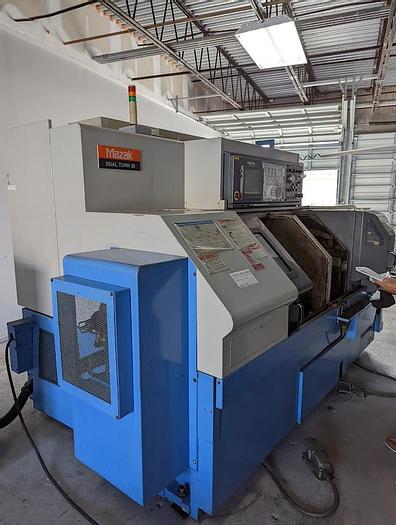

1999 Mazak Dualturn 20
Sold
1999 Mazak Dualturn 20
$24,500 (USD)
Location:Texas
Description
(2) 8" 3 Jaw Hydraulic Chucks

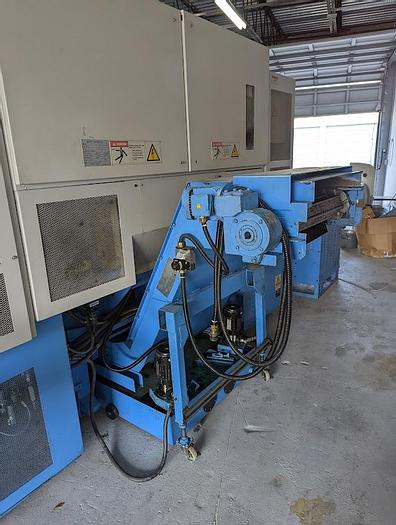

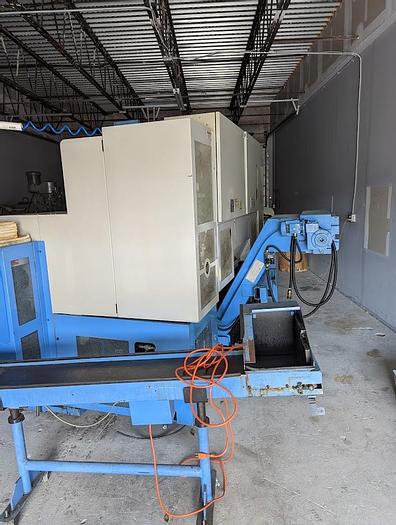

Rear Exit Chip Conveyor
Automatic Tool Eye (L&R)
Automatic Workpiece Transfer
Coolant System with Tank & Pump
RS 232 Port Interface

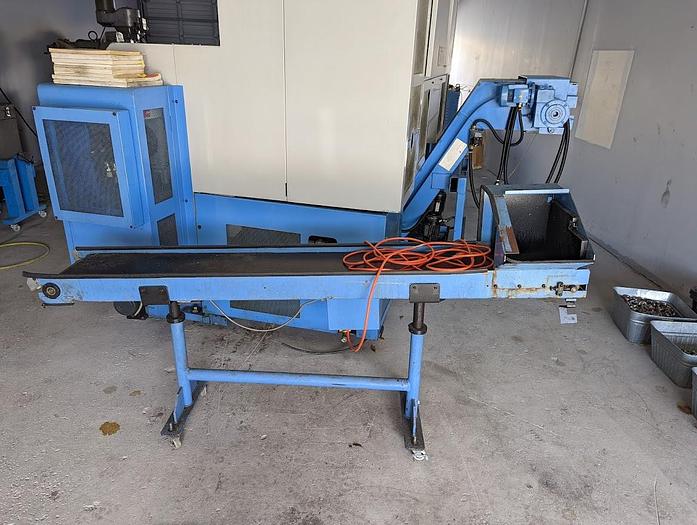

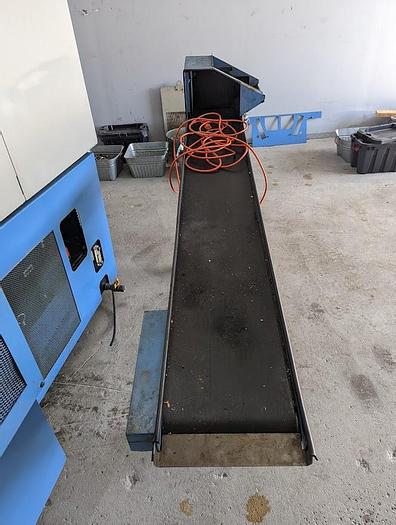

Parts Catcher / Parts Exit Conveyor
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Dualturn 20 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 117873 |

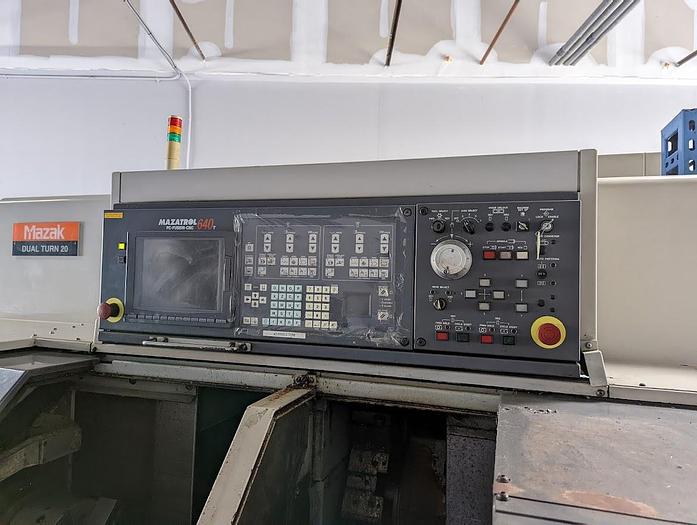

| Machine Control | Mazatrol Fusion 640T |
| Chuck Size | (2) 8" 3-Jaw Hydraulic |
| Maximum swing | 12.6" |
| Maximum Cutting Diameter | 10" |
| Maximum Cutting Length | 5.91" |
| Distance Between Spindle Faces | 49.21" |
| Travel X-Axis Turret 1 / Turret 2 | 9.06" / 9.06" |
| Travel Z-Axis Turret 1 / Turret 2 | 19.69" / 19.69" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.4" / 2" |
| Spindle Speeds | 35-5,000 rpm |
| Spindle Motor | 20 hp |
| Spindle Torque | 246 ft/lbs |
| Number of Turrets | (2) 12 Position Drum |
| Rapid Traverse Rates X/Z | 1200 IPM / 1300 IPM |
| Machine Dimensions LxWxH | 141"x73"x81" |
| Machine Weight | 14,520 lbs |
