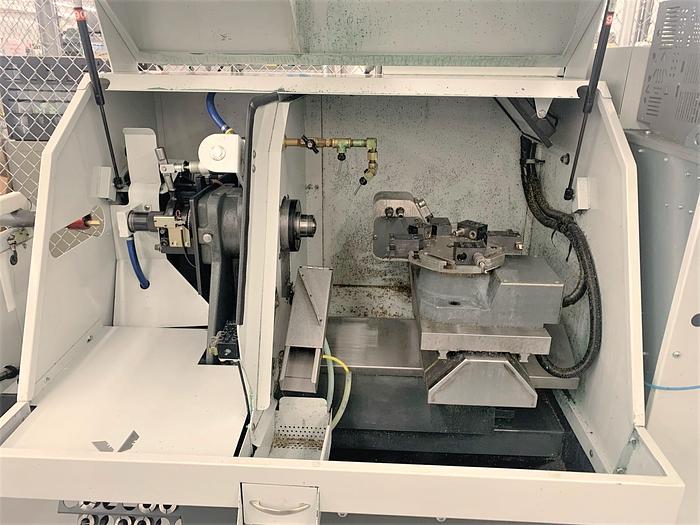

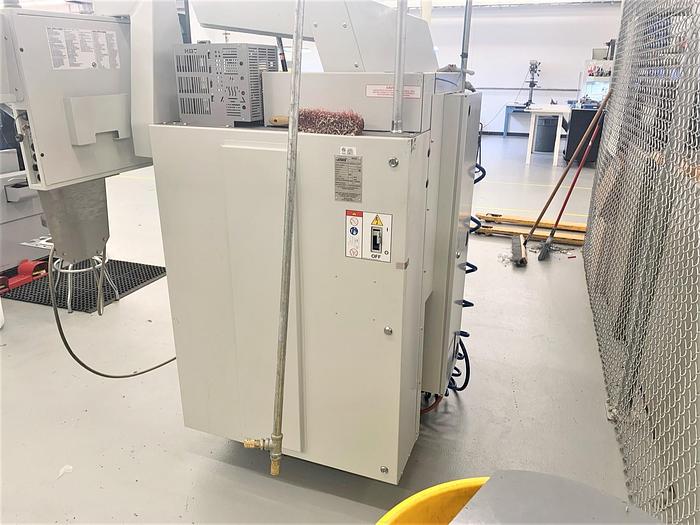

2019 Haas CL-1 w/ Live Tooling
Sold
2019 Haas CL-1 w/ Live Tooling
$47,500 (USD)
Texas
Description

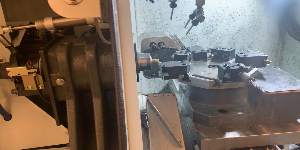

Live Tooling Option with C Axis for OD ONLY

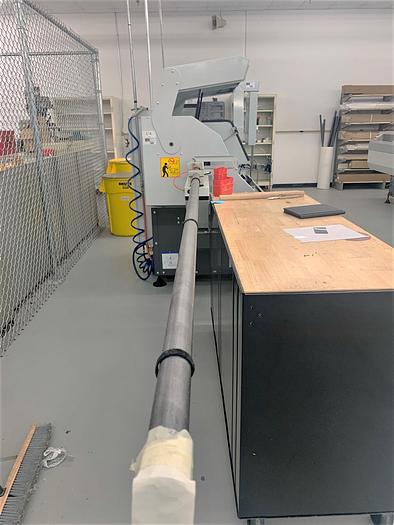

6' Fully Integrated Pneumatic Barfeeder for .25 - 1" diameter x 72" length up to 3,000 rpm
Parts Catcher
Spindle Orientation
Auto Air Collet Closer
Coolant Pump w/ 13 Gallon Coolant Tank
Rigid Tapping
Gang Style Tooling Kit
Haas CNC Control with 15" Color LCD Monitor
Ethernet Interface
USB Port Interface
1 GB Program Memory
Memory Lock Key Switch
Window Air Blast
Haas Drop
Haas Connect: Remote Monitoring
Media Display M-Code M130
Wifi Connection for Haas Control
Early Power Failure Detection Module
Power on time: 2,451
Servo on time: 1101
Spindle on time: 680
*New Price as Equipped: $61,475
Specifications
| Manufacturer | Haas |
| Model | CL-1 w/ Live Tooling |
| Year | 2019 |
| Condition | Used |
| Stock Number | 117774 |
| Chuck Size | 5C Collet |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Machining Diameter | 5.0" |
| Maximum Machining Length | 8" |
| X-Axis Travel | 12" |
| Z-Axis Travel | 8" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Speed | 6,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | 5C Type / 1.25" / 1" |
| Spindle Motor | 5 HP |
| Milling Turret Positions | 2 Positions, Dual ER-11 Spindles for OD ONLY |
| Milling Spindle Speed | 6,000 RPM |
| Milling Spindle Motor | 1/4 HP |
| Turret Type | 8 Position Turret |
| Rapid Traverse Rates X/Z | 757 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 78" x 62" x 80" |
| Machine Weight | 2,240 lbs |
