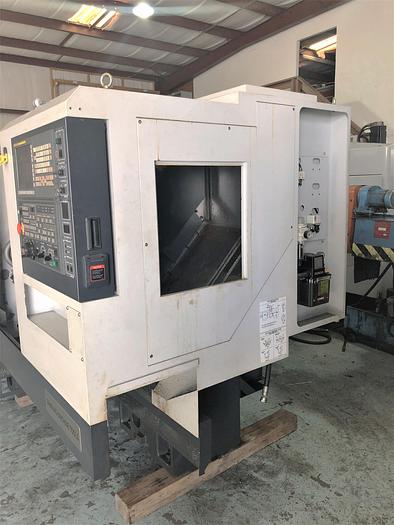

2017 Samsung SL-1500

2017 Samsung SL-1500

$39,500 (USD)

Dundee, FL

orCall (863) 439-6066

Description

Royal Products 16C Collet Chuck Samsung USA Package

Chip Conveyor Programmable Tailstock Tool Presetter Air Blow Slant Bed Design Boxed Ways

Ethernet Interface

USB Port Interface

Card Interface

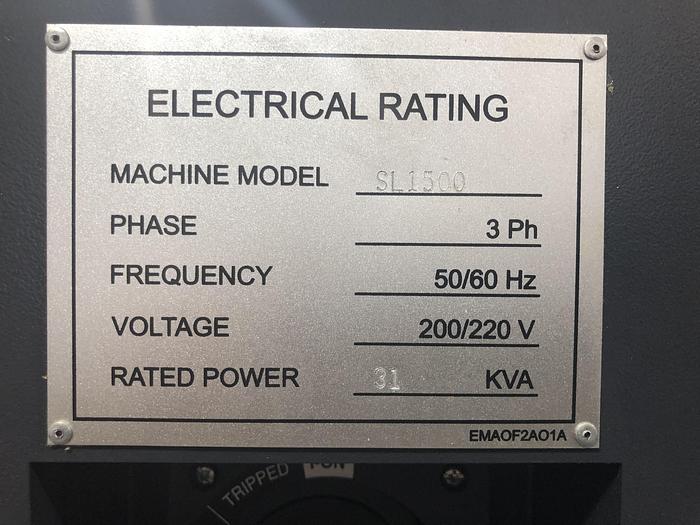

RS 232 Port Interface Wired 200/220V Electrics All Available Tooling All Available Manuals

Specifications

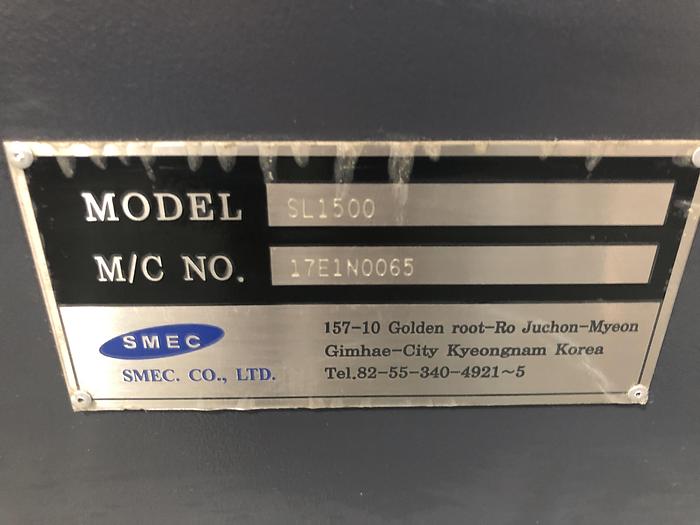

ManufacturerSamsung
ModelSL-1500
Year2017
ConditionUsed
Stock Number116724
Quantity1

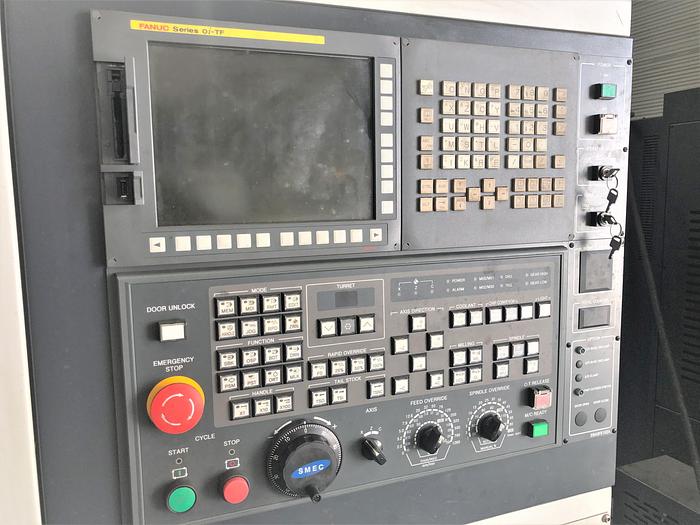

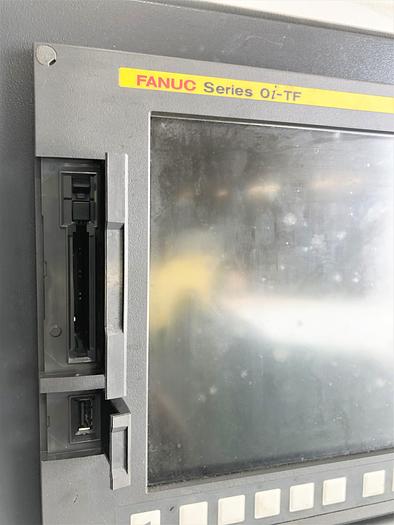

ControlFanuc 0i-TF

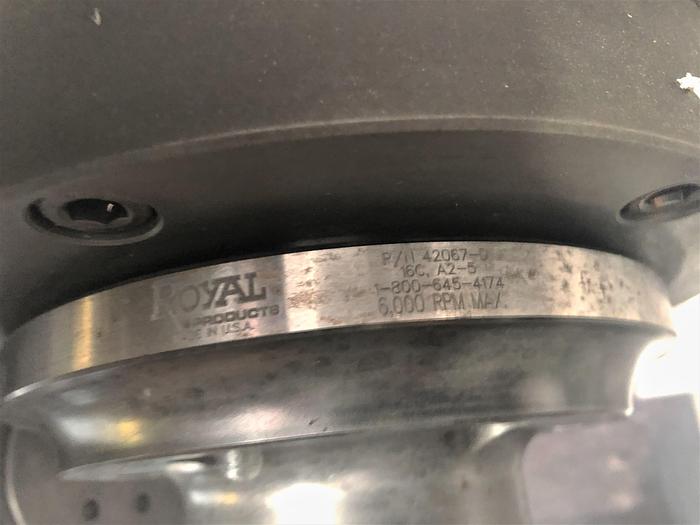

Chuck SizeRoyal 16C Collet Chuck
Maximum Swing over Bed20"
Maximum Swing Over Cross Slide14.17"
Maximum Machining Diameter14.17"
Maximum Machining Length22.05"
Maximum Bar Capacity2.05"
Spindle Nose / Spindle BoreA2-5" / 2.4"
Spindle Speeds6,000 RPM
Spindle Motor24.8 HP

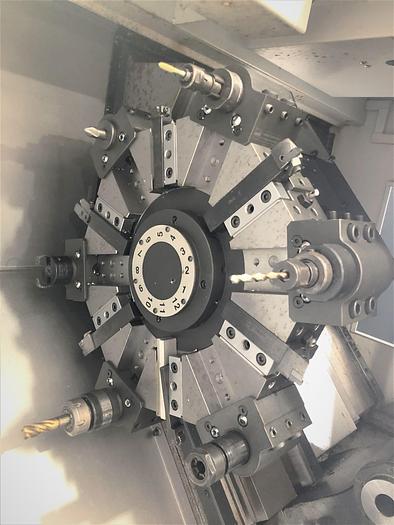

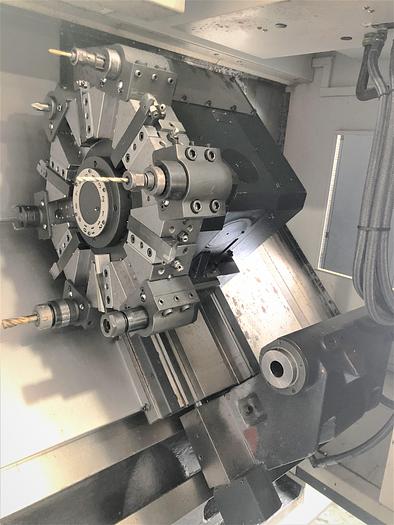

Number of Turret Positions12 Position Turret

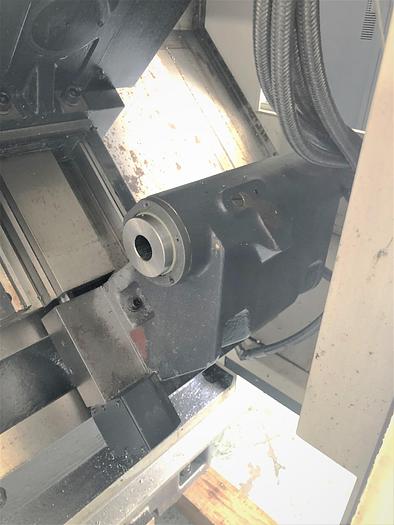

Tailstock Body Travel / Quill Travel17.7" / 2.95"
Tailstock Bore TaperMT #4
Machine Dimensions104" x 61" x 77"
Machine Weight8,157 lbs.
