2012 YCM DCV 4025B Bridge Mill with Coolant Through the Spindle, 160"x98"x40", 120 ATC, Conveyor, Hi Spd Machining

Coolant Through the Spindle

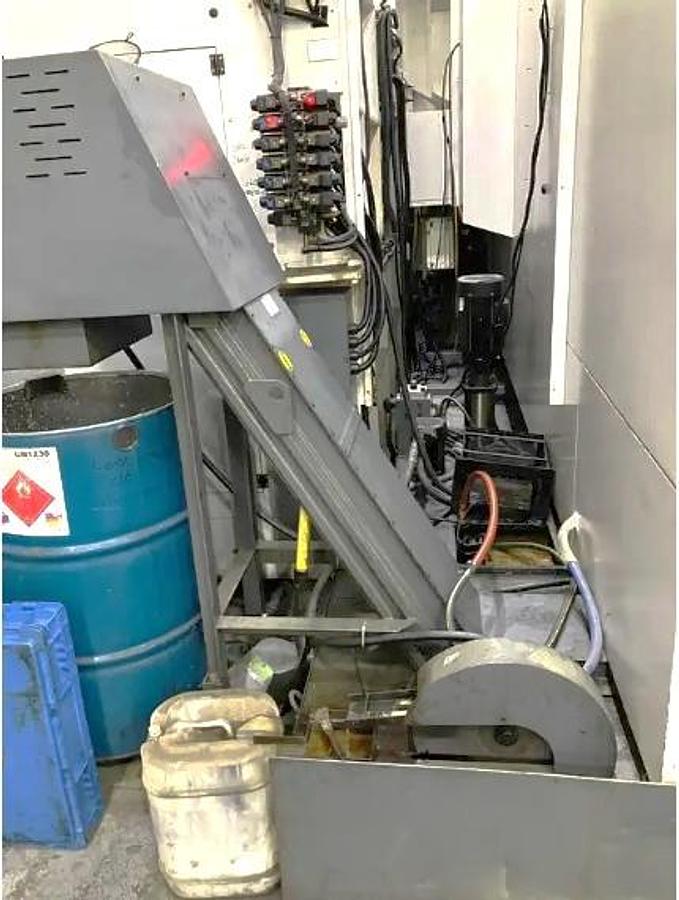

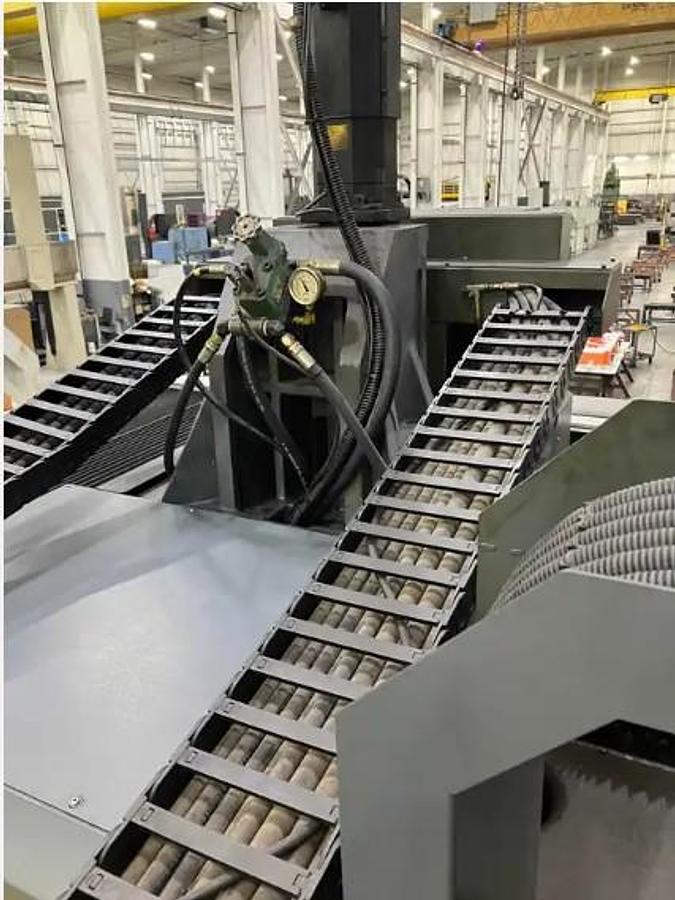

Chip Conveyor

Chip Augers

Chiller Unit

High Speed Machining

Data Server

Ethernet Interface

RS 232 Port Interface

Spindle Thermal Compensation

3 Roller Type Guide Way on Y Axis

Hardened and Ground Box Ways on Z Axis

Tool Selection Random Method

Electrics 220/480V

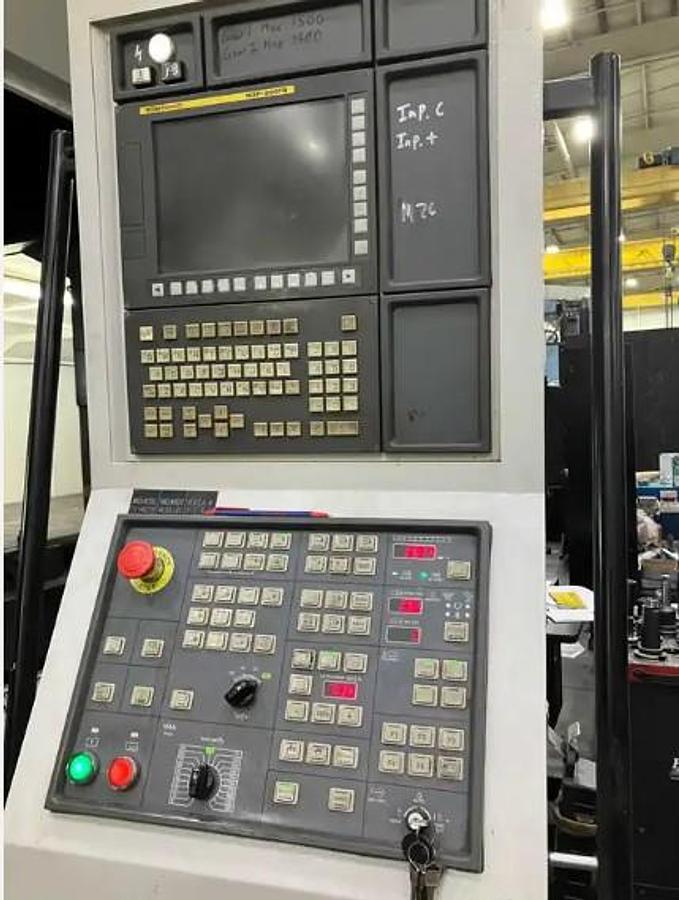

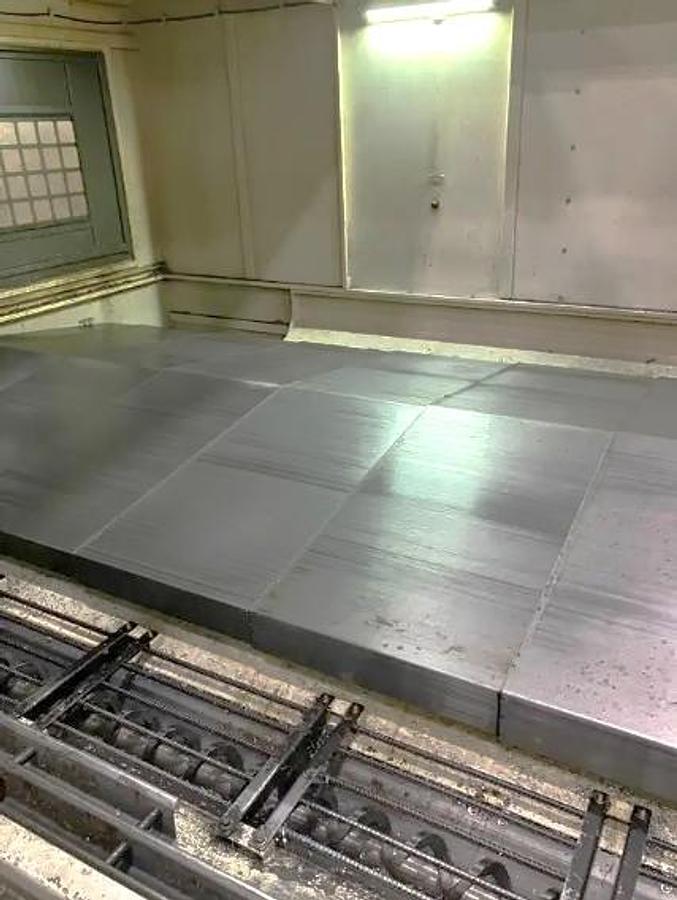

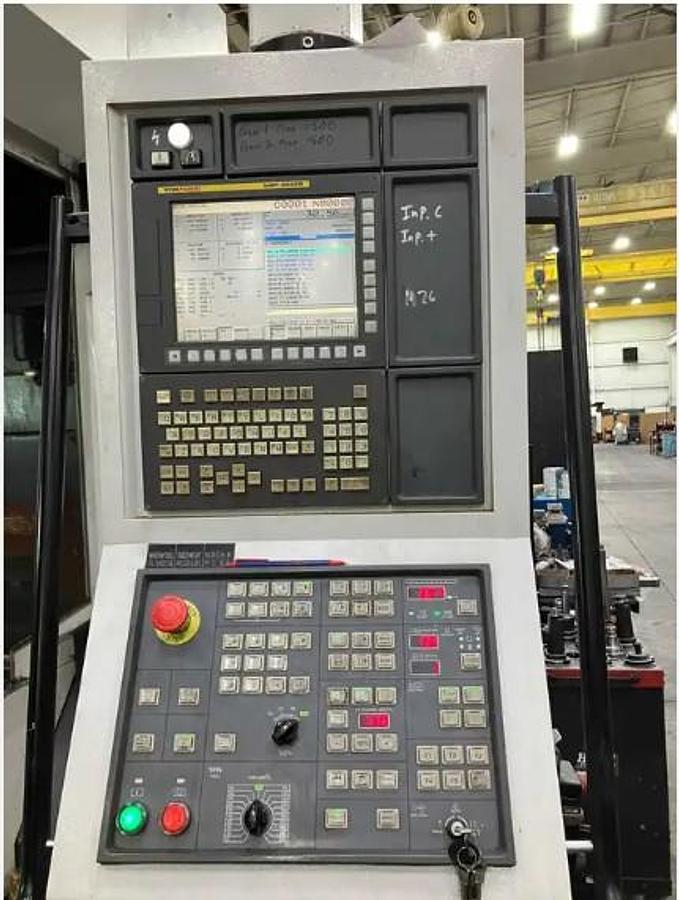

The 2012 YCM DCV 4025B Bridge Mill is a robust and reliable used CNC vertical machining center, ideal for heavy-duty machining tasks. It features a Fanuc 31i Series Control system, ensuring precise and efficient operations. The machine has impressive travel capabilities, with its X-axis accommodating 160 inches, Y-axis 98 inches, and Z-axis 40 inches, making it suitable for large workpieces. The spacious table, measuring 158" x 94.5", can support up to 44,092 pounds, providing significant capacity for industrial applications.

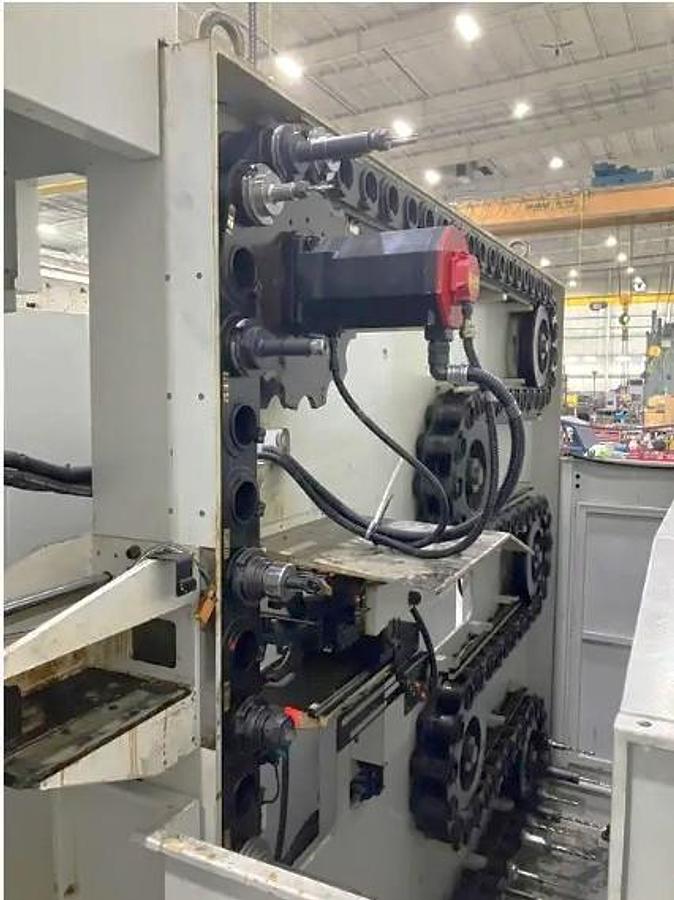

Equipped with a CAT 50 spindle taper, the spindle operates at a maximum speed of 4,500 RPM, propelled by a 30 HP motor. This enables high-speed machining and maximizes productivity. It also includes a 120-station automatic tool changer, facilitating seamless tool transitions. Additionally, the machine's coolant through the spindle feature ensures efficient cooling, enhancing tool life and cutting performance.

With rapid traverse rates of 472 IPM on the X and Y axes and 591 IPM on the Z-axis, along with cutting feed rates of 394 IPM, the YCM DCV 4025B is designed to optimize production speed. The machine’s robust construction, with a machine weight of 101,412 pounds, ensures durability and stability during operation, making it a reliable choice for demanding manufacturing environments.
