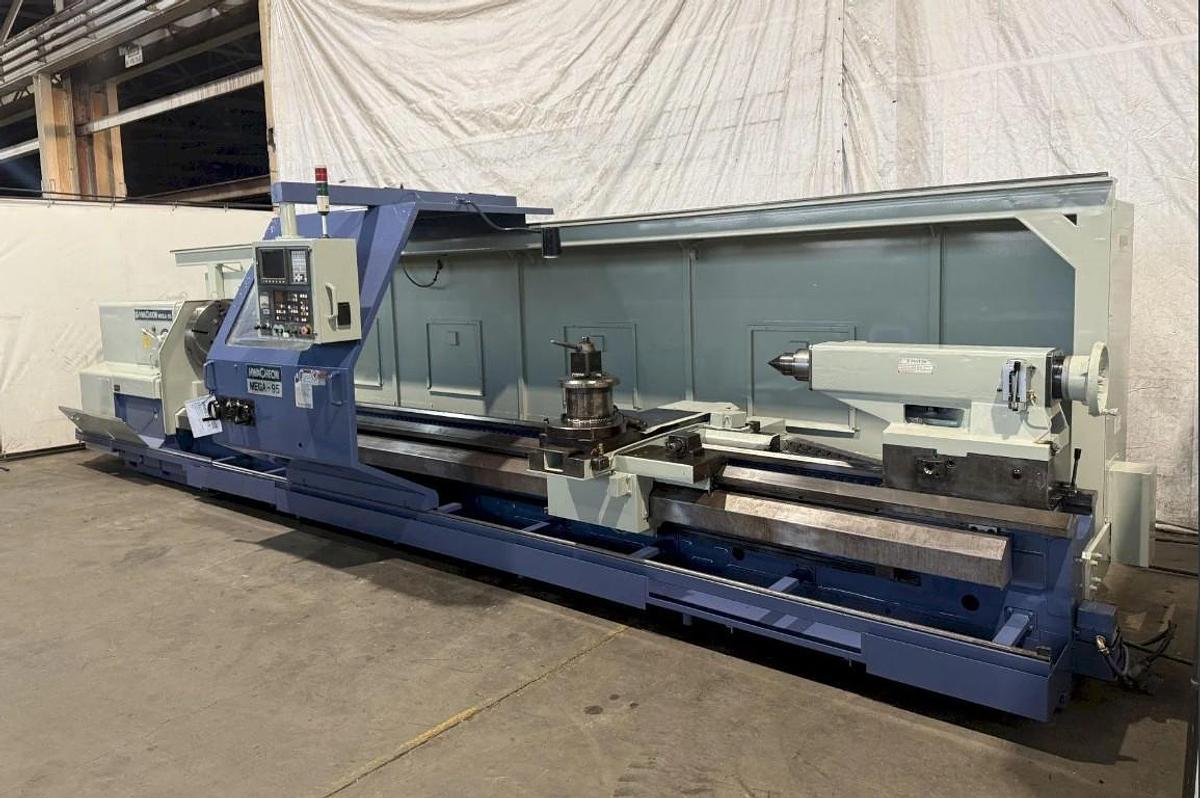

1999 Hwacheon Mega 95/5000 with 9" Bar Capacity, 197" cc, Tool Post, 25" Manual Chuck, Tailstock
1999 Hwacheon Mega 95/5000 with 9" Bar Capacity, 197" cc, Tool Post, 25" Manual Chuck, Tailstock
$59.500 (USD)
Ubicación:Ohio
o
Llamar (863) 439-6066
Descripción

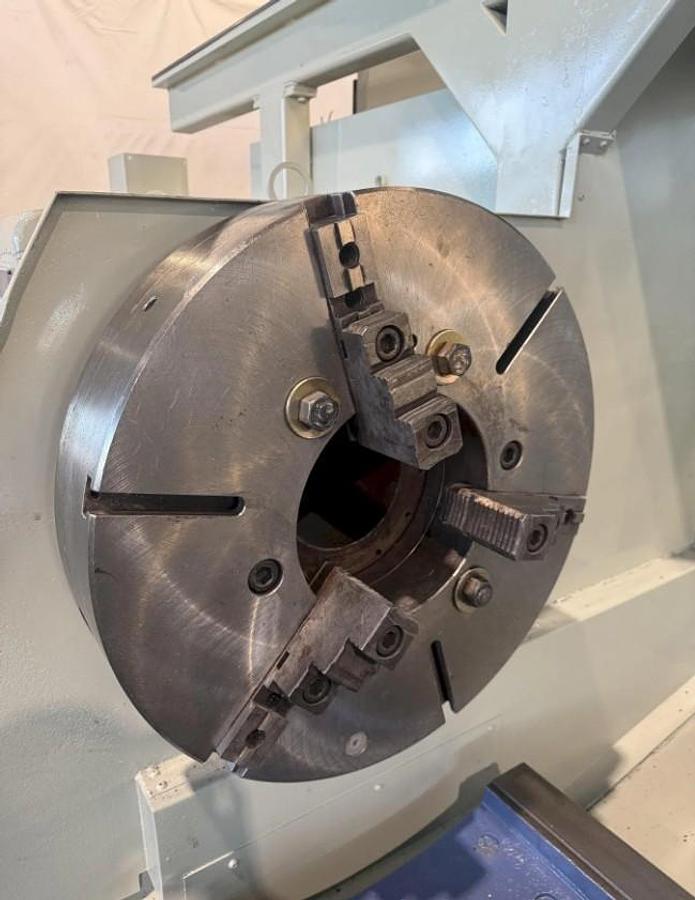

25" 3 Jaw Manual Chuck

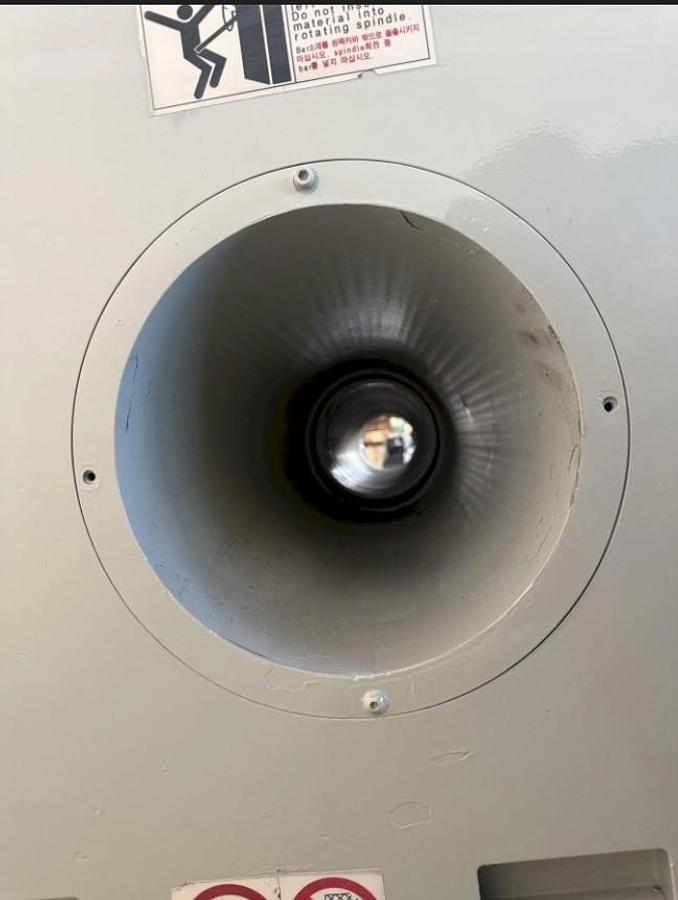

9" Hollow Spindle

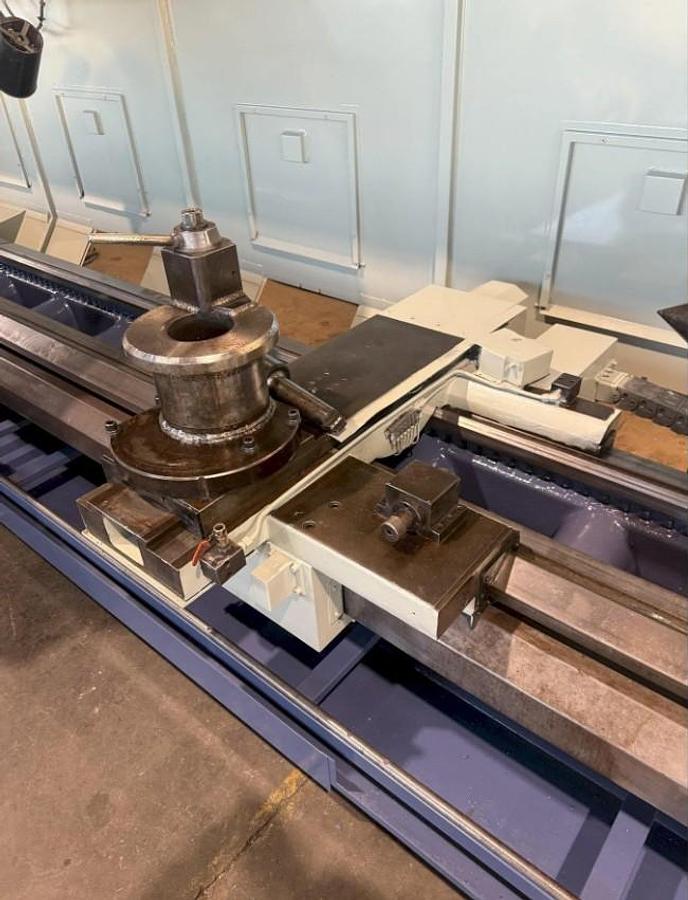

Tailstock
Manual Hand Wheels
Status Lights

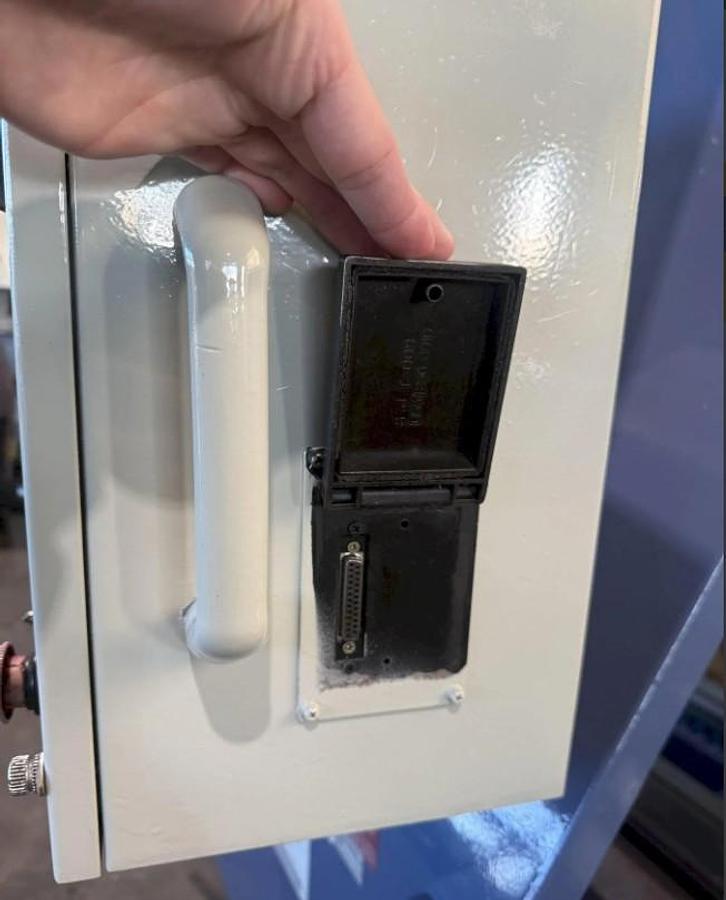

RS 232 Port Interface

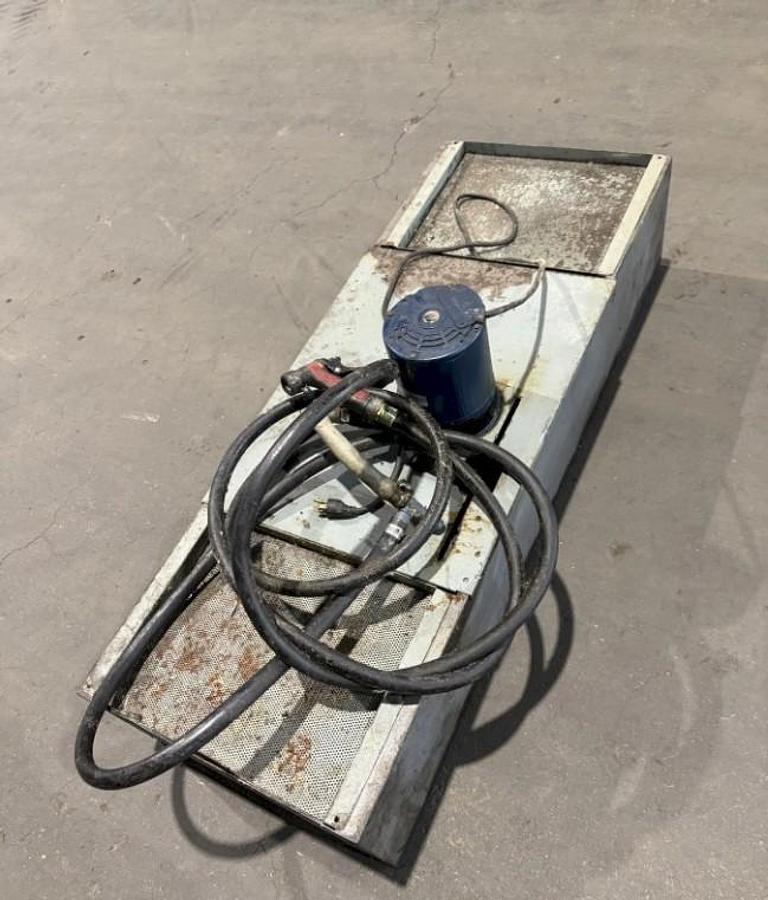

Coolant System with Tank & Pump

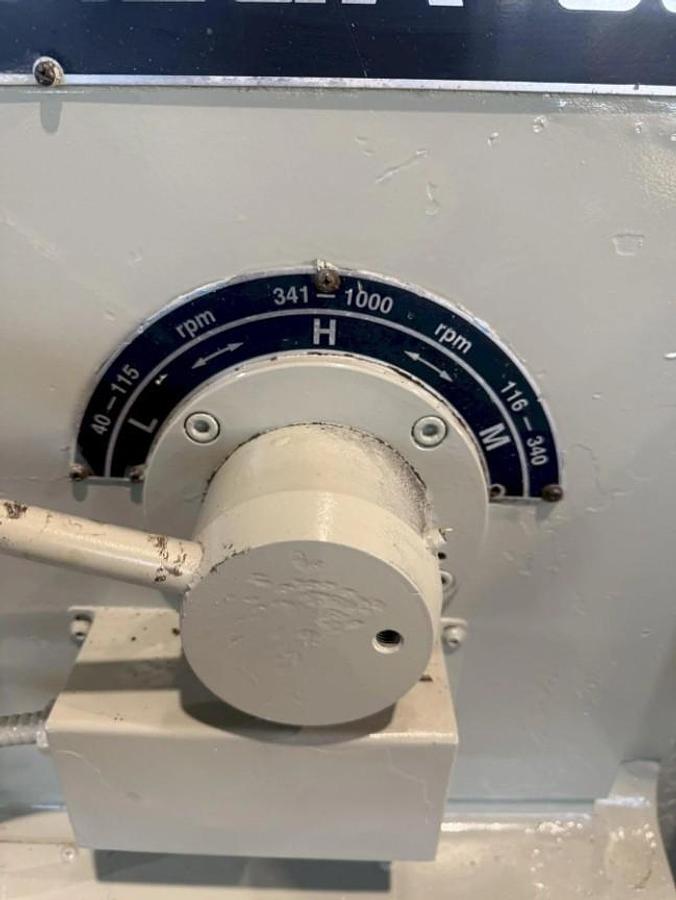

3 Speed Geared
All Available Tooling
All Available Manuals
Especificaciones
| Fabricante | Hwacheon |
| Modelo | Mega 95/5000 |
| Año | 1999 |
| Condición | Usado |
| Número de Stock | 120455 |

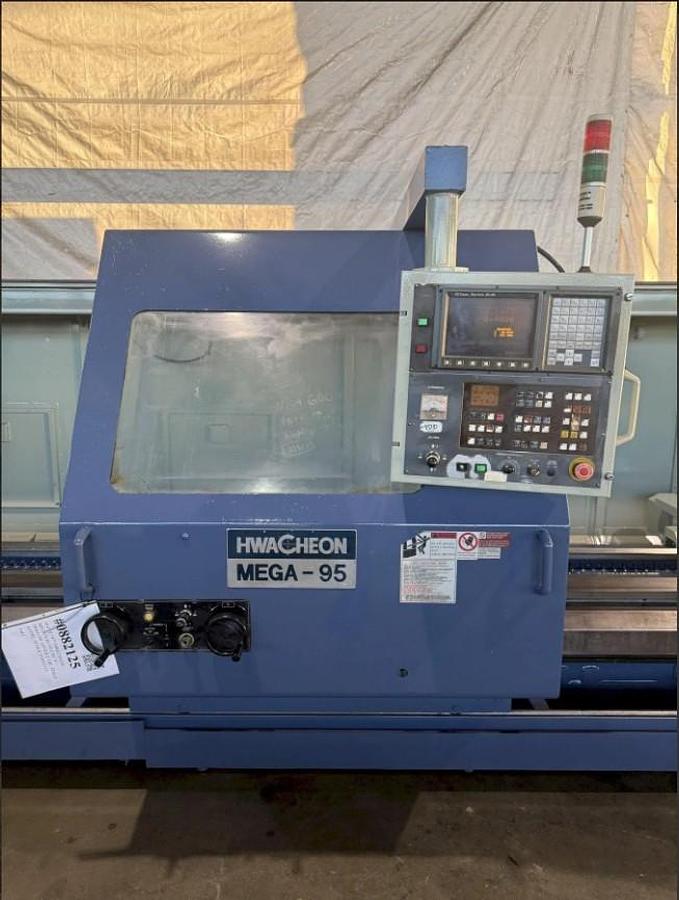

| Control | Fanuc Series 21-M Control |
| Chuck Size | 25" Manual 3 Jaw Chuck |
| Maximum Swing Over Bed / Gap | 38.6" / 48.4" |
| Maximum Swing Over Cross Slide | 26.4" |
| Maximum Turning Length | 197" |
| X-Axis Travel | 19.09" |
| Z-Axis Travel | 197" |
| Spindle Speed | 40 - 1,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-15" / 9" / 9" |
| Spindle Motor | 30 HP |

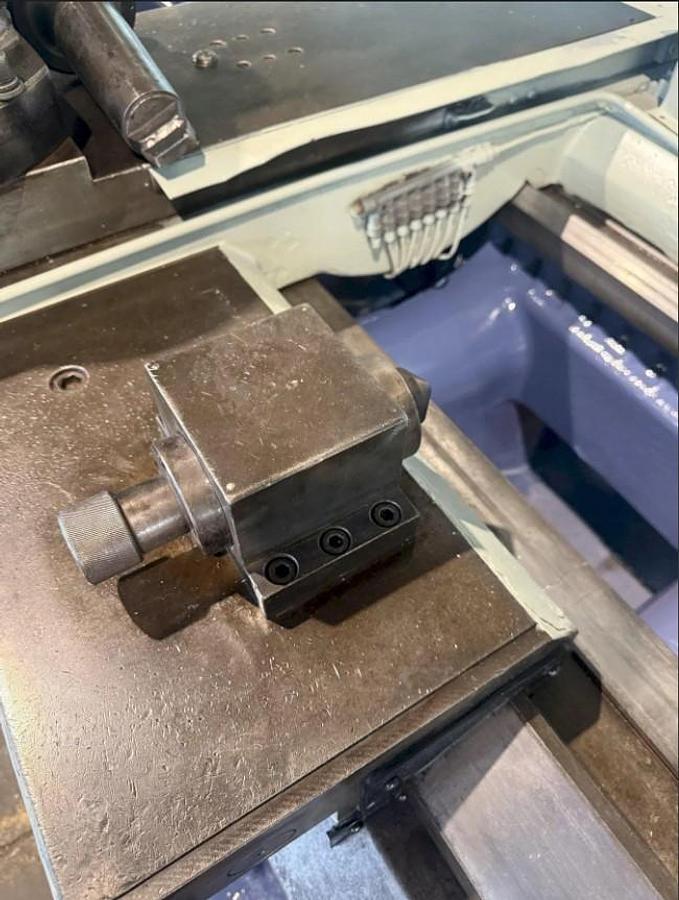

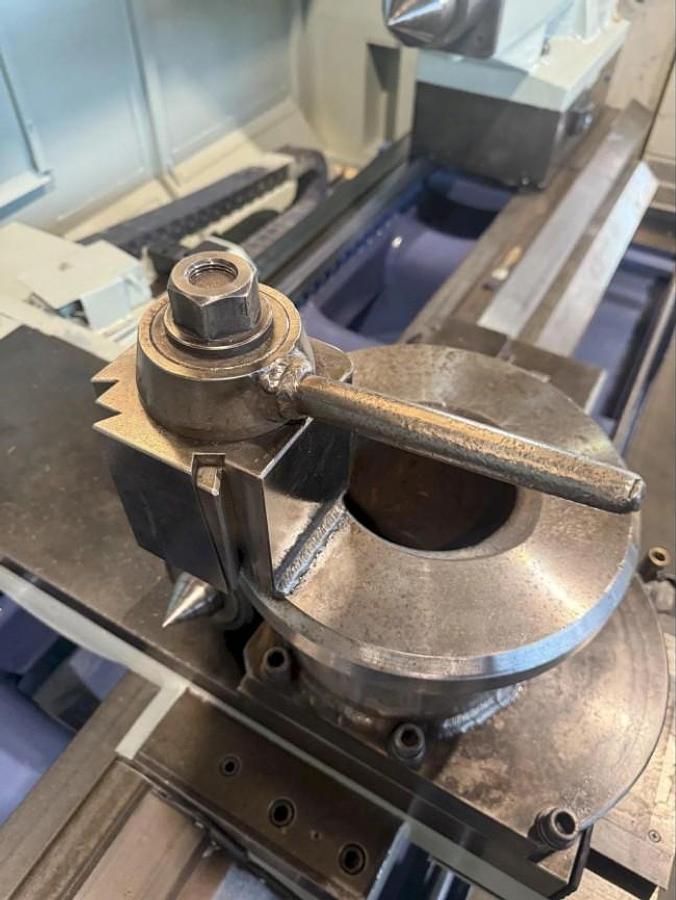

| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates | 236 IPM |

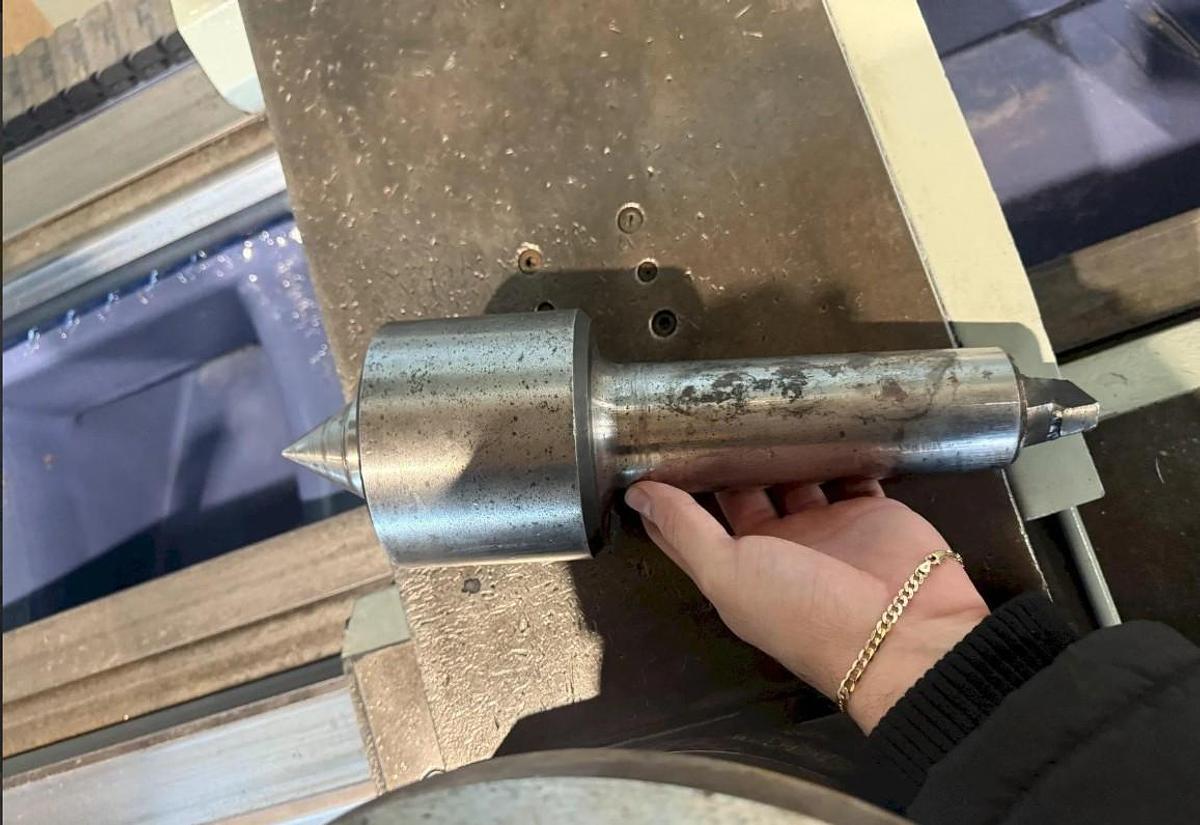

| Tailstock Taper / Quill Travel | MT #6 / 10.2" |
| Machine Dimensions LxWxH | 320"x99"x85" |
| Machine Weight | 30,000 lbs |
