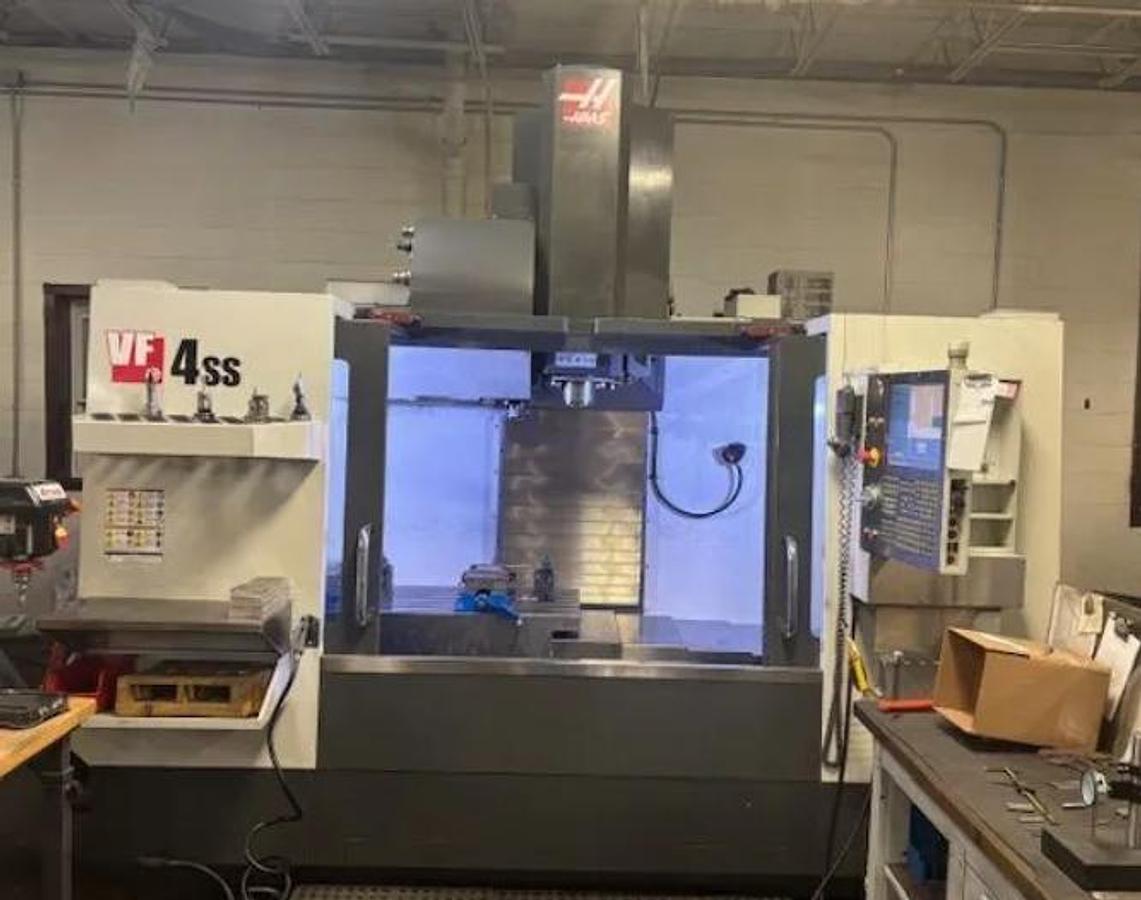

2015 Haas VF-4SS w/Wired for 4th axis, Remote Jog Handle, WIPS Renishaw Tool & Part Probe, Programmable Coolant Nozzle, 1k Coolant Thru the Spindle
2015 Haas VF-4SS w/Wired for 4th axis, Remote Jog Handle, WIPS Renishaw Tool & Part Probe, Programmable Coolant Nozzle, 1k Coolant Thru the Spindle
Contáctenos para conocer el precio
Ubicación:Oklahoma
o
Llamar (863) 439-6066
Descripción
4th Axis Drive & Wiring
WIPS Renishaw Part & Tool Probing
Multi Auger Style Chip Conveyor
Chip Auger
Remote Jog Handle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
High-Speed Machining
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
Ethernet Interface
USB Port Interface
55 Gallon Coolant Tank
1k Thru the Spindle Coolant
Color LCD
RS 232C Port Interface for DNC Operation
Especificaciones
| Fabricante | Haas |
| Modelo | VF-4SS w/Wired for 4th axis, 40 ATC, Remote Jog Handle, Chip Conveyor, WIPS Renishaw Tool & Part Probe, Programmable Coolant Nozzle |
| Año | 2015 |
| Condición | Usado |
| Número de Stock | 120393 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
