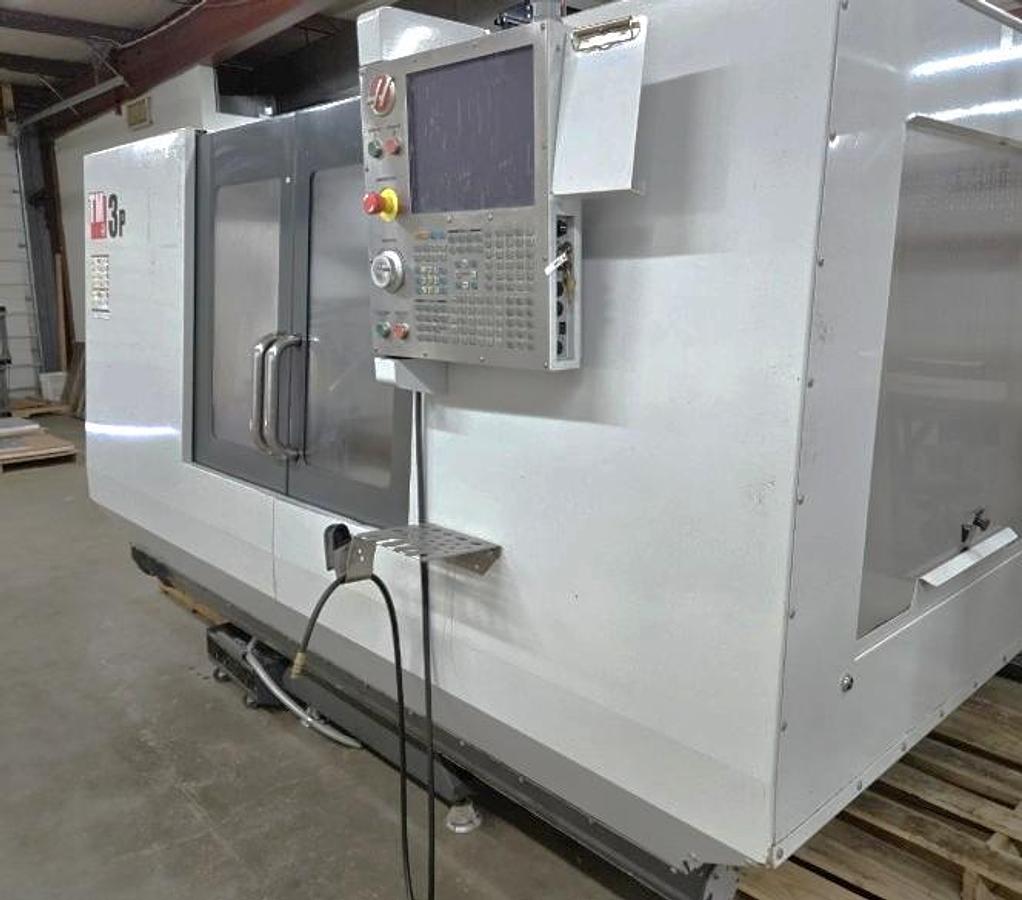

2015 Haas TM-3P, with Probing, 4th Axis Drive, Rigid Tapping, Upgraded High Flow Coolant Pump, 20 Station ATC
2015 Haas TM-3P, with Probing, 4th Axis Drive, Rigid Tapping, Upgraded High Flow Coolant Pump, 20 Station ATC
$28.950 (USD)
Ubicación:Ohio
o
Llamar (863) 439-6066
Descripción
4th Axis Drive & Wiring
Haas Renishaw Wireless Intuitive Probing Package (WIPS)
Spindle Orientation
Coordinate Rotation & Scaling
Visual Programming System
User Definable Macros
20 Station Tool Changer
Rigid Tapping
Upgraded 3/4 HP High Flow Coolant Pump
1 MB Programming System
Memory Key Lock Switch
15" Color LCD Monitor
Flood Coolant System with Tank & Coolant Pump
USB Port Interface
RS232 Port Interface
Brushless Servos
Wired 195-250V Electrics with Either Single or Three Phase Capabilities
**Cycle Start Hours 3,800**
**Feed Cutting Hours 975**
Especificaciones
| Fabricante | Haas |
| Modelo | TM-3P |
| Año | 2015 |
| Condición | Usado |
| Número de Stock | 120391 |
| Table Size | 57.75" x 14.5" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 16" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool Magazine Capacity | 20 Position ATC - Umbrella Style |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 400 IPM |
| Machine Dimensions LxWxH | 120" x 80" x 95" |
| Machine Weight | 5,600 lbs. |
