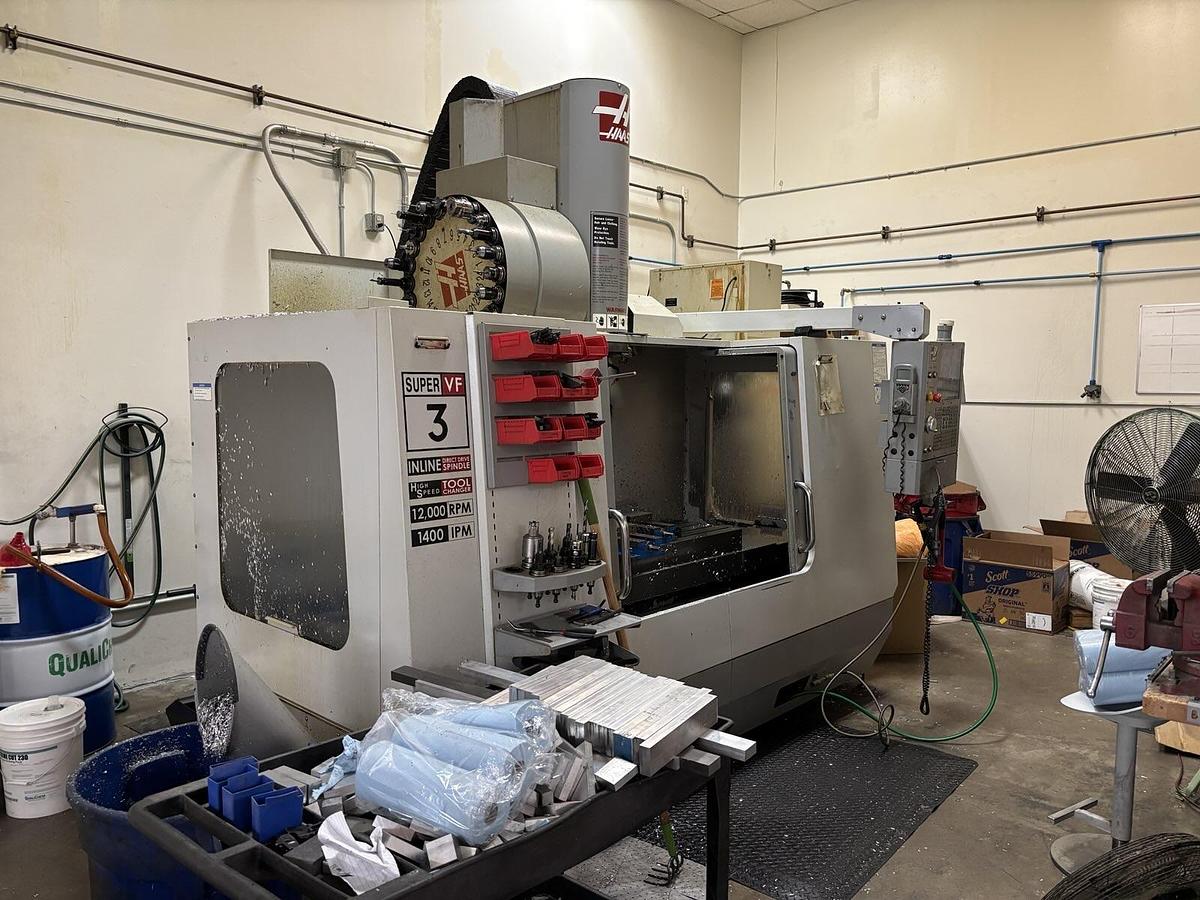

2008 Haas VF-3SS Intuitive Prgramming, Remote Jog Handle LCD, Rigid Tapping, High-Speed Machining, Programmable Coolant Nozzle
2008 Haas VF-3SS Intuitive Prgramming, Remote Jog Handle LCD, Rigid Tapping, High-Speed Machining, Programmable Coolant Nozzle
Contáctenos para conocer el precio
Ubicación:Texas
o
Llamar (863) 439-6066
Descripción
24+1 Position Side Mounted Tool Changer
Software Version M15.06A
Intuitive Programming System
4th Axis Pre Wired
High Speed Machining
Rigid Tapping
Inline Direct Drive 12,000 RPM Spindle
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
Mistbuster
User Definable Macros
Remote Jog Handle LCD
Early Power Failure Detection Module
Programmable Coolant Nozzle
Coolant Tank with Pump
RS 232C Port Interface for DNC Operation
All Available Manuals
Especificaciones
| Fabricante | Haas |
| Modelo | VF-3SS Intuitive Prgramming, Remote Jog Handle LCD, Rigid Tapping, High-Speed Machining, Programmable Coolant Nozzle |
| Año | 2008 |
| Condición | Usado |
| Número de Stock | 120387 |
| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 122" x 98" x 98.5" |
| Machine weight (approximately) | 12,500 lbs. |
