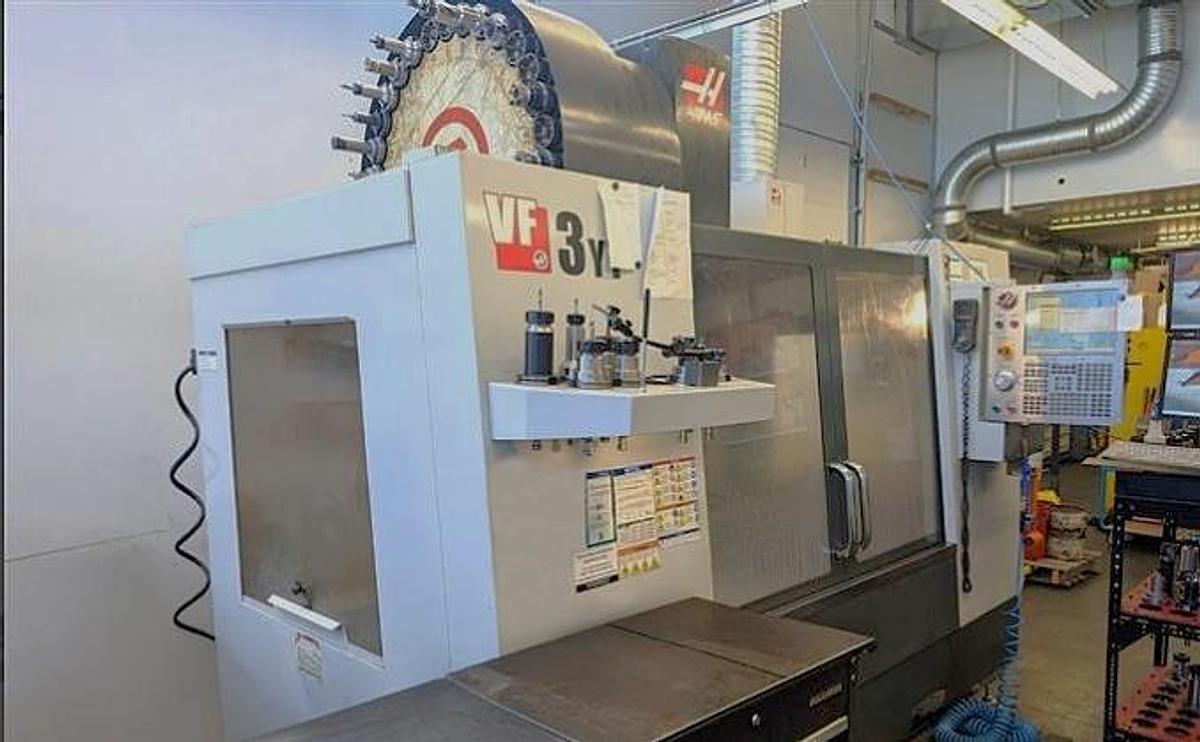

2011 Haas VF-3YT/50 with Probing, 4th Axis Drive, 10,000 RPM, 30 Pos. Side Mount ATC
2011 Haas VF-3YT/50 with Probing, 4th Axis Drive, 10,000 RPM, 30 Pos. Side Mount ATC
$34.950 (USD)
Ubicación:Washington D. C., DC
o
Llamar (863) 439-6066
Descripción
Haas Probing Package
4th Axis Drive & Wiring
10,000 RPM Spindle
50 Taper Spindle Feature
30 Station Side Mounted Tool Changer
Extended Y Axis Travel
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Spindle Orientation
Coordinate Rotation & Scaling
Remote Jog Handle
User Definable Macros
Visual Quick Code Programming
Vector Drive Spindle
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Especificaciones
| Fabricante | Haas |
| Modelo | VF-3YT/50 |
| Año | 2011 |
| Condición | Usado |
| Número de Stock | 120381 |
| Control | Haas CNC Control |
| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 40 HP |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 6.3 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 124" x 105" x 125" |
| Machine Weight | 16,500 lbs. |
