2013 Okuma MB-4000H with Full 4th Axis Rotary Tbl., Tool Probing, High Press. Coolant Thru Spindle, Chip Conveyor, 64 Pos. ATC
2013 Okuma MB-4000H with Full 4th Axis Rotary Tbl., Tool Probing, High Press. Coolant Thru Spindle, Chip Conveyor, 64 Pos. ATC
$79.500 (USD)
Ubicación:Míchigan
Descripción
2 Pallet Changer System
Full 4th Axis Rotary Table
64 Station Tool Changer
Chip Blaster High Pressure Coolant Through the Spindle
15,000 RPM Spindle
Tool Probing
Chip Conveyor
Flood Coolant
Tool Breakage Detection
Rigid Tapping
Spindle Chiller Unit with Filters
Remote Jog Handle
USB Port Interface
RS 232 Port Interface
Wired 220/480V Electrics
Linear Guide Rail Design
All Available Manuals
**Spindle Replaced in 2022**
**Z Axis Ballscrew Replaced in 2024**

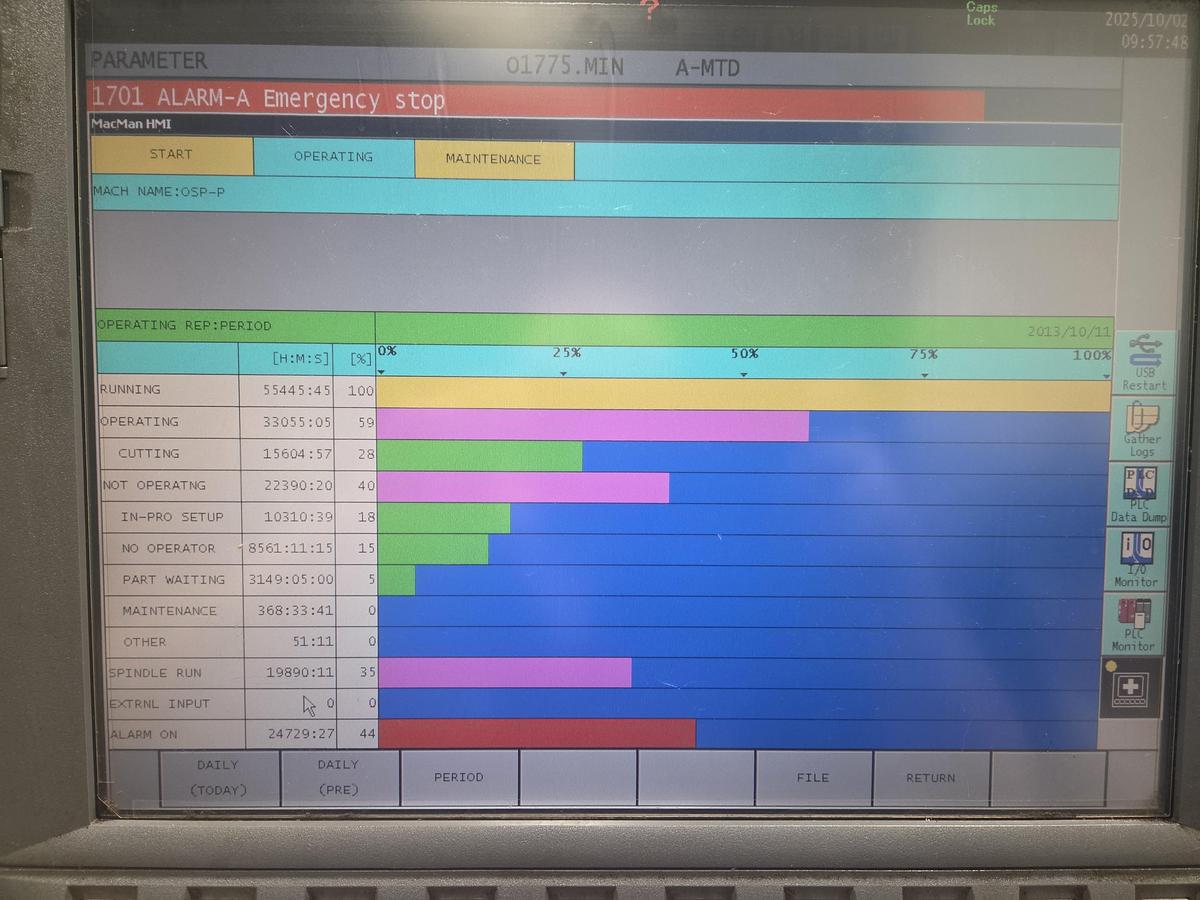

**Cutting Hours 15,604**
**Spindle Run Hours 19,890**
**Manufactured New in September of 2013**
**(3) Units Available from Same Plant, The Other (2) are a 2019 and Another 2013, All Equipped the Same Way**
**All Units Have Exclusively Run the Same Part. Materials Cut Include SAE1126M, 86L20 and 8620H**
Especificaciones
| Fabricante | Okuma |
| Modelo | MB-4000H |
| Año | 2013 |
| Condición | Usado |
| Número de Stock | 120356 |
| Machine Control | Okuma OSP P-300MA Control |
| Table Size / Number of Pallets | 15.75" x 15.75" / 2 Pallet Changer |
| Maximum Workpiece Dimensions | 23.62" x 35.43" |
| Maximum Table Load | 880 lbs |
| Pallet Indexing | .001 Degrees Full 4th |
| X-Axis Travel | 22.05" |
| Y-Axis Travel | 22.05" |
| Z-Axis Travel | 24.61" |
| Spindle Speed | 50 - 15,000 RPM |
| Spindle Taper | CAT 40 Taper |
| Spindle Motor | 35 HP |
| Spindle Center to Table Top | 1.97" - 24.02" |
| Spindle Nose to Pallet Center | 3.35" - 27.95" |
| Tool Magazine Capacity | 64 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.91" / 11.81" / 22 lbs. |
| Rapid Traverse Rates | 2,362 IPM |
| Cutting Feedrates | 2,362 IPM |
| Machine Dimensions LxWxH | 186" x 96" x 106" |
| Machine Weight | 21,000 lbs |
